Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10212195 Instructions,
Installation
W10260096 Energy Guide
W10157785 Guide, Use & Care
2
99002693 Insulation, Door
3
99003048 Barrier, Foam
4
Block, Foam
99003046 Left
99003047 Right
5
99003049 Wrap, Foam
4−11 Litho in U.S.A. (cre)(bay)

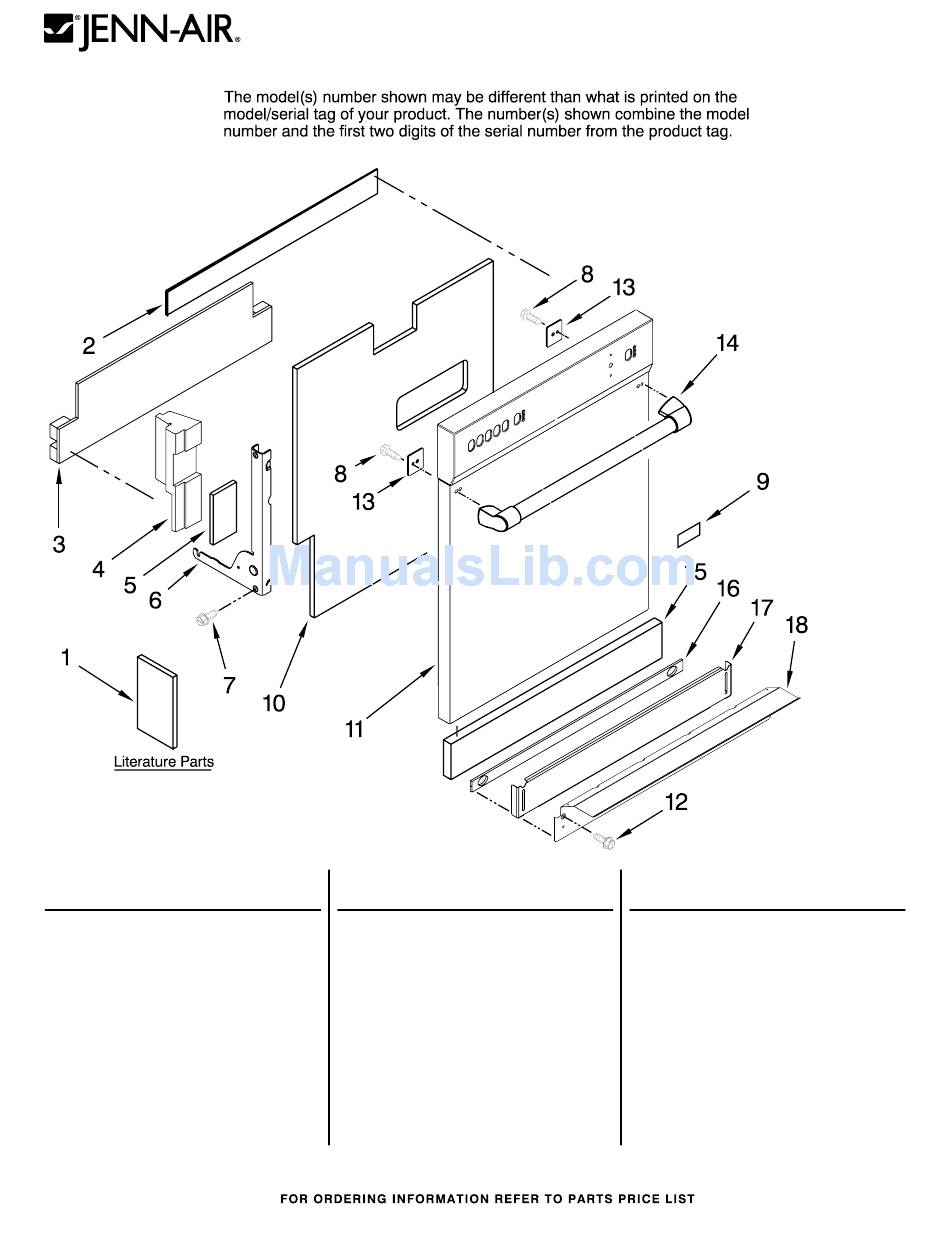

DOOR AND PANEL PARTS
For Models: JDB2150AWP1
(Stainless Pro−Style)
Illus.
Part
No.
No.
DESCRIPTION
6
Bracket, Hinge
W10118638 Left
W10118637 Right
7
99001075 Screw
8
99003154 Screw
9 W10114211 Nameplate
10
99003044 Insulation, Door
11
99003126 Panel, Front
12
Screw
912366 Black
99001194 White
13 W10167659 Plate, Handle
Black
Illus.
No.
14
15
16
17
18
1
UNDERCOUNTER
DISHWASHER
Part
No.
DESCRIPTION
99003125 Handle, Door
99002414 Insulation, Toe
Panel
Damper, Toe Panel
99002694 Black
99002698 White
Panel, Toe
(Includes Item 16)
99002765 Black
99002766 White
99002859 Support, Front
Part No. W10267601 Rev. B
Advertisement
Related Manuals for Jenn-Air JDB2150AWP1
Summary of Contents for Jenn-Air JDB2150AWP1
- Page 1 DOOR AND PANEL PARTS UNDERCOUNTER DISHWASHER For Models: JDB2150AWP1 (Stainless Pro−Style) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Bracket, Hinge Literature Parts 99003125 Handle, Door W10118638 Left W10212195 Instructions, 99002414 Insulation, Toe W10118637 Right Installation Panel 99001075 Screw W10260096 Energy Guide Damper, Toe Panel 99003154 Screw...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: JDB2150AWP1 (Stainless Pro−Style) Illus. Part DESCRIPTION 99002575 Housing, Board (Top) 2 W10218827 Board, Control 99002576 Housing, Board 99003121 Panel, Inner Control 99002751 Switch, Door 99003347 Latch, Assembly 99003122 Controls, UI W10267601... - Page 3 DOOR AND LATCH PARTS For Models: JDB2150AWP1 (Stainless Pro−Style) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 99003308 Harness, Wiring 99003320 Dispenser, Rinse 99002465 Bracket, Dispenser 99003045 Seal, Door 912615 Screw (Bottom) Y912620 Screw, Door 99003044 Insulation, Door 99003060 Cap, Rinse Aid 6 W10203664 Inner Door W/ Damper W10267601...
- Page 4 LOWER WASHARM PARTS For Models: JDB2150AWP1 (Stainless Pro−Style) Illus. Part DESCRIPTION 99003083 Cap, Wash Arm 99003144 Wash Arm, Lower (Includes Item 3) 3 W10218606 Shield, Radiant W10267601...
-
Page 5: Heater Parts
HEATER PARTS For Models: JDB2150AWP1 (Stainless Pro−Style) Illus. Part DESCRIPTION 99002971 Heater Element Assembly W/ Gasket 99003033 Nut, Heater 99003032 Bracket, Heater Support NOTE: If heater element is removed, it must be replaced. W10267601... - Page 6 FILL AND OVERFILL PARTS For Models: JDB2150AWP1 (Stainless Pro−Style) Illus. Part DESCRIPTION 99002852 Hose, Inlet 911856 Clamp, Spring 99002975 Valve, Water 4 W10205539 Switch, Float 99002652 Hose, Drain 6 W10130099 Float 99003028 Inlet, Air/Water 99003037 Standpipe, Float 99003040 Seal, Standpipe 10 W10130109 Holder, Float Switch W10267601...
- Page 7 TUB AND FRAME PARTS For Models: JDB2150AWP1 (Stainless Pro−Style) W10267601...
- Page 8 TUB AND FRAME PARTS For Models: JDB2150AWP1 (Stainless Pro−Style) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10119337 Strike, Door Gap Seal, 23 W10143258 Leg, Leveling 99002648 Bracket, Cabinet Toe Kick 24 W10164700 Strip,Trim Left Mounting 99002701 Black 99002638 Cover, Junction 6−912799 Screwr 99002703 White...
- Page 9 PUMP AND MOTOR PARTS For Models: JDB2150AWP1 (Stainless Pro−Style) W10267601...
- Page 10 PUMP AND MOTOR PARTS For Models: JDB2150AWP1 (Stainless Pro−Style) Illus. Part DESCRIPTION 99002666 Screw 2 W10166790 Guard, Filter 99002668 Screw 99003145 Discharge, Housing Assembly 99002659 Wash Impeller Assembly 6 W10192800 Filter/Flowplate, Assembly 99003055 Gasket, Motor Mount 99003056 Lever, Motor Mount 99003057 Plunger, Motor Mount 99002651 O−Ring, Turbidity...
- Page 11 UPPER AND LOWER RACK PARTS For Models: JDB2150AWP1 (Stainless Pro−Style) W10267601...
- Page 12 UPPER AND LOWER RACK PARTS For Models: JDB2150AWP1 (Stainless Pro−Style) Illus. Part DESCRIPTION 1 W10214025 Dishrack, Upper 2 W10144736 Rail, Inner Slide 99003148 Wheel Assembly 99003252 Shelf, Cup 5 W10201707 Basket, Auxiliary 99003282 Stop, Rail 99003070 Wash Arm 99003142 Wash Manifold Assembly 99003071 Clip, Upper Wash Manifold (Back)
- Page 13 UPPER WASH AND RINSE PARTS For Models: JDB2150AWP1 (Stainless Pro−Style) Illus. Part DESCRIPTION 99003081 Feed Tube Assembly 99002643 Bracket 99002753 Retainer, Top Wash Arm 99003143 Station, Docking (with Flapper) 99002911 Wash Arm, Top (with Retainer) W10267601...
- Page 14 OPTIONAL PARTS (NOT INCLUDED) For Models: JDB2150AWP1 (Stainless Pro−Style) Illus. Part DESCRIPTION INSTALLATION KIT 8212488RC Kit, Installation (Includes Power Cord, 6 Ft. Fill Hose and Necessary Hardware for Installation) 4396897RP Kit, Installation (Includes 6 Ft. Fill Hose and Necessary Hardware for Installation) Moisture Barrier Kit 4396277 Kit...
