Epson RS-232 Manual

Epson pro cinema projector installer guide.


Installer Guide
Follow these instructions to set up the Epson PowerLite
Pro Cinema projector and HQV Video Processor
1. Unpack the projector and video processor. Attach the serial number sticker included with
the video processor to the User Manual for that product.
2. Choose a location for the projector as described in the projector User's Guide.

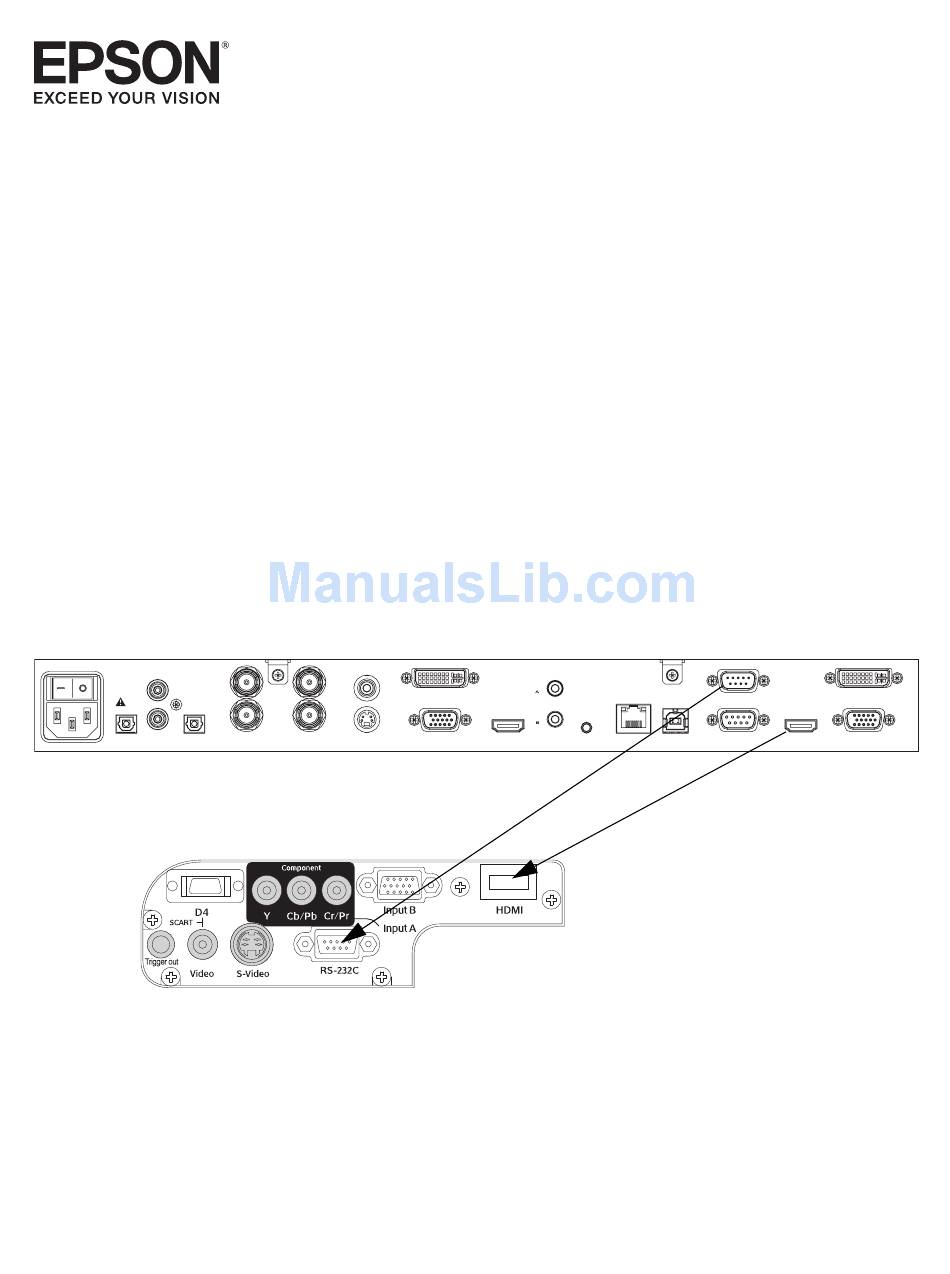

3. Connect an HDMI cable from the video processor to the projector.
Video processor
Projector
4. If you want the video processor to be able to turn the projector on or off, connect an
9-pin, null-modem RS-232 cable from the video processor to the projector.
5. Plug in the power cord for the video processor. Make sure batteries are installed in the
video processor remote control.
6. Turn on the power switch on the back of the video processor (above the AC power inlet).
®
RS-232 (SLAVE)
HDMI OUT
®

Summary of Contents

  • Page 1

    Video processor Projector 4. If you want the video processor to be able to turn the projector on or off, connect an 9-pin, null-modem RS-232 cable from the video processor to the projector. 5. Plug in the power cord for the video processor. Make sure batteries are installed in the video processor remote control.

  • Page 2

    8. Remove the protective lens pad from the projector, then remove the lens cap. 9. Plug in the power cord. Make sure batteries are installed in the projector remote control. 10. Turn on the power switch on the back of the projector, then press the remote control.

  • Page 3

    Focus ring 12. Position the image using the lens shift dials. Caution: Do not try to move the lens by hand, or you may damage the projector. Always use the lens shift dials to change the lens position. 13. If the projector is ceiling mounted, you need to invert the image. Press the on the projector remote control and select 14.

  • Page 4

    Trademarks Epson is a registered trademark and Exceed Your Vision is a trademark of Seiko Epson Corporation. PowerLite is a registered trademark of Epson America, Inc. General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners.
