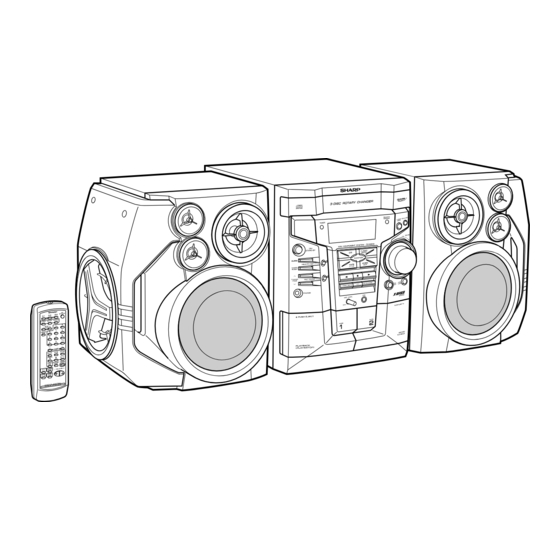

Sharp CD-E800W Operation Manual

Mini component system
Hide thumbs Also See for CD-E800W:
Table of Contents

Advertisement

Quick Links

MINI COMPONENT SYSTEM
MODEL
CD-E800W
OPERATION MANUAL
Thank you for purchasing this SHARP product.
To obtain the best performance from this product, please
read this manual carefully. It will guide you in operating
your SHARP product.
CD-E800W Mini Component System consisting of
CD-E800W (main unit) and CP-E800 (speaker system).
03/8/27
CD-E800W(A)FR.fm
1
CD-E800W(A) TINSE0908AWZZ
TINSE0908AWZZ

Advertisement

Table of Contents
loading

Related Manuals for Sharp CD-E800W

Summary of Contents for Sharp CD-E800W

  • Page 1 CD-E800W(A) TINSE0908AWZZ Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating MINI COMPONENT SYSTEM your SHARP product. CD-E800W Mini Component System consisting of CD-E800W (main unit) and CP-E800 (speaker system).

  • Page 2: Special Notes

    Copyright may exist in material you wish to record. Copying or broadcasting such material without permission of the relevant lic- ensees or owners of the copyright is prohibited by law. SHARP is not in a position to authorise the copying or broadcasting of copy- right materials and nothing in this OPERATION MANUAL should be implied as giving that authority.

  • Page 3: Table Of Contents

    CD-E800W(A) TINSE0908AWZZ Accessories Contents CD-E800W Please confirm that the following accessories are included. Page " General Information Precautions ......... 3 Controls and indicators .

  • Page 4: Precautions

    SHARP will not be held responsible for any damage resulting from use of this unit with a voltage other than that 10 cm (4") 10 cm (4")

  • Page 5: Controls And Indicators

    Controls and indicators CD-E800W " Front panel Reference page 1. Disc Tray ........13 2.
  • Page 6 Controls and indicators (continued) CD-E800W " Display 4 5 6 7 1. CD Pause Indicator 2. Extra Bass Indicator 3. Disc Number Indicators 4. Tape 2 Record Indicator 5. FM Stereo Mode Indicator 6. FM Stereo Receiving Indicator 7. Timer Play Indicator 14 15 16 8.
  • Page 7 CD-E800W ! Remote control Reference page 1. Remote Control Transmitter ......10 2. Disc Number Select Buttons ....13, 16, 23 3.

  • Page 8: System Connections

    System connections CD-E800W ! Aerial connection Supplied FM aerial: FM aerial Connect the FM aerial wire to the FM 75 OHMS terminal and posi- tion the FM aerial wire in the direction where the strongest signal can be received. AM loop aerial Supplied AM loop aerial: Connect the AM loop aerial to the AM LOOP socket.

  • Page 9: Speaker Connection

    CD-E800W ! Speaker connection ! Connecting the AC power lead Connect the black wire to the minus (-) terminal, and the red wire to After checking all the connections have been made correctly, plug the plus (+) terminal. the AC power lead of this unit into the wall socket. If you plug the unit first, the unit will enter the demonstration mode (see page 9).

  • Page 10: System Connections

    System connections (continued) CD-E800W ! Setting the FM/AM span selector ! Demonstration mode The first time the unit is plugged in, the unit will enter the demonstration mode. You will see words scroll. To cancel the demonstration mode: When the unit is in the power stand-by mode (demonstration mode), press the X-BASS/DEMO button.

  • Page 11: Remote Control

    CD-E800W(A) TINSE0908AWZZ Remote control CD-E800W ! Battery installation Notes concerning use: " Replace the batteries if the operating distance is reduced or if the 1 Remove the battery cover. operation becomes erratic. Purchase 2 "AA" size batteries (UM/ 2 Insert the batteries according to the direction indicated in SUM-3, R6, HP-7 or similar).

  • Page 12: Sound Control

    Sound control CD-E800W ! Bass control When the power is first turned on, the unit will enter the extra bass mode which emphasises the bass frequencies, and "X-BASS" will appear. To cancel the extra bass mode, press the X-BASS/DEMO (X-BASS) button. X-BASS indicator ! Equaliser When the EQUALIZER (EQUALIZER MODE) button is pressed, the...

  • Page 13: Setting The Clock

    Setting the clock CD-E800W Press the TUNING/TIME ( ) button to adjust the hour and then press the MEMORY/SET button. " Press the TUNING/TIME ( ) button once to advance the time by 1 hour. Hold it down to advance continuously. "...

  • Page 14: Listening To A Cd (Cds)

    Listening to a CD (CDs) CD-E800W This system can also play audio CD-R and CD-RW discs, but can- Place the CD(s) on the disc tray, label side up. not record. Some audio CD-R and CD-RW discs may not be playable due to the When loading a third disc, press the DISC SKIP button to state of disc or the device that was used for recording.
  • Page 15 CD-E800W ! To locate the beginning of a track To interrupt playback: Press the CD button on the remote control. To move to the beginning of the next track: To resume playback from the same point, press the button. Press the button for less than 0.5 seconds during playback.

  • Page 16: Advanced Cd Playback

    Advanced CD playback CD-E800W ! Direct search of the track ! Repeat play By using the direct search buttons, the desired tracks can be played. All tracks on up to 3 discs, or a programmed sequence can be con- tinuously repeated. Whilst in the stop mode, press one of the 3 buttons To repeat all tracks on up to 3 discs:...

  • Page 17: Programmed Play

    CD-E800W ! Programmed play To clear the programmed selections: Whilst the "MEMORY" indicator is lit, set the You can choose up to 32 selections for playback in the order you CD to the stop mode and then press the like. CLEAR button.

  • Page 18: Listening To The Radio

    Listening to the radio CD-E800W Press the TUNING/TIME ( ) button to tune in to the de- sired station. Manual tuning: Press the TUNING/TIME button as many times as required to tune in to the desired station. Auto tuning: When the TUNING/TIME button is pressed for more than 0.5 seconds, scanning will start automatically and the tuner will stop at the first receivable broadcast station.

  • Page 19: Memorising A Station

    CD-E800W ! Memorising a station ! To recall a memorised station You can store 40 AM and FM stations in memory and recall them at Press the PRESET ( ) button for less than 0.5 seconds to the push of a button. (Preset tuning) select the desired station.

  • Page 20: Listening To A Cassette Tape (Tape 1)

    Listening to a cassette tape (TAPE 1) CD-E800W Before playback: Press the ON/STAND-BY button to turn the power on. " For playback, use normal or low-noise tapes for the best sound. (Metal or CrO tapes are not rec- Press the TAPE (1 2) button to select TAPE 1.

  • Page 21: Listening To A Cassette Tape (Tape 2)

    Listening to a cassette tape (TAPE 2) CD-E800W Load a cassette into the TAPE 2 cassette compartment with side A facing you. Press the button to choose one side or both sides..To listen to both sides..For endless repeat play of both sides..

  • Page 22: Playing Karaoke

    Playing karaoke CD-E800W You can enjoy karaoke to CDs, radio, cassettes, and other external Press the ON/STAND-BY button to turn the power on. devices by connecting a separately available microphone to this unit. Press the CD, TUNER (BAND), TAPE (1 2) or VIDEO/AUX button to select the audio source and play it.
  • Page 23 CD-E800W " To change the audio mode " To change general stereo source to karaoke Sound of the playback source can be switched among the STE- source REO, L-CH, R-CH, and V-CANCEL (VOCAL CANCEL) modes. Even ordinary discs and tapes not recorded specifically for karaoke The audio mode function is used when the left and right channels can be used for karaoke just by toning down the main vocal.

  • Page 24: Recording To A Cassette Tape

    Press the ON/STAND-BY button to turn the power on. ! SHARP is not liable for damage or loss of your recording arising from malfunction of this unit. Load a cassette into the TAPE 2 cassette compartment with ! The volume and sound controls can be adjusted with no effect on side A facing you.

  • Page 25: Recording From The Radio

    CD-E800W " Dubbing from tape to tape Note: Whilst recording, OPEN/CLOSE button is deactivated. It is recom- You can record from TAPE 1 to TAPE 2. mended to perform CD recording after closing the disc tray. Press the ON/STAND-BY button to turn the power on. Auto restart function: If the recording side is switched from side A to B during recording, Load a prerecorded cassette into the TAPE 1 cassette com-...

  • Page 26: Timer And Sleep Operation

    Timer and sleep operation CD-E800W " Timer playback or timer recording Timer playback: The unit turns on and plays the desired source (CD, tuner, tape) at Before setting timer: the preset time. 1 Press the CLOCK button to check that the clock is set to the correct time.
  • Page 27 CD-E800W To reset or change the timer setting: Press the TUNING/TIME ( ) button to specify the hour Perform "Timer playback or timer recording" from the beginning. to start, then press the MEMORY/SET button. Note: When performing timer playback or recording using another unit connected to the VIDEO/AUX IN sockets, select "VIDEO/AUX"...

  • Page 28: Timer And Sleep Operation

    Timer and sleep operation (continued) CD-E800W ! Sleep operation ! To use timer and sleep operation together Example: To fall asleep and wake up to the same radio station Play back the desired sound source. You can play back the same source only (the function cannot be switched).

  • Page 29: Enhancing Your System

    Enhancing your system CD-E800W ! To record on a tape The connection lead is not included. Purchase a commercially avail- able lead as shown below. Insert a cassette in the TAPE 2 cassette compartment. VCR, DVD, etc. Press the VIDEO/AUX button. Press the REC PAUSE (TAPE-2 ) button.

  • Page 30: Troubleshooting Chart

    Possible cause If something is wrong with this product, check the following before " The radio makes unusual " Is the unit placed near the TV or calling your authorised SHARP dealer or service centre. noises continuously. computer? ! General "...
  • Page 31 CD-E800W ! Karaoke ! Clearing all the memory (reset) 1 Press the ON/STAND-BY button to enter the power stand-by Symptom Possible cause mode. " The vocal part of a multi- " Is the karaoke mode set to "L- 2 Whilst pressing down the button and the X-BASS/DEMO but- plexed disc is not heard.

  • Page 32: Maintenance

    Specifications CD-E800W ! Cleaning the tape-handling parts As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product " Dirty heads, capstans or pinch rollers can cause poor sound and improvement without prior notice. The performance specification fig- tape jams.
  • Page 33 CD-E800W ! CD player ! Speaker Type 3-disc multi-play compact disc player Type 3-way 4-speaker system with passive radia- Signal readout Non-contact, 3-beam semiconductor laser pickup Super tweeter 2 D/A converter 1-bit D/A converter 5 cm (2") tweeter Frequency 20 - 20,000 Hz 16 cm (6-1/2") woofer response 16 cm (6-1/2") passive radiator...
  • Page 34 MEMO 03/8/27 CD-E800W(A)MEMO.fm TINSE0908AWZZ...
  • Page 35 Consumer Electronic Products Congratulations on Your Purchase! This Sharp product is warranted against faults in materials and manufacture for a period of twelve (12) months from the date of original purchase. If service is required during the warranty period, please contact your nearest Sharp Approved Service Centre.
  • Page 36 IMPORTANT DO NOT RETURN THIS PAGE TO SHARP For your reference, please enter the particulars of your purchase below and retain, with your purchase documentation. Model No. Serial No. Date of Purchase Retailer FOR LOCATION ENQUIRIES WITHIN FOR PRODUCTS PURCHASED IN...
