CRAFTSMAN
CIRCULAR
SAW - MODEL NUMBER 315.108350
I
he model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence
regarding your |
CIRCULAR SAW or when ordering repair parts.
I
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS

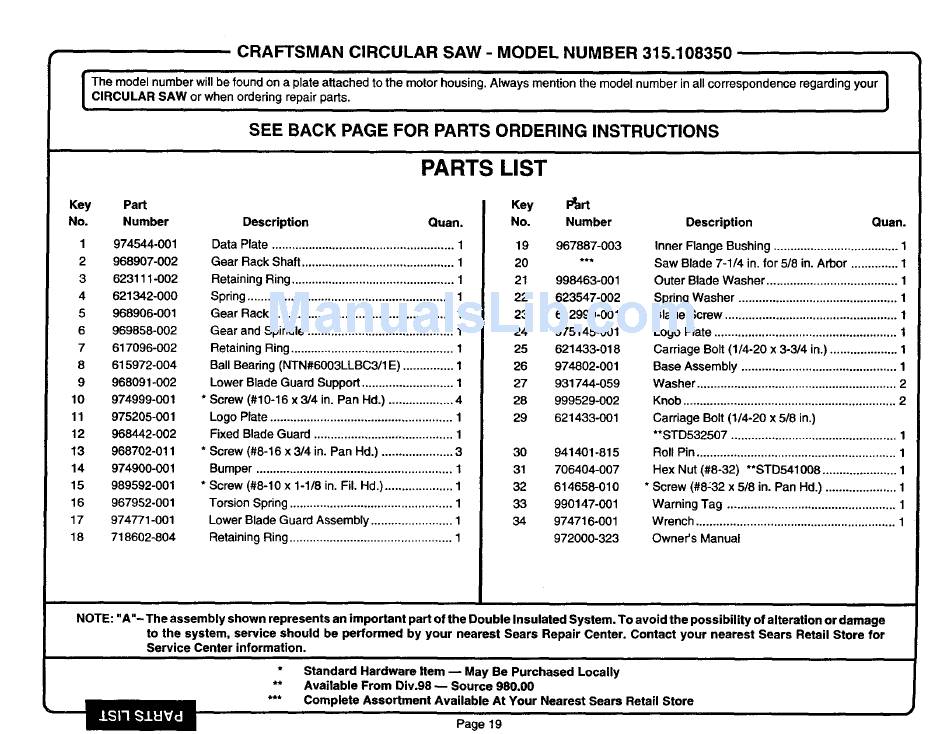

PARTS LIST
Key
Part
No.
Number
1
974544-001
2
968907-002
3
623111-002
4
621342-000
5
968906-001
6
969858-002
7
617096-002
8
615972-004
9
968091-002
10
974999-001
11
975205-001
12
968442-002
13
968702-011
14
974900-001
15
989592-001
16
967952-001
17
974771-001
18
718602-804
Description
Quan.
Data Plate ......................................................
1
Gear Rack Shaft .............................................
1
Retaining Ring ................................................
1
Spring .............................................................
1
Gear Rack ......................................................
1
Gear and Spindle ...........................................
1
Retaining Ring ................................................
1
Ball Bearing (NTN#6003LLBC3/1
E) ............... 1
Lower Blade Guard Support ...........................
1
* Screw (#10-16 x 3/4 in. Pan Hd.) ................... 4
Logo Plate ......................................................
1
Fixed Blade Guard .........................................
1
* Screw (#8-16 x 3/4 in. Pan Hd.) ..................... 3
Bumper ..........................................................
1
* Screw (#8-10 x 1-1/8 in. Fil. Hd.) .................... 1
Torsion Spring ................................................
1
Lower Blade Guard Assembly ........................
1
Retaining Ring ................................................
1
Key
Ptart
No.
Number
Description
19
967887-003
20
***
21
998463-001
22
623547-002
23
612999-001
24
975145-001
25
621433-018
26
974802-001
27
931744-059
28
999529-002
29
621433-001
30
941401-815
31
706404-007
32
614658-010
33
990147-001
34
974716-001
972000-323
Quan.
Inner Flange Bushing .....................................
1
Saw Blade 7-1/4 in. for 5/8 in. Arbor .............. 1
Outer Blade Washer .......................................
1
Spring Washer ...............................................
1
Blade Screw ...................................................
1
Logo Plate ......................................................
1
Carriage Bolt (1/4-20 x 3-3/4 in.) .................... 1
Base Assembly ..............................................
1
Washer ...........................................................
2
Knob ...............................................................
2
Carriage Bolt (1/4-20 x 5/8 in.)
**STD532507 .................................................
1
Roll Pin ...........................................................
1
Hex Nut (#8-32) **STD541008 ...................... 1
* Screw (#8:32 x 5/8 in. Pan Hd.) ..................... 1
Warning Tag ..................................................
1
Wrench ...........................................................
1
Ownecs Manual
NOTE: "A"- The assembly shown represents an important part of the Double Insulated System. To avoid the possibility of alteration or damage
to the system, service should be performed
by your nearest Sears Repair Center. Contact your nearest Sears Retail Store for
Service Center information.
*
Standard Hardware item -- May Be Purchased Locally
**
Available From Div.98 -- Source 980.00
***
Complete Assortment
Available At Your Nearest Sears Retail Store
lk-']lll
L- -'_q_d_.m
Page 19
