b®
Grilling's Juicy Little Secret
TM

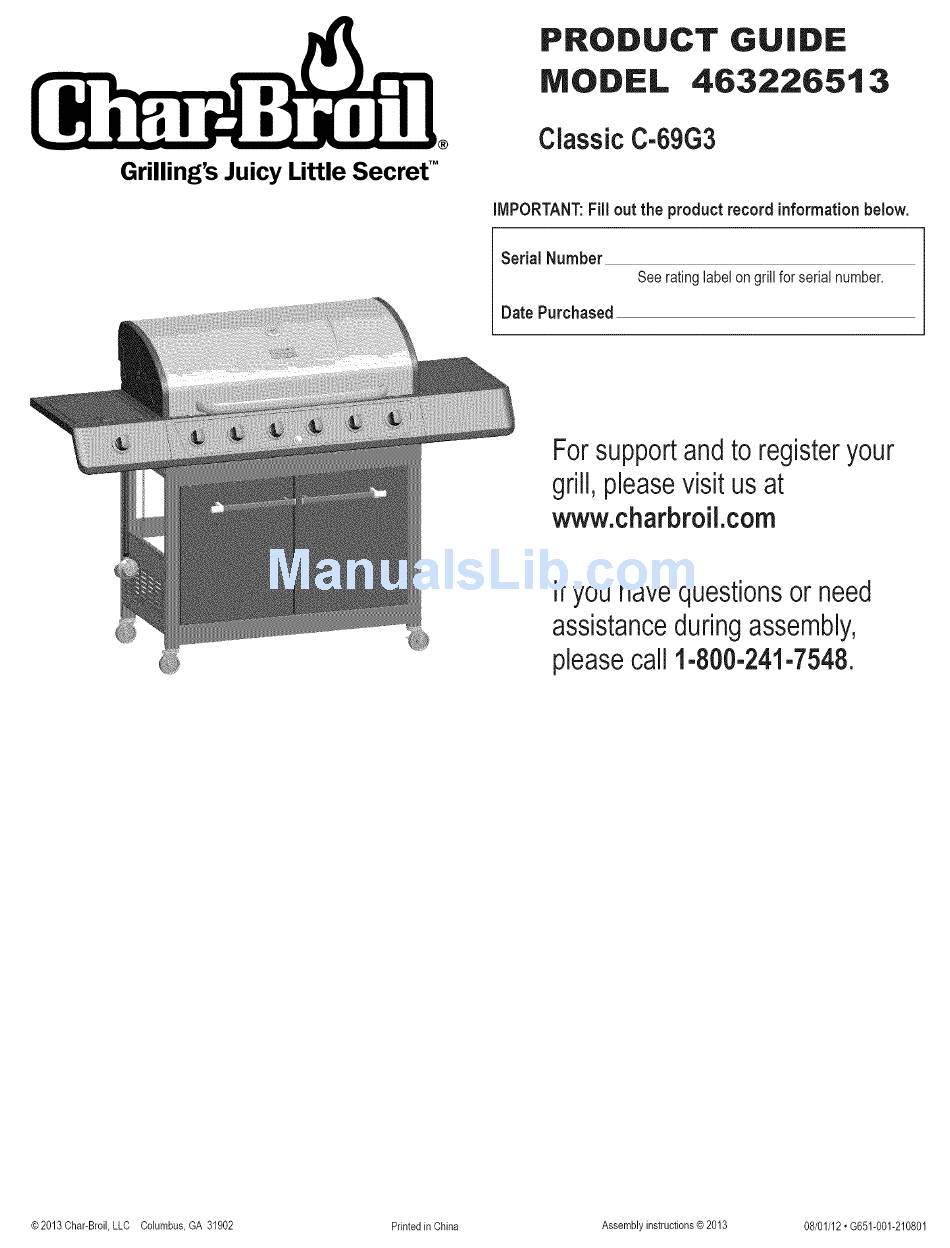

PRODUCT
GUIDE
MODEL
463226513

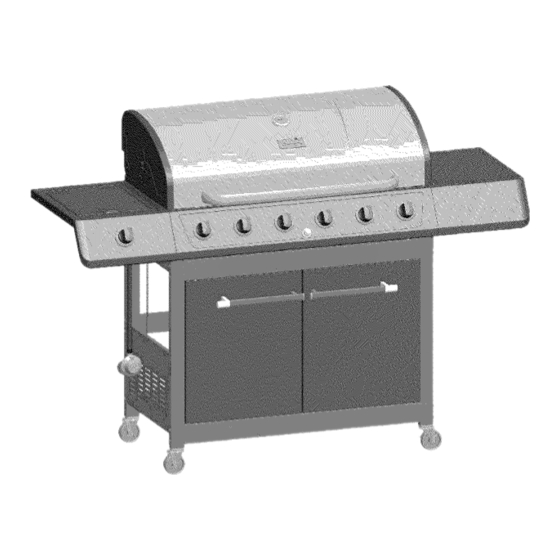

Classic C-69G3
IMPORTANT: Fill out the product record information below.
Serial Number
See ratinglabelon grill for serial number.
Date Purchased
For supportand to registeryour
grill, pleasevisit us at
www.charbroil.com
If you havequestionsor need
assistanceduringassembly,
pleasecall 1-800-241-7548.
© 2013 Char-Broil,LLC Columbus,GA 31902
Printed in China
Assembly instructions© 2013
08/01/12. G651-001-210801

Advertisement

Table of Contents
loading

Related Manuals for Char-Broil 463226513

Summary of Contents for Char-Broil 463226513

  • Page 1 IMPORTANT: Fill out the product record information below. Serial Number See ratinglabelon grill for serial number. Date Purchased For supportand to registeryour grill, pleasevisit us at www.charbroil.com If you havequestionsor need assistanceduringassembly, pleasecall 1-800-241-7548. © 2013 Char-Broil,LLC Columbus,GA 31902 Printed in China Assembly instructions© 2013 08/01/12. G651-001-210801...
  • Page 2 ill,, ForYourSafety........If you smell gas: GrillingGuide........1. Shut off gas to the appliance. Useand Care ........8-14 2. Extinguish any open flame. LimitedWarranty ........3. Open lid. PartsList.......... 4. If odor continues, keep away from the appliance and immediately call your gas PartsDiagram ........

  • Page 3: California Proposition

    CAUTION CALIFORNIA P ROPOSITION 65 Using pots larger than 6 quarts in capacity could exceed weight limit of the 1.Combustible by-products produced whenusing this productcontainschemicals knownto theState or side shelf, of California to causecancer, b irthdefects,or resulting in failure otherreproductive harm. This product contains chemicals, including lead and lead compounds, known to the State of California to cause cancer, birth defects or...
  • Page 4 Temperature - Convective Grills ONLY. The temperature gauge in the hood of your new grill measures air temperature. The air temperature inside your grill will never First Time Use be as hot as the temperature at the cooking surface. Read yourAssembly Manual and ensure the grill is put together properly.

  • Page 5: Food Safety

    Rotisserie C ooking Rotisserie cooking is best for'round' meat, such aslarge roasts, whole poultry, andpork.Itgenerally requires anaccessory motor Outdoor grilling i sreally q uite simple. You'll succeed with and spitrodthatallows t hemeat tobeturned a taconstant burgers, dogs, o rsteaks u sually o nyour v ery first t ry.With speed.
  • Page 6 Wood Chips For extra smoke flavor when grilling, try adding wood chips. Cooking onyour n ew grill i sahands-on experience, anditis Soak the chips in water for approximately 30 minutes before recommended toremain o utside w ithyour g rill w hile cooking. adding to a smoke box or pan.

  • Page 7: Routine Care

    Use non-abrasive scouring powder for stubborn stains. The Char-Broil® grill is equipped with Gear Trax which allow for the easy mounting of our unique line of Gear Trax Painted surfaces: Wash with mild detergent or non-abrasive accessories.
  • Page 8 LP Cylinder •The LP cylinder used with your grill must meet the following requirements: •Use LP cylinders only with these required measurements: 12" (30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum. • NEVER store a spare LP cylinder under or near •LP cylinders must be constructed and marked in accordance the appliance or in an enclosed area.
  • Page 9 LP Cylinder Exchange Connecting Regulator to the LP Cylinder •Many retailers that sell grills offer you the option of replacing I.LP cylinder must be properly secured onto grill. (Refer to your empty LP cylinder through an exchange service. Use only assembly section.) those reputable exchange companies that inspect, precision fill, 2.Turn all control knobs to the OFF position.
  • Page 10 Leak Testing Valves, Hose and Regulator 1.Turn all grill control knobs to OFF. 2.Be sure regulator is tightly connected to LP cylinder. 3.Completelyopen LP cylinder valve by turning hand wheel counterclockwise. If you hear a rushing sound, turn gas off immediately.
  • Page 11 Safety Tips A Before opening LP cylinder valve, check the coupling nut for tightness. A When grill is not in use, turn off all control knobs and LP For Safe Use of Your Grill and to Avoid Serious cylinder valve. Injury: A Never move grill while in operation or still hot.
  • Page 12 ignitor Lighting SEAR Burner ignitor Lighting A Do not lean over grill while lighting. grill while lighting. lean over 1. Turn O OFF gas burner control valves. 1. Turn O OFF gas burner control valves. 2. Turn ON gas at LP cylinder. 2.
  • Page 13 Burner Flame Check General Grill Cleaning • Do not mistake brown or black accumulation of grease and • Remove cooking grates and flame tamers. Light burners, rotate knobs from HIGH to LOW. You should see a smaller flame in smoke for paint. Interiors of gas grills are not painted at the factory (and should never be painted).

  • Page 14: Spider Alert

    II l cAuTioN Remove carryover tubes and burners. Detach electrode from burner. NOTE: Removal/Detachment method will depend on the burner configuration. See different configurations in illustrations below. SPIDER ALERT! Carefully lift each burner up and away from valve openings. We suggest three ways to clean the burner tubes. Use the one easiest for you.
  • Page 15 This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the m_jnal consumer-purchaser only that this product shall be fiee from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*.
  • Page 16 FIREBOX FRONT DOOR BRACE MAIN BURNER-TUBE BURNER LEFT DOOR MAIN BURNER-BAR BURNER RIGHT DOOR ELECTRODE, F/TUBE BURNER HANDLE, F/DOOR ELECTRODE, F/BAR BURNER BACK BRACE CARRY OVER TUBE TANK EXCLUSION WIRE GREASE TRAY CONTROL PANEL, MAIN ELECTRONIC IGNITION MODULE GREASE PAN CASTER SOCKET BUTTON, F/IGNITION MODULE CASTER, LOCKING...
  • Page 17 ..j w k_ ../ ..' ../F \D !JBB E__i_ ,zFF , iJ \M \M D_DD...
  • Page 18 for the LP cylindershouldbe on theleft side. " Attachbottomshelf to left and rightleg assemblies with 1/4-20×2-3/8" m achine screws and 1/4-20flange nuts. Thecut out hole For FrontDoor RightSide Panel Left SidePanel 1/4-20×2-3/8" MachineScrew Qty: 6 1/4-20 Flange Nut BottomShelf Qty: 6 "...
  • Page 19 " Hangtank exclusionwire ontothe holeson back brace,attachotherendsto bottomshelfwith #8x3/8" sheet metal screws. BackBrace #8x3/8" SheetMetalScrews Qty.2 flange nuts. " Placefront door braceas shown.Attachto left and rightleg assemblies with 1/4-20×2-3/8" m achine screws and 1/4-20 1/4-20×2-3/8" Machine Screw Qty: 4 1/4-20 Flange Nut Qty: 4 FrontDoorBrace...

  • Page 20: Locking Caster

    " Turn a ssembly upside down. " Insert Caster Pin into the caster mounting plate t olock itinplace, shown A.Spin the caster clockwise into the threads onthe bottom shelf until secure. Remove the Caster Pin and repeat forremaining casters. Make s ure the two locking casters are secured atthe rear a nd the non-locking casters are secured atthe front (B).
  • Page 21 " Cardully lowerthegrill headontothe cart. Makesure the regulatorhoseis hangingoutsidethecart.Attachwith 1/4=20x1/2" " Thisstep requires two peopleto lift and positiongrillheadonto cart. screws. Grill Head 1/4-20×1/2" S crew Qty: 4...
  • Page 22 " Hookthe rightside shelfto fireboxbythe pre-assembled screws(A). " Insidefirebox,insert7ramfiber washer and 1/4-20x1/2"screw as shown(B). " Attachshelfwith 1/4-20x1/2"screw and 1/4-20flange nuts, and fasten the two pre-assembledscrews (C). Right Side Shelf 1/4-20x1/2" 1/4-20 7ram Screw FlangeNut FiberWasher Qty.2 Qty: 1 Qty. 1 From FiberWasher "...
  • Page 23 • Hookthe left sideshelfto firebox bythe pre-assembled screws(A). " Insidefirebox,insert7ramfiber washer and 1/4-20x1/2"screw as shown(B). " Attachshelfwith 1/4-20x1/2"screw and 1/4-20flange nuts, and fasten the two pre-assembledscrews (C). LeftSide Shelf From Fiber Washer 1/4-20×1/2" 1/4-20 Machine Screw FlangeNut Qty. 2 Qty: 1 7ram FiberWasher Qty.
  • Page 24 " Attachsideburnerbezeland valvewith #8x3/8" SS screws. (A). Hookventuri " Placesideburner intoshelf. Makesure valveis insidesideburnertube.Attachsideburnerwith No.8 wing nut (B). clip to sideburnertubeand aroundmanifold.Attachside burnerignitorwireto ignitoras shown(C). " Pressside burnercontrolknobontovalvestem (D). " Placegrateontoside burnershelf(E). Side Burner Side Burner Tube Sideburner_Bezel Sideburner Control Knob Clip #8X3/8 SS Screw Qty.2...
  • Page 25 • Attachhandleto doorwith #10-24x1/2"machine screws, 5ram fiat washers and 5ram lock washers (A). " Inserthinge pinon bottomshelf into holein door.Pressupperhinge pin in front door brace,alignhinge holeon topof door,and releasehingepin into door. Him!e Pin hole Hinge Pin hole 5ramLock Washer Machine Screw #10-24×1/2"...
  • Page 26 • Placeheattentsovertube burners and the heattent for searburneroversear burner by insertingtabs intoslots in front of firebox. Oppositeendsof heattentsrest on pins in back offirebox. HeatTent, F/SearBurner StainlessSteel) " Placecookinggratesonto graterests. " Insertendsof WarmingRackpivotwire intoholesin sides of gril lid. insertendsof WarmingRackleg wire intoholesin sides of firebox.
  • Page 27 " Attachthe heatshieldto greasetraywith #8x3/8"sheet metal screws (A). " Placegreasepaninto greasetray,thenplacethetray intothe cart (B). HeatShield #8x3/8" GreaseTray SheetMetal Screws Qty.4 I1 1 T,O. Failure to install grease tray and GreaseTray grease pan will cause hot grease to drip from bottom of grill with risk of fire or property damage.

  • Page 28: Troubleshooting

    DANGER; if a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department, Gasleakingfrom • Damagedhose. •Turnoff gas at LP cylinderor at sourceon naturalgassystems.If cracked/cut/burned anythingbut burned,replacevalve/hose/regulator. If burned, hose. discontinueuseof productuntila plumberhas investigated cause and corrections are made.

  • Page 29: Electronic Ignition

    Troubleshooting (continued) ELECTRONIC IGNITION: Burner(s)will not light usingignitor. • Nospark,no ignitionnoise. • SeeSectionI of ElectronicIgnitionSystem. (See ElectronicIgnition Troubleshooting a lso) • Nospark,someignitionnoise. • SeeSectionII of ElectronicIgnitionSystem. • Sparks,but notat electrodeor at full • SeeSectionIII of ElectronicIgnitionSystem. strength. Burner(s)will not • See"GAS ISSUES:"on previouspage. matchlight.

  • Page 30: Troubleshooting - Electronic Ignition

    Troubleshooting - Electronic ignition pmm ! SECTION I Nosparksappearat • Battery not installed • Checkbatteryorientation. • Installbattery(makesurethat "+"and "-" anyelectrodeswhen properly. connectorsare orientedcorrectly, w ith "+"end up ElectronicIgnitionButton and "-" enddown.) is pressed;no noise can be heardfromspark • Deadbattery. • Has batterybeen used •...
  • Page 31 Which product are you registering? _.Qu_ producto est_i registrando? Mai! to: / Enviar a: / Envoyer Quel produit enregistrez-vous? []Gas Grill I Parrilla a gas I Gril au gaz Char-Broil Warranty Registration Electric Grill I Parrilla el_ctrica I Gril _lectrique []Smoker...
  • Page 32 FO YOU URCHASE Grilling's Juicy Little Secret _° • Valuable product information • Inspiring grilling accessories • Reliable customer support • Delicious recipes and tips from chefs • Exciting events and promotions • And much more!
