Vivotek PT71373GPP User Manual

Vivotek PT71373GPP User Manual

3gpp/isma wireless pan/tilt network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
3GPP/ISMA
PT7137
Wireless Pan/Tilt Network Camera
IP Sur veillance

Advertisement

Table of Contents
loading

Related Manuals for Vivotek PT71373GPP

Summary of Contents for Vivotek PT71373GPP

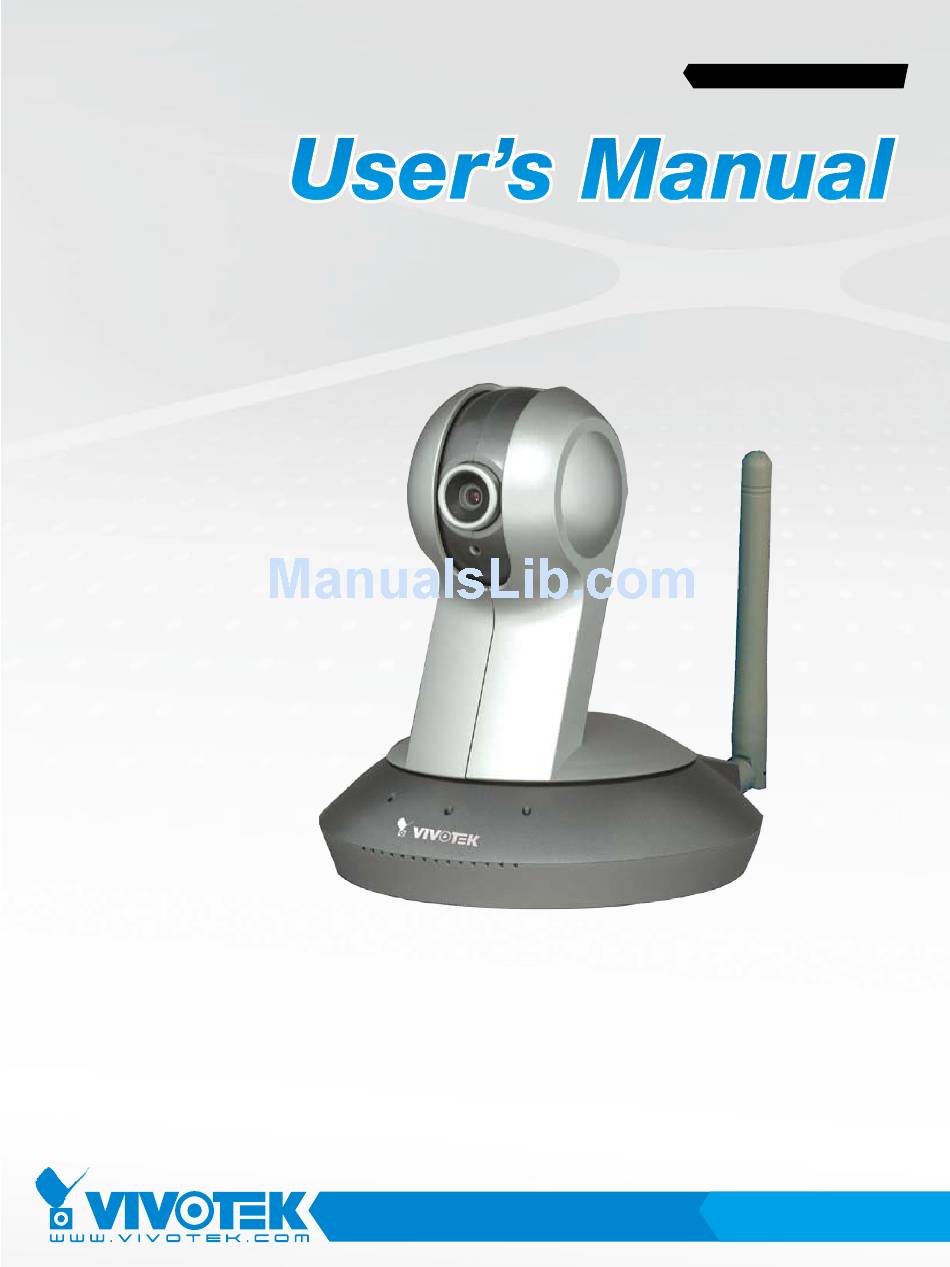

  • Page 1 3GPP/ISMA PT7137 Wireless Pan/Tilt Network Camera IP Sur veillance...
  • Page 2 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Product Name: Network Camera ( PT7137 Release Date: 2007/11/19 Manual Revision: Web Site: www.vivotek.com Email: technical@vivotek.com sales@vivotek.com Made in Taiwan. © 2007 VIVOTEK INC. All rights reserved  - User's Manual...

  • Page 3: Before You Use This Product

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Before You Use This Product The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but also can be part of a flexible surveillance system.

  • Page 4: Table Of Contents

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Table of Contents Before You Use This Product..............2 Package Contents ..................6 Installation .....................7 Hardware installation................7 Software Installation ................9 Initial Access to the Network Camera ..........13 Check Network Settings .............. 13 Add Password to Prevent Unauthorized Access ........
  • Page 5 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Video Settings................41 Video orientation ................ 41 Audio settings ................42 Image Settings ................43 Camera Control ................44 Email & FTP ..................46 Email ..................46 FTP ..................46 Motion detection ................48 Application settings ................
  • Page 6 VIVOTEK - A Leading Provider of Multimedia Communication Solutions System logs................78 Configuration file ................ 79 Upgrade firmware ............... 80 C. Technical specifications ..............81 - 5 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532  - User's Manual...

  • Page 7: Package Contents

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Package Contents PT7137 Software CD Power adapter Quick installation guide Mounting Kit & Pads Warranty card Antenna - 6 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532 User's Manual - ...

  • Page 8: Installation

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Installation In this manual, "User" refers to whoever has access to the Network Camera, and "Administrator" refers to the person who can configure the Network Camera and grant user access to the camera.

  • Page 9: To Install In Ethernet

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions will become lighted. Operating in either network mode, the green LED will flash every second as heartbeat to indicate alive. If the red LED is blinking, please check the network connections.

  • Page 10: Software Installation

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Software Installation In this manual, "User" refers to whoever has access to the Network Camera, and "Administrator" refers to the person who can configure the Network Camera and grant user access to the camera.
  • Page 11 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Upon Installation Wizard’s start up, a searching box will pop up. This program searches for Vivotek’s product on the same LAN: After searching, Vivotek Video Servers or Network Cameras will be located by the Installation Wizard.
  • Page 12 VIVOTEK - A Leading Provider of Multimedia Communication Solutions For the series number in the “Serial Number” field, please check the label on the bottom of the camera. The IP addresses shown in the "Current IP Address" field reflect those on the local network.
  • Page 13 VIVOTEK - A Leading Provider of Multimedia Communication Solutions For more detailed usage of the Installation Wizard, please refer to the user’s manual of the Installation Wizard included in the product CDROM to find the location of the Network Camera. There may be many Network Cameras in the local network. Users can differentiate the Network Cameras with the serial number.

  • Page 14: Initial Access To The Network Camera

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Initial Access to the Network Camera Check Network Settings The Network Camera can be connected either before or immediately after software installation onto the Local Area Network. The Administrator should complete the network settings on the configuration page, including the correct subnet mask and IP address of gateway and DNS.

  • Page 15: How To Use

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions How to Use Authentication After opening the Web browser and typing in the URL of the Network Camera, a dialogue window pops up to request a username and password. Upon successful authentication, the following figure is displayed.

  • Page 16: Installing Plug-In

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Installing plug-in For the initial access to the Network Camera in Windows, the web browser may prompt for permission to install a new plug-in for the Network Camera. Permission request depends on the Internet security settings of the user’s PC or notebook. If the highest security level is set, the computer may prohibit any installation and execution attempt.

  • Page 17: Primary User's Capability

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Primary user’s capability Main Screen with Camera View The main page layout has three parts: Configuration functions: The camera can be configured using these user interfaces. Camera View: What the camera sees.

  • Page 18: The Configuration

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions The Configuration: “Snapshot” The button provides users a fast way to capture a single image of the video from the Network Camera. “Client Settings” Clicking on this button links you to the client setting pages, please check the following session for more details.
  • Page 19 VIVOTEK - A Leading Provider of Multimedia Communication Solutions factor for specified area in the camera view. Users can also move the white frame to select the area of the video that she/he wants to view. “Disable digital zoom” The checkbox selection allows users to disable/enable the digital zoom function.
  • Page 20 VIVOTEK - A Leading Provider of Multimedia Communication Solutions “Stop” The option will disconnect to the Network Camera. “Play volume” Click on this button can adjust the audio volume. “Mute” Disable audio at client side. The pan/tilt control buttons: The direction buttons are for Left, Right, Up, Down, and Home functions. The Home button centers the camera.

  • Page 21: Client Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Client settings At the initial access to the “Connection type” page in Windows, the web browser will ask for a new plug-in installation, the plug-in being the Network Camera. This plug-in has been registered for certification and can be used to change the parameters at the client’s site.
  • Page 22 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Using multicast protocol can reduce traffic by simultaneously delivering a single stream of information to several clients. Please enable multicast options first from configuration page. And make sure your router support this technology.
  • Page 23 VIVOTEK - A Leading Provider of Multimedia Communication Solutions <url> http://<Network Camera>/client.html <Network Camera> is the domain name or the original IP address of the Network Camera. - 22 - www.vivotek.com User's Manual - ...

  • Page 24: Administrator's Capability

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Administrator’s capability Fine-tuning for Best Performance Best performance generally equates to the fastest image refresh rate with the best video quality, and at the lowest network bandwidth as possible. The three factors, “Maximum frame rate”, “Constant bit rate”, and “Fix quality”...

  • Page 25: Only Quality Images Will Do

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions For Viewing by Mobile Phone Most 3GPP cell phone supports media streaming with MPEG4 video and GSM-AMR audio. Due to the limitation of the bandwidth for 3GPP, only 176x144 size video is supported for cell phone viewing.
  • Page 26 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Somewhere Between Real-time and Clear Images If you have a broadband network, set “Fix quality” at ”Normal” or better, rather than setting “Fix bit rate”. You can also fix the bandwidth according to your actual network speed and adjust the frame rate.

  • Page 27: Opening Accounts For New Users

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Opening accounts for new users Protect Network Camera by passwords The Network Camera is shipped without any password by default. That means everyone can access the Network Camera including the configuration as long as the IP address is known.

  • Page 28: Build A Security Application

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Build a security application The Administrator can use the built-in motion detection to monitor any movement to perform many useful security applications. To upload the snapshots, users can choose either email or FTP according to user’s needs. Both e-mail and FTP use the network settings on the Email and FTP page.

  • Page 29: Software Revision Upgrade

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Software revision upgrade Customers can obtain the up-to-date software from the web site of Vivotek. An easy-to-use Upgrade Wizard is provided to upgrade the Network Camera with just a few clicks. The upgrade function is opened to the Administrator only. To upgrade the system, follow the procedures below.

  • Page 30: Definitions In Configuration

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Definitions in Configuration Only the Administrator can access system configuration. Each category in the left column will be explained in the following pages. The bold texts are the specific phrases on the Option pages. The Administrator may type the URL below the figure to directly enter the frame page of configuration.

  • Page 31: System Parameters

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions System parameters "Host name" The text displays the title at the top of the main page. “Turn off the LED indicator” Check this option to shut off the LED on the rear. It can prevent the camera’s operation being noticed.

  • Page 32: Security Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Security settings “Root password” Change the Administrator’s password by typing in the new password identically in both text boxes. The typed entries will be displayed as asterisks for security purposes. After pressing , the web browser will ask the Administrator for the new password for access.

  • Page 33: Network Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Network settings Any changes made on this page will restart the system in order to validate the changes. Make sure every field is entered correctly before clicking on Network type “LAN” & “PPPoE”...

  • Page 34: Http

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions “Confirm password” Input password again for confirmation HTTP “Http port” This can be other than the default Port 80. Once the port is changed, the users must be notified the change for the connection to be successful. For instance, when the Administrator changes the HTTP port of the Network Camera whose IP address is 192.168.0.100 from 80 to 8080, the users must type in the web browser...
  • Page 35 VIVOTEK - A Leading Provider of Multimedia Communication Solutions - 34 - www.vivotek.com User's Manual - ...
  • Page 36 VIVOTEK - A Leading Provider of Multimedia Communication Solutions <url> http://<Network Camera>/setup/network.html <Network Camera> is the domain name or original IP address of the Network Camera. - 35 - www.vivotek.com  - User's Manual...

  • Page 37: Wlan Configuration

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions WLAN Configuration “SSID” (Service Set Identifier), it is a name that identifies a wireless network. Access Points and wireless clients attempting to connect to a specific WLAN (Wireless Local Area Network) must use the same SSID. The default setting is default. Note: The maximum length of SSID is 32 single-byte characters and SSID can’t be any of “, <, >...
  • Page 38 VIVOTEK - A Leading Provider of Multimedia Communication Solutions “HEX” digits consist of the numbers 0~9 and the letters A-F. “ASCII” is a code for representing English letters as numbers from 0-127 except “, <, > and space characters that are reserved.
  • Page 39 VIVOTEK - A Leading Provider of Multimedia Communication Solutions <url> http://<Network Camera>/setup/wireless.html <Network Camera> is the domain name or original IP address of the Network Camera. - 38 - www.vivotek.com User's Manual - ...

  • Page 40: Ddns

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions DDNS “Enable DDNS” This option turns on the DDNS function. “Provider” The provider list contains four hosts that provide DDNS services. Please connect to the service provider’s website to make sure the service charges.

  • Page 41: Access List

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Access List The access list is to control the access permission of clients by checking the client IP address. There are two lists for permission control: Allow List and Deny List. Only those clients whose IP address is in the Allow List and not in the Deny List can connect to the Video Server or Network Camera for receiving the audio/video streaming.

  • Page 42: Audio And Video

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Audio and Video General “Configure for computer viewing” To make quick setting for computer viewing “Configure for mobile viewing” To make quick setting for cell phone viewing Video Settings “Video title” The text string can be displayed on video “Color”...

  • Page 43: Audio Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions “Mirror” Horizontally rotate the video. Check options both if the Network Camera is installed upside down. “White balance” Adjust the value for best color temperature. Audio settings “mute” Audio mute “Audio type” Select audio codec “AAC” or “GSM-AMR” and the bit rate <url>...

  • Page 44: Image Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Image Settings Click on this button to pop up another window to tune “Brightness”, “Contrast”, “Hue” and “Saturation” for video compensation. Each field has eleven levels ranged from “Brightness” “Contrast” fields value 0 indicates auto tuning.

  • Page 45: Camera Control

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Camera Control Camera control area Preset function area On the Camera Control page, there are two main function control areas: Camera control area The pan and tilt functions can be controlled with these buttons. The “Left” button aims the camera to the left;...

  • Page 46: Preset Function Area

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions “Tilt speed” This controls the range of the vertical movement of the camera. The greater the value, the greater angular movement when performing the “Up” or “Down” functions would be. “Auto pan/patrol speed” This defines the speed of panning and patrol, the greater the value, the faster the speed.

  • Page 47: Email & Ftp

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Email & FTP Email When the SMTP server support SMTP authentication, users need to give the valid user name and password to send email via the server. “Sender email address”, the email address of the sender.
  • Page 48 VIVOTEK - A Leading Provider of Multimedia Communication Solutions this value from 1025 to 65535. “User name” Granted user name on the external FTP server. “Password” Granted password on the external FTP server. “Remote folder name” Granted folder on the external FTP server. The string must conform to that of the external FTP server.

  • Page 49: Motion Detection

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Motion detection “Enable motion detection” Check this option to turn on motion detection. Click on this button to add a new window. At most three windows can exist simultaneously. Use the mouse to click, hold, and drag the window frame to resize or the title bar to move.

  • Page 50: Application Settings

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Application settings The server provides two kinds of applications, snapshot and videoclip. There are two independent snapshot items to set, and they are named as Snapshot #1 and Snapshot #2. The status, schedule, trigger condition, and action of three applications are summaried in the application page.

  • Page 51: Weekly Schedule

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Weekly schedule “Sun” ~ “Sat” Select the days of the week to perform the application. Select “Always” or input the time interval. Snapshot file name prefix The prefix name will be added on the file name of the snapshot images.
  • Page 52 VIVOTEK - A Leading Provider of Multimedia Communication Solutions snapshot named “prefix-yyyymmdd-hhmmss.jpg” will be attached in the email. “FTP” The snapshots will be uploaded to the external FTP server with the file name defined in the next option. This can also be used to refresh the captured images stored in the external web server to build creative homepages.

  • Page 53: Video Clip

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Video Clip The setting for video clip is mostly the same as snapshot. “Video clip max file size” This indicates the maximum file size for video clip (Kbytes). - 52 - www.vivotek.com...
  • Page 54 VIVOTEK - A Leading Provider of Multimedia Communication Solutions In the event that the available network bandwidth is limited, video clips sent to FTP or e-mail may be corrupted and can not be opened. - 53 - www.vivotek.com  - User's Manual...

  • Page 55: System Log

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions System log The Network camera support log the system messages on remote server. The protocol is compliant to RFC 3164. If you have external Linux server with syslogd service, use “-r” option to turn on the facility for receiving log from remote machine. Or you can use some software on Windows which is compliant to RFC 3164.

  • Page 56: Viewing System Parameters

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Viewing system parameters Click on this link on the configuration page to view the entire system’s parameter set. The content is the same as those in CONFIG.INI. - 55 - www.vivotek.com...

  • Page 57: Maintenance

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Maintenance Four actions can be selected “reboot” click the reboot button to restart system “factory default” Click on Factory default button on the configuration page to restore the factory default settings. Any changes made so far will be lost and the system will be reset to the initial factory settings.

  • Page 58: Appendix

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Appendix A. Troubleshooting Status LED The following table lists the LED patterns in general. Condition LED color Loading system after power on Steady red During booting procedure Steady green, blue and red Detecting and setting network Steady green and blue.

  • Page 59: Url Commands Of The Network Camera

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Restoring the factory defaults will erase any previous settings. B. URL commands of the Network Camera For some customers who already have their own web site or web control application, the Network Camera can be easily integrated through convenient URLs. This section lists the commands in URL format corresponding to the basic functions of the Network Camera.

  • Page 60: Set Server Parameter Values

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions where <parameter pair> is <parameter>=<value>\r\n [<parameter pair>] <length> is the actual length of content. Example: request IP address and it’s response Request: http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n...
  • Page 61 VIVOTEK - A Leading Provider of Multimedia Communication Solutions parameter is assigned. The <return page> can be a full URL path or relative path according the the current path. If you omit this parameter, it will redirect to an empty page.

  • Page 62: Available Parameters On The Server

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions \r\n network.ipaddress=192.168.0.123\r\n Available parameters on the server NOTE: The bold characters in table are the default value of each parameter. Group: System NAME VALUE DESCRIPTION hostname <text string shorter host name of server (r/w) than 40 characters>...
  • Page 63 VIVOTEK - A Leading Provider of Multimedia Communication Solutions restore Restore the system parameters to default value. Positive integer Restore the system parameters to default value and restart the server after <value> seconds. reset 0 ~ 65535 Restart the server after <value> seconds.
  • Page 64 VIVOTEK - A Leading Provider of Multimedia Communication Solutions pppoepass <text string shorter than PPPoE account password (r/w) 15 characters> <blank> resetip enable to get ipaddress, subnet, router, dns1, (r/w)(restart) dns2 from DHCP server at next reboot Using preset ipaddress, subnet, router, dns1,...
  • Page 65 VIVOTEK - A Leading Provider of Multimedia Communication Solutions (r/w) 15 characters> <blank> returnemail <text string shorter than return email address (r/w) 80 characters> <blank> localftpport <positive number less FTP port (r/w) than 65535> <21> ftp1 <domain name primary FTP server...
  • Page 66 VIVOTEK - A Leading Provider of Multimedia Communication Solutions rtspport <positive number less RTSP port (r/w) (restart) than 65535> <554> videoport <positive number less video Channel port for RTP than 65535> <5558> audioport <positive number less audio Channel port for RTP than 65535>...
  • Page 67 VIVOTEK - A Leading Provider of Multimedia Communication Solutions keyselect 1 ~ 4 Default key number (r/w) <1> key1 <text string shorter than WEP key1 for encryption (r/w) 58 characters> (depends <0000000000> keyformat & keylength) key2 <text string shorter than...
  • Page 68 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Group: Video NAME VALUE DESCRIPTION text <text string shorter enclosed caption (r/w) than 14 characters> <blank> codectype MPEG4 (r/w) MJPEG keyinterval 1, 3, 5, 10, 30, 60, 90, Key frame interval (r/w) <60>...
  • Page 69 VIVOTEK - A Leading Provider of Multimedia Communication Solutions 50000 set bit rate to 50K bps 64000 set bit rate to 64K bps 128000 set bit rate to 128K bps 256000 set bit rate to 256K bps 512000 set bit rate to 512K bps...
  • Page 70 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Do not overlay time stamp on video (r/w) Group: Audio NAME VALUE DESCRIPTION type AAC4 (for computer) set codec to AAC (r/w) GAMR (for mobile) set codec to GSM-AMR aacbitrate 16000...
  • Page 71 VIVOTEK - A Leading Provider of Multimedia Communication Solutions (r/w) -5 ~ 5 Tilt speed tiltspeed (r/w) -5 ~ 5 Zoom speed zoomspeed (r/w) autospeed -5 ~ 5 Auto pan speed (r/w) dwelling 0 ~ 9999 Time to dwelling when patrol (r/w) presetname_<0~9>...
  • Page 72 VIVOTEK - A Leading Provider of Multimedia Communication Solutions winheight_<0~2> 0 ~ 240 Height of motion detection window. (r/w) <0> winobjsize_<0~2> 0 ~ 100 Percent of motion detection window (r/w) <0> winsensitivity_<0~2 0 ~ 100 Sensitivity of motion detection window >...

  • Page 73: Camera Control

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions NAME VALUE DESCRIPTION enable 0, 1 Enable or disable the UPNP presentation (r/w) service. <1> Group: UPNPfor NAME VALUE DESCRIPTION enable 0, 1 Enable or disable the UPNP port forwarding (r/w) service.

  • Page 74: Recall

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Syntax: [move=<value>][&focus=<value>] http://<servername>/cgi-bin/camctrl.cgi? [&iris=<value>][&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>] [&speedapp=<value>][&auto=<value>][&zoom=<value>][&return=<return page>] parameter value description move home Move to camera to home position Move camera up down Move camera down left Move camera left right Move camera right...

  • Page 75: Application Page Cgi Command

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Syntax: http://<servername>/cgi-bin/recall.cgi? recall=<value>[&return=<return page>] parameter value description recall Text string less One of the present positions to recall. than 30 characters return <return page> Redirect to the page <return page> after the parameter is assigned.
  • Page 76 VIVOTEK - A Leading Provider of Multimedia Communication Solutions [&<prefix_app_index>_md_delay=<value>] [&<prefix_app_index>_sq_interval=<value>] [&<prefix_app_index>_send_method=<value] [&<prefix_app_index>_ftp_suffix=<value>] Syntax (For videoclip): http://<servername>/cgi-bin/admin/gen-new-eventd-conf.cgi? [<prefix_app_index>_videoclip_enable=<value>] [&<prefix_app_index>_weekday=<value>] [&<prefix_app_index>_time_method=<value>] [&<prefix_app_index>_begin_time=<value>] [&<prefix_app_index>_end_time=<value>] [&<prefix_app_index>_prefix=<value>] [&<prefix_app_index>_trigger_type=<value>] [&<prefix_app_index>_maxsize=<value>] [&<prefix_app_index>_md_win=<value>] [&<prefix_app_index>_md_delay=<value>] [&<prefix_app_index>_sq_interval=<value>] [&<prefix_app_index>_send_method=<value>] [&<prefix_app_index>_ftp_suffix=<value>] Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n <depends on method value>...
  • Page 77 VIVOTEK - A Leading Provider of Multimedia Communication Solutions Else if(method == normal) Application page contents parameter Value description sn1, sn2, vc Index of application prefix_app_index Enable snapshot application snapshot_enable Disable snapshot application Disable videoclip application videoclip_enable Enable videoclip application...

  • Page 78: Capture Single Snapshot

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Enable/Disable file name prefix ftp_suffix Capture single snapshot Note: This request require normal user privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/video.jpg Server will return the most up-to-date snapshot in JPEG format. The size and quality of image will be set according to the video settings on the server.

  • Page 79: System Logs

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions parameter value Description method Add an account to server. When using this method, “username” field is necessary. It will use default value of other fields if not specified. delete Remove an account from server. When using this method, “username”...

  • Page 80: Configuration File

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions http://<servername>/cgi-bin/admin/syslog.cgi Server will return the up-to-date system log. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <syslog length>\r\n \r\n <system log information>\r\n Configuration file Note: This request requires administrator privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/configfile.cgi...

  • Page 81: Upgrade Firmware

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Upgrade firmware Note: This request requires administrator privilege Method: POST Syntax: http://<servername>/cgi-bin/admin/upgrade.cgi Post data: fimage=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data> Server will accept the upload file named <file name> to be upgraded the firmware and return with <return page>...

  • Page 82: Technical Specifications

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions C. Technical specifications - System - Audio Vivotek VVTK-1000 CPU: AAC, GSM-AMR RAM: 32MB SDRAM ROM: 4MB FLASH ROM - Microphone Omni-directional Networking Frequency: 50 – 16000Hz Protocol S/N ratio: more than 60dB...

  • Page 83: Technology License Notice

    VIVOTEK - A Leading Provider of Multimedia Communication Solutions Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT REGARD TO PC SOFTWARE, YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES. FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM.
  • Page 84 Vivotek Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
