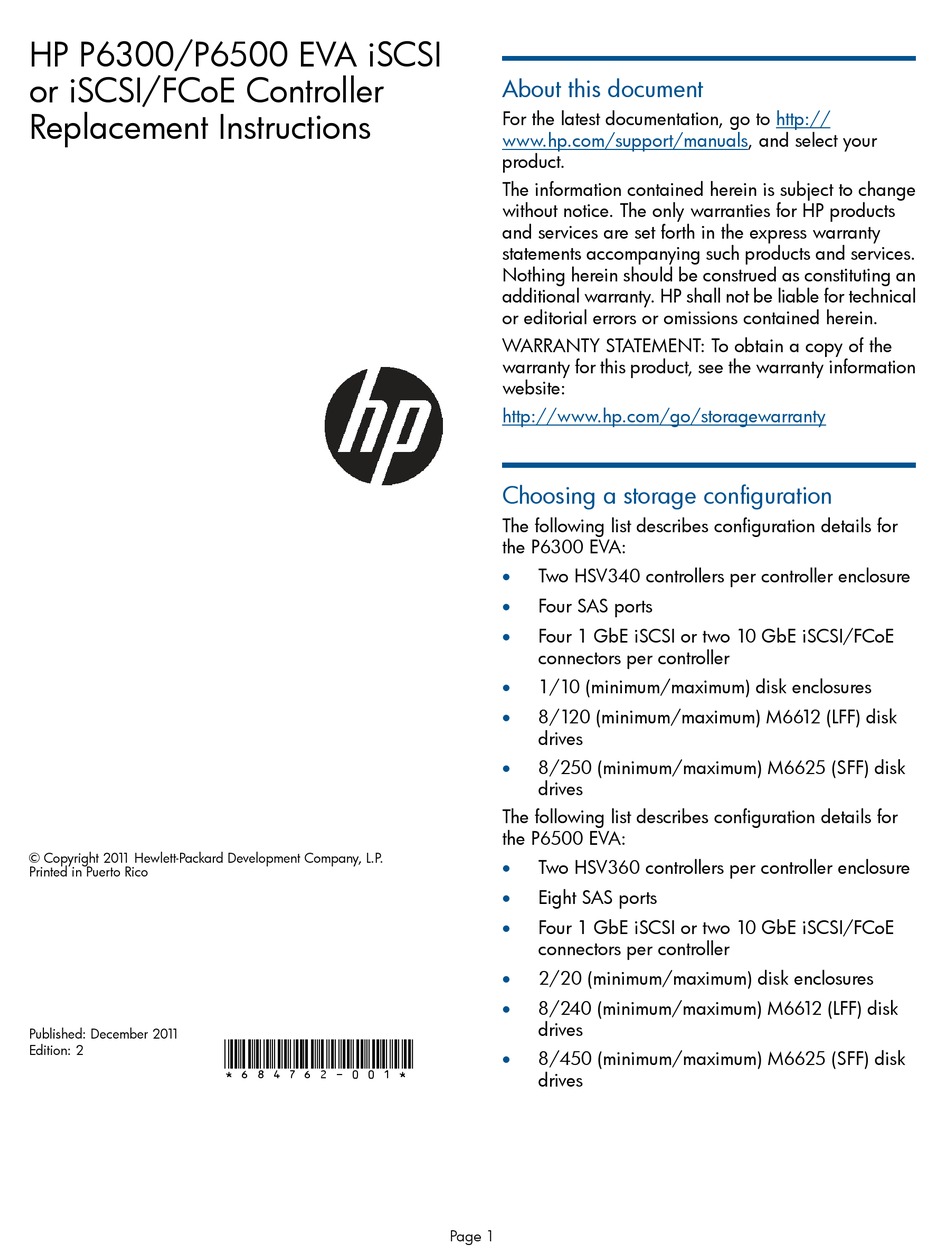

HP P6300/P6500 EVA iSCSI
or iSCSI/FCoE Controller
Replacement Instructions
© Copyright 201 1 Hewlett-Packard Development Company, L.P.
Printed in Puerto Rico
Published: December 201 1
Edition: 2
*684762-001*
About this document
For the latest documentation, go to
www.hp.com/support/manuals, and select your
product.
The information contained herein is subject to change
without notice. The only warranties for HP products
and services are set forth in the express warranty
statements accompanying such products and services.
Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical
or editorial errors or omissions contained herein.
WARRANTY STATEMENT: To obtain a copy of the
warranty for this product, see the warranty information
website:
http://www.hp.com/go/storagewarranty
Choosing a storage configuration
The following list describes configuration details for
the P6300 EVA:
Two HSV340 controllers per controller enclosure
Four SAS ports
Four 1 GbE iSCSI or two 10 GbE iSCSI/FCoE
connectors per controller
1/10 (minimum/maximum) disk enclosures
8/120 (minimum/maximum) M6612 (LFF) disk
drives
8/250 (minimum/maximum) M6625 (SFF) disk
drives
The following list describes configuration details for
the P6500 EVA:
Two HSV360 controllers per controller enclosure
Eight SAS ports
Four 1 GbE iSCSI or two 10 GbE iSCSI/FCoE
connectors per controller
2/20 (minimum/maximum) disk enclosures
8/240 (minimum/maximum) M6612 (LFF) disk
drives
8/450 (minimum/maximum) M6625 (SFF) disk
drives
Page 1
http://
Advertisement
Related Manuals for HP EVA P6000
Summary of Contents for HP EVA P6000
-
Page 1: Replacement Instructions
8/250 (minimum/maximum) M6625 (SFF) disk drives The following list describes configuration details for the P6500 EVA: © Copyright 201 1 Hewlett-Packard Development Company, L.P. Two HSV360 controllers per controller enclosure Printed in Puerto Rico Eight SAS ports Four 1 GbE iSCSI or two 10 GbE iSCSI/FCoE... -
Page 2: Before You Begin
Before you begin Saving the iSCSI or iSCSI/FCoE module's persistent data Observe the following precautions when replacing a controller. NOTE: HP recommends that you save the iSCSI or iSCSI/FCoE module's persistent data CAUTION: HP recommends that you perform periodically to avoid data loss from hardware the replacement procedure within seven minutes or software errors. -
Page 3: Removing A Controller
Table 1 Controller status LEDs (continued) would indicate a fault that may require a replacement. Item Indication To check the status of the iSCSI or MEZZ Amber LED indicates the iSCSI or iSCSI/FCoE module, in the navigation pane, iSCSI/FCoE module status that is select Storage system >... - Page 4 Figure 4 Removing the controller cover NOTE: Replacement controllers do not have DIMM modules, therefore the DIMMs from the controller being removed must be transferred to the replacement controller. HP recommends that you replace the controller while the controller enclosure is powered on to ensure the controller software on the redundant controller is copied to the controller being installed.
-
Page 5: Installing A Controller
should power up automatically. Tighten the controller latch thumbscrew. Installing a controller Figure 9 Installing a controller Press each DIMM from the removed controller into the same DIMM socket on the replacement controller (1, Figure 7 (page 5)). Figure 7 Installing a DIMM Attach the FP3 and FP4 Fibre Channel cables or Press the retaining clips inward to lock each loopback connectors for unused ports. -
Page 6: Verifying Proper Operation
10. Complete the iSCSI or iSCSI/FCoE module controller, and wait at least three minutes before configuration by using either HP P6000 reseating the controller in the enclosure. Command View or the module CLI. Verify that the IMPORTANT: Reseating the controller in management server has IP connectivity to the less than three minutes can result in timing iSCSI or iSCSI/FCoE module management ports...
