Setup

™
Thank you for choosing Digitone's Call Blocker™ Model 10 as your Personal Communicator. Digitone
Communications is confident that you will find Digitone's unique preset features and flexibility are just the
answer for your communications needs. Just connect your telephone and you're ready to go. You don't
need to set any codes as Digitone's Call Blocker can operate right out of the box.

No Battery Backup is Needed -

If there is a power outage, all of the program settings remain intact.

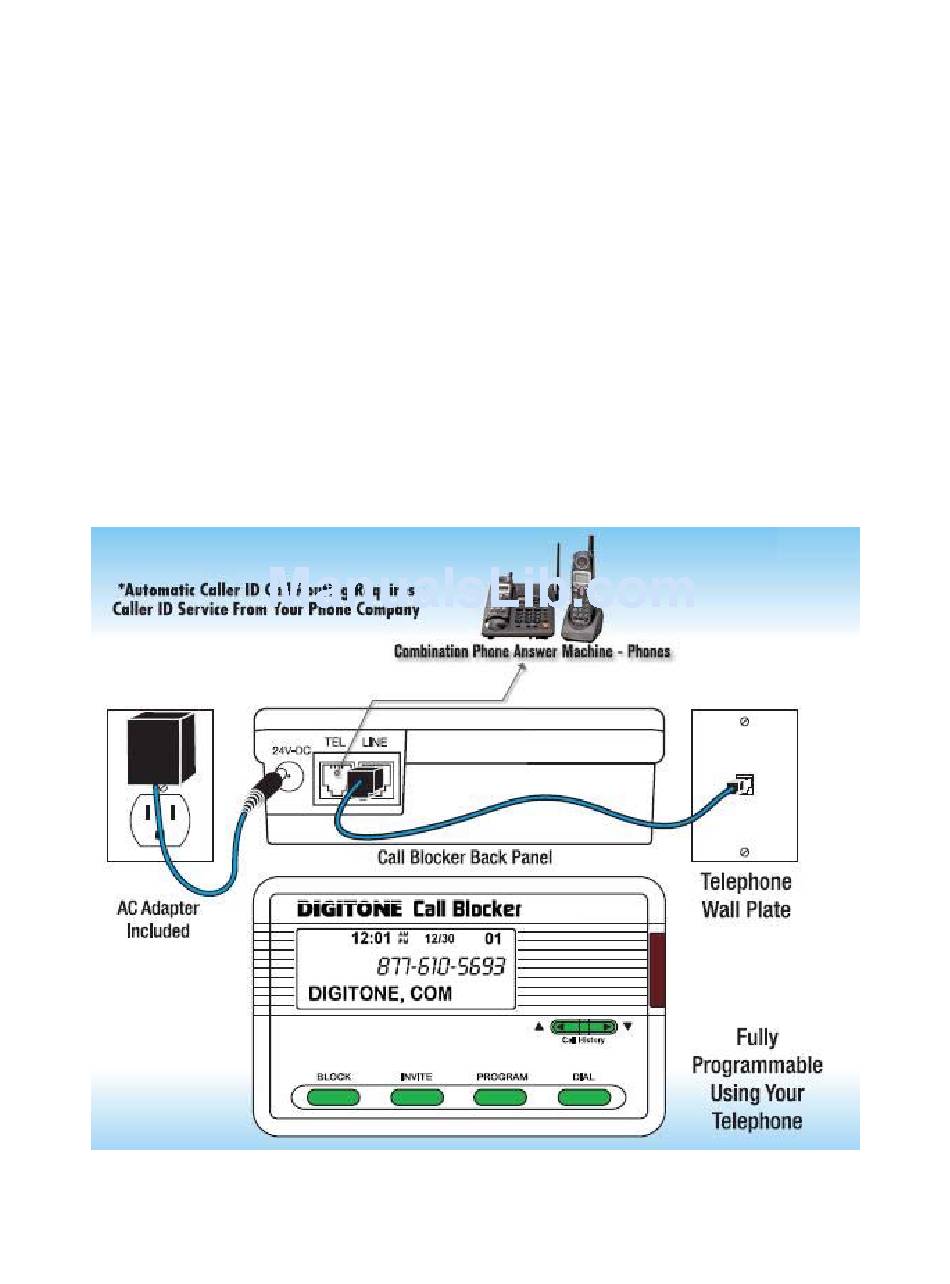

1. Connect the supplied line cord to your telephone wall jack and then to the Line Port on the Call
Blocker. You must connect the Line cord and your phone to the correct ports in order for the Digitone
Call Blocker to operate properly. Initially, "Line In Wrong Port" will show on the display until the Line
cord is plugged into the LINE port. "Check Cords" will display if the Line cord is disconnected afterwards.
2. Plug the small end of the Power Supply into the port labeled "24VDC" on the Call Blocker, next plug in
the Power Supply to a 120VAC wall receptacle.
3. Connect your combo Phone/Answer Machine system to the TEL phone port of the Call Blocker and set
to 3-5 rings. Note if you are using Voice Mail services from your phone company, then don't enable any
answering devices there in your home or office.
4. Optional: Connect an answer machine to any phone wall plate and set the answer delay to 4-6 rings,
or 1-2 rings greater than the answering device in the TEL phone port. This separate answer machine will
capture any uninvited calls not answered by the Combo Phone/Answering device in the TEL phone port.
