Summary of Contents for Uniden XSA 975
-

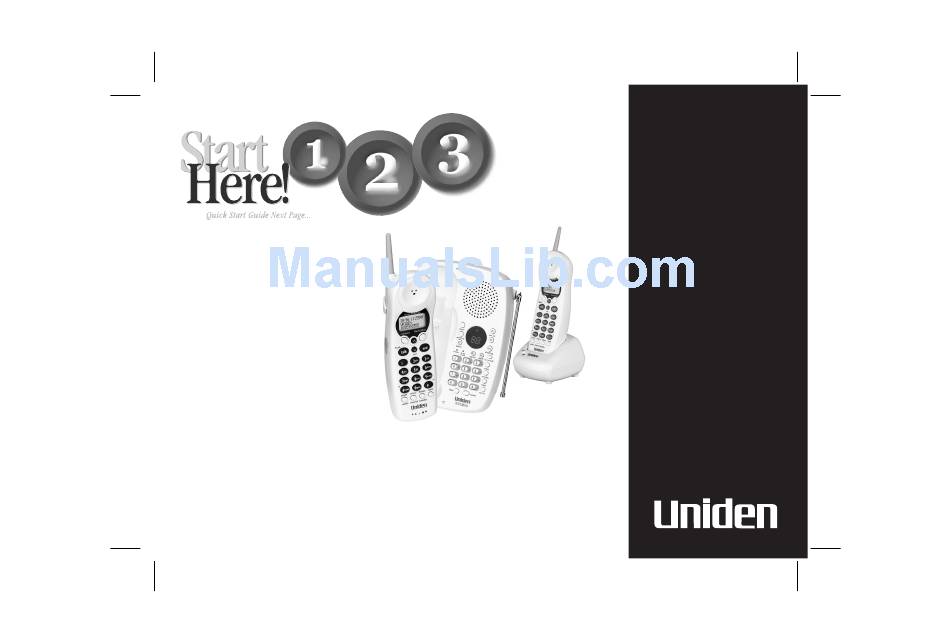

Page 1: Quick Start Guide
Digital Answering Machine Speakerphone 900 MHz Caller ID 10 Number Quick Start Memory Plus Guide Rocket Dial... -
Page 2: Installation & Safety
INSTALLATION & SAFETY Choosing the best location for your phone. When choosing a location for your phone there are a number of appliances the phone should not be near, and areas you should avoid. CHARGE - the new phone for 20 - 25 hrs. AVOID - Moisture CHOOSE -... -
Page 3: Installing The Base Unit
ON at all Tel Line Adaptor the wall. (adaptor not supplied) times. Use only Plug the AC Adaptor cord into the Base the Uniden AC Unit, then the AC Adaptor into the wall AC adaptor Telephone cord Adaptor/s supplied power point. - Page 4 Installing the Handset Battery Press the battery cover and slide it off. Connect the battery plug to the socket at the rear of the battery compartment. Make sure the plug is the right way round. The RED and BLACK battery wires must match the RED and BLACK printed on the phone case for the plug to fit properly.
-
Page 5: Making A Call
Making a Call Registration of Dual Handset IMPORTANT After fully charging the handsets, remove the handset from the extra charging cradle and in use/charge place it on the main base. (The LED will begin to flash indicating registration is occurring). main Wait for at least 5 seconds before removing the extra handset from the base. -
Page 6: Setting Up The Answering System
Setting Up the Answering System sp. phone vol To turn the answering system on: Press - the pre-recorded greeting will play and your system is ready to accept calls. answer memo ans vol. To record your outgoing message: greeting delete play/stop Press and hold . - Page 7 CALL TRANSFER To have the ability to transfer calls from one handset to the other handset: Initial Setup: (Important - Please make sure you have registered your dual handset - refer to instructions on page iv). TO TRANSFER CALLS To transfer your call from handset 1 to handset 2: Press transfer The call is placed on hold on the first handset, while handset 2 begins to ring.
-
Page 8: Table Of Contents
CONTENTS Installation & Safety Caller ID ....................i Quick Start Guide ....................ii Caller ID .....................16 Contents When the Telephone Rings ..............16 Getting Started Viewing the Caller ID Message List .............17 Deleting Information from the Caller ID List ........17 Controls and Functions .................1 Welcome ....................3 Deleting a Caller ID Message ..............17 Deleting all Caller ID Names and Numbers ........17... -
Page 9: Controls And Functions
CONTROLS AND FUNCTIONS 1. Handset antenna 2. Handset earpiece 3. LCD display cid/ menu flash /< key pause redial select channel 9. Handset microphone and ringer speaker Volume up key Dual Handset Volume down key /> key transfer 17. Handset charging contacts pause select delete redial channel transfer... - Page 10 CONTROLS AND FUNCTIONS Telephone line jack 22. Speakerphone volume switch 23. AC Adaptor input 24. Handset retainer clip memo greeting sp. phone vol Delete key 28. Speaker LED In use/charge LED 30. Base speaker 31. Message counter display memo ans vol. Answering machine volume keys greeting repeat/rew key...
-
Page 11: Welcome
WELCOME Congratulations on your purchase of this Uniden cordless telephone. This Product is designed for reliability, long life and outstanding performance utilising the latest in 900MHz Technology. FEATURES Multiple Handsets (up to 2) Wall or Desk Mountable 900MHz SCR Technology (Sound Clarity and Range) -
Page 12: Included In Your Package
INCLUDED IN YOUR PACKAGE Make sure you have received the following items in the package. If any of these items are missing or damaged, contact the Uniden Parts Department. NOTES Super Chat 2nd Super Chat Rechargeable Battery Rechargeable Battery Dual Handset... -
Page 13: Mounting The Base Unit On A Wall
MOUNTING THE BASE UNIT ON A WALL Direct Wall Mounting You can mount your phone directly to the wall. Before doing this, consider the following: • Avoid electrical cables, pipes or other items behind the mounting location that could cause a hazard when inserting screws into the wall. -
Page 14: Battery Maintenance
Batteries are NOTE order to enjoy the best performance from your phone, we recommend you replace your batteries every two years available with a genuine Uniden battery. through the Uniden Parts Simply visit our website to order a replacement battery: Department. -
Page 15: Setting Menu Options
SETTING MENU OPTIONS Options available include AutoTalk and Pop Up Name. AUTOTALK AutoTalk allows you to answer the phone without pressing the button. If the phone rings when Autotalk is on, simply remove the handset from the base and the phone automatically answers the call. If the phone rings when Autotalk is off, you must press answer the call. -
Page 16: Making And Receiving Calls
MAKING AND RECEIVING CALLS Handset On Base Handset Off Base Base Speakerphone To answer a call Pick up the handset ( Autotalk Press , any number, Press speaker ) or pick up the handset and Autotalk on . press (Autotalk off). To make a call 1. -
Page 17: Adjusting The Handset Ringer Volume And Earpiece Volume
ADJUSTING THE HANDSET RINGER VOLUME AND EARPIECE VOLUME Handset ringer tone and volume Press in standby mode to select one of five ringer tones and volume combinations. The telephone will keep this setting for all future calls. Earpiece Volume Pressing during a call will change the earpiece volume of the handset. -
Page 18: Travelling Out-Of-Range
TRAVELLING OUT-OF-RANGE During a call, noise will increase if you move your handset too far from your base unit. If the range limit of your base unit is exceeded, your call will terminate within five minutes. SELECTING A DIFFERENT CHANNEL If you encounter interference while using your phone, you can manually change the phone's channel for clear operation. -
Page 19: Memory Dialing
'. After about 2 seconds, ' Memory 1 Stored Memory Store Memory Store There is no is displayed. Repeat steps 2-7 to store more numbers. UNIDEN AUS memory store <Memory 2> 8. Press to return to standby mode. in the Base Speakerphone. -
Page 20: Making Calls With Memory Dialing
MAKING CALLS WITH MEMORY DIALING Memory dialing from Standby Mode. UNIDEN AUS JOE BLOGGS 1. Press . The handset displays your programmed memory locations. JOHN DOE 2. Press , or enter the number ( ) to select the memory location you would like to dial. -
Page 21: Editing A Stored Name And/Or Phone Number
EDITING A STORED NAME AND/OR PHONE NUMBER 1. Press and hold ' is displayed. Memory Store 2. Press , or enter a number ( ) to select the memory location you would like to edit. 3. Press . The edit screen is displayed. 4. -
Page 22: Call Transfer
CALL TRANSFER To have the ability to transfer calls from one handset to the other handset: Initial Setup: (Important - Please make sure you have registered your dual handset - refer to instructions on page iv). TO TRANSFER CALLS Call Transfer is To transfer your call from handset 1 to handset 2: only available Press... -
Page 23: Rocketdial
ROCKETDIAL You can store your most frequent dialed number in the Rocketdial location. The Rocketdial allows you to dial a number with The Memory one key press (there is no need to press . The phone will automatically dial the number stored). Location for Rocketdial is STORING AND EDITING THE ROCKETDIAL... -
Page 24: Caller Id
CALLER ID You must subscribe to a Caller ID service to use these facilities. When the telephone rings, the Caller ID feature allows you to view the caller's name and phone number on the display before you answer the telephone. The handset displays the phone number of the incoming call, the name, time and number of calls. -
Page 25: Viewing The Caller Id Message List
VIEWING THE CALLER ID MESSAGE LIST The Caller ID list stores information for up to 30 incoming calls - even unanswered calls. In Caller ID 1. Press . The summary screen appears. The screen shows the number of new messages and total messages. cid/ menu operation, if no... -
Page 26: Calling A Party From The Caller Id List
CALLING A PARTY FROM THE CALLER ID LIST You can place a call from the Caller ID list. New Zealand: Calling from the 1. Press . Select the phone number that you want to dial by pressing cid/ menu Caller ID list may 2. -
Page 27: Answering System
ANSWERING SYSTEM You can use your answering systems to leave a voice memo message for others who use the phone, or to announce a special message to callers when you're away from your phone. FEATURES Digital Tapeless Recording 13 minutes of Recording Time Call Screening Selecting Outgoing Messages Time and Day Announcement... -
Page 28: Setting The Time
SETTING THE TIME 1. Press ' is announced along with the current time. The message counter displays Time menu the current numbers [ ] through [ ] indicating the day of the week. 2. Press until the correct day is announced. The numbers [ ] through [ ] displayed on the base. -
Page 29: Setting The Ring Time
SETTING THE RING TIME The ring time setting allows you to set the number of rings the caller hears before your answering system plays the outgoing message. You can set the ring time to answer after six, nine or twelve rings. Setting (Toll Saver), the answering system picks up after six rings if you have memo new messages, and after nine rings if there are none. -
Page 30: Announce Only Feature
ANNOUNCE ONLY FEATURE The ' ' feature plays a prerecorded outgoing message, "Hello, no one is Announce Only available to take your call. Please call again," but it will not allow the caller to leave a message. SETTING THE MESSAGE ALERT TONE The Message Alert feature lets you know that you have new messages by sounding a short beeping tone. -
Page 31: Setting Your Outgoing Message (Greeting)
SETTING YOUR OUTGOING MESSAGE (GREETING) When you receive a call, the answering system automatically plays either a preset message or your own greeting. Preset Message The following message is prerecorded, "Hello, no one is available to take your call. Please leave a message after the tone."... -
Page 32: Setting The Base Ringer Volume
SETTING THE BASE RINGER VOLUME memo ans vol. You have three ringer options. One allows you to turn the ringer off. The other two are volume greeting When you have levels. set the base play/stop delete ringer to off and 1. -
Page 33: Using Your Answering System
USING YOUR ANSWERING SYSTEM The message counter displays the number of messages stored in memory. If the display When the flashes, then there are new messages waiting for you. The flashing number represents the answering system number of new messages, not total messages. After you play all your new messages, you can is full, ' ' is then play your old messages. -
Page 34: Skipping A Message
SKIPPING A MESSAGE 1. Press to review your messages. The number of messages is announced. memo ans vol. 2. Press at anytime to skip to the next message. Each time is pressed, the system greeting scans forward one message. If you have several messages, press to find the message delete play/stop... -
Page 35: Voice Memo
VOICE MEMO The voice memo function allows the user to record messages (up to 10 minutes). memo The voice memo hold ans vol. 1. Press and . " " is announced and a Record memo message memo function is confirmation tone sounds. [- -] flashes on the message counter. greeting completely 2. -
Page 36: Remote Access Away From Home
REMOTE ACCESS AWAY FROM HOME You can operate your answering system from a remote location using any touch-tone telephone. Use this You must enter a function to check for recorded messages, to play or delete messages, even to record a new greeting command within message. -
Page 37: Turn On The Answering System Remotely
TURN ON THE ANSWERING SYSTEM REMOTELY If you have forgotten to turn on your answering system, you can turn it on remotely from any touch-tone telephone. 1. Call your telephone number. 2. After 15 rings, the system will answer. A tone sounds. 3. -
Page 38: Notes
NOTES Page 30... -
Page 39: Remote Operation Card
REMOTE OPERATION CARD Handy wallet sized instructions for easy use of remote answer machine functions. Remote Operation Card - Remote Operation Card - Uniden XSA975 Uniden XSA975 PIN Code: PIN Code: Remote access away from home: Remote access away from home: 1. - Page 40 REMOTE OPERATION CARD Handy wallet sized instructions for easy use of remote answer machine functions. Command Function Command Function then Repeat a Message then Repeat a Message then Playing Incoming Messages then Playing Incoming Messages then Skipping a Message then Skipping a Message then Deleting a Message...
-
Page 41: Troubleshooting
• Place the baseunit away from appliances or metal objects. Handset number 1 or • Place one handset at a time on the main base for 5 seconds each. number 2 not working If you still have a problem. Australia: www.uniden.com.au New Zealand: www.uniden.co.nz Page 33... -
Page 42: Warranty
Uniden. (C) Improperly installed, (D) Repaired by someone other than an authorised Uniden Repair Agent for a defect or malfunction covered by this warranty. (E) Used in conjunction with any equipment or parts or as part of a system not manufactured by Uniden, (F) Warranty is only valid in original country of purchase. -
Page 43: Notes
NOTES For your future reference, please fill in the panel below and attach your Purchase Receipt/Sales Docket. Serial: (found on the bottom of the product or on the box) Date of Purchase: Name & Address of Dealer: PIN Code: Page 35... - Page 44 © Uniden Australia Pty Limited Uniden New Zealand Limited Printed in China UCZZ01428ZA...
