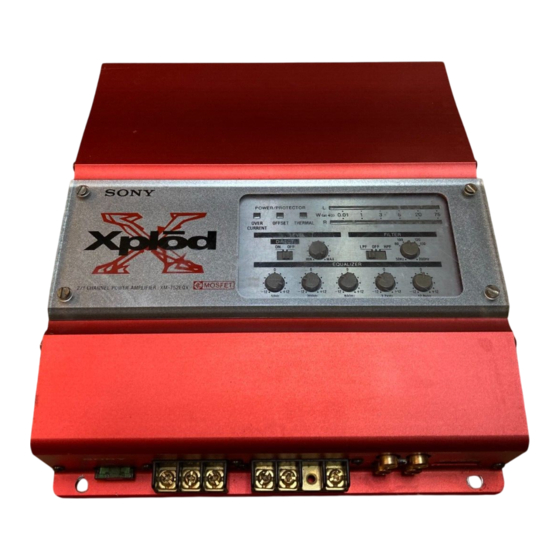

Sony XM-752EQX Operating Instructions Manual
Hide thumbs
Also See for XM-752EQX:
- Service manual (25 pages) ,
- Operating instructions manual (21 pages) ,
- Specifications (2 pages)
Table of Contents
Advertisement
Quick Links
Stereo
Power
Amplifier
Operating
Instructions

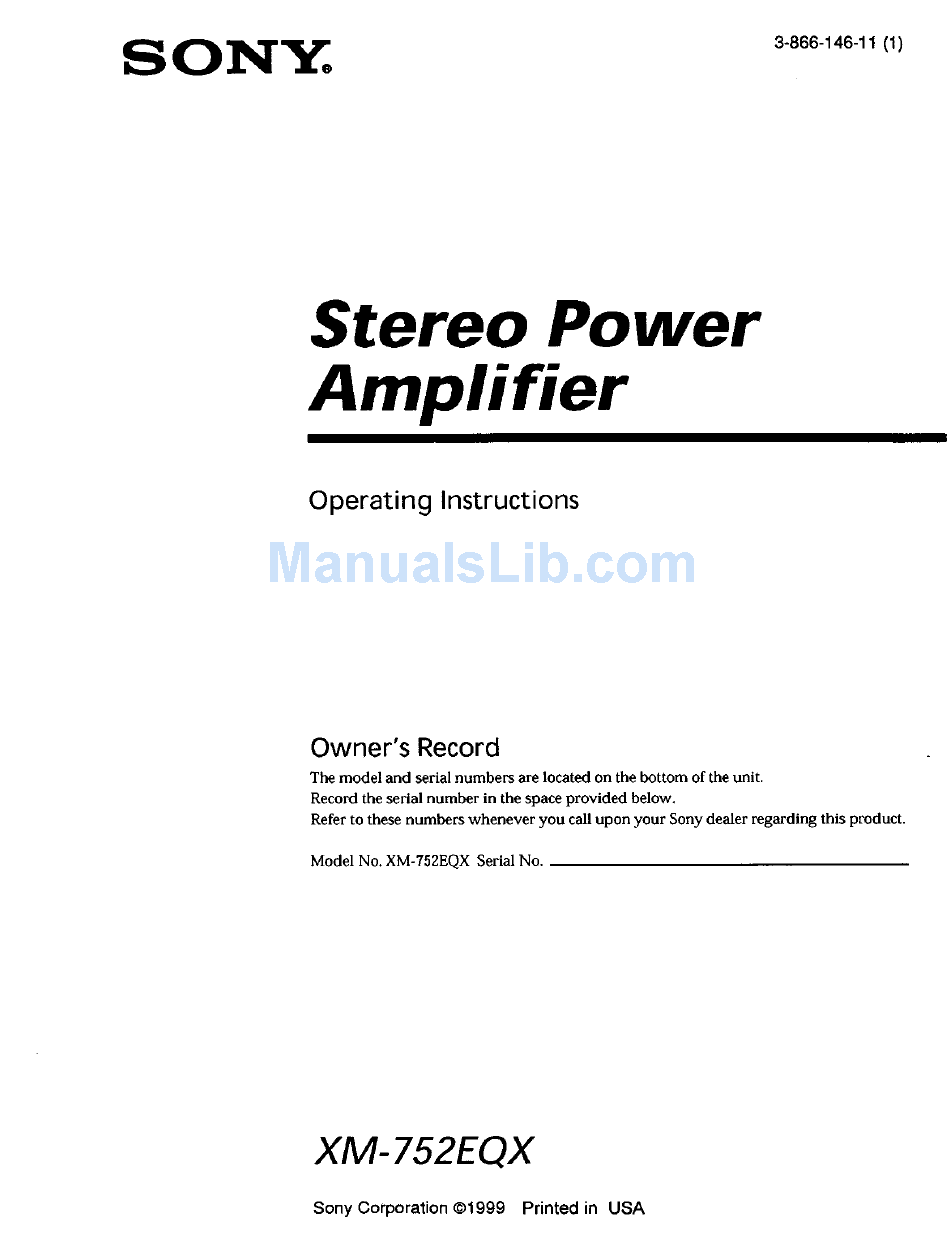

Owner's Record
The model
and serial numbers
are located
on the bottom
of the unit.
Record
the serial number
in the space provided
below.
Refer to these numbers
whenever
you call upon your Sony dealer
regarding
this product.
Model No. XM-?52EQX Serial No.
XM-752EQX
Sony Corporation
@1999
Printed
in USA
Advertisement
Table of Contents
Related Manuals for Sony XM-752EQX
Summary of Contents for Sony XM-752EQX
- Page 1 Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. XM-?52EQX Serial No. XM-752EQX Sony Corporation @1999 Printed in USA...
- Page 2 Connections Caution • Before making any connections, disconnect the ground terminal of the car battery to avoid short circuits. • Be sure to use speakers with an adequate power rating. If you use small capacity speakers, they may be damaged. •...
-
Page 3: Power Connection
Power Connection Leads to a rnetal surface of the car (REM OU_ Car audio +12 V car battery Notes on the power supply • G_;ectthe+12Vpower_pplyleadonlyal_rallthe • Be sure to connect the ground lead of the unit securely to a metal surface of the car. A loose connection may cause the amplifier malfunction. - Page 4 2-Speaker System I LINE OUT INPtrr ||ii Left speaker Right speaker (rain. 2_.) (min. 2_) Ford_llsontJ]es_i.ngsofsw_chesandax_trols, rderto "L_cationandFunction_ConUob. As a Monaural Amplifier Car audio LINE OUT Left channel Right channel INPUT INPUT • Right speaker (rain. 4_1) Ford_ai_n_afs_td_dm.',uds. rd_to "Lo_ti_ andFurr_ndCm_ro/s," Note Makesurethatthelmeoutput,rromthecaraudiois connectedtotheja£kmarked "I.(MONO) "ontt_...
- Page 5 As the Monaural Amplifier for a Subwoofer I LINE OUT iNPUT Car audio Subwoofer (min. 4_) Ford_ilsonthes_ir_dswitcl_andcontro_ referto "Lo_t_andFur_t_no[Cont, m_. " Note l[_uwishtov_asubv_rasammauralst_er, am_t_above. signa_th_ubv_llbetl_m_at_n_ bo_tightamtte_ou_ut_gn_s.
- Page 6 2.way System Two OUtl)ut channels Cm audio L LINE OUT OO00 0000 speakers 2.Q) (rain. Fullrange Subwoofers (rain. 2a) Use the THROUGH OUT terminal when you install more amplifiers. In this case, the signals are output as they are input. (EQUALIZER, HPF, and LPF do not work.) Notes •...
- Page 7 Four output channels Car audio L UNE OUT INPUT INPUT OOO0 0@©0 Full range speakers Subwoofers (rain. 2_) (rain. 2_) Fard_ailsontt_a_gsofswit_cantrols, rderto _!_c.atkmmdF_aionofC_trals. " Note Intl_sy_an, tl_thesubwo_crswillbe _'dledbythe_ra_iofadereo_.
-
Page 8: Dual Mode
Dual Mode System (With a Bridged Subwoofer) ILINE OUT Car audio ©° Left speaker Right speaker $ubwoofer Table of crossover values for 6 dE/octave (4 ohms) CrosSover C1/C2 Frequency (coil)* (capacitor)* unit: Hz unit: mH unit: pF 12.7 1000 * (not supplied) Notes •... - Page 9 Direct speaker cord €onnec'tion Left speaker Car audio Right speaker _Grav Bl_k-sthped cord White Car audio Left speaker ,Co_] diameter : 0.3 - 1.25 mm (A_NG 22 - 16) 11 (_A_) Unit :mm (in.) High Level Input Connection (2-SpeakerSystem) White Left speaker output Car audio Right speaker output...
- Page 10 Hi qh Level Input Connection (Asa Amplifier) Monaural Bllck-stdped cord Right speake¢ output Black.stdpeal_d" Left speaker output Car audio input cord (Not supplied} For details on the settings o[switche_ and conWoL_ re[er to "Location and Function ol"Contzois. _ High Level Input Connection (As a Monaural Amplifier...
-
Page 11: Installation
Installation Before Installation • Mount the unit either inside the trunk or under a seat. • Choose the mounting location carefully so that the unit will not interfere with the normal movements of the driver, and where it will not be exposed to direct sunlight or hot air from the heater,... -
Page 12: Fuse Replacement
(4 to 8 ohms when used as a bridging amplifier). replacement, there may be an internal malfunction. • Do not connect any active speakers (with built-in In such a case, consult your nearest Sony dealer. amplifiers) to the speaker terminals of the unit. -
Page 13: Specifications
The voltage going Into the remote terminal is too low. • The connected master unit is not turned on. --* Turn on the master unit. • The system employs too many amplihers. ---* Use a relay. Check the battery voltage (10.5 - 16 V). -
Page 14: Location And Function Of Controls
Features • Maximum power output of 150 watts per • Protection circuit and indicator provided. channel (at 4 ohms). • Pulse power supply* for stable, regulated output • This unit can be used as a monaural amplifier power. with a maximum output of 400 watts. •... - Page 15 FILTER selector switch ;if' ,/_,, When the switch is tn the LPF position, the filter is set to low-pass. When in the HPF position, the filter is set to high-pass. When the DIRECT switch : I ,,,,,,"_"' x:/: :"',,'_ I '_',,,,.k'"'" is set to ON, these filters do not work.
