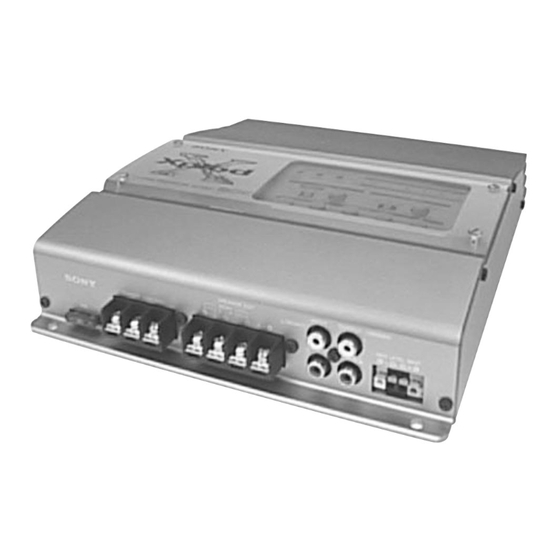

SERVICE MANUAL

AUDIO POWER SPECIFICATIONS (US, Canadian model)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
75 watts per channel minimum continuous average power into
4 ohms, both channels driven from 20 Hz to 20 kHz with no more
than 0.04% total harmonic distortion per Car Audio Ad Hoc
Committee standards.
Other Specifications
Circuit system
OTL (output transformerless)
circuit
Pulse power supply
Inputs
RCA pin jacks
High level input connector
Outputs
Speaker terminals
Through out pin jacks
2 – 8 Ω (stereo)
Speaker impedance
4 – 8 Ω (when used as a bridging
amplifier)
150 watts × 2 (at 4 Ω)
Maximum outputs
400 watts (monaural, at 4 Ω)
Rated outputs (supply voltage at 14.4 V)
75 watts per channel (20 Hz –
20 kHz, 0.04% THD, at 4 Ω)
100 watts per channel (20 Hz –
20 kHz, 0.1% THD, at 2 Ω)
200 watts (monaural) (20 Hz –
20 kHz, 0.1% THD, at 4 Ω)
Frequency response
5 Hz – 100 kHz (
Harmonic distortion
0.005% or less
(at 1 kHz, 4 Ω)
Input level adjustment range
0.2 – 4.0 V (RCA pin jacks)
0.4 – 8.0 V (High level input)
MICROFILM
XM-752EQX
SPECIFICATIONS
+0
dB)
–3
High-pass filter
50 – 200 Hz, –12 dB/oct
Low-pass filter
50 – 200 Hz, –12 dB/oct
Equalizer
50 Hz, 200 Hz, 800 Hz, 3.2 kHz,
12.8 kHz ±12 dB
Power requirements
12 V DC car battery
(negative ground)
Power supply voltage
10.5 – 16 V
Current drain
At rated output: 20 A
Remote input: 1.5 mA
Approx. 260 × 55 × 220 mm
Dimensions
(10
1/4
(l/h/p) not incl. projecting parts
and controls
Mass
Approx. 2.2 kg (4 lb. 14 oz.)
not incl. accessories
Supplied accessories
Mounting screws (4),
Terminal cap (1)
Design and specifications are subject to change without
notice.
STEREO POWER AMPLIFIER
– 1 –
US Model
Canadian Model
AEP Model
UK Model
E Model
× 2
× 8
in.)
1/4
3/4

Advertisement

Table of Contents
loading

Summary of Contents for Sony xm-752eqx

  • Page 1: Service Manual

    XM-752EQX SERVICE MANUAL US Model Canadian Model AEP Model UK Model E Model SPECIFICATIONS AUDIO POWER SPECIFICATIONS (US, Canadian model) POWER OUTPUT AND TOTAL HARMONIC DISTORTION 75 watts per channel minimum continuous average power into 4 ohms, both channels driven from 20 Hz to 20 kHz with no more than 0.04% total harmonic distortion per Car Audio Ad Hoc...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. GENERAL Location and Function of Controls .......... 3 Connections ................3 2. DISASSEMBLY 2-1. Bottom Plate ................ 6 2-2. Panel (A) ................6 2-3. Panel (B) ................7 2-4. AMP Board ................. 7 2-5. Control Panel Block ............8 3.
  • Page 3 SECTION 1 GENERAL This section is extracted from instruction manual. – 3 –...
  • Page 4 – 4 –...
  • Page 5 – 5 –...
  • Page 6: Disassembly

    SECTION 2 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 2-1. BOTTOM PLATE 4 bottom plate 2 BTP 3x4 3 BTP 3x4 1 BTP 3x5 2-2. PANEL (A) 3 panel (A) 2 BTP 3x8 1 BTP 3x8 –...
  • Page 7: Panel (B)

    2-3. PANEL (B) 1 BTP 3x8 3 panel (B) 2 BTP 3x8 2-4. AMP BOARD 5 screw (3x8) (CZN-N) 4 BVTP 3x12 6 AMP board 1 BTP 3x12 2 BTP 3x12 3 fuse (30A) – 7 –...
  • Page 8: Control Panel Block

    2-5. CONTROL PANEL BLOCK 7 control panel block 2 claw 1 claw 3 CNP804 5 CNJ805 6 CNJ802 4 CNP803 – 8 –...
  • Page 9: Diagrams

    XM-752EQX SECTION 3 DIAGRAMS 3-1. BLOCK DIAGRAM CNJ801 OUTPUT –1 (THROUGH) FILTER FILTER (MONO) IC103 (1/2) IC103 (2/2) LINE AMP LD801 – 824 Q801 – 804 IC101 –3 VR101-1 VR101-2 INPUT – LEVEL – METER DRIVE (MONO) VR101 IC102 SIGNAL METER AMP...
  • Page 10: Printed Wiring Board -Amp Section

    XM-752EQX 3-2. PRINTED WIRING BOARD — AMP SECTION — • Semiconductor Location Ref. No. Location D101 D102 D201 D202 D801 D802 D803 D806 D901 D902 D903 D904 D905 D906 D907 D908 D909 D910 D911 D912 IC101 IC801 IC901 IC902 Q101...
  • Page 11: Schematic Diagram -Amp Section

    XM-752EQX 3-3. SCHEMATIC DIAGRAM — AMP SECTION — • Refer to page 23 for IC Block Diagrams. (Page 20) Note: • All capacitors are in µF unless otherwise noted. pF: µµF • Power voltage is dc 14.4V and fed with regulated dc power 50 WV or less are not indicated except for electrolytics supply from +12V and REMOTE terminals.
  • Page 12: Schematic Diagram -Pre Section

    XM-752EQX 3-4. SCHEMATIC DIAGRAM — PRE SECTION — (Page 13) (Page 13) 3-5. PRINTED WIRING BOARD — PRE SECTION — Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums.
  • Page 13: Schematic Diagram -Eq Section

    XM-752EQX 3-6. SCHEMATIC DIAGRAM — EQ SECTION — Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and W or less unless otherwise specified.
  • Page 14: Printed Wiring Board -Ind Section

    XM-752EQX 3-8. PRINTED WIRING BOARD — IND SECTION — 3-9. SCHEMATIC DIAGRAM — IND SECTION — • Refer to page 23 for IC Block Diagrams. (Page 11) (Page 13) • Semiconductor Location Ref. No. Location Ref. No. Location IC802 (LD815)
  • Page 15: Printed Wiring Board -Led Section

    XM-752EQX 3-10. PRINTED WIRING BOARD — LED SECTION — 3-11. SCHEMATIC DIAGRAM — LED SECTION — (Page 11) • Semiconductor Location Ref. No. Location D880 D881 D882 (LD825) (LD826) (LD827) Q805 Q806 Q807 ) : SIDE B (Page 13) Note on Schematic Diagram: •...
  • Page 16: Ic Block Diagrams

    • IC Block Diagrams IC901 µPC494GS REF. REG. ERROR 0.1V ERROR IC802 BA6820F DRIVER PEAK HOLD LOGIC VREF. COMPARATOR CLOCK SWITCHER INPUT INTERFACE – 23 –...
  • Page 17: Exploded Views

    SECTION 4 EXPLODED VIEWS NOTE: • The mechanical parts with no reference • -XX and -X mean standardized parts, so • Accessories and packing materials and number in the exploded views are not supplied. hardware (# mark) list are given in they may have some difference from the •...
  • Page 18: Control Panel Section

    4-2. CONTROL PANEL SECTION supplied with RV supplied with RV Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-032-783-01 PLATE, ORNAMENTAL * 58 1-672-780-11 EQ BOARD 3-035-767-01 KNOB (VR) 3-035-765-01 LENS (A) 3-035-768-01 KNOB (SW) * 60 1-672-784-11 LED BOARD * 54 3-035-764-01 BRACKET (CHASSIS)
  • Page 19: Electrical Parts List

    SECTION 5 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in • Items marked “*” are not stocked since When indicating parts by reference the parts list may be different from the they are seldom required for routine service. number, please include the board.
  • Page 20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < DIODE > Q111 8-729-230-49 TRANSISTOR 2SC2712-YG Q112 8-729-203-48 TRANSISTOR 2SC3327-A D101 8-719-801-78 DIODE 1SS184 Q201 8-729-903-10 TRANSISTOR FMW1 D102 8-719-801-78 DIODE 1SS184 Q202 8-729-026-57 TRANSISTOR FMS1A-T148 D201 8-719-801-78 DIODE 1SS184 Q203 8-729-232-32 TRANSISTOR 2SA965...
  • Page 21 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R144 1-208-365-61 RES,CHIP 1/10W R801 1-208-522-61 RES,CHIP 1/10W R145 1-208-534-61 RES,CHIP 100K 1/10W R802 1-208-522-61 RES,CHIP 1/10W R146 1-208-534-61 RES,CHIP 100K 1/10W R803 1-208-462-61 RES,CHIP 1/10W R147 1-208-435-61 RES,CHIP 1/10W R804 1-208-462-61 RES,CHIP...
  • Page 22 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R926 1-249-424-11 CARBON 3.9K 1/4W < RESISTOR > R935 1-208-437-61 RES,CHIP 1/10W R118 1-216-659-11 METAL CHIP 2.2K 0.5% 1/10W < TRANSFORMER > R119 1-208-526-61 RES,CHIP 1/10W R120 1-208-776-11 RES,CHIP 1/10W T901 1-433-851-11 TRANSFORMER, DC-DC CONVERTER...
  • Page 23 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark LD803 8-719-074-70 LED SEC1603C < DIODE > LD804 8-719-074-70 LED SEC1603C LD805 8-719-074-70 LED SEC1603C D880 8-719-801-78 DIODE 1SS184 LD806 8-719-074-70 LED SEC1603C D881 8-719-801-78 DIODE 1SS184 LD807 8-719-074-70 LED SEC1603C D882 8-719-801-78 DIODE 1SS184...
  • Page 24 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < IC > MISCELLANEOUS *************** IC102 8-759-711-82 IC NJM4580E IC103 8-759-711-82 IC NJM4580E 1-790-765-11 CABLE, PARALLEL (5P) IC104 8-759-711-82 IC NJM4580E 1-790-764-11 CABLE, PARALLEL (4P) IC111 8-759-711-82 IC NJM4580E F901 1-532-947-11 FUSE (BLADE TYPE) (AUTO FUSE) (30A) *************************************************************...
  • Page 25 XM-752EQX Sony Corporation 99A0478-1 9-926-420-11 Personal & Mobile Communication Company Printed in Japan C1999. 1 – 32 – Published by Quality Assurance Dept.
