You are welcomed to use continue Ink Supply System which will greatly reduce your cost. And
it is the ideal products suiting for Color Inkjet Printer. Pls Please look over the instruction
carefully before using it, which will make you use this system easily, safely and stably.
1. General Guide

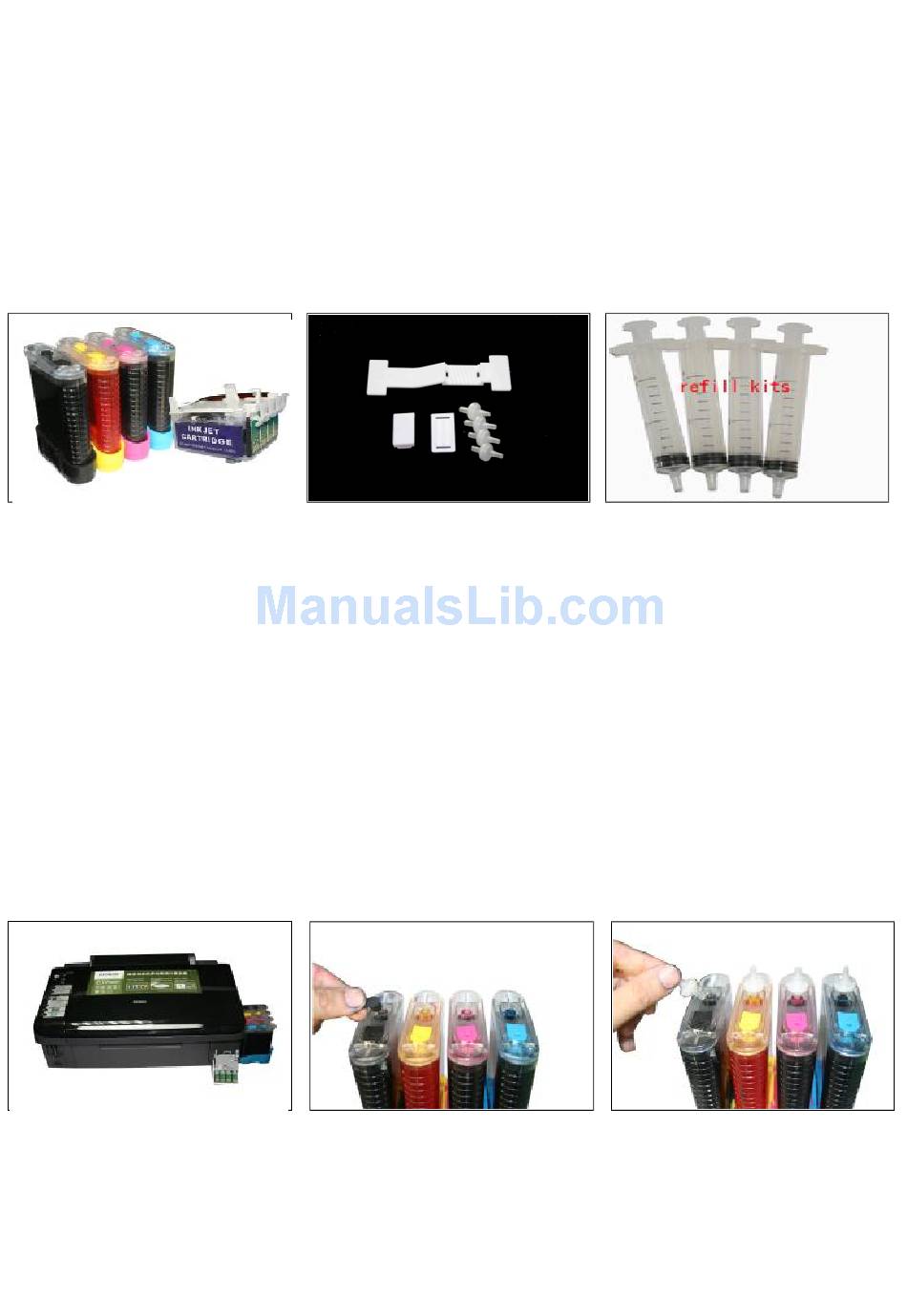

1、Components
a、CIS System
1set
d、Standby Refill Kit
2、Opening box inspection
a、Check whether all the accessories are ready before installing.
b、Check whether there's the leakage of the CISS, whether some tubes have been separated from the CISS
2. Printer Testing
1) Check whether the printer is in normal condition, like mechanical status, lubrication status etc.
2) Print testing lines to ensure the printing head is good condition.
3) Print pictures to see whether the printing image is good or not..
Please use this CIS System easily, it will not reduce or raise the accurateness of the printer. If the testing result is
abnormal, please consult the local dealer for this products.
3. Installation Procedures
Step 1: Preparation
Put the CISS on the right side of the printer. Pull out the small rubber plug from the
and place all the tubes at correct position.
Step 2: Take out the original cartridges
Instruction for EPSON CX7300
b、Air Filters
6pcs
e、Instruction CD 1pc
air hole as picture shown above.
6pcs
c、Support Arm
1set
Place 6pcs of air filters into air holes,
