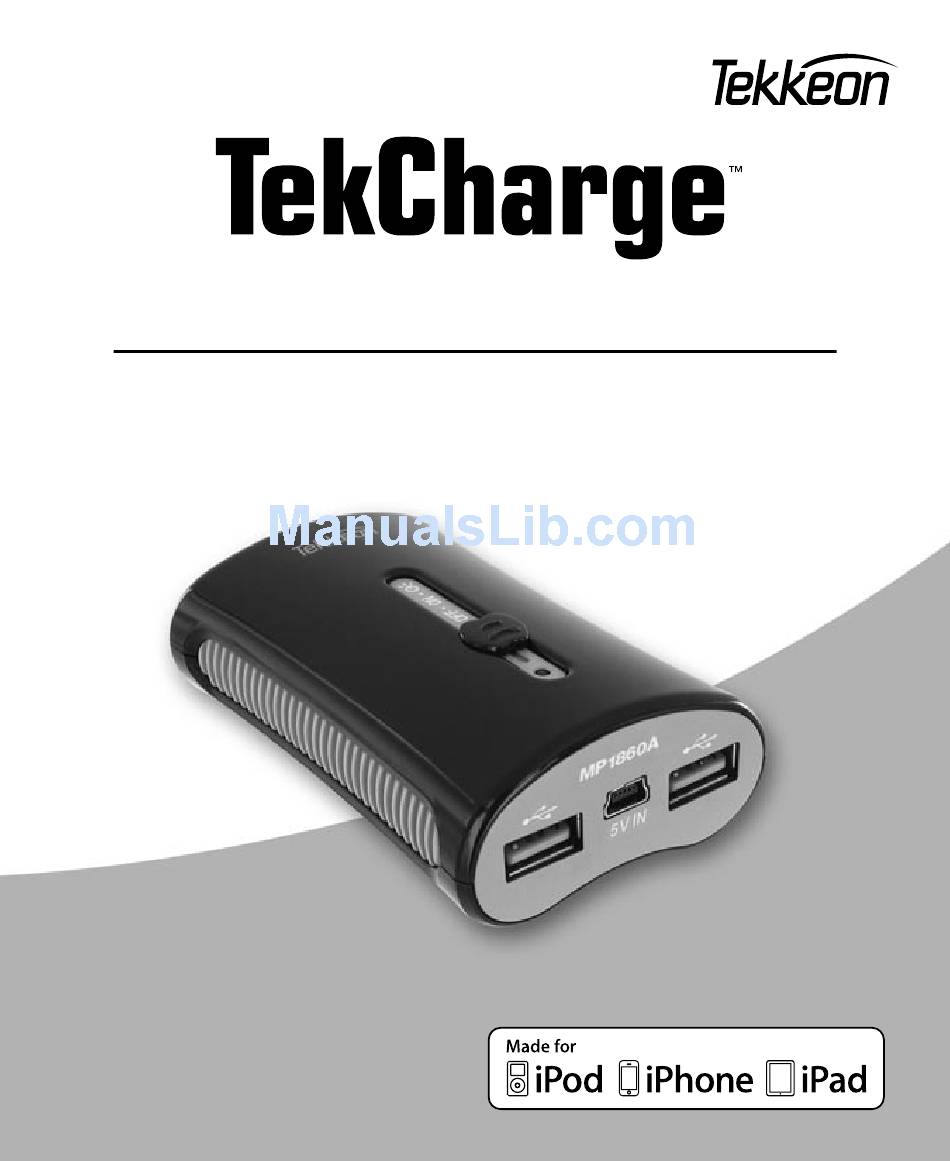

- Page 1 Dual Port EmErgEncy chargEr MP1860A User Guide...
-
Page 3: Table Of Contents
Dual Port EmErgEncy chargEr USER GUIDE Contents Overview ..........................2 Getting Started ........................3 Unpacking TekCharge MP1860A ..................3 Getting to Know TekCharge MP1860A ................4 Using TekCharge MP1860A ....................5 Charging TekCharge MP1860A ..................5 Charging Your iPad, iPhone or iPod using the 30-Pin USB Cable ........7 Charging a Device Using Your Device USB Cable ..............8 Charging a Device Using an Adapter Tip................9 Troubleshooting ........................10... -
Page 4: Overview
5V devices that use a Micro or Mini USB cable to charge. If the extra adapter tip you need isn’t in the package, just go to www.tekkeon.com or call us at 888-787-5888 or 714-832-1266 to order more adapter tips for a nominal fee. -
Page 5: Getting Started
Getting Started Unpacking TekCharge MP1860A Your TekCharge MP1860A package includes the following: User guide (not shown) Registration card (not shown) TekCharge MP1860A myCharger USB power adapter 30-pin USB cable Retractable input/output USB cable Micro USB Mini USB Adapter tips for BlackBerry, ®... -
Page 6: Getting To Know Tekcharge Mp1860A
Getting to Know TekCharge MP1860A Capacity Indicator Color indicates the battery capacity of the rechargeable battery. Output Port (5V OUT) For charging and syncing Power Switch your iPad, iPhone or iPod, or Powers USB port, charging other 5V devices. and turns on the flashlight. -
Page 7: Using Tekcharge Mp1860A
Using TekCharge MP1860A TekCharge MP1860A can be used to power or charge any portable device that requires 5V. If your device has a DC jack with center negative polarity, do not power the device with TekCharge as it does not support center negative polarity. Center Negative Center Positive TekCharge MP1860A can be used to power two devices at once by connecting one device to each... - Page 8 To charge both TekCharge MP1860A and the connected device, slide the power switch to ON. TekCharge MP1860A will be charged first, and will in turn charge the connected device(s). This connection will work only for devices that charge slower than the input power (1A). If the connected device draws more power than the input power, TekCharge MP1860A will be depleted at some point.
-
Page 9: Charging Your Ipad, Iphone Or Ipod Using The 30-Pin Usb Cable
Charging your iPad, iPhone or iPod Using the 30-Pin USB Cable 1. Insert the USB plug on the 30-pin cable into one of the output ports on TekCharge MP1860A. 2. Connect the 30-pin connector into the dock connector on your iPad, iPhone or iPod. 3. -
Page 10: Charging A Device Using Your Device Usb Cable
Charging a Device Using Your Device USB Cable You can use your own device USB cable to connect to your device. However, for devices with Mini or Micro USB power ports, it is highly recommended that the included Mini or Micro USB adapter tips with retractable cable are used in place of the device USB cable. -
Page 11: Charging A Device Using An Adapter Tip
You can obtain most adapters through the web site, or by contacting Tekkeon by phone at 888-787-5888 or 714-832-1266. If available through Tekkeon, the adapter will be sent to you for a nominal fee. -
Page 12: Troubleshooting
Troubleshooting If TekCharge MP1860A does not power your portable device or charge the device battery, take these steps: 1. Check that the input/output cord is connected to both TekCharge and the portable device, and that the adapter plug fits snugly into the power jack on your portable device. If not, try another adapter tip. -
Page 13: Limited Warranty
The product enclosed herein is warranted to be free of operational defects for a period of one year from the date of purchase from a Tekkeon authorized reseller. In the event of a defect in operation during the warranty period Tekkeon, Inc. will replace the defective product when the owner returns all product contents. -
Page 14: Customer Support
Customer Support Customer support for TekCharge is available at: Tekkeon, Inc. c/o TekCharge MP1860A 30 Mauchly, Suite A Irvine, CA 92618 888-787-5888 / 714-832-1266 www.tekkeon.com Tekkeon, Inc. must issue a Return Merchandise Authorization (RMA) number for all exchanges or refunds. - Page 15 © 2010 Tekkeon, Inc. All Rights Reserved. TekCharge is a trademark of Tekkeon, Inc. ™ Specifications are subject to change without notice. iPhone, iPod, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
