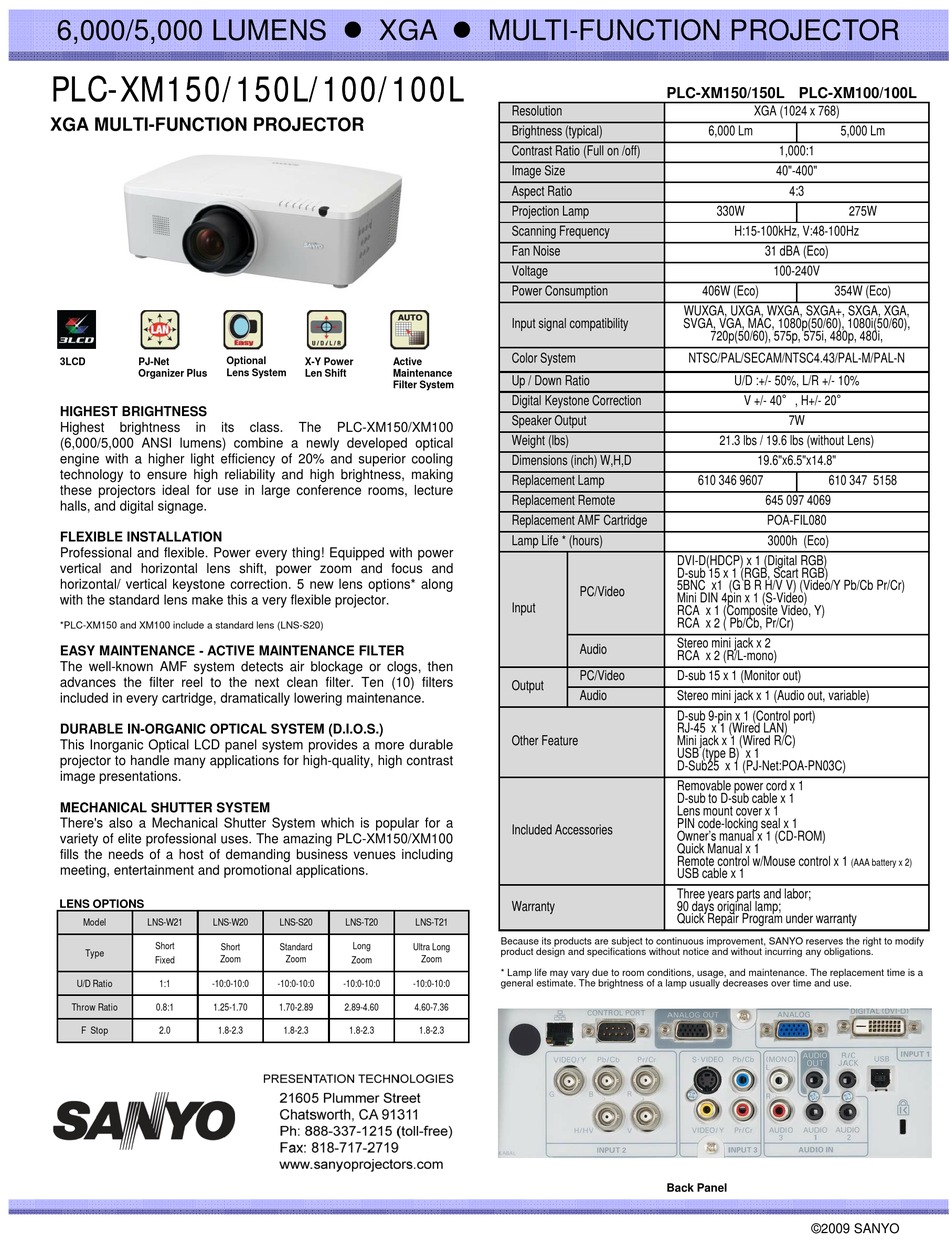

Sanyo PLC-XM150/L - 6000 Lumens Specifications

6,000/5,000 LUMENS
PLC- - XM150/150L/100/100L PLC XM150/150L/100/100L
XGA MULTI-FUNCTION PROJECTOR
Optional
3LCD PJ-Net
Lens System
Organizer Plus
HIGHEST BRIGHTNESS
Highest brightness in its
(6,000/5,000 ANSI lumens) combine a newly developed optical
engine with a higher light efficiency of 20% and superior cooling
t technology to ensure high reliability and high brightness, making h l t hi h
these projectors ideal for use in large conference rooms, lecture
halls, and digital signage.
FLEXIBLE INSTALLATION
Professional and flexible. Power every thing! Equipped with power
vertical and horizontal lens shift, power zoom and focus and
horizontal/ vertical keystone correction. 5 new lens options* along
with the standard lens make this a very flexible projector.
*PLC-XM150 and XM100 include a standard lens (LNS-S20) PLC-XM150 and XM100 include a standard lens (LNS-S20)
EASY MAINTENANCE - ACTIVE MAINTENANCE FILTER
The well-known AMF system detects air blockage or clogs, then
advances the filter reel to the next clean filter. Ten (10) filters
included in every cartridge, dramatically lowering maintenance.
DURABLE IN-ORGANIC OPTICAL SYSTEM (D.I.O.S.)
This Inorganic Optical LCD panel system provides a more durable
projector to handle many applications for high-quality, high contrast
image presentations. image presentations.
MECHANICAL SHUTTER SYSTEM
There's also a Mechanical Shutter System which is popular for a
variety of elite professional uses. The amazing PLC-XM150/XM100
fills the needs of a host of demanding business venues including
meeting, entertainment and promotional applications.
LENS OPTIONS
Model LNS-W21 LNS-W20
Short
Short
Type
Zoom
Fixed
U/D Ratio 1:1 -10:0-10:0
Throw Ratio 0.8:1 1.25-1.70
F Stop 2.0 1.8-2.3
XGA
X-Y Power Active
Len Shift Maintenance
Filter System
class. The PLC-XM150/XM100
li bilit d hi h b i ht
LNS-S20 LNS-T20 LNS-T21
Long
Standard Ultra Long
Zoom
Zoom
-10:0-10:0 -10:0-10:0 -10:0-10:0
1.70-2.89 2.89-4.60 4.60-7.36
1.8-2.3 1.8-2.3
MULTI-FUNCTION PROJECTOR
Resolution
Brightness (typical)
Contrast Ratio (Full on /off)
Image Size
Aspect Ratio
Projection Lamp
Scanning Frequency
Fan Noise
Voltage
Power Consumption
Input signal compatibility
Color System
Up / Down Ratio
Digital Keystone Correction
Speaker Output
Weight (lbs)
Dimensions (inch) W,H,D
ki
Replacement Lamp
Replacement Remote
Replacement AMF Cartridge
Lamp Life * (hours)
PC/Video
Input
Audio
PC/Video
Output
Audio
Other Feature
Included Accessories
Warranty
Because its products are subject to continuous improvement, SANYO reserves the right to modify
product design and specifications without notice and without incurring any obligations.
Zoom
* Lamp life may vary due to room conditions, usage, and maintenance. The replacement time is a
general estimate. The brightness of a lamp usually decreases over time and use.
1.8-2.3
PLC-XM150/150L PLC-XM100/100L
XGA (1024 x 768)
6,000 Lm 5,000 Lm
1,000:1
40"-400"
4:3
330W
H:15-100kHz, V:48-100Hz
31 dBA (Eco)
100-240V
406W (Eco) 354W (Eco)
WUXGA, UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA, MAC, 1080p(50/60), 1080i(50/60),
720p(50/60), 575p, 575i, 480p, 480i,
NTSC/PAL/SECAM/NTSC4.43/PAL-M/PAL-N
U/D :+/- 50%, L/R +/- 10%
V +/- 40°, H+/- 20°
7W
21.3 lbs / 19.6 lbs (without Lens)
19.6"x6.5"x14.8"
610 346 9607 610 347 5158
645 097 4069
POA-FIL080
3000h (Eco)
DVI-D(HDCP) x 1 (Digital RGB)
D-sub 15 x 1 (RGB, Scart RGB)
5BNC x1 (G B R H/V V) (Video/Y Pb/Cb Pr/Cr)
Mini DIN 4pin x 1 (S-Video)
RCA x 1 (Composite Video, Y)
RCA x 2 ( Pb/Cb, Pr/Cr) RCA x 2 ( Pb/Cb Pr/Cr)
Stereo mini jack x 2
RCA x 2 (R/L-mono)
D-sub 15 x 1 (Monitor out)
Stereo mini jack x 1 (Audio out, variable)
D-sub 9-pin x 1 (Control port)
RJ-45 x 1 (Wired LAN)
Mini jack x 1 (Wired R/C)
USB (type B) x 1
D-Sub25 x 1 (PJ-Net:POA-PN03C)
Removable power cord x 1
D-sub to D-sub cable x 1
Lens mount cover x 1
PIN code-locking seal x 1
Owner's manual x 1 (CD-ROM)
Quick Manual x 1
Remote control w/Mouse control x 1
USB cable x 1
Three years parts and labor;
90 days original lamp;
Quick Repair Program under warranty
Back Panel
©2009 SANYO
275W
(AAA battery x 2)
