Operators lVlanuat
i
i
_i:
....
_
' ..........................
_"_"_'_ ........

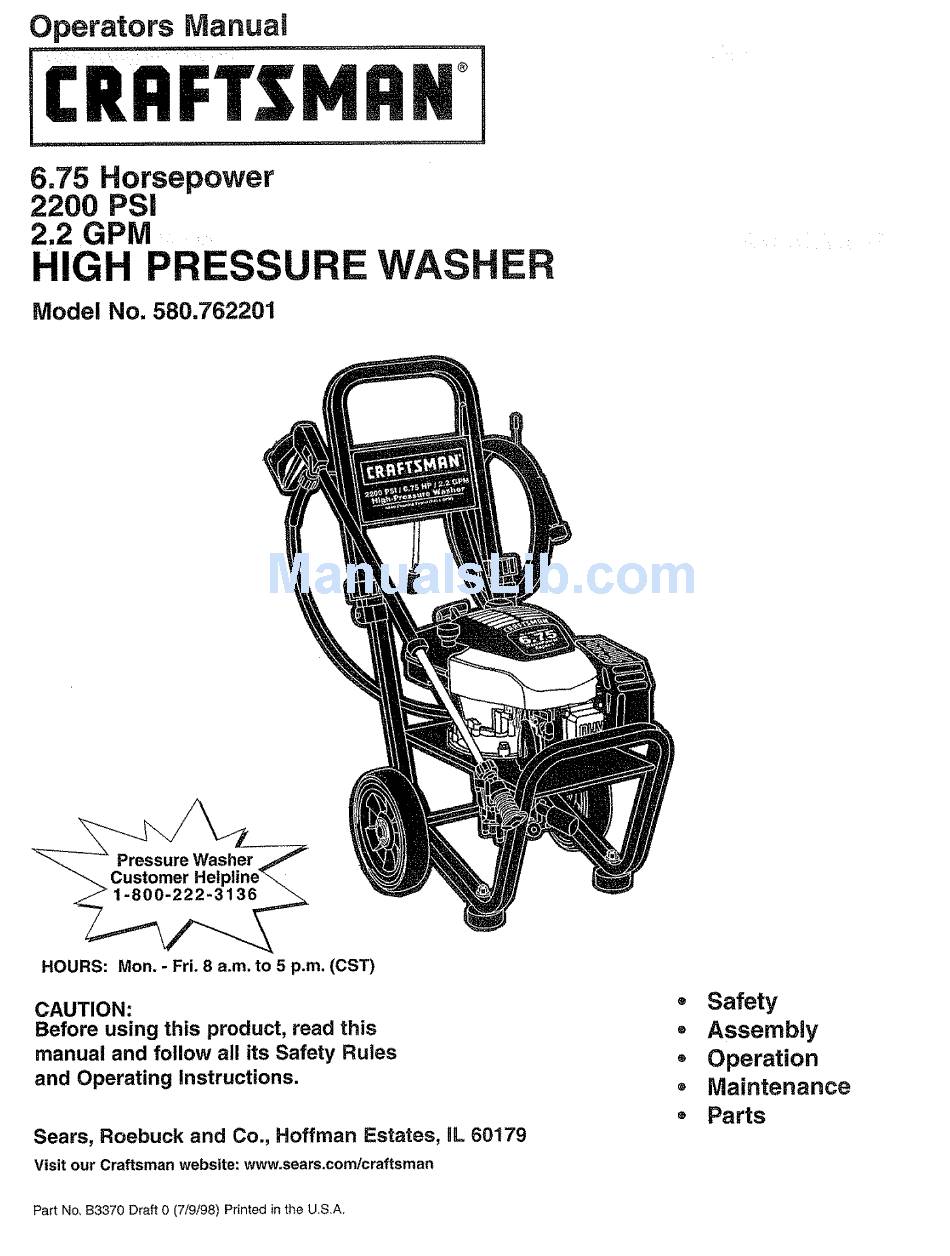

(RRFTSMRII °
6.75 Horsepower
2200 PSi
2.2 GPM
WAS
Model No. 580.762201
HOURS:
Mon. - Fri. 8 a.m. to 5 p.m. (CST)
CAUTION:
Before using this product, read this
manual and follow all its Safety Rules
and Operating Instructions.
Sears, Roebuck
and Co., Hoffrnan
Estates,
nL 60179
Visit our Craftsman website: www.sears.com/craftsman
• Safety
® Assembly
Operation
= Maintenance
= Parts
Part No, B3370 Draft 0 (7/9/98) Printed in the U.S.A.
Advertisement
Table of Contents
Related Manuals for Craftsman 580.762201
Summary of Contents for Craftsman 580.762201
- Page 1 Before using this product, read this manual and follow all its Safety Rules Operation and Operating Instructions. = Maintenance = Parts Sears, Roebuck and Co., Hoffrnan Estates, nL 60179 Visit our Craftsman website: www.sears.com/craftsman Part No, B3370 Draft 0 (7/9/98) Printed in the U.S.A.
-
Page 2: Limited One-Year Warranty
HIGH PRESSURE WASHER For one year from the date of purchase, when this Craftsman High Pressure Washer is maintained and operated according to the instructions in the owner's manual, Sears will repair, free of charge, any defect in material and workmanship. - Page 3 Some chemicals or detergents may be harmful if Always be certain the spray gun, nozzles and inhaled or ingested, causing severe nausea, accessories are correctly attached. fainting or poisoning. The harmful elements may Never use a spray gun which does not have a cause property damage or severe injury.
- Page 4 HOW TO SET UP YOUR PRESSURE WASHER The following parts are shipped loose with your pressure washer: For the most part, your Craftsman High Pressure Washer has been assembled at the factory. You must, • Main Unit -- pressure washer with wheels, however, attach the wire form, assemble the spray gun, guide handle.
- Page 5 Placeassembled s praygunonholder. Cutthetiewrapsonthehighpressure h oseand connect highpressure h osetogun.Tighten by ® Place turbonozzle in grommet h oleinbase. hand. Remove plastic capandconnect h ighpressure hoseto pump. T ighten by hand, CHECKLIST Before you operate your new high pressure washer please review the following checklist: All assembly instructions have been completed.
- Page 6 KNOW YOUR HIGH PRESSURE WASHER Read this owner's manual and safety rules before operating your high pressure washer, Compare the illustrations with your high pressure washer to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. Chemical Injection Tube and Filter High Pressure Hose...
- Page 7 HOW TO USE YOUR PRESSURE WASHER If you get spray nozzle too close, especially using high pressure mode, you may damage the cleaning IF YOU HAVE ANY PROBLEMS operating your surface. pressure washer, please call the pressure washer APPLYING DETERGENT AND CLEANING WITH helpline at 1-800-222-3136.
- Page 8 RiNSiNG WiTH THE PRESSURE WASHER WARNING Be extremely careful if you must use the pressure washer from ladder, scaffolding or any other relatively unstable location. Pressure in a running washer builds in the wand as you climb. When you press the trigger, the recoil from the initial spray could force you to fall, or if you are too close to the cleaning The high pressure spray is most effective when the tip...
-
Page 9: Add Engine Oil
BEFORE STARTLING THE PRESSURE TO START YOUFII PRESSURE WASHER WASHER You have assembled your high pressure washer and To operate the engine you will need to do the following: have prepared the engine for starting. You are now ready to clean your car, boat or whatever you plan to ADD ENGINE clean. -
Page 10: How To Stop Your Pressure Washer
IMPORTANT: Do not run pump without the water HOW TO STOP YOUR PRESSURE supply connected and turned on. You must follow this WASHER caution or the pump wil! be damaged. • Move the Throttle Control Lever to the 'Stow' • Move the Throttle Control Lever to the 'Fast' position. -
Page 11: Product Specifications
CUSTOMER RESPONSIBILITIES MAINTENANCE SCHEDULE HOURLY OPERATING SERVICE DATES FILL IN DATES AS YOU COMPLETE REGULAR SERVICE Before Each Hours or Hours or Every 25 Every t00 MAINTENANCE TASK Yearly Yearly PRESSURE WASHER CheckJclean water inlet screen on quick-connect. Check high pressure hose. Check detergent hose, Check spray gun and assembly for leaks. -
Page 12: Before Each Use
BEFORE EACH ENGINE MAINTENANCE Check water inlet screen for damage. CHECKING OIL LEVEL Check high pressure hose for leaks. Oil level should be checked prior to each use or at Check detergent inlet hose and filter for damage. least every 5 hours of operation. Keep oil level maintained. -
Page 13: Nozzle Maintenance
Turn cover to the left (counterclockwise) Shut off the engine and turn off the water supply. remove it and filter from flange. Discard filter. ® Separate the nozzle from the nozzle extension. Clean cover and flange thoroughly. ® Rotate to stream setting. Insert new filter into cover. -
Page 14: O-Ring Maintenance
O-RING MAINTENANCE 1 O-Ring (p/n B2386) for the outside of the Male Quick-Connect. Through the normal operation of your pressure washer, O-Rings, which keep the connections of the hoses and gun tight and leak-free may become worn or damaged. Provided with your pressure washer is an O-Ring Maintenance Kit which provides replacement O-Rings, Rubber Washer and Quick... -
Page 15: After Each Use
DO NOT attempt to repair a damaged hose. Replace the While engine is still warm, drain oil from crankcase. hose with the genuine Craftsman part. Refill with recommended grade. (See Changing Engine Oil on Page 12.) Drain water from hose and properly hang it on the wire support provided on the guide handle. - Page 16 PROBLEM CAUSE CORRECTION Pump has followingproblems: 1. Nozzte in towpressure mode. Pullnozzle backwardfor high failureto producepressure,or pressuremode. Waterinlet is blocked. Clear inlet erraticpressure,chattering,toss of pressure, I owwater volume. & Inadequatewater supply Provide adequatewaterflow at least 2.2 gpm. Inlet hoseis kinked or leaking Straighteninlethose, patchleak.
- Page 18 CRAFTSMAN 2200 PS! HIGH PRESSURE WASHER 580.762201 Tecumseh 4-Cycle Engine 143.988714 370A 298,,_ • 130A _'/"130 "'292 _"-292 266A. ">...
- Page 19 CRAFTSMAN 2200 PSn HiGH PRESSURE WASHER 580,762201 Tecumseh 4_CycRe Engine 143=986714 Item Part# Description Qty, Item Part# Description Qty. 37130 Mounting Flange Gasket 36835A Cylinder (Incl. 2 &. 20) 37190 Mounting Flange 26727 Dowel Pin (Incl. 72 thru 83,306) 33734...
- Page 20 CRAFTSMAN 2200 PSI HRGH PRESSURE WASHER 580.762201 Tecumseh 4-Cycle Engine 143.986714 Item Part# Description Qty. item Part# Description Qty. 35624A Rocker Arm 650831 Screw, 1/4-20 x 1/2" 650914 Lock Nut 263A 37184 Starter Gritl 36629 Push Rod 651040 Stud, 1/4-20...
- Page 21 CRAFTSMAN 2200 PSi HiGH PRESSURE WASHER 580.762201 Tecumseh 4-CycRe Engine 143°986714 Item Part# Description Qty. Item Part# Description Qty. 640147 Carburetor 631867 Float Bowl 631024 Float Shaft ncl. 184of Engine 632019 Float arts List) 631615 Throttle Shaft & Lever 631028 Float Bowl "0"...
- Page 22 CRAFTSMAN 2200 PSi HiGH PRESSURE WASHER 580.762201 Tecumseh 4-Cycle Engine 143.986714 Item Part# Description Qty. 590739 Rewind Starter 590740 Retainer 590616 Starter Dog 590617 Dog Spring 590618A Pulley k Rewind Spr!n.q Ass y 59063B Starter Housing Ass y_(40 degreegrommet) 590535 Starter Rope (Eengti_ 98"...
- Page 23 CRAFTSMAN 220G PSti HiGH PRESSURE WASHER 580.762201 To A...
- Page 24 SCREW, Self Drill 1/4" x 3/4" 92235 GROMMET, Turbo Nozzle Optional Accessories Not lUustrated B1631A BILLBOARD 71-75187 Garden Hose Quick Connect B2623 DECAL, Craftsman _00 PSI 71-75197 Accessory Quick Connect Kit B2626 DECAL, Instructions 71-75199 Rotating Brush 91373 DECAL, Data 71-764,30...
- Page 25 CRAFTSMAN 2200 PS_ HiGH PRESSURE WASHER 580.78220!
- Page 26 CRAFTSMAN 2200 PSi HIGH PRESSURE WASHER 580.762201 item Part# Qty. Description Item Part # Qty. Description B22t8 O-RING, 1.625" x 0.103 B3117 HANDLE, Unloader B2260 ADAPTER, Engine A20t3 BOLT, Head M8 x 1.25x 70mm Lg 96542 BEARING, Eng_Adptr. Roller Thrust 97840 '_"...
- Page 28 For the repair or replacement parts you need delivered directly to your home Call 7 a.m. - 7 p.m., 7 days a week 1--800-366-PART (1-800=366-7278) For in-home major brand repair service Call 24 hours a day, 7 days a week 1=800-4-REPAIR (1-800-473-7247) For the location of a Sears Parts and...
