Craftsman HIGH PRESSURE WASHER 580.76225 Owner's Manual

6.0 horsepower 2250 psi 2.2 gpm high pressure washer
Hide thumbs

Advertisement

Table of Contents

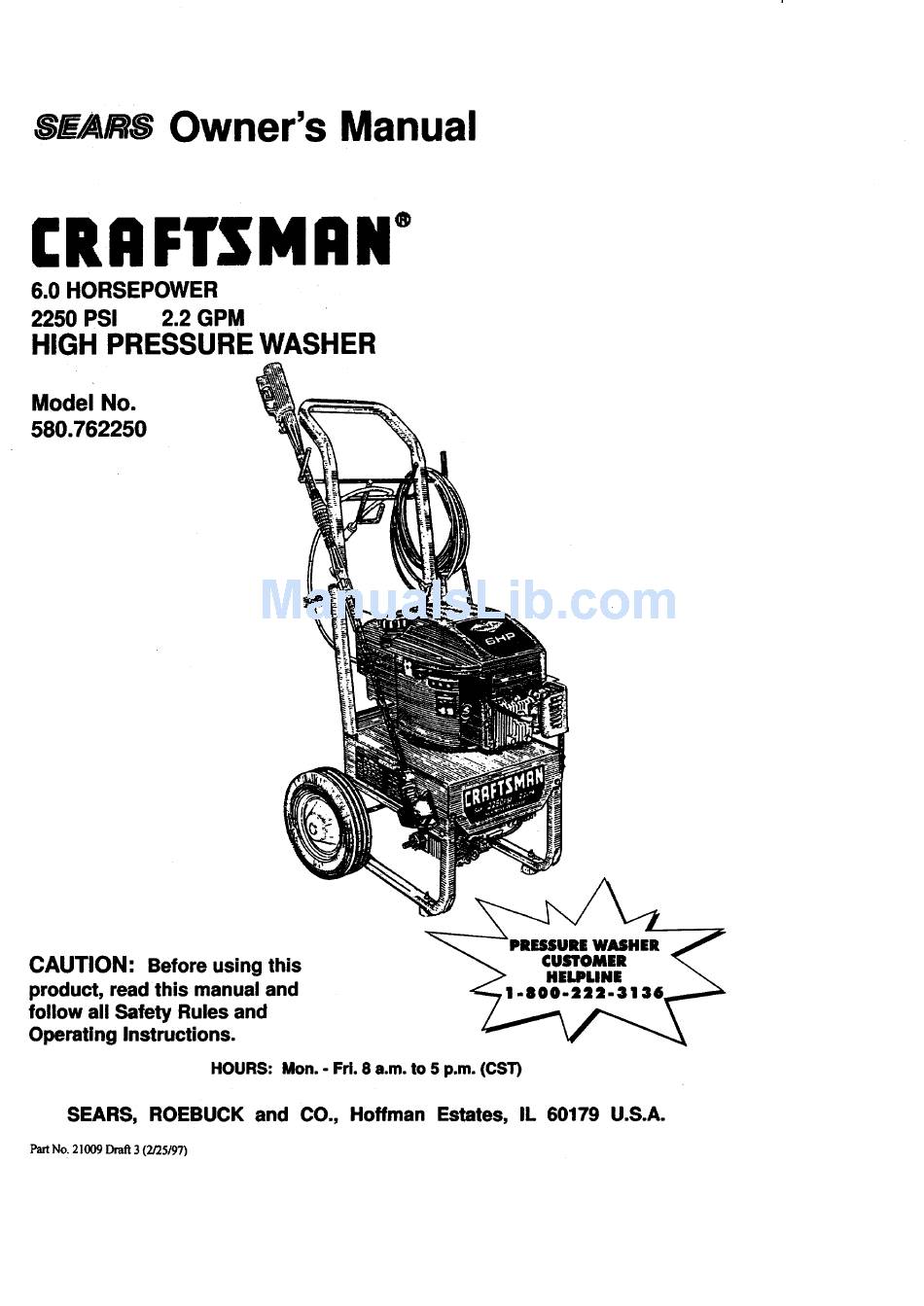

SmARSOwner's Manual
CRAFTSMAN°
6.0 HORSEPOWER
2250 PSI
2.2 GPM
HIGH PRESSURE WASHER
Model No.
580.762250
CAUTION:
Before using this
product, read this manual and
follow all Safety Rules and
Operating Instructions.
PRESSURE WASHER
/
CUSTOMER
HEUPUNE
HOURS:
Mon,- Fri. 8 a.m. to 5 p.m. (CST)
SEARS,
ROEBUCK
and CO., Hoffman Estates, IL 60179 U.S.A.
Part No.21009Draft 3 (2/25/97)

Advertisement

Table of Contents
loading

Related Manuals for Craftsman HIGH PRESSURE WASHER 580.76225

Summary of Contents for Craftsman HIGH PRESSURE WASHER 580.76225

  • Page 1 SmARSOwner's Manual CRAFTSMAN° 6.0 HORSEPOWER 2250 PSI 2.2 GPM HIGH PRESSURE WASHER Model No. 580.762250 CAUTION: Before using this product, read this manual and follow all Safety Rules and Operating Instructions. HOURS: SEARS, ROEBUCK and CO., Hoffman Estates, IL 60179 U.S.A.

  • Page 2: High Pressure

    SERVICE AND ADJUSTMENTS LI'MiTI"ED ONE YE_AB_.Y'_kBBAN_;ON For on6_ye'_Tfro"rn the date of p__ehase, when this Craftsman High Pressure Washer is maintained and operat- ed according to the-instruction_'h_ the oWner's-rfianual, Sears will repair, free of charge, any defect in material and wo_mans ihip__ If this washer is used for commercial purposes, this warranty applies for only 90 days from the date of pur- chase, if-this high-pressureWasher is u§ed for rental purposes, this warranty applies for only 30 days after...

  • Page 3: Operation

    • Operate the pressure at no more than the PSI fluid pressure rated for your pressure washer. • Never move the machine by pulling on the high pressure hose. Use the handle provided on the top of the unit.

  • Page 4: Carton Contents

    HOW TO SET UP YOUR PRESSURE WASHER For the most part, your Craftsman High Pressure Washer has been assembled at the factory. You must, however, attach the wire form, assemble the spray gun, and attach the high pressure hose to the pump and spray gun.
  • Page 5 Connect nozzle extension to spray gun. • Place assembled spray gun on holder. CHECKLIST Before you operate your new high pressure washer, to be sure you receive the best performance and sat- isfaction from this quality product, please review the following checklist: •...

  • Page 6: Know Your High Pressure Washer

    KNOW YOUR HIGH PRESSURE WASHER READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR HIGH PRESSURE WASHER, Compare the illustrationswith your high pressure washer to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference.
  • Page 7 HOW TO USE YOUR PRESSURE WASHER IF YOU HAVE ANY PROBLEMS operating your pres- sure washer, please call the pressure washer helpline at 1-800-222-3136. WARNING NEVER adjust spray pattern when spraying. NEVER put hands in front of spray nozzle to adjust spray pattern.
  • Page 8 Review the use of the adjustable nozzle on Page 7. Connect garden hose to water inlet (see "TO START PRESSURE WASHER" on page 10), check that high pressure hose is connected to spray gun and pump (see "ASSEMBLY" on page 5), and start engine..

  • Page 9: Before Startingthe Pressurewasher

    32°F. Check your engine oil level more frequently to avoid possible damage from running low on oil. Oil sump capacity is 20 ounces. • Place pressure washer on a level surface • Clean area around oil fill and remove oil dipstick. •...

  • Page 10: Water Inlet

    Place the pressure washer in an area close enough to an outside water source that can flow at a rate of 3 gallons per minute.

  • Page 11: General Recommendations

    Clean more often under conditions. d irty or dusty GENERAL RECOMMENDATIONS The warranty of the high pressure washer does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain high pressure washer as instructed in this manual.

  • Page 12: Before Each Use

    Change oil while engine is stillwarm from running, as follows: • Before you tip the pressure washer to drain oil, drain fuel tank by runningpressure washer until fuel tank is empty. • Clean area around oil fill, remove oil fill cap/dipstick.

  • Page 13: Service Air Cleaner

    CLEAN/REPLACE SPARK PLUG Change t hespark plugevery100hours of operation or once eachyear, w hichever comes your engine to start easier and run better. Replace with Champion RJ-8C or equivalent type spark plug. Set spark plug gap 0.030 inch (0.76ram). SET PLUG GAP AT 0.030 inch (0.76 mm) SERVICE AIR CLEANER Your engine will not run properly and may be damaged if...

  • Page 14: Nozzle Maintenance

    Reinstall nozzle into wand. DO NOT overtighten. • Reconnect wand extension to spray gun. • Reconnect the water supply, turn ON the water, and start the engine. • Test the pressure washer by operating with nozzle in the high and the low pressure positions.

  • Page 15: After Each Use

    "freeze" pump action. Follow these procedures after every Use: • Flush detergent hose by placing the injector filter into a pail of clear water while running Pressure Washer with nozzle in low pressure mode. Flush until you can see clear water running through the tube. •...
  • Page 16 PROBLEM Pump hasfollowing problems: failureto produce pressure, erratic pressure, c hattering, l ossof pressure, l ow watervolume. Detergentfails to mix with. spray. Enginerunsgoodat no-load but "bogsdown" when load is added Enginewillnot start; or starts and runs rough Engine shuts down during operation Enginelacks power.
