Instruction
Manual
I CRAFTSMAN°I
2.6 cu.in./42cc
2-Cycle
GASOLINE
CHAIN
SAW
Model No.
358.360870
- 18 in. Bar
Safety
Assembly
Operation
Maintenance
Parts List
Espar_ol
For Occasional
Use Only
WARNING:
Read and follow all Safety
Rules and Operating
Instructions
before first use of this product.
For answers
to your questions
about this product:
Call 7 am-7
pm, Mon-Sat;
Sun, 10 am-7
pm
1-800-235-5878
(Hours listed are Central Time)
Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179 U.S.A.
530163127
7/t0/02
Advertisement
Related Manuals for Craftsman 358.360870
Summary of Contents for Craftsman 358.360870

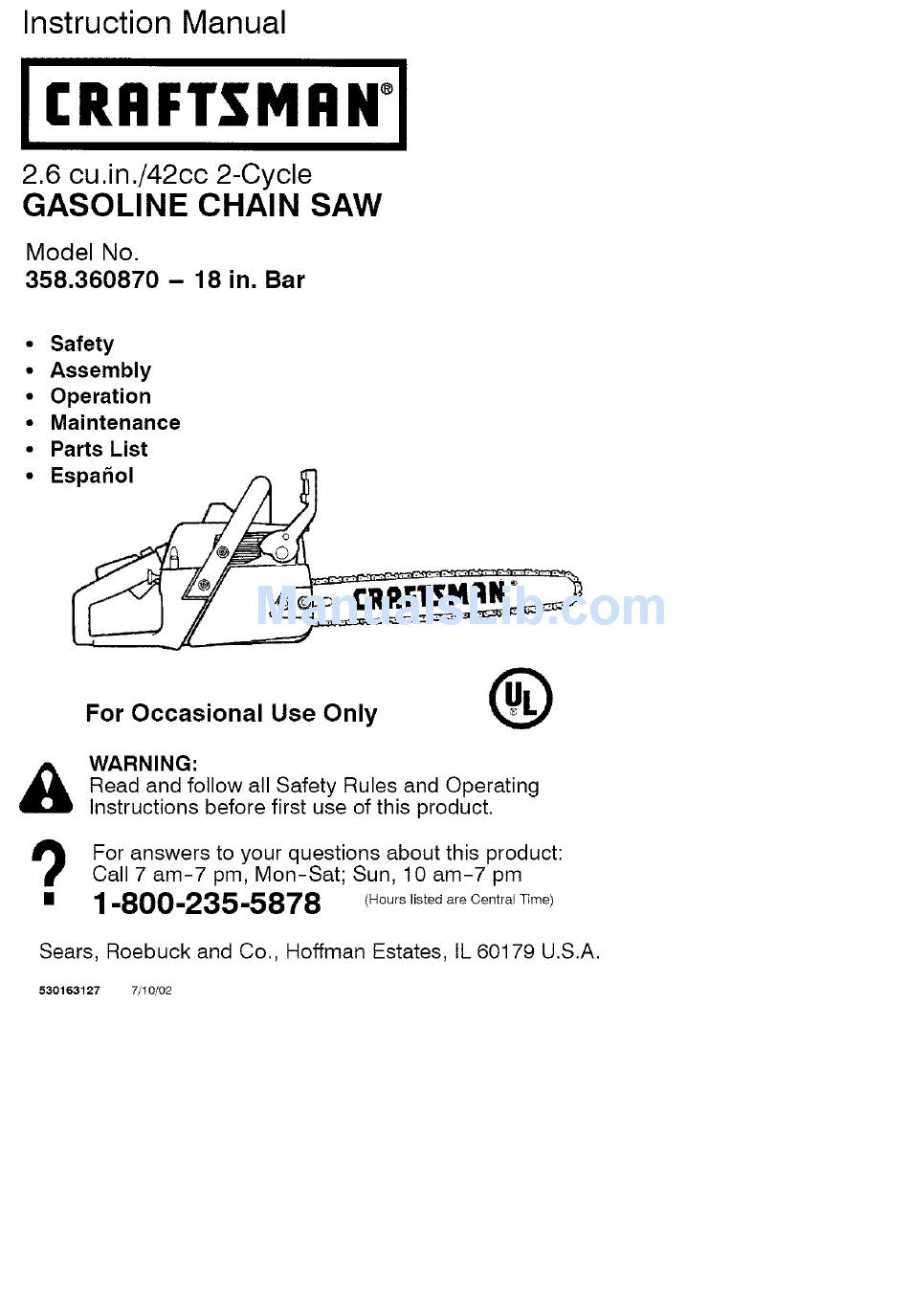

- Page 1 Instruction Manual I CRAFTSMAN°I 2.6 cu.in./42cc 2-Cycle GASOLINE CHAIN Model No. 358.360870 - 18 in. Bar Safety Assembly Operation Maintenance Parts List Espar_ol For Occasional Use Only WARNING: Read and follow all Safety Rules and Operating Instructions before first use of this product.
