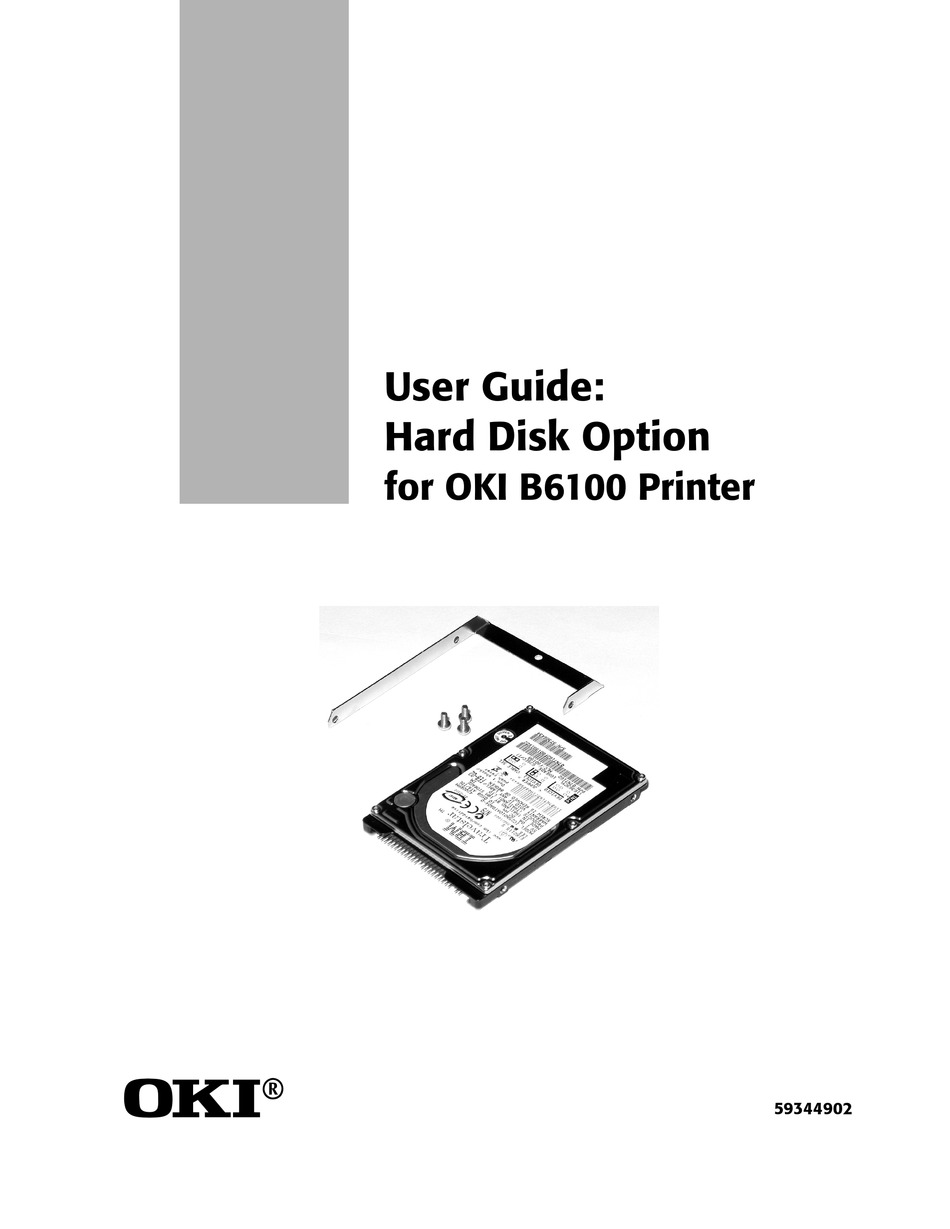

- Page 1 User Guide: Hard Disk Option for OKI B6100 Printer € 59344902...
-
Page 2: Copyright
Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. Oki Data assumes no responsibility for the results of errors or omissions beyond its control. Oki Data also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this document will not affect the applicability of the information in it. -
Page 3: Table Of Contents
OKI Hard Disk User Guide Contents Contents Copyright ....................... i Contact Information ....................i Trademarks......................i Safety Precautions....................iii Chapter 1: Installation ............1 Features of the Hard Disk Option ................. 1 Installing the Hard Disk ..................1 Chapter 2: Using the Hard Disk ..........8 Control Panel Menu Structure................ -
Page 4: Safety Precautions
OKI Hard Disk User Guide Safety Safety Precautions CAUTION: Handling ESD-Sensitive Parts Many electronic parts use parts that are known to be sensitive to electrostatic discharge (ESD). To prevent damage to ESD-sensitive parts, follow the instructions below in addition to all the usual precautions, such as turning off power before removing logic boards: Keep the ESD-sensitive part in its original shipping container (a special “ESD bag”) until... -
Page 5: Chapter 1: Installation
Chapter 1 Installation Features of the Hard Disk Option The Hard Disk Option for your printer provides the following: Quick and easy installation requiring no tools • 10 GB capacity • Storage of PostScript files and/or storage of PCL power-on files (see page 10) •... - Page 6 OKI Hard Disk User Guide Chapter 1: Installation Remove the Side Panel from the Printer 1. Turn the printer power switch (1) OFF (O position), then unplug the power cord from the AC outlet (2). 2. Loosen the thumbscrews at the top and bottom of the side cover by turning them in a counter-clockwise direction.
- Page 7 OKI Hard Disk User Guide Chapter 1: Installation Install the Hard Disk in the Bracket CAUTION: Handling ESD-Sensitive Parts The Hard Disk is sensitive to electrostatic discharge (ESD). Keep the Hard Disk drive in its original shipping container until you are ready to install it.
- Page 8 OKI Hard Disk User Guide Chapter 1: Installation 3. Use the three screws (1) provided to secure the bracket to the Hard Disk. Be sure to tighten the screws securely. Mount the Hard Disk on the Controller Board 1. Locate the area of the controller board (1) in the lower right corner, identified as “Hard Disk...
- Page 9 OKI Hard Disk User Guide Chapter 1: Installation 2. Align the wide bank of pins (1) on the Hard Disk—CAREFUL! The pins (2) in a separate group on the Hard Disk are not used to make the connection—with the connector on the control board, then gently slide the Hard Disk down to seat the pins firmly in the connector.
- Page 10 OKI Hard Disk User Guide Chapter 1: Installation Reinstall the Side Panel on the Printer 1. Insert the top part of the left side cover into the printer. Ensure the locking tab aligns with the hole in the printer’s side.
- Page 11 OKI Hard Disk User Guide Chapter 1: Installation 4. First, connect the power cord to the wall outlet, and then turn the printer on. 5. Check the operator panel. After the warm up and initialization cycles, it should read . If it is blank, the Hard Disk pins are improperly installed in the connector: READY a.
-
Page 12: Chapter 2: Using The Hard Disk
Chapter 2 Using the Hard Disk Control Panel Menu Structure When the Hard Disk is installed, the printer control panel menu structure is enhanced as shown in the following table. The shaded areas denote additional fea- tures and settings relevant to the Hard Disk. - Page 13 OKI Hard Disk User Guide Chapter 2: Using the Hard Disk Menu Paper Menu Interface Menu PS Menu PCL Menu System Menu Display Language Alarm Control Power Saver Wait Timeout Job Timeout Jam Recovery Hex Print Toner Out Power-On Files Playback FILE01.POR...
-
Page 14: Using The Disk Menu
OKI Hard Disk User Guide Chapter 2: Using the Hard Disk Using the Disk Menu Manipulation of files stored on the Hard Disk can be accomplished using the Disk Menu (Print, Delete, Format Disk, Disk Summary). Print This selection reads the selected file from the Hard Disk and prints it as if it were being received from one of the input ports. -
Page 15: Using The Hard Disk As A Postscript Device
OKI Hard Disk User Guide Chapter 2: Using the Hard Disk Using the Hard Disk as a PostScript Device ® In order to allow PostScript programs to access the Hard Disk, a full implementation of a PostScript storage device is provided. This section discusses an overview of the PostScript operators and parameter sets that are included. - Page 16 OKI Hard Disk User Guide Chapter 2: Using the Hard Disk Device Parameter Sets When installed, a device parameter set will be supported for the Hard Disk. The parameter sets can be referenced using the device names %disk0%. Each parameter set will include the...
-
Page 17: Chapter 3: Service & Support
Chapter 3 Service & Support First … Consult the store where you purchased your Hard Disk. Additional OKI Resources: Available 24/7 www.okidata.com Visit our multilingual web site • Visit http://my.okidata.com • Call 1-800-654-3282 • Have the following information ready: Your phone number, fax number and shipping address. - Page 18 OKI Hard Disk User Guide Chapter 3: Service & Support NOTE: To confirm that a problem is isolated to the Hard Disk option, you may want to remove the Hard Disk from the printer and diagnose the printer using the User’s Manual that came with your printer.
