Quick Start Guide — MMX 42/62
Installation
Step 1
Turn all of the equipment off
and disconnect it from the power
source.
Step 2

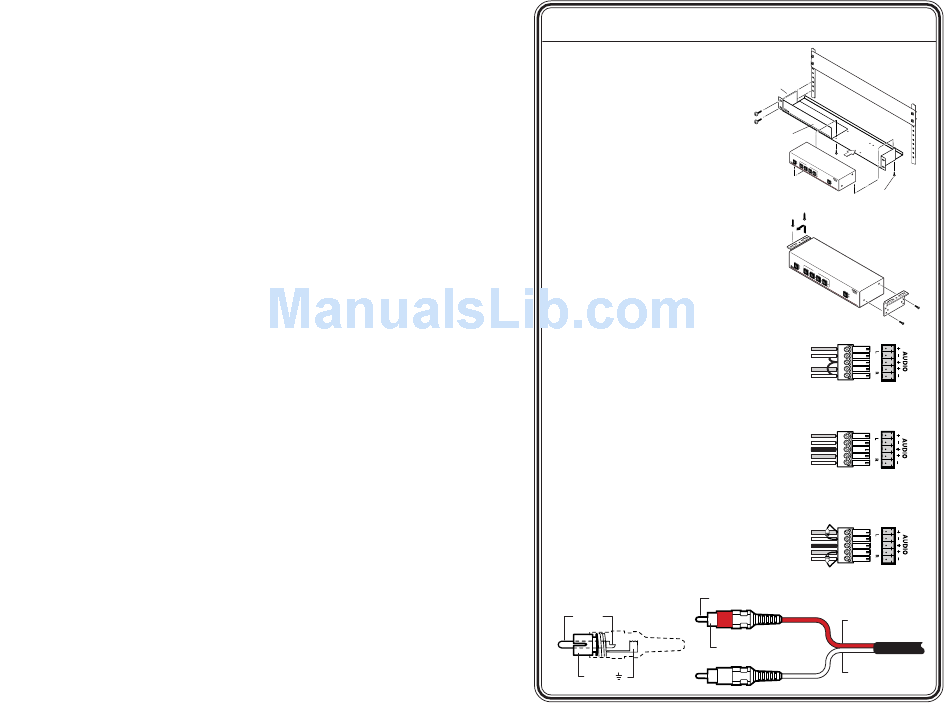

Select your mounting option,
install the appropriate brackets
and mount the switcher.
Otherwise, install the four rubber
feet (included) and place the
switcher on a desktop.
Step 3
Attach the video input cable(s).
Using video inputs 1 through 4
(MMX 42) or 1 through 6 (MMX
62) attach video inputs to the
switcher using connectors
appropriate for your model (BNC
or 4-pin mini DIN). See "Rear
Panel Cabling" in chapter 2,
Installation.
Step 4
Attach the audio input cable(s).
Using audio inputs 1 through 4
(MMX 42) or 1 through 6 (MMX
62), attach audio inputs to the
switcher with connectors
appropriate for your model (5-
pole, captive screw or RCA - see
illustrations below and right).
Step 5
Attach the video output cable(s).
Connect up to two video output
devices to the switcher using
Tip (Signal)
Tip (+)
Sleeve (Gnd )
Sleeve ( )
MMX 42/62 Series Matrix Switchers • Quick Start Guide
VersaTools
Rack Shelf
Half Rack Width
False Front Face Plate
OU TPU
TS
1
2 1
2 INP UTS
3
4
CO NFI
G
VID
EO
AU DIO
Use 2 mounting holes on
MM X SE
RIE
S
opposite corners.
(2) 4-40 x 3/16" screws
OU
TP UT
S
1
1
2
IN PU
2 TS
3
4
CO
NF IG
VID
EO
AU
DI O
MM
X SE
RI ES
Tip
Sleeve
Tip
Sleeve
Unbalanced Input
(high impedance)
Tip
Ring
Sleeve (s)
Tip
Ring
Balanced Input
(high impedance)
600 ohms
Tip
Ring
Sleeve (s)
Tip
Ring
600 ohms
Balanced Input
(600 ohms)
Right Channel
(Red Jacket)
Left Channel
(White Jacket)
QS-1
