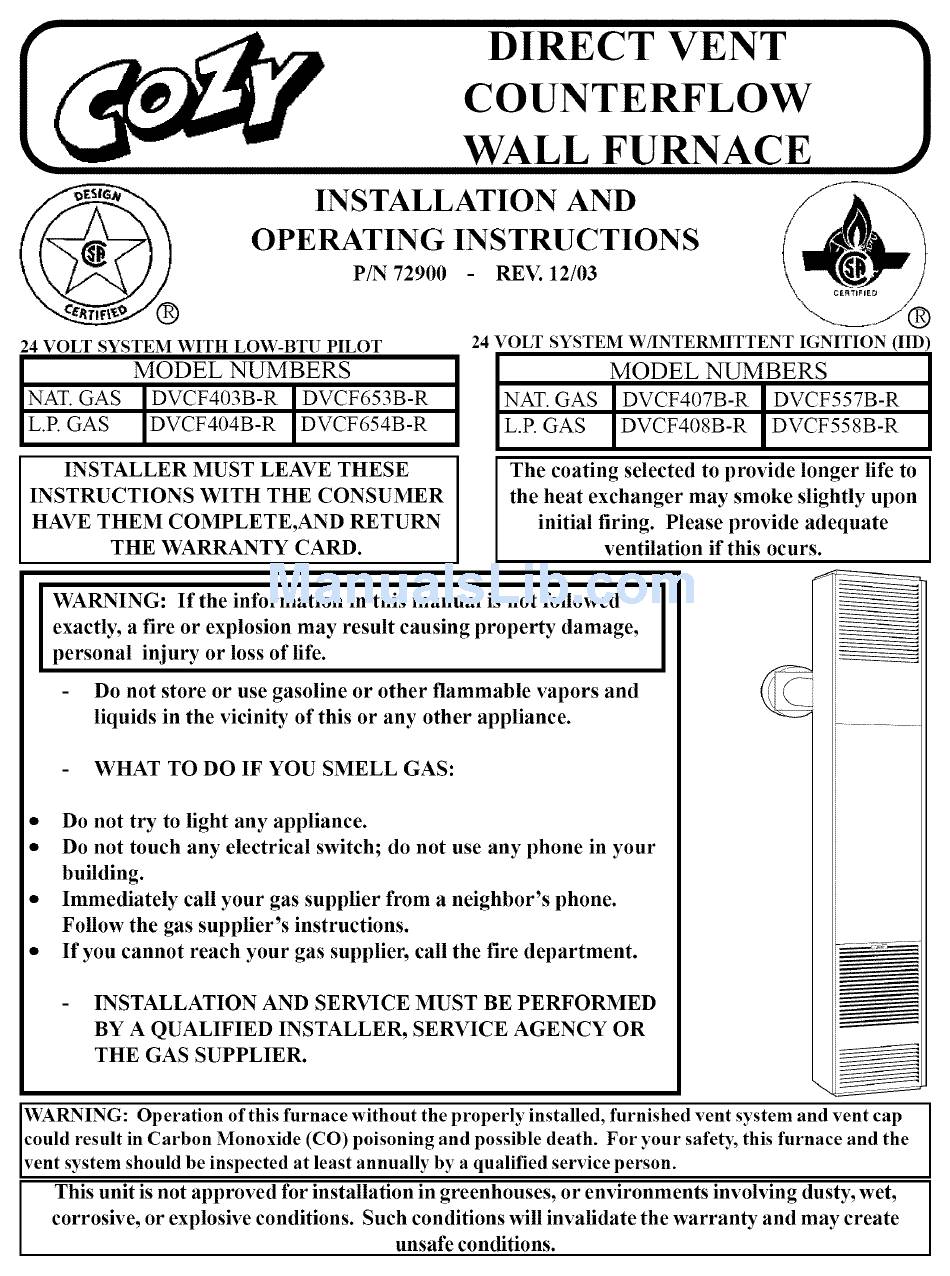

24 VOLT SYSTEM WITH LOW-BTU
PILOT
MODEL
NUMBERS
NAT. GAS
DVCF403B-R
DVCF653B-R
L.P. GAS
DVCF404B-R
DVCF654B-R
DIRECT
VENT
COUNTERFLOW
WALL FURNACE
INSTALLATION
AND
OPERATING
INSTRUCTIONS
P/N 72900
REV. 12/03
24 VOLT SYSTEM W/INTERMITTENT
IGNITION (IID)
MODEL
NUMBERS
NAT. GAS
DVCF407B-R
DVCF557B-R
L.R GAS
DVCF408B-R
DVCF558B-R
The coating selected to provide longer life to
the heat exchanger
may smoke slightly upon
initial firing.
Please provide adequate
ventilation
if this ocurs.
INSTALLER
MUST LEAVE THESE
INSTRUCTIONS
WITH THE CONSUMER
HAVE THEM COMPLETE,AND
RETURN
THE WARRANTY
CARD.
WARNING:
If the information
in this manual
is not followed
exactly,
a fire or explosion
may
result
causing
property
damage,
personal
injury
or loss of life.
-
Do not store or use gasoline or other flammable
vapors and
liquids in the vicinity of this or any other appliance.
-
WHAT
TO DO IF YOU
SMELL
GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical
switch;
do not use any phone
in your
building.
•
Immediately
call your gas supplier from a neighbor's
phone.
Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the fire department.
-
INSTALLATION
AND SERVICE
MUST BE PERFORMED
BY A QUALIFIED
INSTALLER,
SERVICE
AGENCY
OR
THE GAS SUPPLIER.
WARNING:
Operation of this furnace without the properly installed, furnished vent system and vent cap
I
could result in Carbon Monoxide (CO) poisoning and possible death. For your safet)_ this furnace and the
I
vent system should be inspected at least annually by a qualified service person.
This unit is not approved for installation
in greenhouses,
or environments
involving
dusty, wet,
I
corrosive, or explosive conditions.
Such conditions will invalidate the warranty and may create
I
unsafe conditions.
