2.2.4

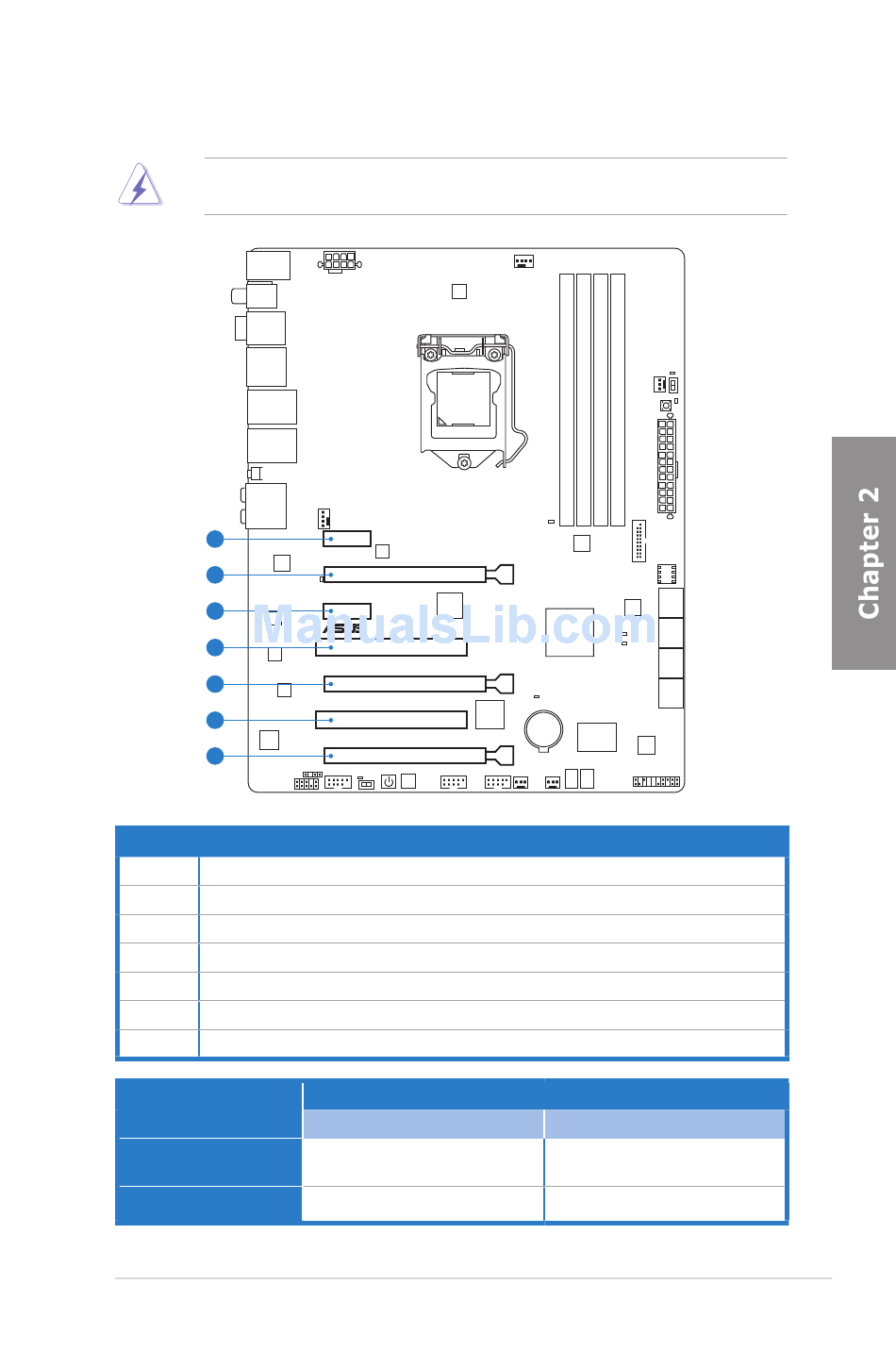

Expansion slots

Ensure to unplug the power cord before adding or removing expansion cards. Failure to do
so may cause you physical injury and damage motherboard components.
1
2
3
4
5
6
7
Slot No. Slot Description
1 PCIe 2.0 x1_1 slot
2 PCIe 2.0 x16_1 slot (single at x16 or dual at x8/x8 mode)
3 PCIe 2.0 x1_2 slot
4 PCI slot 1
5 PCIe 2.0 x16_2 slot (at x8 mode)
6 PCI slot 2
7 PCIe 2.0 x16_3 slot [black] (at x4 mode, compatible with PCIe x1 and x4 devices)
VGA configuration
Single VGA/PCIe card
Dual VGA/PCIe card
ASUS P8P67 Deluxe
®
P8P67 DELUXE
RESET
PCI Express operating mode
PCIe 2.0 x16_1
x16
(Recommend for single VGA)
x8
PCIe 2.0 x16_2
N/A
x8
2-13
