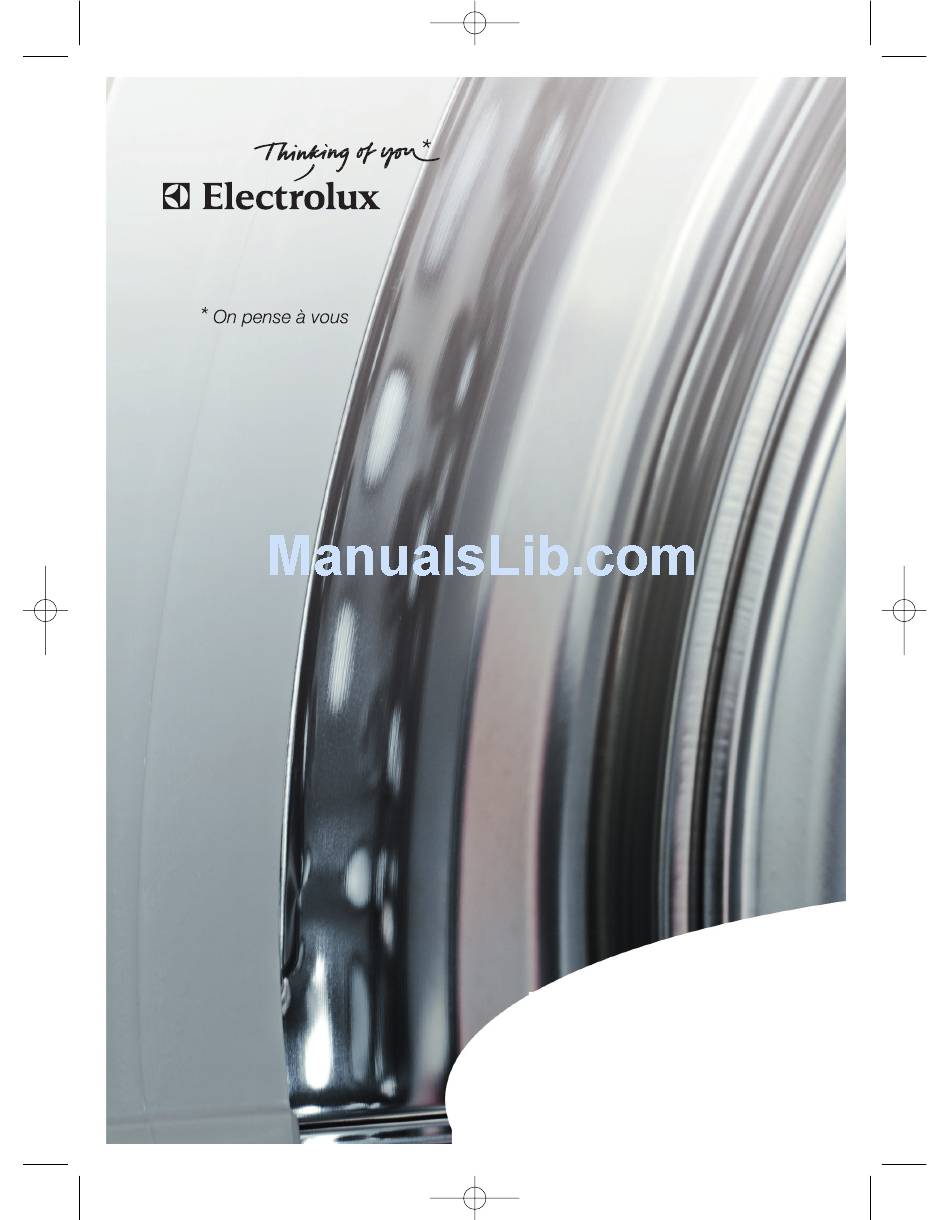

- Page 1 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 1 Notice d’utilisation User Manual Manual de usuario Lave-linge Washing Machine Lavadora AWF5120 W / AWF 8120 W...
- Page 2 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 2 (*) Nous avons pensé à vous lors de la conception de ce produit.
- Page 3 Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You find some examples on the cover in this manual.
-
Page 4: Table Of Contents
126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 32 32 contents Care and cleaning ......47 Contens Something not working....50 Safety information......32 Techical data ........53 Product description ......35 Installation ........54 Control panel ........36 Environment concerns .....57 Use..........37 Guarantee conditions ......58 Washing hints ........42 International wash code symbol ..45 Washing programme .......46 The following symbols are used in this manual: Important information concerning your personal safety and information on how... - Page 5 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 33 safety information 33 General safety Installation ● ● It is dangerous to alter the This appliance is heavy. Care should be taken when moving it. specifications or attempt to modify this product in any way. ●...
- Page 6 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 34 34 safety information Child safety ● ● This appliance is designed for This washing machine is not domestic use. It must not be used intended for use by young children for purposes other than those for or infirm persons without which it was designed.
-
Page 7: Product Description
126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 35 product description 35 Product description Detergent dispenser drawer Control panel Door opening handle Drain pump Adjustable feet Detergent dispenser drawer Prewash Wash Fabric Softener... -
Page 8: Control Panel
126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 36 36 control panel Control panel Programme selector dial Spin reduction knob Temperature options button" Options Button Extra Rinse button Start/Pause button Programme progress display Delay Start button... -
Page 9: Use
126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 37 use 37 Measure out the detergent and the fabric softener Pull out the dispenser drawer until it First Use stops. Measure out the amount of detergent required, pour it into the main wash compartment and, if you wish to carry out the “prewash”... - Page 10 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 38 38 use Programme Option buttons The selector dial can be turned either clockwise or anticlockwise. Position O to Depending on the programme, different Reset programme/ Switching OFF of the functions can be combined. These must machine.
- Page 11 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 39 use 39 Select the AquaCare option Select the Prewash Super Quick Options Press the Options button repeatedly, to select the desired option. The relevant light will light up. This button can be selected with all programmes except the wool and hand wash programmes.
- Page 12 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 40 40 use To restart the programme from the point Important! at which it was interrupted, press the • The selected delay can be changed “start/pause” button again. only after selecting the washing programme again. If you have chosen a delayed start, the •...
- Page 13 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 41 use 41 Altering an option or a running If the “door” light doesn’t flash, this programme means that the machine is already heating, that the water level is above It is possible to change any option the bottom edge of the door or that before the programme carries it out.
-
Page 14: Washing Hints
126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 42 42 washing hints Rub particularly soiled areas with a Washing hints special detergent or detergent paste. Treat curtains with special care. Remove hooks or tie them up in a bag or net. Sorting the laundry Maximum loads Follow the wash code symbols on each Recommended loads are indicated in... - Page 15 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 43 washing hints 43 Detergents and additives Oil based paint: moisten with benzine stain remover, lay the garment on a Good washing results also depend on soft cloth and dab the stain; treat the choice of detergent and use of the several times.
- Page 16 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 44 44 washing hints Quantity of detergent to be used Degrees of water hardness The type and quantity of detergent will Degrees depend on the type of fabric, load size, Level Characteristic degree of soiling and hardness of the German French water used.
-
Page 17: International Wash Code Symbol 45
126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 45 International wash code symbol 45... -
Page 18: Washing Programme
126.2943.07…AWF5120-8120W.qxd 30/10/08 09:55 Página 46 46 washing programmes Washing programmes Programme/ Type of laundry Options Temperature White or colured clothes for ex. Sheets, tablecloths, Cotton 90º- household linen. Synthetics Synthetic or mixed fabrics, underwear, coloured garments, non-shrink shirts, blouses. 60ºC - Synthetic or mixed fabrics to be gentle washed and Easy Iron spun. -
Page 19: Care And Cleaning
126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 47 care and cleaning 47 Cleaning the dispenser drawer Care and cleaning The washing powder and additive dispenser drawer should be cleaned regularly. Remove the drawer by pressing the You must DISCONNECT the appliance catch downwards and by pulling it out. from the electricity supply, before you Flush it out under a tap, to remove any can carry out any cleaning or... - Page 20 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 48 48 care and cleaning Cleaning the water inlet filter Proceed as follows: • Disconnect the appliance. If your water is very hard or contains traces of lime deposit, the water inlet • If necessary wait until the water has filter may become clogged.
- Page 21 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 49 care and cleaning 49 Important! Every time you drain the water through the emergency emptying hose you must pour 2 litres of water into the main wash compartment of the detergent drawer and then run the drain programme. This will activate the ECO VALVE device avoiding that part of the detergent remains unused at next washing.
-
Page 22: Something Not Working
126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 50 50 something not working Something not working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below. During machine operation it is possible that the red Start/Pause pilot light flashes to indicate that the machine is not working. - Page 23 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 51 something not workinn 51 Malfunction Possible cause Solution The machine does not The drain hose is squashed Check the drain hose ● ● empty and/or does not spin: or kinked. (Red Start/ connection. Pause pilot light flashes) The drain pump is clogged.
- Page 24 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 52 52 something not working Malfunction Possible cause Solution The machine vibrates or is The transit bolts and Check the correct ● ● noisy: packing have not been installation of the appliance. removed. The support feet have not Check the correct levelling ●...
-
Page 25: Techical Data
126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 53 technical data 53 If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information. - Page 26 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 54 54 consumption values Données de consommation Programme Programme Energy Water duration (in consumption consumption minutes) (in kWh) (in litres) Cotton 90º 0.85 Cotton 60º Eco (*) 1.02 Cotton 60º 0.85 Cotton 40º Eco 0.55 Cotton 40º-30º-Cold 0.45 Synthetic 60º...
-
Page 27: Installation
126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 55 installation 55 Hydraulic connection Installation There should be a COLD WATER tap Transit security bars near the washing machine with a screwing on connection pipe of 3/4 gas for the water supply, a sink, a wash basin or a drainage system in the wall. - Page 28 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 56 56 installation displacement of the appliance during operation. Some vibration is inevitable, especially if placed on a wooden floor. Wooden floors are particularly susceptible to vibrations. If possible always place the appliance on a solid floor. 3.
-
Page 29: Environment Concerns
126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 57 environment concerns 57 Ecological hints Environment concerns Packaging materials To save water, energy and to help protect the environment, we recommend that you follow these tips: The materials marked with the symbol • Normally soiled laundry may be are recyclable. -
Page 30: Guarantee Conditions
When you contact the Service Force Centre you Standard guarantee conditions will need to give the following details: We, Electrolux, undertake that if within 12 months 1. Your name, address and postcode. of the date of the purchase this Electrolux 2. -
Page 31: European Guarantee
Página 85 european guarantee 85 European guarantee Este aparato está garantizado por Electrolux en cada uno de los países enumerados en la siguiente página, durante el periodo especificado en la garantía del aparato o de otra manera, por la ley. Si se muda de uno de dichos países a otro de ellos, la garantía del... - Page 32 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 86 86 centro de asistencia técnica Centro de Asistencia Técnica/Customer Service Centre En caso de necesitar una mayor ayuda, por favor contacte con su Centro de Asistencia Técnica. Should you need further assintance please contact your local Customer Service Centre.
- Page 33 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 87...
- Page 34 126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 88 126.2943.07...
