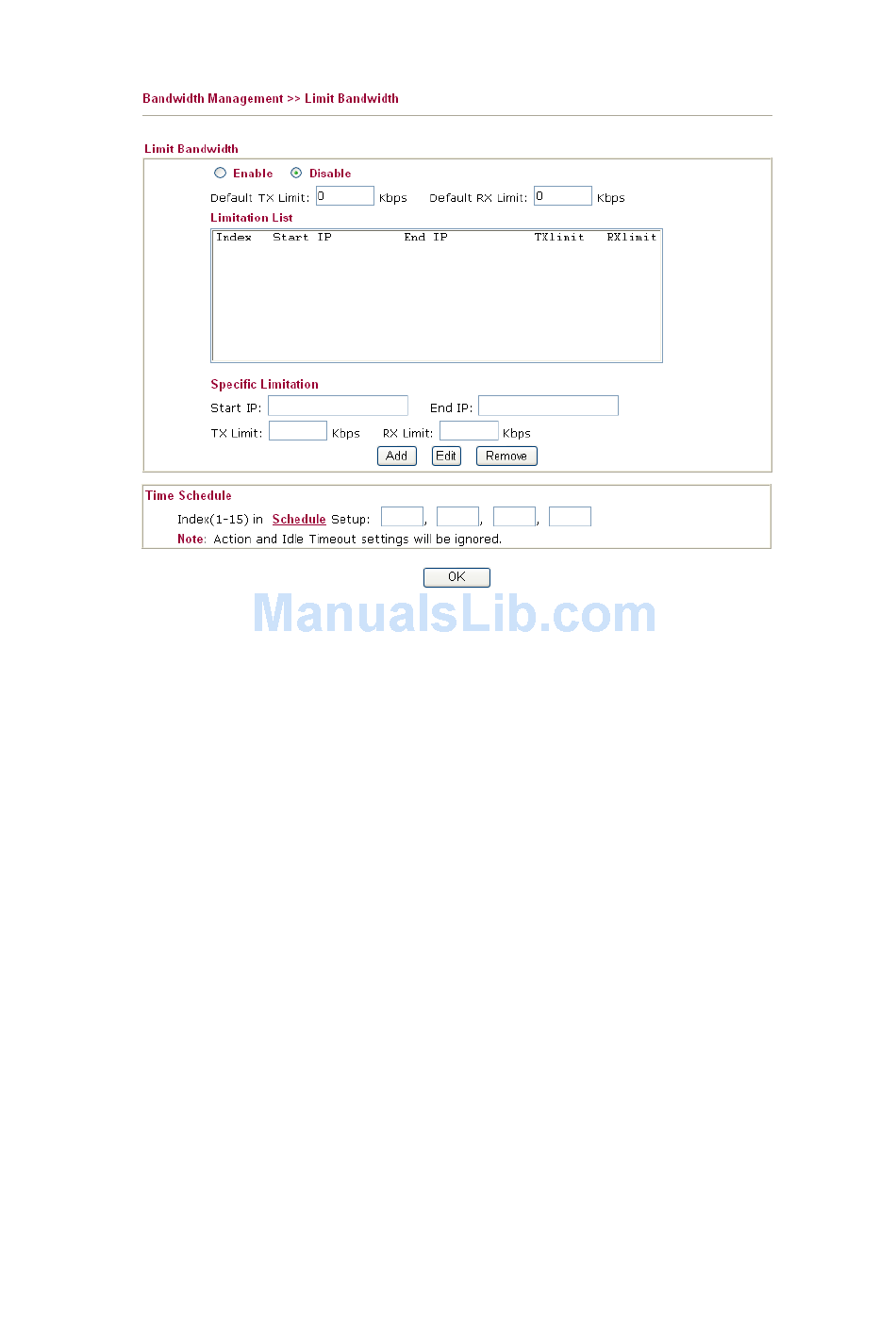

In the Bandwidth Management menu, click Limit Bandwidth to open the web page.
To activate the function of limit bandwidth, simply click Enable and set the default upstream
and downstream limit.
Enable
Disable
Default TX limit
Default RX limit
Limitation List
Start IP
End IP
TX limit
RX limit
Add
Edit
Remove
Index (1-15) in Schedule
Setup
Vigor2910 Series User's Guide
Click this button to activate the function of limit bandwidth.
Click this button to close the function of limit bandwidth.
Define the default speed of the upstream for each computer in
LAN.
Define the default speed of the downstream for each computer
in LAN.
Display a list of specific limitations that you set on this web
page.
Define the start IP address for limit bandwidth.
Define the end IP address for limit bandwidth.
Define the limitation for the speed of the upstream. If you do
not set the limit in this field, the system will use the default
speed for the specific limitation you set for each index.
Define the limitation for the speed of the downstream. If you
do not set the limit in this field, the system will use the default
speed for the specific limitation you set for each index.
Add the specific speed limitation onto the list above.
Allows you to edit the settings for the selected limitation.
Remove the selected settings existing on the limitation list.
You can type in four sets of time schedule for your request.
All the schedules can be set previously in Application –
Schedule web page and you can use the number that you have
71
