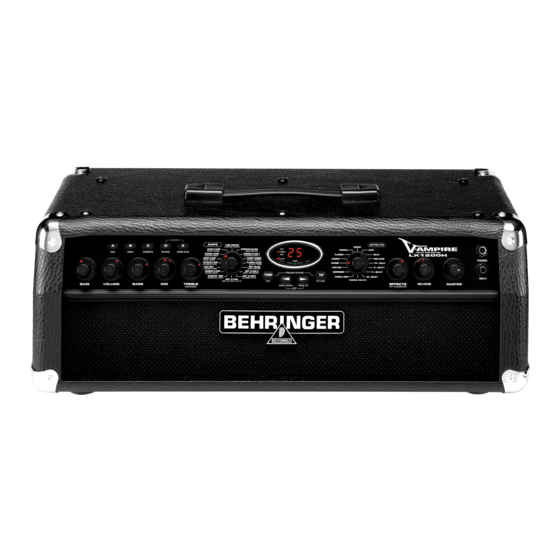

Behringer V-AMPIRE LX1200H User Manual
Hide thumbs
Also See for V-AMPIRE LX1200H:
- User manual (20 pages) ,
- Technical specifications (4 pages) ,
- User manual (20 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Behringer V-AMPIRE LX1200H
Summary of Contents for Behringer V-AMPIRE LX1200H
- Page 1 User’s manual Version 1.1 December 2005...
-
Page 2: Important Safety Instructions
V-AMPIRE LX1200H/LX210 IMPORTANT SAFETY INSTRUCTIONS DETAILED SAFETY INSTRUCTIONS: 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. CAUTION: To reduce the risk of electric shock, do not remove the top cover (or the rear section). -
Page 3: Table Of Contents
4.5 Restoring all factory presets ........11 It is our philosophy to share our enjoyment with you, because you are the most important member of the BEHRINGER team. 5. AMP/SPEAKER-SIMULATION ........11 With your highly competent suggestions for new products you’ve made a significant contribution to shaping our company and making 5.1 Amp descriptions ............ -
Page 4: Introduction
Use it as a guitar combo to deliver 2 x 60 Watts stereo with internal or external Should your BEHRINGER product malfunction, our goal is to loudspeakers. have it repaired as quickly as possible. To arrange for warranty... -
Page 5: Control Elements
V-AMPIRE LX1200H/LX210 2. CONTROL ELEMENTS Fig. 2.1: V-AMPIRE’s control elements (front panel LX1200H) A: Accesses the MIDI functions. Use the arrow buttons to 2.1 Front panel set the MIDI channels (1 through 16) for transmitting and receiving MIDI data. The GAIN control determines the distortion level and the saturation of an amp simulation. - Page 6 You also can access the second effects The stereo PHONES connector allows you to monitor the parameter set by using the EFFECT control while holding audio signal with standard headphone (e.g. BEHRINGER down the TAP button. HP series). “Amp Models 17 - 32”: Keep the TAP button pressed Your V-AMPIRE automatically activates studio mode down and select an amp model using the AMPS control.
-
Page 7: Rear Panel
Use the MIDI IN to connect a foot controller, for example, You may use both balanced and unbalanced plugs the BEHRINGER MIDI FOOT CONTROLLER FCB1010 with the LINE OUTs. (see chapter 8.3 for details). Connect the stereo connector of your FS112V footswitch SERIAL NUMBER. -
Page 8: Operating Modes And Applications
V-AMPIRE LX1200H/LX210 3.2 Live on stage or in a rehearsal room 3. OPERATING MODES AND APPLICATIONS 3.2.1 LX1200H Figure 3.1 shows a single 4 Ω speaker cabinet connected to One outstanding V-AMPIRE feature is that you can choose the left speaker output (mono) to deliver the full 120 Watts. which parts of the signal you want to route to the outputs. -
Page 9: Lx210
V-AMPIRE LX1200H/LX210 3.2.2 LX210 3.3 Rehearsal or recording at home (LX1200H und LX210) You can connect both speaker outputs to an external stereo speaker arrangement, e.g. our BG412S. In this configuration the When using headphones, the V-AMPIRE will switch into studio V-AMPIRE also delivers 2 x 60 W into 8 Ω... -
Page 10: Studio Recording/Recording (Lx1200H Und Lx210)
V-AMPIRE LX1200H/LX210 3.4 Studio recording/recording 4. PRESETS (LX1200H und LX210) Your V-AMPIRE features 125 overwritable presets divided As with rehearsals at home or anywhere else, the V-AMPIRE into 25 banks. In other words, there are five presets available can be connected directly to a mixing console or recording device per bank. -
Page 11: Storing Presets
V-AMPIRE LX1200H/LX210 When you select an amp simulation, an appropriate 4.3 Storing presets speaker simulation is activated automatically (see tab. 5.2). Otherwise, the authenticity of the sound To store your edited preset, hold down the preset button could be affected by an unsuitable cabinet— required for approx. - Page 12 German company, and groups are registered trademarks belonging to the respective owners and are in no way associated with BEHRINGER. Randy Hanson, the best Hendrix since Jimi, also swears by this amp. The unique feature of the Savage is its extreme power and is therefore highly popular with heavy metal guitarists.
-
Page 13: Speaker Descriptions
V-AMPIRE LX1200H/LX210 5.2 Speaker descriptions Am ps 1 - 16 Loudspe a ke r sim ula tion The sound of any guitar combo depends largely on the type AMERICAN BLUES 2 4 x 10" VINTAGE BASS and combination of speakers used. In the past 50 years there MODERN CLASS A 9 2 x 12"... -
Page 14: Effects Processor
6.2.1 Reverb and delay algorithms beat of the music. REVERB: Reverb is still the most important effect for mixing or live performance. That’s why we at BEHRINGER make a point of giving you as many as nine different reverb programs so that EFFECTS... -
Page 15: Combinations Of Effect Algorithms (Multi-Effects Programs)
V-AMPIRE LX1200H/LX210 Reverb Type Quality 6.2.3 Combinations of effect algorithms Tiny Room Classic room simulation featuring various Small Room (multi-effects programs) Medium Room room sizes from bathroom to cathedral PHASER & DELAY: Phaser and delay combined. Large Room Special effect transforming guitar signals FLANGER &... -
Page 16: Installation
V-AMPIRE LX1200H/LX210 8. INSTALLATION 8.1 Mains voltage Before connecting the unit to the mains, please make sure that the voltage setting on the unit matches the local voltage! The fuse holder at the AC power connector has 3 triangular markings. Two of these three triangles are aligned with one another. -
Page 17: Midi Connections
+15 dBu/100 Ω (+23 dBm) Max. output level BEHRINGER continuously strives to assure the highest quality standards possible. Required modifications may be implemented without prior notice. Technical data and the appearance of the unit may deviate from the above values and/or illustrations. -
Page 18: Appendix
V-AMPIRE LX1200H/LX210 10. APPENDIX MIDI Implementation Chart Function Transmitted Received Remarks MIDI Channel 1-16 1-16 Mode Note Number Velocity After Touch Pitch Bender Control Change N (request only) Wah Pedal N (request only) Volume Pedal Amp Gain (0-127) Amp Treble (0-127) Amp Mid (0-127) Amp Bass (0-127) Amp Vol (0-127) - Page 19 No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording of any kind, for any purpose, without the express written permission of BEHRINGER Spezielle Studiotechnik GmbH. BEHRINGER ®...
