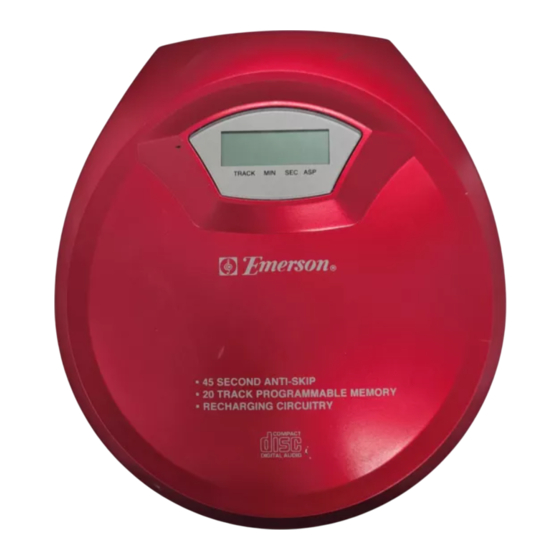

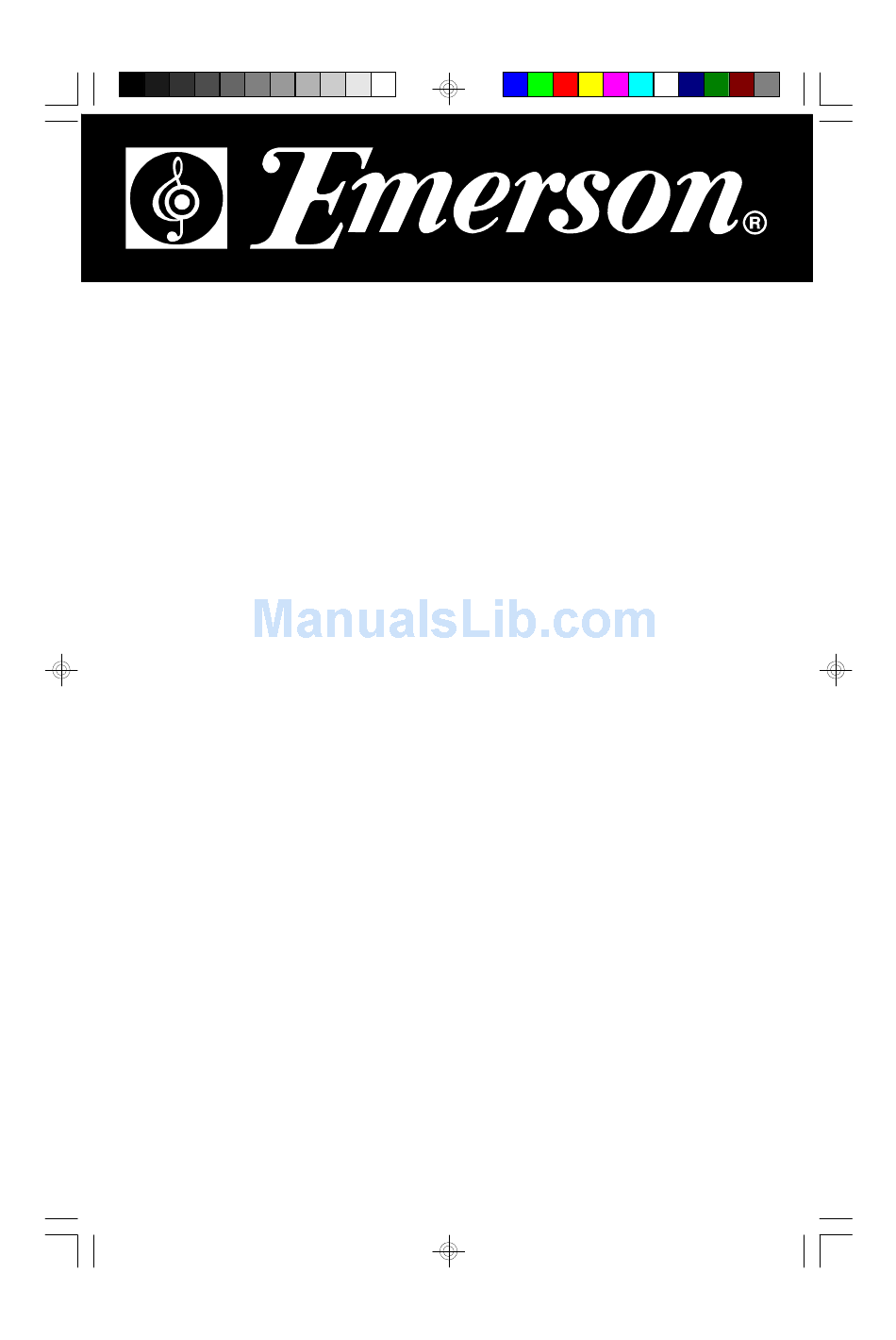

- Page 1 PERSONAL CD, CD-R/RW PLAYER with 45 SECOND ANTI-SKIP PROTECTION, RECHARGEABLE BATTERIES WIRED REMOTE CONTROL OWNER’S MANUAL HD7090RD Visit our web site at www.emersonradio.com HD7090_ib072902.p65 29/7/2002, 18:33...
- Page 2 Thank you... For purchasing this Emerson Personal CD Player. It has a 20 track programmable memory so you can listen to the songs on your favorite CD's in any order you choose. Or you can use the Random playback feature and let the player select the playback order for you.
-
Page 3: Important Notes
IMPORTANT NOTES WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. Avoid installing the unit in locations described below: • Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters. -
Page 4: Location Of Controls And Indicators
LOCATION OF CONTROLS AND INDICATORS INSIDE VIEW LEFT PANEL 12 13 14 15 16 HD7090_ib072902.p65 REMOTE CONTROL 29/7/2002, 18:33... - Page 5 1.) OPEN Switch – Slide to the right to unlock and open the CD door. 2.) Battery Compartment (inside CD compartment.) 3.) HOLD ON/OFF Switch (at bottom cabinet) – Switch to ‘ ON’ to deactivate control buttons on main unit. 4.) CD Door.
-
Page 6: Lcd Display Indicators
LCD DISPLAY INDICATORS 1.) PRG (Program) Indicator – Flashes when programming tracks and appears when playing programmed tracks. 2.) VOL (Volume) Indicator – Appears when pressing VOLUME + / – buttons. 3). Repeat 1/ALL Indicators – Appears when the Repeat playback mode is selected. 4.) HOLD Indicator –... -
Page 7: Power Source
This CD player can be operated on either 120V 60Hz AC house current with the AC adapter, included, or on 2.4V DC (2 "Ni-MH" rechargable batteries, included). AC OPERATION Connect the AC adapter to your 120V AC outlet. Then connect the small plug to the "DC IN 6V"... -
Page 8: Charging And Use Of Rechargeable Batteries
CHARGING AND USE OF RECHARGEABLE BATTERIES If the batteries become too weak the battery level indicator and operation may become erratic. When this occurs recharge the batteries immediately. Rechargeable Battery Operation This unit can fully recharge Ni-MH rechargeable batteries in approximately 15 hours. -
Page 9: Normal Playback
OPERATING INSTRUCTIONS NORMAL PLAYBACK Note: This player can play all normal CD's plus CD-Rs (CD Recordables) and CD-RWs (CD Re-Writeables) 1.) Connect the headphones to the remote control then to the Phones jack. Or directly to the Phones jack. Phones Jack HD7090_ib072902.p65 29/7/2002, 18:33... - Page 10 2.) Set the VOLUME control to a low level before you begin playback and then adjust the volume to a comfortable level after playback begins. 3.) Slide the CD Door OPEN switch to the right to release the lock and open the CD Door.
-
Page 11: Pause Control
8.) When all tracks have been played the player stops and the display again shows the total tracks and playing time on the disc. After approximately 30 seconds the power shuts off and the display goes blank. 9.) To stop playback before the disc ends press the STOP Press the STOP button again to shut the power off immediately. -
Page 12: Repeat Playback
REPEAT PLAYBACK To repeat a single track: 1.) Press PLAY/PAUSE 2.) When playback begins press SKIP Forward select the desired track. 3.) Press the MODE button once until the Repeat 1 “ the display. The selected track will be repeated indefinitely. To repeat the entire disc: 1.) Press PLAY/PAUSE 2.) When playback begins press the MODE... -
Page 13: Intro Scan
INTRO SCAN This feature plays only the first 10 seconds of each track on the disc. 1.) At stop mode press the MODE button 3 times. The “INT” indicator appears in the display. 2.) Press PLAY/PAUSE 3.) The player begins track 1 and plays just the first 10 seconds of each track on the disc. -
Page 14: Programmed Playback
PROGRAMMED PLAYBACK You can program the player to play only the tracks that you want to hear, in the specific order that you want to hear them. Up to a total of 20 tracks can be programmed. You may program certain tracks to play more than once if desired. Note: The player can be programmed when it is in the Stop mode or while playing. - Page 15 ELECTRONIC ANTI-SKIP PROTECTION This CD player is equipped with an automatic 45 second Electronic Anti-Skip Memory that will eliminate virtually all skipping under normal conditions. When you press the PLAY/PAUSE button to begin playback the player immediately begins s to store 45 seconds of music in a solid state memory that is impervious to shock. The player is always reading the disc 45 seconds ahead of the music you are hearing and storing that information in the memory.
-
Page 16: Care And Maintenance
CARE AND MAINTENANCE CLEANING THE CABINET Wipe with a soft cloth. If the cabinet is very dirty, dampen the cloth with a weak solution of neutral detergent and water, and then wipe clean. CLEANING THE LENS A dirty lens will cause sound skipping and, if the lens is very dirty, the CD may not work. -
Page 17: Troubleshooting Guide
Disc: wipe with soft cloth. Lens: see page 15 ‘ Care and Maintenance’ Reinsert headphone plug correctly. Raise volume. Recharge batteries. Try another disc. Clean or replace disc. PLEASE CALL: 1-800-898-9020 Emerson Radio Corp. Consumer Affairs Dept. 1901 Diplomat Drive, 29/7/2002, 18:33... -
Page 18: Limited Warranty
Emerson Radio Corp. in the amount of $5.00 (not required by California residents) to cover shipping and handling costs, and enclose a copy of your proof of purchase. - Page 19 EMERSON RADIO CORP. EMERSON PART NO. : 16-2874 208-01 PRINTED IN CHINA HD7090_ib072902.p65 29/7/2002, 18:33...
