Lightolier Lytecaster 1101H Specification

Page 1 of 2
6 3/8"
Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.
Uniframe Performance Series
Reflector Trims
Catalog No. Description
1101HCL 6-3/4" Horizontal Open Downlight – Specular Clear
1101HCD 6-3/4" Horizontal Open Downlight – Clear Diffuse
1101HWH*
6-3/4" Horizontal Open Downlight – Matte White
* Not listed for HID
Features
1. Reflector: Formed aluminum. Matte White flange.
2. Finishes: CL = Specular Clear (Iridescent Free coating)
CD = Clear Diffuse
WH = Matte White Paint
3. Performance Data: 60° Cutoff angle.
See attached photometric reports for distribution and efficiency data.
Go to www.lightolier.com for .IES files.
Labels
cULus Listed. Suitable for Damp Locations. I.B.E.W.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • D0211
Lytecaster Performance Recessed Downlighting
6 ¾" Aperture Horizontal Open, Performance Series, Reflector Trim
1101HCL/1101F Series
Uniframe CFL
6 1/2"
7 7/8"
Compatible Compact Fluorescent Frame-In Kits
(See Individual Frame-In Kit Specification Sheets)
Catalog No.
1101F18U
1101FR18U
1101FD26L1
1101FD26L2
1101FD32L1
1101FD32L2
1101F2642U
1101FR2642U
1101F2642UEM
1101FD2642MX1
1101FD2642MX2
1101FD2642M7U
1101FR264MX1
1101FR264MX2
1101F18ICU/N
1101F2642ICU
1101F2642IUN
1101FDICMX1/N
1101FDICMX2/N
Compatible HID Uniframe Frame-In Kits
(See Individual Frame-In Kit Specification Sheets)
1101HIDED50U
1001HIDED70
1101HIDED100U
1101HIDED50ULC
1101HIDED70ULC
1101HIDED100ULC

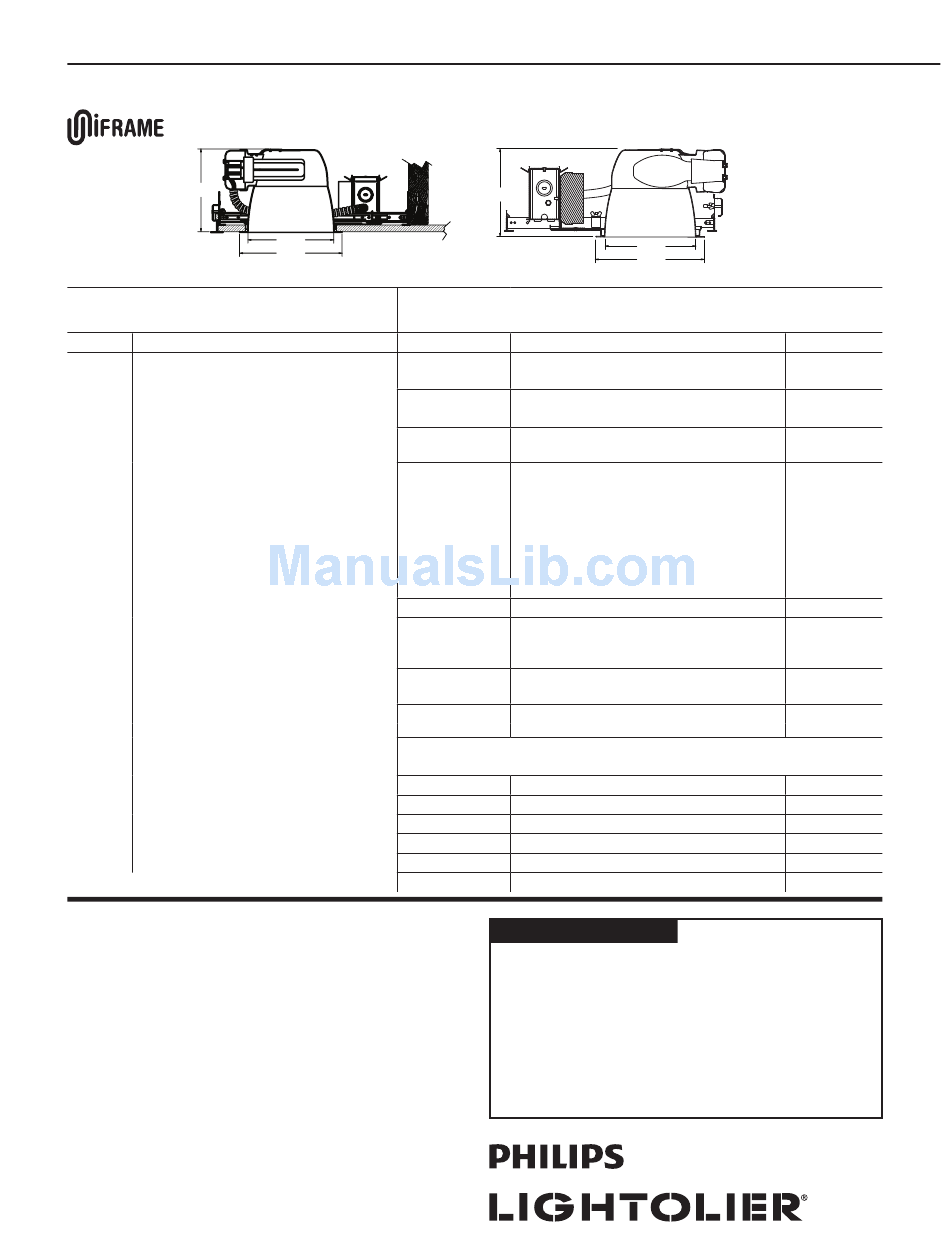

1101HCL/1101HIDED Series
Uniframe HID
6 3/8"
6 1/2"
7 7/8"
Installation Type
Uniframe Non-IC 120/277v
Uniframe Non-IC Remodeler 120/277v
Uniframe Non-IC Lutron Dimming 120v
Uniframe Non-IC Lutron Dimming 277v
Uniframe Non-IC Lutron Dimming 120v
Uniframe Non-IC Lutron Dimming 277v
Uniframe Non-IC 120/277v
Uniframe Non-IC Remodeler 120/277v
Uniframe Non-IC Emergency 120/277v
Uniframe Non-IC Advance Mark10 Dimming 120v
Uniframe Non-IC Advance Mark10 Dimming 277v
Uniframe Non-IC Advance Mark7 Dimming 120/277v
Uniframe Non-IC Advance Mark10 Dimming 120v Rem.
Uniframe Non-IC Advance Mark10 Dimming 277v Rem.
Performance IC 120/277v
Performance IC 120/277v
Performance IC Advance Mark10 Dimming 120v
Performance IC Advance Mark10 Dimming 277v
Non-IC
Non-IC
Non-IC
Non-IC Chicago Plenum
Non-IC Chicago Plenum
Non-IC Chicago Plenum
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
1101H
Lamping
18w Quad/Triple
26w Quad/Triple
32w Triple
26w Quad/Triple
32w Triple
42w Triple
18w Quad/Triple
26w Quad/Triple
32w Triple
42w Triple
26w Quad/Triple
32w Triple
26w Quad/Triple
32w Triple
50W ED17 open
70W ED17 open
100W ED17 Open
50W ED17 Open
70W ED17 Open
100W ED17 Open
Type:
