Page 1 of 1
12 5/16"
9"
6 13/16" Dia.
Ceiling Opening
Complete Fixture consists of Reflector Trim & Frame-In Kit.
Frame-In Kit
Voltage
Lamp
1100FTUES
120V
26W and
32W
triple tube
Features
1. Mounting Frame: 0.036" (#20 ga.) galvanized steel. Accommodates all
ceilings up to 1" thick; including existing or inaccessible areas. Breakout
section and anchor nails for existing ceilings. Push-in/twist-out rotoclips hold
reflector flush to ceiling.
2. Junction Box: 0.063" (#14 ga.) 4" x 3 1/2" x 2" galvanized steel. U.L. listed
for maximum of 8 No. 12 ga., 75°C through branch circuit conductors. Integral
cable clamps permit attachment of nonmetallic Romex
without the need for separate connectors.
3. Mounting Bars: 0.059" (#16 ga.) galvanized steel. 13" long bars extend to
27", rotatable and lockable, with integral T-bar tabs. Attaches to wood joist or
T-bar ceilings without need of accessories.
4. Socket Housing: Steel precisely attached to reflector by spring clip.
5. Socket: Four-pin base, molded thermoplastic. Prewired with No. 18 AWM
leads to junction box.
6. Ballast: Electronic 120V, end of lamp life protected, FCC class "B" consumer
limits, class "A" sound rating. Energy Star
3" away from fixture sides and wiring compartment and must not be placed
above fixture in a manner which will entrap heat.
Electrical
26W
Input Volts:
120V
Input Watts:
29
Amps:
.24
Minimum starting temperature is 0°F.
Lytecaster
Recessed Downlighting
®

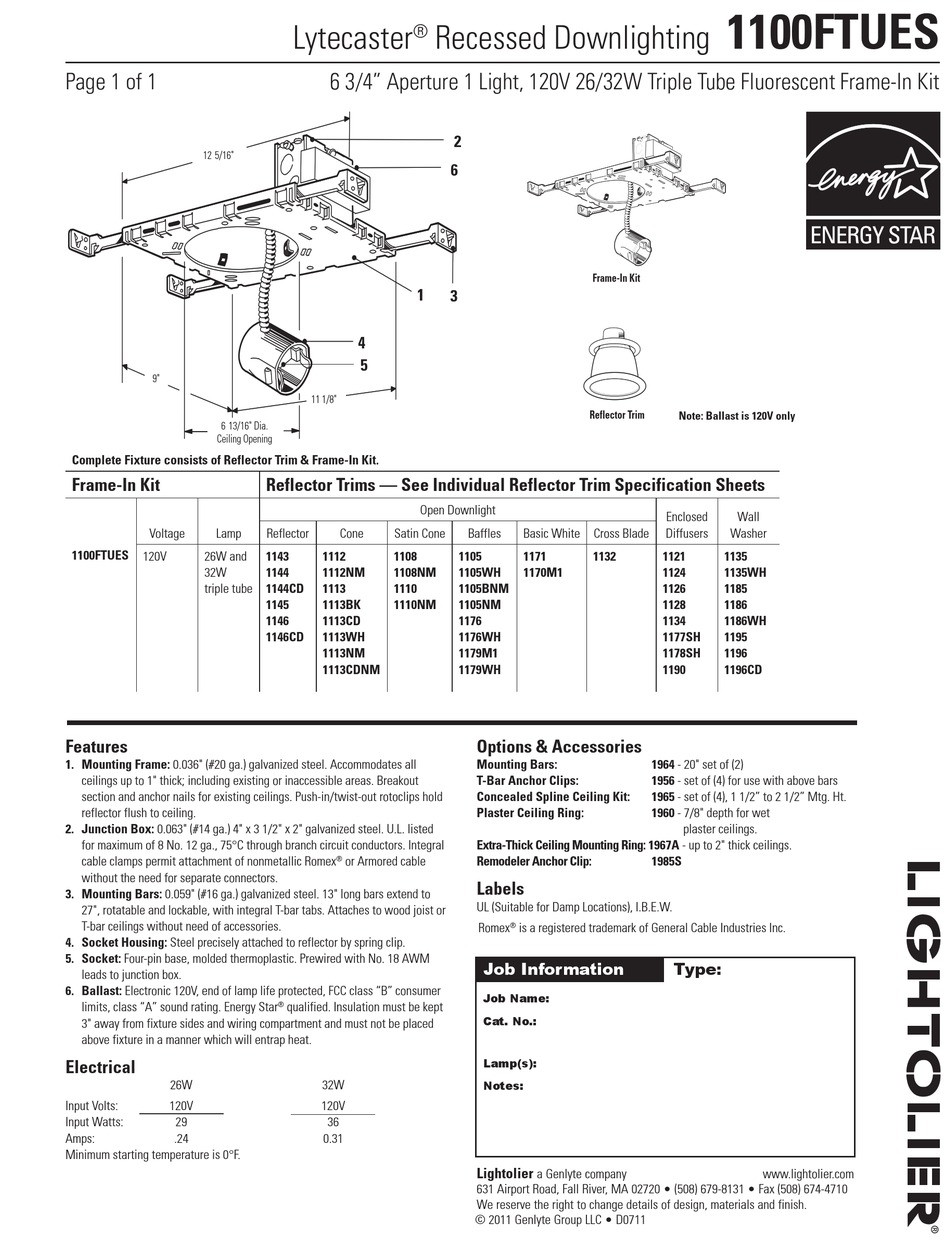

6 3/4" Aperture 1 Light, 120V 26/32W Triple Tube Fluorescent Frame-In Kit
1
1
3
4
4
5
5
11 1/8"
Reflector Trims — See Individual Reflector Trim Specification Sheets
Open Downlight
Reflector
Cone
Satin Cone
1143
1112
1108
1144
1112NM
1108NM
1144CD
1113
1110
1145
1113BK
1110NM
1146
1113CD
1146CD
1113WH
1113NM
1113CDNM
or Armored cable
®
qualified. Insulation must be kept
®
32W
120V
36
0.31
2
2
6
6
Frame-In Kit
FRAME-IN KIT
3
Reflector Trim
REFLECTOR TRIM
Baffles
Basic White Cross Blade
1105
1171
1132
1105WH
1170M1
1105BNM
1105NM
1176
1176WH
1179M1
1179WH
Options & Accessories
Mounting Bars:
T-Bar Anchor Clips:
Concealed Spline Ceiling Kit:
Plaster Ceiling Ring:
Extra-Thick Ceiling Mounting Ring: 1967A - up to 2" thick ceilings.
Remodeler Anchor Clip:
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Romex
is a registered trademark of General Cable Industries Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • D0711
1100FTUES
Note: Ballast is 120V only
Enclosed
Wall
Diffusers
Washer
1121
1135
1124
1135WH
1126
1185
1128
1186
1134
1186WH
1177SH
1195
1178SH
1196
1190
1196CD
1964 - 20" set of (2)
1956 - set of (4) for use with above bars
1965 - set of (4), 1 1/2" to 2 1/2" Mtg. Ht.
1960 - 7/8" depth for wet
plaster ceilings.
1985S
Type:
www.lightolier.com
