SkyLink WD-103 Guide User Instructions

Door/Window Sensor

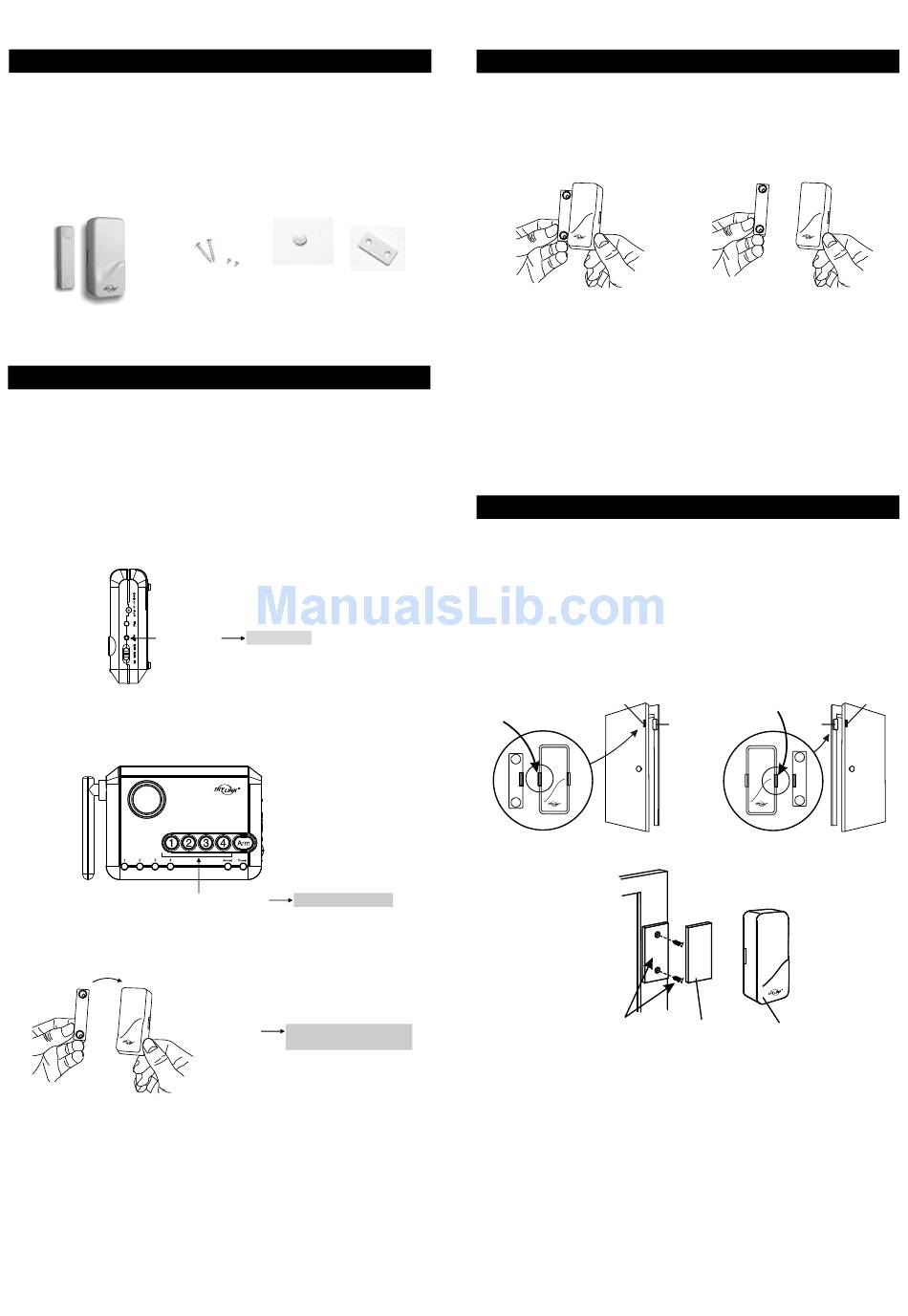

1. INTRODUCTION
The Door / Window Sensor is designed to monitor any door or window
within your house. It works in conjunction with MA Series Control Panel.
When the monitored window or door is opened, the control panel will
either alert you or alarm will be triggered.
In this package, you should find a sensor, a magnet, 3V lithium battery
and other mounting accessories.
Sensor
Magnet
2 pcs 3.5 x 18 screws
2 pcs 3.5 x 12 screws
Please follow the instructions below to set up the door / window sensor.
2. LEARN SENSOR TO MA SERIES CONTROL PANEL
In order for the sensor to communicate with the control panel properly,
the sensor must be programmed to the control panel. Follow the brief
instructions below or refer to the detail instructions from the MA Series
User's Instructions to program the sensor to the control panel. Before
proceeding, please remove the battery isolator from the sensor, and
placing the magnet beside the transmitter (where the red marking is)
Step 1:
Press and hold the Learn Button on the Control Panel for 3 seconds.
Control Panel beeps once and you may release the Learn Button.
Press 3 sec.
Step 2:
Press the zone button (1, 2, 3, or 4) once, for which you want to program
the sensor to. The selected Zone LED will flash.
Press the zone button
Step 3:
Activate the Door Window Sensor by separating the magnet from the
sensor unit.
Magnet
Sensor
Step 4:
You will hear a long beep and the zone LED stops flashing. The sensor
is now programmed to the Control Panel.
Note:
You may program up to 4 sensors to one zone.
Zone 4 is an alert zone, sensors in this zone is for alert purpose ONLY
and will not trigger the alarm.
Model WD-103
3V Lithium
battery
Mounting plate
Long Beep
Zone LED flashing
Separate the
Control Panel long beep
magnet from
Zone LED flashing OFF
the sensor.
2. LEARN SENSOR TO MA SERIES CONTROL PANEL (CONT)
Test Sensor
After learning the sensor to the control panel, you may test the com-
munication by placing the magnet beside the transmitter (where the red
marking is) and remove the magnet from the transmitter.
When the magnetic contact is closed, the
receiver will not beep.
1) Zone LED of this sensor will flash
2) Beeping according to the zone number [Alert Notification Switch is set
to "Alert"]. 1 beep for zone 1, 2 beeps for zone 2 etc, until the sensor
is closed.
Note: If the Alert Notification Switch is set to "Chime", Control Panel will
chime once for every signal activation. If the Alert Notification Switch is
set to "OFF", no audio alert will sound.
3. INSTALLATION
The transmitters should be mounted on the door frame or window frame
by double sided tape. The magnet should be mounted on the door or
window by either double sided tape or screws. Make sure the magnet is
aligned with the red marking on the transmitter. If the surface of the frame
is flat enough, double-sided foam tape is sufficient, otherwise, it is
recommended to screw the mounting plate to the frame, then apply
double sided tape. After mounting the sensor, if the Skylink logo is
inverted, remove the front cover and rotate it so the Skylink logo is in the
upright position.
Magnet
"Red Marking"
on the side
Mounting plate
and screws (optional)
Testing:
After mounting the sensor, test the sensor by opening and closing the
door or window. The Control Panel should respond in the same way as
described above, "Test Sensor".
Note:
- Try to mount the sensors as far away from the floor as possible to
avoid damaging them. Mounting the sensors at a higher position will
also result in better operating range.
- Do not mount the sensor to the exterior of the door / window, always
mount the sensor to the interior side of the door / window to avoid being
damaged or stolen by non-intended users.
When the magnetic contact is broken (open),
the receiver will beep and a LED will flash.
"Red Marking"
on the side
Sensor
Sensor
Double-sided Sensor
foam tape
Magnet
