SkyLink G6KR Guide Manual

Universal Garage Door
Remote Control

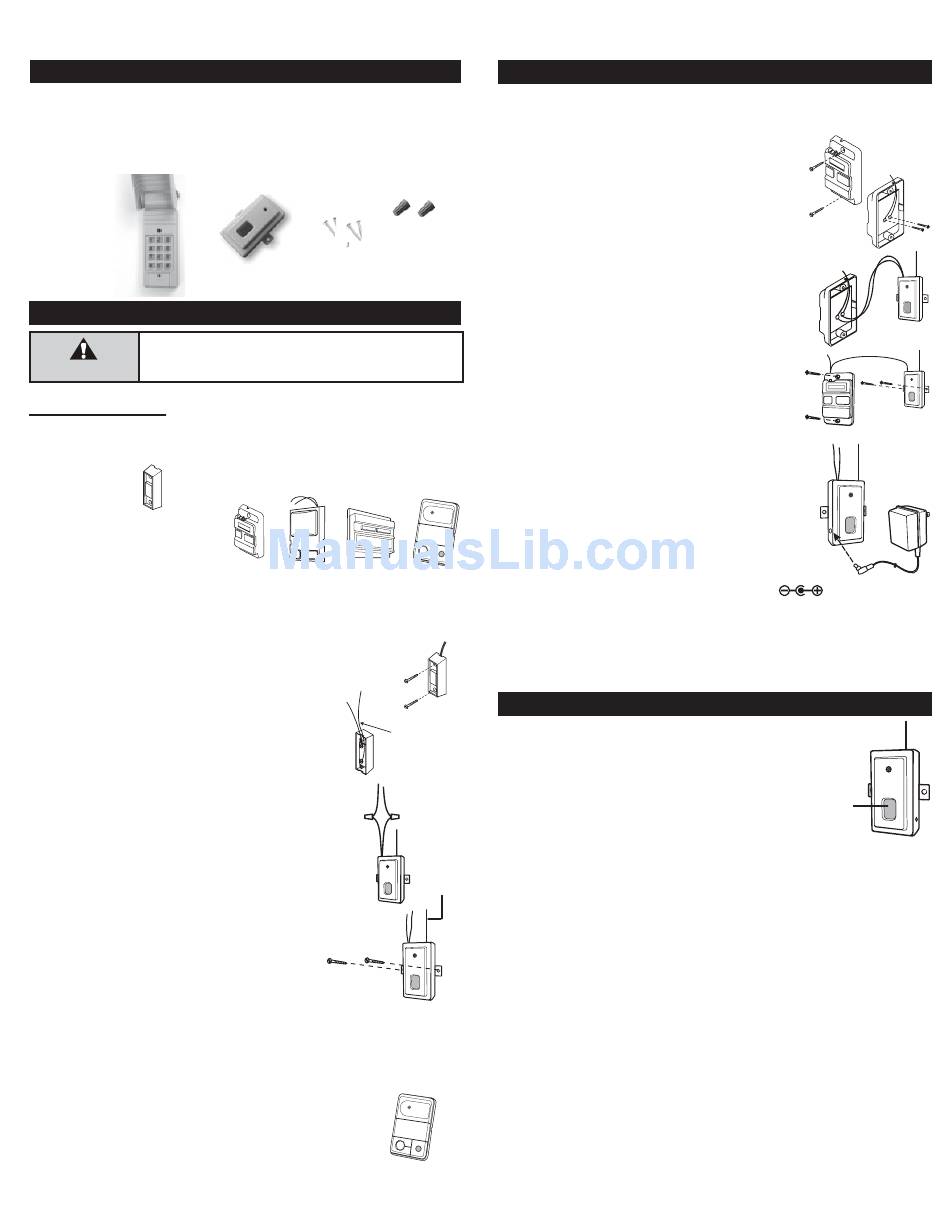

1. INTRODUCTION

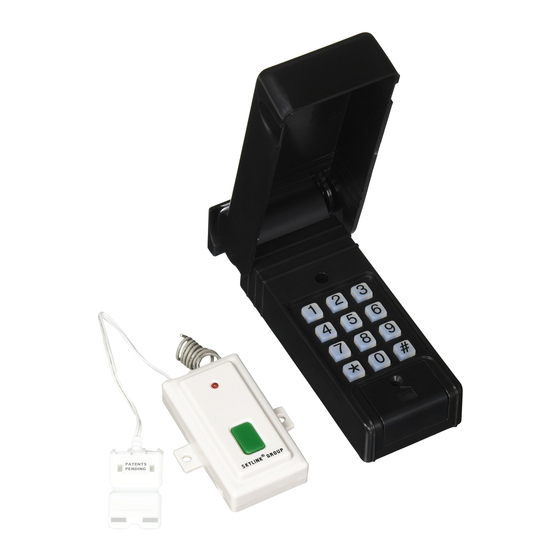

Congratulations on your purchase of the Skylink
Garage Door Remote Control. This is a kit with a universal keypad
TM
transmitter and Smart Button
TM
by the Smart Button , that's all for the installation. In this kit, you will
find the following:
Universal
Keypad Transmitter
(Battery included)
2. INSTALLATION
Unplug the power cord of your garage door opener
before installation to ensure power is not connected.
WARNING
GTR Smart Button
TM
TM
The GTR Smart Button replaces most garage door "push buttons"
or "wall consoles". There are 2 different kinds of "push buttons".
1) Single button
2) Multi-Function Wall Console
1) Single button
If your garage door opener comes equipped with a single button "push
button", you can replace the existing push button with Skylink
Button TM GTR. Please follow the procedures below.
1. Remove the existing push button by removing
the screws.
2. Disconnect the 2 wires that are connected to
the existing push button.
3. Connect the 2 wires from the existing wall
button to the GTR Smart Button
wires together with the wire connector
provided. Polarity does not matter, so simply
pick one wire from the existing wall button, and
connect it to one of the wires on the Smart
TM
Button . Do the same for the 2nd wire.
4. After connecting the wires, mount the Smart
TM
Button on to the wall with 2 screws.
5. Plug in the AC cord of the garage door opener.
The red light on the Smart Button
15 seconds after plugging in the power. The
red light will not flash immediately after
plugging in the power, which is normal. The
Smart Button TM is now ready to be operated.
Note: Straighten up the antenna to improve signal reception.
2) Multi-Function Wall Console
Multi-Function Wall Console normally comes with 3 buttons that can be
used to:
1) operate the garage door opener lighting,
2) lock the receiver so it doesn't accept
remote control operation, and
3) push button for door opening / closing
Model G6KR
® G6KR Universal
. Simply replace the traditional wall button
2 Wire
Connectors
TM
Mounting
Smart Button
Accessories
®
TM
. Twist the 2
TM should flash
If you have the multi-function wall console, do not replace the wall
console by the Smart Button
parallel with your existing wall console.
1. Remove the existing wall console from the wall
by removing the screws.
2. Remove the 2 screws that secure the wires
on the wall console.
3. Connect the wires from the Smart Button
existing wall console. Polarity does not matter,
so simply pick one wire from the Smart Button
and connect it to one of the terminals on the
existing wall console. Do the same for the 2nd
wire.
4. After connecting the wires, mount the Smart
Button TM on to the wall with 2 screws. Also
mount the original wall console on to the wall.
5. Plug in the AC cord of the garage door opener.
The red light on the Smart Button
15 seconds after plugging in the power. The red
light will not flash immediately after plugging in
the power, which is normal. The Smart Button
is now ready to be operated.
6. If the Smart Button
all 2 minutes after plugging in the AC cord, your
garage door opener is probably too old.
However, the Smart Button
plugging in an adapter (purchase separately).
Please contact Skylink
adapter.
Rating of the transformer: 12V DC, 100mA
Diameter of DC plug : 3.5mm
Smart
Note: Straighten up the antenna to improve signal
reception.
Remove
If the red light on the Smart Button
existing
that indicates it is in standby mode. When a valid
wires
remote control signal is received, it will open / close the
garage door.
Simply press the button on the Smart Button
will open / close the garage door.
Note: After connecting this NEW Remote Control to
your wall button, your existing remote control will still
work with this connection.
Antenna
Skylink has 2 keypad version to work with the Smart Button
keypad model is marked "S89" or "G5K" on the back of the unit, please
follow the instruction below.
- Operation
Press [ PIN ] , [#] To open or close garage door, press your four digit
PIN and the [#] key. If confirmed, the keypad transmitter will emit three
beeps.
Default PIN is 0000.
Press [0000][#] to open the garage door.
If you do not hear 3 beeps after the 4-digit PIN and [#] is entered, that means
you have entered an incorrect PIN, and the Model G5K or S89 will not
operate your garage door.
2. INSTALLATION (CONT)
TM . You need to install the Smart Button
TM
to the
TM
,
TM should flash
TM
TM red light does not flash at
TM
will still work by
®
to purchase the
3. OPERATION
TM is flashing slowly,
TM , it
TM in
OPEN /
CLOSE
TM
. If the
