Cub Cadet 28HP Tank 53AB5JEX750 Illustrated Parts List

Cub Cadet 28HP Tank 53AB5JEX750 Illustrated Parts List

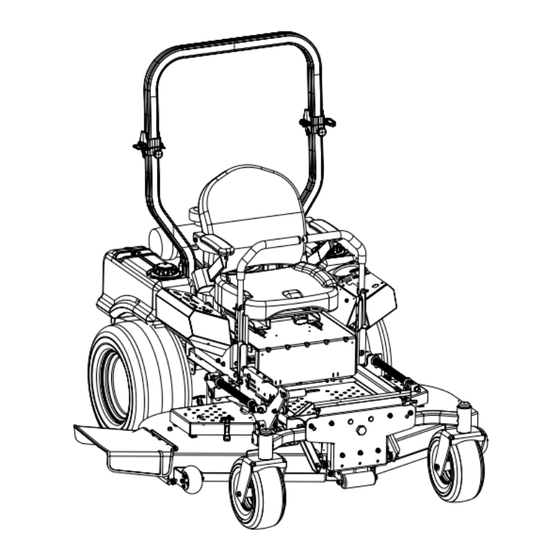

Hydrostatic zero-turn commercial riding mower; 60” & 72" fabricated deck indirect injection diesel
Hide thumbs Also See for 28HP Tank 53AB5JEX750:
Table of Contents

Advertisement

Quick Links

Hydrostatic Zero-Turn
Commercial Riding Mower
Professional Turf Equipment
60" & 72" Fabricated Deck
InDirect Injection Diesel

ILLUSTRATED PARTS LIST

Advertisement

Table of Contents
loading

Related Manuals for Cub Cadet 28HP Tank 53AB5JEX750

Summary of Contents for Cub Cadet 28HP Tank 53AB5JEX750

  • Page 1: Illustrated Parts List

    Hydrostatic Zero-Turn Commercial Riding Mower Professional Turf Equipment 60” & 72" Fabricated Deck InDirect Injection Diesel ILLUSTRATED PARTS LIST...
  • Page 2 This Page Intentionally Left Blank...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 60" Frame Assembly....... 4 72" Frame Assembly....... 5 60"...

  • Page 4: 60" Frame Assembly

    60" Frame Assembly - Figure 1 and Parts List GD: 02003081-04/30/07 Ref. Ref. No. Part No. Description Qty. No. Part No. Description Qty. 01005810 Hex Cap Screw 3/8-16 x 2.00 18 01010119 Nut, 1/2-13, Flangelock 00012152 Lock Nut w/Nylon Insert 02004037 Skid Plate 00012158 Flat Washer, 3/8...

  • Page 5: 72" Frame Assembly

    72" Frame Assembly - Figure 2 and Parts List GD: 02003520-04/30/07 Ref. Ref. No. Part No. Description Qty. No. Part No. Description Qty. 01005810 Hex Cap Screw 3/8-16 x 2.00 16 01009604 Spacer, .385 ID x .625 OD x 4.89 00012152 Lock Nut w/Nylon Insert 17 01010119 Nut, 1/2-13, Flangelock 00012158 Flat Washer, 3/8...

  • Page 6: 60" Fabricated Cutter Deck

    60" Fabricated Cutter Deck - Figure 3 GD: 02002835-03/15/07...
  • Page 7 60" Fabricated Cutter Deck - Parts List for Figure 3 Ref. No. Part No. Description Qty. 00011925 Hex Cap Screw, 3/8-16, 3.75 00012158 Flat Washer, 3/8 00012428 Lock Nut, Nylon Insert, 1/2-13 00013406 Hex Cap Screw, 5/16-18 x .75 00014608 Lock Nut, Nylon Insert, 10-32 00017778 Phillips Head Screw, 10-32 00022560 Flange Lock Hex Nut, 3/8-16 00083192 Idler Washer...
  • Page 8 60" Fabricated Deck Spindle Assembly - Figure 4 GD: 02003627-10/30/06...

  • Page 9: Idler Washer

    60" Fabricated Deck Spindle Assembly - Parts List for Figure 4 Ref. No. Part No. Description Qty. 00005763 Hex Nut, 7/16-14 00008495 Hex Cap Screw, 3/8-16 x 1-3/4 00011438 Hex Cap Screw, 3/8-16 x 1-1/2 00011925 Hex Cap Screw, 3/8-16, 4.00 00012158 Flat Washer, 3/8 00022560...

  • Page 10: 72" Fabricated Cutter Deck

    72" Fabricated Cutter Deck - Figure 5 GD: 02002933-01/24/07...
  • Page 11 72" Fabricated Cutter Deck - Parts List for Figure 5 Ref. No. Part No. Description Qty. 00011925 Hex Cap Screw, 3/8-16, 3.75 00012158 Flat Washer, 3/8 00012428 Lock Nut, Nylon Insert, 1/2-13 00014608 Lock Nut, Nylon Insert, #10-32 00017778 Phillips Head Screw, #10-32 x 1/2 00022560 Flange Lock Hex Nut, 3/8-16 01000343...
  • Page 12 72" Fabricated Deck Spindle Assembly - Figure 6 GD: 02003626-04/04/07...
  • Page 13 72" Fabricated Deck Spindle Assembly - Parts List for Figure 6 Ref. No. Part No. Description Qty. 00005763 Hex Nut, 7/16-14 00008495 Hex Cap Screw, 3/8-16 x 1-3/4 00011438 Hex Cap Screw, 3/8-16 x 1-1/2 00011861 Hex Cap Screw, 3/8-16 x 2-1/2 00011925 Hex Cap Screw, 3/8-16, 4.00 00012158...

  • Page 14: Brake Assembly

    Brake Assembly - Figure 7 GD: 02002926-03/22/07...
  • Page 15 Brake Assembly - Parts List for Figure 7 Ref. No. Part No. Description Qty. 00012577 Washer, 1/2 Zinc 01000643 Carriage Bolt, 3/8-16, 1.00 00011450 Shoulder Bolt, 1/2 x 1/2 00014608 Lock Nut, Nylon Insert, 10-32 00022560 Flange Lock Hex Nut, 3/8-16 00030906 Phillips Head Machine Screw, 10-32 x 5/8 01000372 Carriage Bolt, 3/8-16 x .75 01000443 Screw Button Head, 1/4-20 x .5...

  • Page 16: Hydro Hose And Pump Assembly

    Hydro Hose and Pump Assembly - Figure 8 GD: 02003033-02/19/07...

  • Page 17: Frame Assembly

    Hydro Hose and Pump Assembly- Parts List for Figure 8 Ref. No. Part No. Description Qty. 00083192 Idler Washer 00012158 Flat Washer, 3/8 00012428 Washer lock 3/8 zinc 00020628 Key, 3/16" x 7/8" 00022560 Flange Lock Hex Nut, 3/8-16 00030261 Cap, Hydro Oil Tank 00034167 Hex Cap Screw, 3/8-16 x 5.00 01000369 Hex Cap Screw, 3/8 -16 x 1.25 01000372 Carriage Bolt, 3/8-16 x .75 LG.

  • Page 18: Fuel Tank Assembly

    Fuel Tank Assembly - Figure 9 GD: 02001008-05/03/07...
  • Page 19 Fuel Tank Assembly - Parts List for Figure 9 Ref. No. Part No. Description Qty. 00012133 Hex Cap Screw, 1/4-20 x 1/2 00012157 Lock Washer, 3/8 00012235 Clamp, Union 00012470 Cable Tie 00013198 Hex Cap Screw, 5/16-18 x 2.00 00022560 Hex Nut, 3/8-16, Lock Flange 01000215 Hose Clamp 01000368 Hex, Cap Screw, 3/8-16, .88 01000635 Nut, Lock, HexFlange, 5/16-18...

  • Page 20: 60" Front Caster Assembly

    60" Front Caster Assembly - Figure 10 and Parts List GD: 02002820-10/04/06 Ref. Ref. No. Part No. Description Qty. No. Part No. Description Qty. 00012577 Washer, 1/2 x 1 Shim 14 01006347 Grease Cap, 1.986 OD 00023287 Nut, 1/2-20, Center Lock 15 01006912 Wheel Spacer 00060078 Grease Fitting, 1/4-28 x 3/16 16 01006961 HHCS, 1/2-20, 7.50...

  • Page 21: 72" Front Caster Assembly

    72" Front Caster Assembly - Figure 11 and Parts List GD: 02002925-10/04/06 Ref. Ref. No. Part No. Description Qty. No. Part No. Description Qty. 00012577 Washer, 1/2 x 1 Shim 14 01006347 Grease Cap, 1.986 OD 00023287 Nut, 1/2-20, Center Lock 15 01006912 Wheel Spacer 00060078 Grease Fitting 16 01006961 HHCS, 1/2-20, 7.50...

  • Page 22: Wheel Assembly

    Wheel Assembly - Figure 12 and Parts List GD: 02002669-10/04/06 Ref. No. Part No. Description Qty. 00012187 Lug Nut, 1/2-20 02002668 Wheel Assembly, 24 x 12.00-12, Beige Includes: 00073975 Tire, 24 x 12.00-12,Turf Master Rim, 12 Dia x 8.50 width OPTIONAL TIRES 01002182 Wheel Assembly, 24 x 12.00-12, Turf Saver 01004473 Tire, 24 x 12.00-12, Turf Saver...

  • Page 23: Seat/Floor Panel Assembly

    Seat/Floor Panel Assembly - Figure 13 and Parts List GD: 02002559-03/22/07 Ref. Ref. No. Part No. Description Qty. No. Part No. Description Qty. 00002528 Hex Cap Screw 3/8-16 x 2.00 01002766 Lock Nut, 1/4-20 00006131 Hex Nut, 3/8-16 01008140 Deck Lift Spring, Left Hand 00012158 Washer 01009459 Shoulder Bolt, .375 x 1.50 712-04063 Nylock Nut, 5/16-18...

  • Page 24: Control Assembly

    Control Assembly - Figure 14 GD: 02003535-02/09/07...
  • Page 25 Control Assembly - Parts List for Figure 14 Ref. Ref. No. Part No. Description Qty. No. Part No. Description Qty. 00002528 Hex Cap Screw, 3/8-16 x 2.00 01007734 Turnbuckle 00012186 Hex Nut, 1/4-20 02002605 Shoulder Bolt, 3/8 x 1.25, SS 00013131 Hex Cap Screw, 1/4-20, .75 01008367 B/Joint, 3/8-24, Left Hand Female 00013198 Hex Cap Screw, 5/16-18 x 2.00...

  • Page 26: Radiator Assembly

    Radiator Assembly - Figure 15 GD: 02001007-05/03/07...

  • Page 27: Hex Nut, 3/8-16 Flange Lock

    Radiator Assembly - Parts List for Figure 15 Ref. Ref. No. Part No. Description Qty. No. Part No. Description Qty. 00006129 Hex Cap Screw, 5/16-18 x 1.75 02001051 Radiator Mounting Bracket Nut, 10-24, Nylon Insert 00006194 02001038 Radiator includes: 00009812 Flat Washer, 5/16 02002896 Fan Reverser Switch...

  • Page 28: Hp Caterpillar Engine Assembly

    28.2HP Caterpillar Engine Assembly - Figure 16 GD: 02003528-04/25/07...
  • Page 29 28.2HP Caterpillar Engine Assembly - Parts List for Figure 16 No Part No. Description Qty. No Part No. Description Qty. 00006131 Hex Nut, 3/8-16 01005314 Flat Washer, 7/16 ID x 1.75 OD x .25 00010734 Lock Washer, 1/2 01007088 Nut, M6 x 1, Lock 00011861 HHCS, 3/8-16, 2.25 01008531 Self Tapping Screw, #10-32 x .500 00012133 Hex Cap Screw, 1/4-20 x 1/2...

  • Page 30: 60" Lift Assembly

    60" Lift Assembly - Figure 17 GD: 02002660-03/16/07...
  • Page 31 60" Lift Assembly - Parts List for Figure 17 Ref. No. Part No. Description Qty. 00002766 Washer, 1.5 x .655 x .055 00010734 Lock Washer, 1/2 00011459 Flat Washer, 1/2 00011951 Hex Cap Screw, 1/2-13 x 1.50 00012152 Lock Nut w/Nylon Insert 00012165 Nut, 5/16-18, Nylock 00013432 Flat Washer, 5/8 00022560 Hex Nut, Flange Lock, 3/8-16...

  • Page 32: 72" Lift Assembly

    72" Lift Assembly - Figure 18 GD: 02003030-03/16/07...
  • Page 33 72" Lift Assembly - Parts List for Figure 18 Ref. No. Part No. Description Qty. 00002766 Washer, 1.5 x .655 x .055 00010734 Lock Washer, 1/2 00011459 Flat Washer, 1/2 00011951 Hex Cap Screw, 1/2-13 x 1.50 00012152 Lock Nut w/Nylon Insert 00012165 Nut, 5/16-18, Nylock 00013432 Flat Washer, 5/8 00022560 Hex Nut, Flange Lock, 3/8-16...

  • Page 34: Electrical Assembly

    Electrical Assembly - Figure 19 and Parts List 4" Hose Length Fasten relay (01002251) with Button Head Screw (01000443) on LH control panel shown in Fig. 14. GD: 02003020-03/27/07 Ref. Ref. No. Part No. Description Qty. No. Part No. Description Qty.

  • Page 35: Decal Map

    Decal Map...
  • Page 36 Cub Cadet Commercial P.O. Box 368023 Cleveland, OH 44136 Form No. 02003435 Rev. 07-3 05/10/2007...
