Lightolier Lytecaster 1127 Specification

Page 1 of 2
7 15/16"
6 1/4"
7 9/16"
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim
1127* Black Step Baffle
1127CD* Clear Diffuse,
White Flange
1127WH White Step Baffle
1138*
Specular Gold
1148*
Specular Clear
1127BK* Specular Black
1127BNM* Natural Metal Baffle
w/Metal Flange
*Add "NM" to SKU for Natural Metal™ Flange

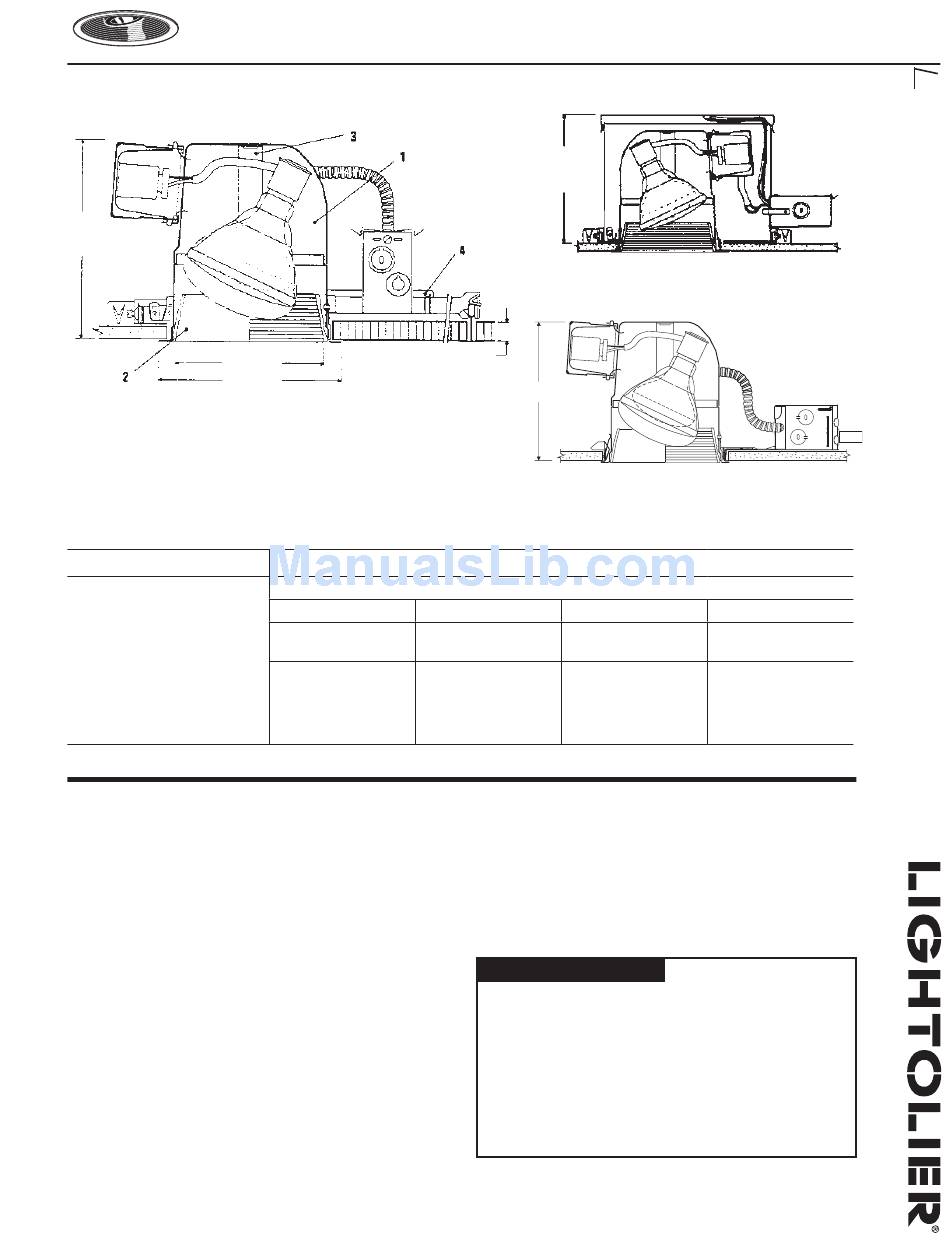

Features
1. Housing: Hydroformed aluminum, .040" thick (18ga.); white or Natural
Metal™ trim flange.
2. Aperture: Aluminum step baffle or cone, painted or anodized finish.
3. Lampholder Assembly: Die-formed steel, .060" thick; permits adjustment;
358˚ horizontal and 0˚ to 30˚ vertical.
4. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above
and shown on the right. See Frame-In Kit specification sheets for more
details.
Options & Accessories
Lytegems :
® See 1500 Series Specification Sheets.
Retaining Clips: 1955 - for installing in existing ceiling
Extra Wide Flange Trim Ring: 1954 - 8 5/8" O.D.
Lytecaster
1127/1102P1 Series
Standard Incandescent
Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Frame-In Kit Ceiling Type
1102P1 Non-IC
1103R Non-IC Remodeler
1100DICM Deep IC
1100DAICM Deep AirSeal
Recessed Downlighting
®
6 3/4" Aperture Recessed Adjustable Reflector Trim
9 1/4"
1" Max.
7 15/16"
Incandescent
Lamping
85W BR30
150W PAR38, BR40
85W BR30
IC 90W PAR38
®
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • H0107
1127/1100DEEP IC Series
Insulated Ceiling
1127/1103R
0
Non-IC
™
Remodeler Ring
Height
7 15/16"
7 15/16"
9 1/4"
9 1/4"
Type:
www.lightolier.com
1127
30˚
