Lightolier Lytecaster 1126T Specification

Page 1 of 2
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

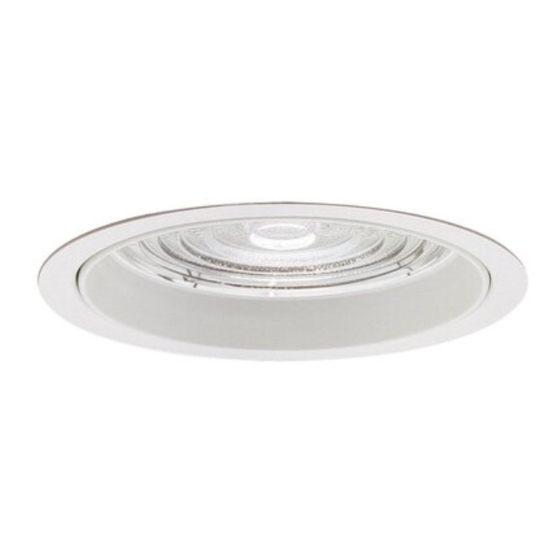

Reflector Trim
1126T
Fresnel Lens
Features
1. Reflector: Hydroformed aluminum, 18 ga.; white gloss finish on inside and
trim flange.
2. Fresnel Lens: Clear acrylic lens. Provides high efficiency with brightness
control, regressed to minimize brightness at normal viewing angles.
3. Splay: Injection molded opaque white Valox
4. Frame-In Kit: (1102T1 standard frame shown; other frames listed above.)
See Frame-In Kit specification sheet for more details.
Options & Accessories
Retaining Clips: 1955 - For installing in existing ceiling
Extra Wide Flange Trim Ring: 1954 - 8-7/8" O.D.
Plaster Ring: 1961
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • H0711
Lytecaster
7" Ceiling Opening
1126T/1102T Series
Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Frame-In Kit Installation Type
1102T1 Non-IC
1102TH1 Non-IC
1102TH2 Non-IC
1102TM1 Non-IC Emergency
1102TM2 Non-IC Emergency
1102TH1R
Non-IC Remodeler
1102T13U Non-IC
1102T18U Non-IC
1102T26U Non-IC
.
®
Recessed Downlighting
®
6 3/4" Aperture Fresnel Lens Reflector Trim
Incandescent
Lamping Height
2 Lamp 13W Twin Tube 3 7/8"
Compact Fluorescent 3 7/8"
(Gx23) 2 Pin Base 3 7/8"
3 7/8"
3 7/8"
3 7/8"
2 Lamp 13W Quad Tube 3 7/8"
Compact Fluorescent
(G24q-1) 4 Pin Base
2 Lamp 18W Quad Tube 3 7/8"
Compact Fluorescent
(G24q-2) 4 Pin Base
2 Lamp 26W Quad Tube 3 7/8"
Compact Fluorescent
(G24q-3) 4 Pin Base
Labels
UL (Suitable for Wet Locations, in Covered Ceiling; Damp Location in Walls,
Spas and Hot Tubs), I.B.E.W.
Valox is a registered trademark of General Electric.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
1126T
Type:
