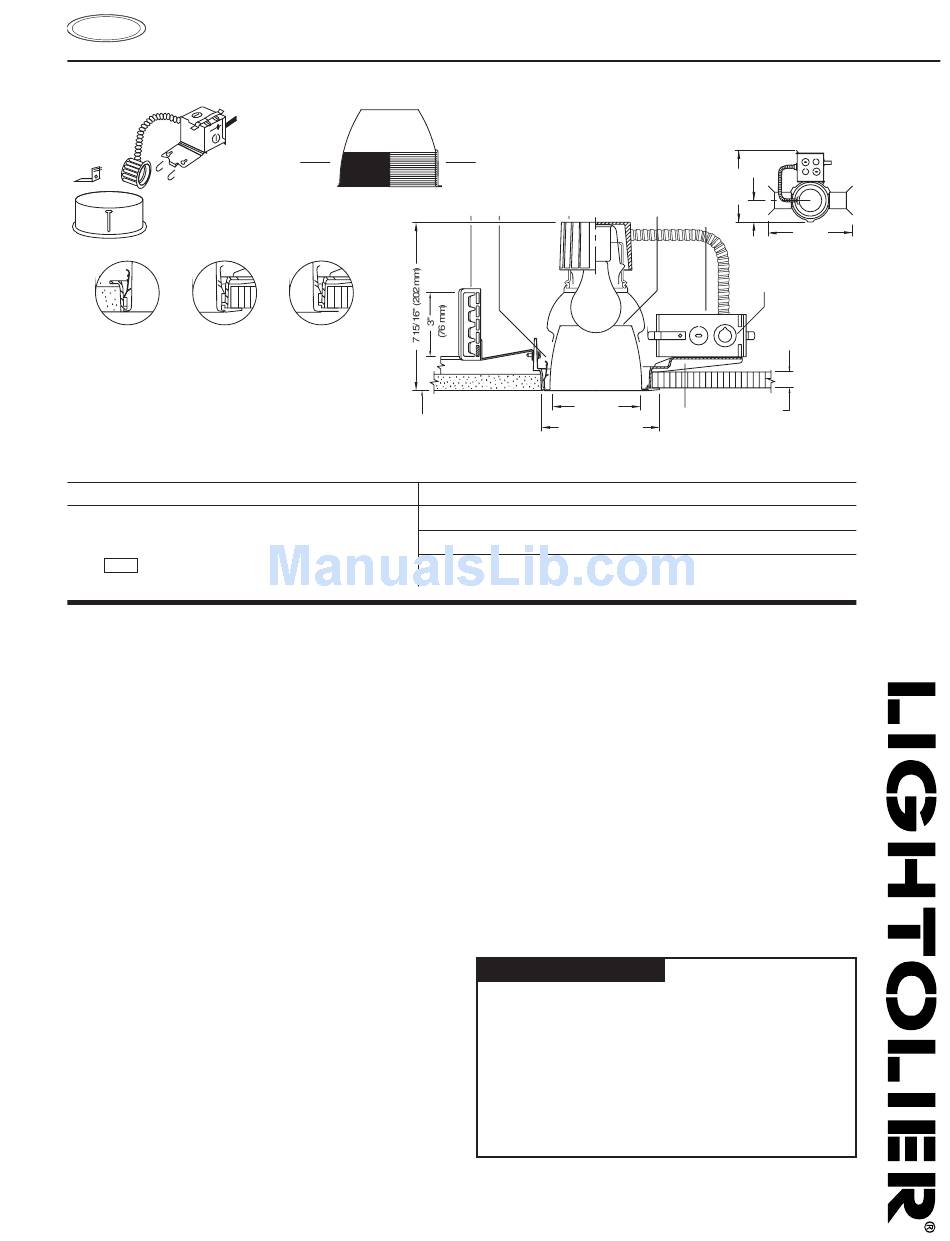

Lightolier Calculite A7053 Specification

Page 1 of 2
Remodel (A400RM)
Frame-in Kit
White Molded
Flush Trim
Trim Ring
(Molded trim ring removed)
Ceiling Cutout: A400 5 1/16" (129 mm) Dia.
Ceiling Cutout: A400RM 5" (127 mm) Dia.
Reflector Trim
A7053CLW Specular Clear finish with white flange
A7053CLP Specular Clear finish with polished flange
A7053CL Specular Clear finish with molded trim ring (flangeless)
A7053 Add suffix for other finishes (see options).
Features
1. Reflector: 16 ga. Specular Alzak ®
lamp image. Available with white or polished flange, or with removable
white molded trim ring (field paintable).
2. Socket Cup: Die-cast aluminum cup effectively dissipates heat and assures
lamps maintain proper optical alignment to reflector. Snaps onto reflector
neck for easy tool-less installation. Contains medium base porcelain socket
with nickel plated screw shell wired and No. 18 SF-1 leads to J-Box.
3. Mounting Frame: Die-cast aluminum suitable for dry or plaster. Provides
flush trim in plaster ceiling.
4. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or
1 1/2" lathing channel, or optional mounting bars.
6. Junction Box: 16 ga. Steel, 4" x 4" x 2" box allows inspection from below.
7. Thermal Protector: Meets NEC and UL requirements. Insulation must be
kept 3" away from fixture sides and wiring compartments and must not be
placed above fixture in a manner which will entrap heat.
8. Multi-Groove Baffle (A7053MG): One piece seamless Aluminum. Sharply
detailed concentric rings with "sawtooth" profile, optical black finish.
Permanently fastened to Specular Clear reflector.
9. Black Cone (A7053BK): Specular Black Alzak
tened to Specular Clear reflector.
Other Reflector Finish Options
Comfort Clear Diffuse CCD
Specular Gold GD
White WH
Specular Black BK*
Multi-Groove Baffle MG*
*Flangeless w/molded trim ring.
For additional finishes consult factory.
Flange Options
White W
Polished Flange P
Flangeless Leave Blank (molded trim ring)
Calculite
9 9
White or
Polished Flange
aluminum, 50° visual cutoff to lamp and
® aluminum. Permanently fas-
® Incandescent Open Downlight
8 8
5 4 2
4 1/2" Dia.
(115 mm)
1" (25 mm) min. -
Flush
2 1/8" (54 mm) max. Overlap
5" (127 mm)
5 3/4" (146 mm)
Frame-In Kit
A400
Remodeler Frame-In Kit
A400RM (for use in existing ceilings
with 3/8" min. to 2" max. thickness.)
Accessories and Options
18" Mounting Bars
27" Mounting Bars
T-Bar Anchor Clips
Existing Ceiling Clips
Sloped Ceiling Adapters
Step Down Transformer
Chicago Air Plenum
Electrical
A400 UL Listed for through branch circuit wiring with max. of (8) No. 12 AWG
90°C supply conductors. A400RM UL Listed for No. 12 AWG 60° C supply con-
ductors.
Labels
UL Listed for damp locations, I.B.E.W.
Alzak ® is a registered trademark of ALCOA.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • B0204
A7053
4 1/2" Aperture A19
A400 Top View
10 1/2"
(267 mm)
1
6
13 3/8"
(340 mm)
4 1/8"
(105 mm)
7
1 1/8" (29 mm) max.
3
Ceiling Thickness
Lamp
A19, 100W max.
Lamp
Same as A400
1950 (set of 2)
1951 (set of 2)
1956 (set of 4, for 1950 & 1951 bars)
7998 (set of 2)
7920 (see SCA specification sheet)
7997 (see 7997 specification sheet)
LC (add suffix to Frame-in Kit)
Type:
www.lightolier.com
