1
Layout & Positioning
of Tent, Pole Assembly
– Layout and position tent with doors facing
desired direction. Unzip doors. (illus. 1)
– For best results in windy conditions, position
door or back of tent into the wind.
– Stake down tent corners. Keep the floor
taut. (illus. 2)
– Assemble Frame Poles by interlocking the
shock-corded sections. This will make two
long red Main Tent Poles and two long
silver Side Poles.
– Insert the two Main Tent Poles through the poles
sleeves with the red trim.
– Insert the silver Side Poles through the pole
sleeves with the silver trim.
2
Assemble Frame
– Insert one end of the Main Tent Pole tips into the
grommet on webbing located at the corner of the
tent. (illus. 3), (illus. 4)
– Go to opposite end of the Main Tent Poles and
gradually apply pressure to the pole, forming an
arch, until you are able to insert the pole tip
into the grommet on the corner web. (illus. 4)
– Repeat for second pole.
– Insert one end of Side Pole into grommet on the
webbing at the side of tent and go to opposite end
of the Side Pole and gradually apply
pressure to the pole, forming an arch,
until you are able to insert the pole
tip into the grommet. (illus. 4)
– Repeat for second pole.
POLE ASSEMBLY PARTS
Helios
part number 2000000435
Main Tent Poles

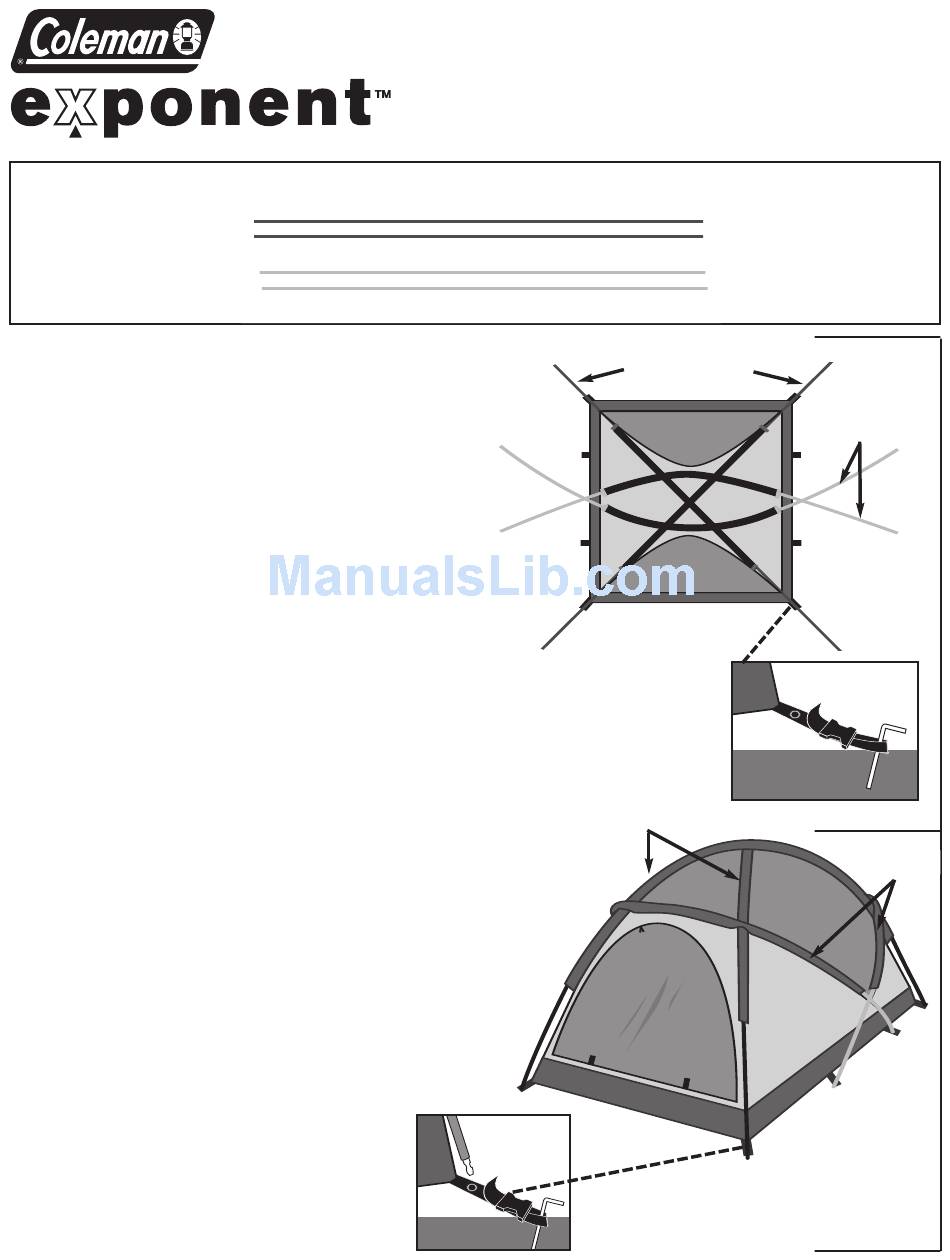

illus. 1
illus. 2
Tent stake
through Loop
Main Tent Poles
illus. 3
Insert Pole Talon on
stake loop into pole.
2
X
™
Rainfly
Part No. 9830-1401
Side Poles
Side Poles
illus. 4
Tent frame up
