Page 1 of 1
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
Aperture Cone
2000LVE1
2012
120V- 0.67A Max
2012NM
2013BKNM
2000LVE2
2013CD
277V- 0.27A Max
2013CDNM
2013NM
2013BK
2013WH
2013
2013WD
2013WDP

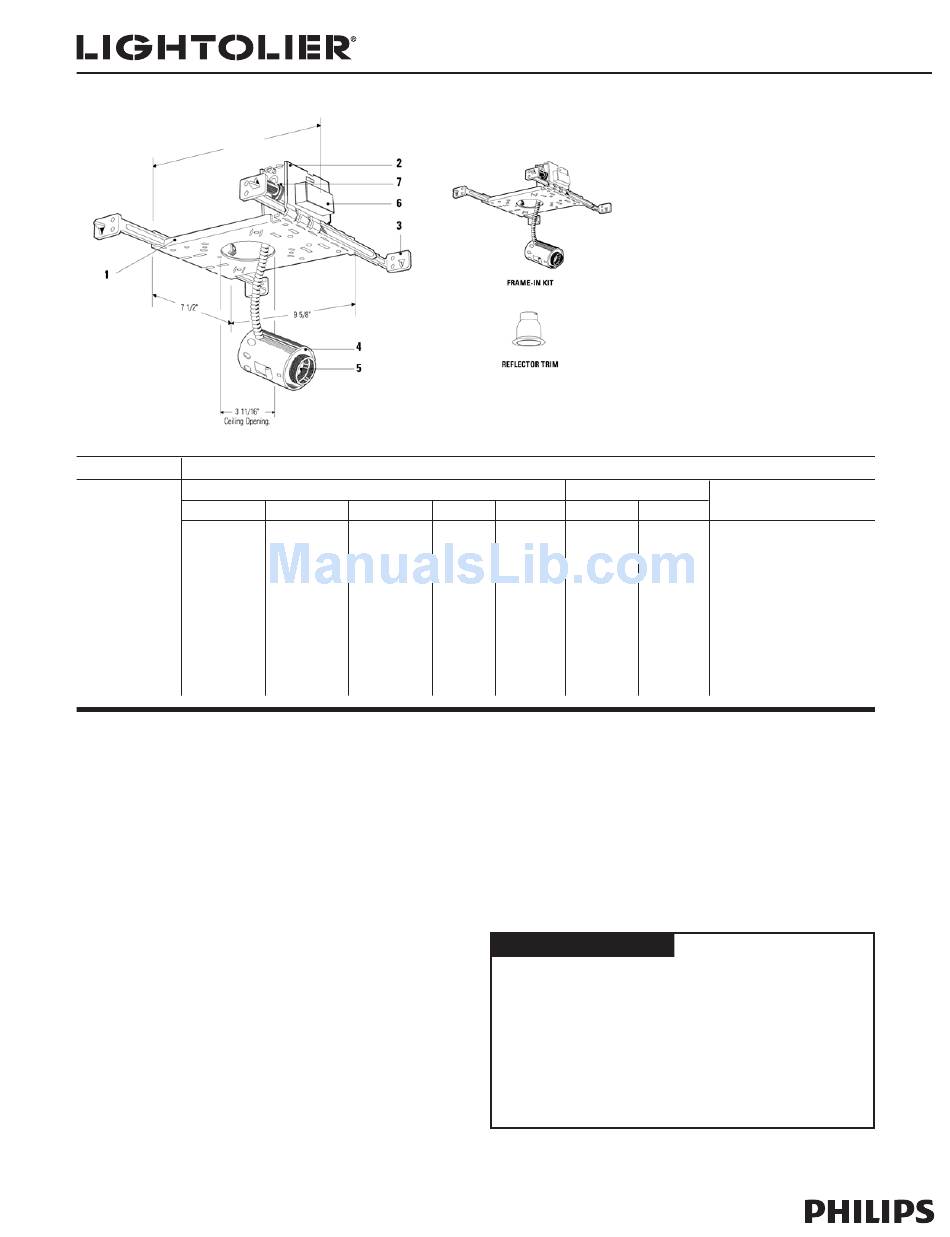

Features
1. Mounting Frame: .036" (#20 ga.) galvanized steel. Accommodates all
ceilings up to 1" thick. Push-in/twist-out rotoclips hold reflector flush to
ceiling.
2. Junction Box: 4" x 3 1/2"x 2", .063" (#14 ga.) galvanized steel. U.L. listed
for maximum of 8 No. 12 ga. 90° C through branch circuit conductors.
Integral cable clamps permit attachment of nonmetallic Romex
cable without need of additional connectors.
3. Mounting Bars: .059" (#16 ga.) galvanized steel. 13" long bars extend
to 27" with integral nailing tabs. Attaches to wood joist without need of
accessories.
4. Socket Housing: Aluminum with lamp adjustment assembly allows 35°
max. vertical 358° horizontal adjustment. (See reflector trim specification
sheet for specific adjustment.)
5. Socket: Field replaceable. Two pin socket, pre-wired with #18 SF1 leads to
junction box.
6. Transformer: Outboard mounted, electronic, 120V (2000LVE1) or 277V
(2000LVE2) primary, nominal 12V secondary. Removable from below.
7. Thermal Protector: Meets NEC and UL requirements. Insulation must be
kept 3" away from fixture sides and wiring compartments and must not be
placed above fixture in a manner which will entrap heat.
Dimming
Dimming Controls: Use only dimmers specifically designed for use with electron-
ic transformers. Consult Lightolier Controls for more information. Low voltage
luminaires may produce audible sound when used with dimmers, which may be
objectionable in acoustically critical areas.
Lightolier is a Philips group brand
3 3/4" Aperture Electronic Low Voltage MR16 Standard Frame-In Kit
9 3/4"
Reflector Trims — See Individual Reflector Trim Specification Sheets
Open Downlight
Satin Cone
Baffles
2008
2005
2008NM
2005WH
2010
2005BNM
2010NM
2005NM
®
Lytecaster
Recessed Downlighting
®
Slot
Pinhole
Mini Swivel
2006
2011
2025WH
Options & Accessories
Mounting Bars:
T-Bar Ceiling Clips:
Plaster Ceiling Ring:
MR16 Socket Replacement:
Socket for General Electric Turn and Lock (TAL) MR16 Lamp: 1975TAL.
Color Filters: AF2 Series
or armored
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Romex
is a registered trademark of General Cable Industries Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • B1108
2000LVE
Adjustable
Enclosed
Eyeball
Wet Location
2022LV
2090LV
2026WH
1964 - 20" set of (2)
1956 - set of (4)
1959 - 7/8" depth for wet plaster ceilings.
1975B
Type:
