Division of
Order Parts Here:
www.ivie-ent.com/parts
Ph:(918)254-5161
Operator's
ENCORE
Manual
S30/L30
U.S. Patent No. 6,557,207
READ THIS BOOK
CAUTION: Read the Operator's Manual before using the appliance.
This book has important information for the use and safe operation of this machine. Failure to read this
book prior to operating or attempting any service or maintenance procedure to your Clarke machine could
result in injury to you or to other personnel; damage to the machine or to other property could occur as
well. You must have training in the operation of this machine before using it. If operator(s) cannot read
this manual, have it explained fully before attempting to operate this machine.
Si Ud. o sus operadores no pueden leer el Inglés, se hagan explicar este manual completamente antes
de tratar el manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator's position at the rear of the machine.
For new books write to: Clarke
®
, 2100 Highway 265, Springdale, Arkansas 72764.
Clarke
®
Form No. 70762A
9/03
Printed in the U.S.A.
Advertisement
Table of Contents
Related Manuals for Clarke Encore L30
Summary of Contents for Clarke Encore L30
- Page 1 This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your Clarke machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well.
-
Page 2: Table Of Contents
Encore S30 Connection Diagram ........................55 Encore S30 Electrical Schematic ........................56 Encore L30 Connection Diagram ........................57 Encore L30 Electrical Schematic ........................58 IVIE Enterprises – Website: www.ivie-ent.com - Order Parts Online Clarke ® Page Operator's Manual -Encore S30/L30... -
Page 3: Operator Safety Instructions
Failure to read the Owner's Manual prior to operating or attempting any service or maintenance procedure to your Clarke machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. - Page 4 Do not use this machine as a step or furniture. Do not ride on this machine. CAUTION: Your machine warranty will be voided if anything other than genuine Clarke parts are used on your machine. Always use Clarke parts for replacement.
-
Page 5: Introduction & Machine Specifications

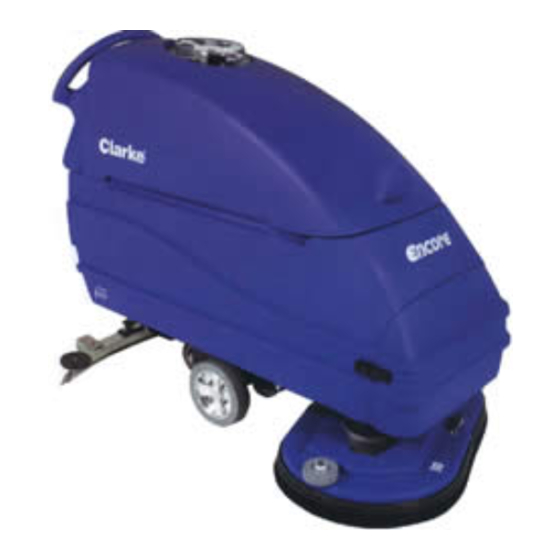

Introduction & Machine Specifications Introduction & Machine Specifications Clarke’s newly designed Encore S30 and L30 automatic scrubbers are efficient and superior floor cleaning machines. The Encore uses two brushes to scrub a path 30 inches wide. A squeegee wipes the floor while the vacuum motor removes the dirty solution from the floor - all in one pass. -
Page 6: Procedures For Transporting Machine
2. Make sure the ramp is clean and dry. 3. Put the ramp in position. 4. Remove squeegee assembly, brush housing and brush or pad driver before loading. Clarke recommends that both the solution tank and recovery tank are empty before loading. - Page 7 Procedures For Transpoting (cont.) 11. Fasten the machine to the vehicle. Clarke recommends a strap over the top of the machine and a strap to keep the machine from rolling forward or backwards. If this is not done, there is a possibility of the machine toppling over.
-
Page 8: Symbols Used On Encore S30/L30
("L Class" & "S Class") Traverse Speed Control ("L Class") Traverse Directions Forward (Traverse and Solution, and Brush Rotation) ("L Class" ) Traverse Directions Reverse (Traverse and Solution, and Brush Rotation) ("L Class" ) Clarke ® Page Operator's Manual -Encore S30/L30... - Page 9 ("S Class" ) Warning Label ("L Class" & "S Class") with parking brake Warning Label ("L Class" & "S Class") without parking brake IVIE Enterprises – Website: www.ivie-ent.com - Order Parts Online Clarke ® Operator's Manual - Encore S30/L30 Page -9-...
-
Page 10: Machine Control Panel
The hour meter indicates the number of hours the to clear vacuum hose. machine has operated. It runs only when the brush motor is on. F G H I J Figure 3 Clarke ® Page -10- Operator's Manual -Encore S30/L30... -
Page 11: Machine Controls And Features
Figure 5 "S" Model - The brake is located to the left hand rear of the machine. Press pedal to activate brake and release pedal to disengage brake. Figure 7 Figure 6 Clarke ® Operator's Manual - Encore S30/L30 Page -11-... -
Page 12: How To Prepare The Machine For Operation
See figure 9. 7. Close recovery tank by pulling up on the latch arm and then slowly lowering the tank. NOTE: Charge the batteries before using the machine. Figure 9 Figure 8C Clarke ® Page -12- Operator's Manual -Encore S30/L30... -
Page 13: Battery Maintenance
Do not allow ammonia or bicar- g. Neutralize any acid spills with ammonia or bonate of soda to get into batteries. bicarbonate of soda. Clarke ® Operator's Manual - Encore S30/L30 Page -13-... -
Page 14: How To Charge The Batteries
See figure 13B. To release the latch arm, tip the recovery tank up slightly while pushing down on the latch arm and then slowly lower the tank. Clarke ® Page -14- Operator's Manual -Encore S30/L30... -
Page 15: How To Adjust Brush Cleaning Path
DANGER: Operating a machine that is not completely or fully assembled could result in injury or property damage. Do not operate this machine unless it is completely assembled. Inspect the machine carefully Figure 17 before operation. Clarke ® Operator's Manual - Encore S30/L30 Page -15-... -
Page 16: How To Remove A Brush Or Pad Driver
2. Fill the solution tank with water. When filling machine in the front with a hose, position hose Figure 20 inside the fill screen as shown in figure 20A. Clarke ® Page -16- Operator's Manual -Encore S30/L30... -
Page 17: Operating The Machine
Only use a cleaning concentration recommended by the chemical manufacturer. Figure 20B WARNING: Clarke recommends a maximum water temperature of 120 F (49 Operating The Machine NOTE: Put the machine in the lowest traverse speed setting. -
Page 18: How To Clean A Dirty Floor
Do not lower the squeegee. This will keep the vacuum motor off. Lower the brush or pad and scrub the floor. Scrub the floor again with additional solution and lower the squeegee. Pick up all the solution with the squeegee. Clarke ® Page -18- Operator's Manual -Encore S30/L30... -
Page 19: Maintenance
10. Make sure the solution drain / level indicator hose is secure on the storage mount on the rear of the machine. Figure 24 IVIE Enterprises – Website: www.ivie-ent.com - Order Parts Online Clarke ® Operator's Manual - Encore S30/L30 Page -19-... -
Page 20: Procedures To Perform At The End Of Work
Use a clean cloth and wipe the surface of the machine. Figure 28 Charge the batteries. See the instruction in the section of this book called “How To Charge The Batteries”. IVIE Enterprises – Website: www.ivie-ent.com - Order Parts Online Clarke ® Page -20- Operator's Manual -Encore S30/L30... -
Page 21: Procedures To Perform Every Week
Turn the connector to the right to connect the hose. See figure 34 e. Open the solution flow valve. See figure 34. 5. Use a grease gun to lubricate the dual casters. See figure Clarke ® Operator's Manual - Encore S30/L30 Page -21-... -
Page 22: Maintenance For The Squeegee
REAR BLADE personnel only . 0.06 (1.5 mm) Figure 33 WARNING: Electrical repairs must be done by authorized personnel only. IVIE Enterprises – Website: www.ivie-ent.com - Order Parts Online Clarke ® Page -22- Operator's Manual -Encore S30/L30... -
Page 23: How To Clean The Solution Line
Maintenance cont. Consult your Clarke Authorized Service Person to do the service procedures. Use only genuine Clarke parts. How to Center or Offset the Brush Head The brush head on the Encore 30 should be adjusted as far to the left side of the machine as possible. -
Page 24: Accessories
Clarke ® Encore S30 and L30 Accessories - 9/03 CCESSORIES Description Part No. Power Wand System Kit 10150A Clarke Care Kit 14607A 39" Squeegee Assembly 10068A Poly Dur Protectant 50478A Kit, Grease Gun 55420A Kit, Low Voltage Shut-Off 14097A Brake Kit Assembly "L"...
