P
3

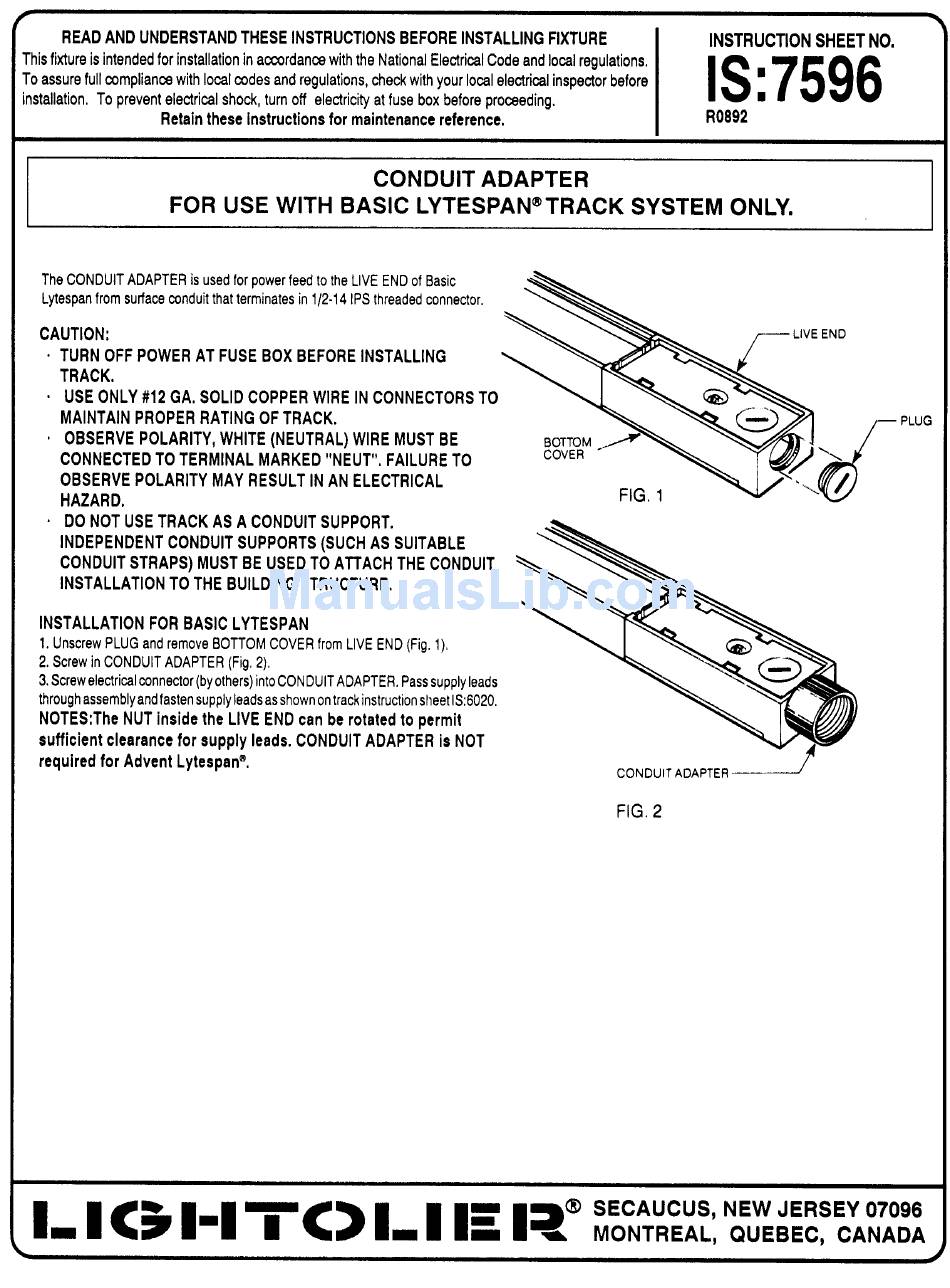

READAND UNDERSTANDTHESEINSTRUCTIONS BEFOREINSTALLINGFIXTURE
INSTRUCTION SHEET NO,
Thisfixtureis intendedfor installation in aczordan~ with the National Electrical Code and local regulations,
To assure full compliance with local codes and regulations, check with your local electrical inspector before
Installation, Toprevent electrical shock, turnoff
electricity at fuse box before proceeding.
IS:7596
Retain these instructions for maintenance reference,
R0892
CONDUIT ADAPTER
FOR USE WITH BASIC LYTESPAN"TRACK
SYSTEM ONLY.
The CONDUIT ADAPTER is used for power
feed 10the LIVE END of Basic
Lytespanfrom surfaceconduitthat terminatesin 1/2-1 4 IPSthreadedconnector.
CAUTiON:
" TURN OFF POWER AT FUSE BOX BEFORE Installing
TRACK.
" usEoNLY #12 GA, soLIDcoPPER
wlREIN connectors
To
MAINTAiN PROPER RATiNG OF TRACK,
PLUG
o
OBSERVE POLARITY, WHITE (NEUTRAL) WIRE MUSTBE
BOTTOM ->
CONNECTEDTO TERMINAL MARKED "NEUT", FAILURE TO
COVER
OBSERVE POLARiTY MAY RESULT IN AN ELECTRICAL
HAZARD,
FIG, 1
~ DO NOT USE TRACK AS A CONDUITSUPPORT,
INDEPENDENTCONDUIT SUPPORTS(SUCHAS SUiTABLE
CONDUITSTRAPS)MUST BEUSEDTOATTACH THECONDUIT
lNSTALLATiONTOTHE BUILDING STRUCTURE,
INSTALLATION FOR BASICLYTESPAN
l, UnscrewPLUGand removeBOTTOMCOVER
fromLIVEEND(Fig, l ),
2,ScrewinCONDUlTADAPTER
(Fig,2),
3,Screw eleckiml c onnector (byothers) i ntoCONDUIT A DAPTER, Pass supply leads
through assembly andfasten supply Ieadsas s hown
ontrackinstruction sheet1S:6020,
NOTES:The NUT inside the LIVE END can be rotated to permit
sufficient clearance for suppiy leads. CONDUITADAPTER is NOT
required for Advent Lytespanm,
FIG. 2
[m
I
<>
H
iC> L I E H RRR&R<!SE!~R'
