Lightolier Tangent FX16SC Specification

Page 1 of 2
5
3
4
9
10
Ordering Information
Catalog No. Finish
FX16SC Silver
Features
1. Transformer: Class two electronic transformer for 12V halogen lamps.
2. Track Attachment fitting: Molded thermoplastic clamping adapter with
captive, nickel-plated steel pin. Clockwise rotation of pin secures fixture
adapter to track.
3. Dual Cable Suspension: 1/32" diameter stranded stainless steel cable
with grip-locks™ for height adjustability; field cuttable max 6' suspension.
4. Power Cord: 1/8" dia. cord with nickel plated braided metal sleeving;
field cuttable; 6' max.
5. Splicing Chamber: Allows for field cutting of power cord.
6. Horizontal Pivot: Infinite horizontal rotation.
7. Vertical Pivot: 0° to 90° vertical adjustment.
8. Socket: Bi-pin ceramic low voltage halogen socket with multipoint
contact.
9. Housing: Die cast aluminum.
10. Accessory Cartridge: Hinged and captive; Retaining ring included to
secure accessories.
11. Glass Shield: Included for use with unshielded lamps.
Dimming
Use only dimmers specifically designed for use with electronic transformers.
Low Voltage fixtures may produce audible sound when dimmed.
Finish
All Painted finishes are baked enamel.
Tangent
1-3/8 in
[36 mm]
5-1/2 in
[141 mm]
3-13/16 [97 mm]
1
1-1/16 in
[27mm]
1 in [25 mm]
4-1/2 in
[114 mm]
Track Mountings
For use on all Tangent Track systems. For
ceiling or suspended track installation. Not
for use on wall mounted track.
Accessories
Accessory Holder: Integral
Accessories: Accepts two total (1 lens plus either 1 louver or 1 snoot).
Lens: AF2 or ADF2 Series
Louver: AL2HC
Snoot: 22SR6AL
Labels
cULus Listed
Lightolier
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • A0207
™
Track Lighting System
3-1/8 in
[79 mm]
2-5/8 in
[67 mm]
Lamps
12V MR16 Halogen
50W Max or 37W Max IR
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
a Genlyte company
FX16SC

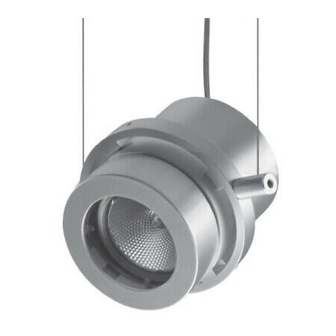

Suspended Mini Cylinder
2
