GARAGE DOOR OPENER
Models PD758DS 3/4 HP
For Residential Use Only
Owner's Manual
Please read this manual and the enclosed safety materials carefully!
■
■
Fasten the manual near the garage door after installation.
The door WILL NOT CLOSE unless The Protector System
■
Periodic checks of the opener are required to ensure safe operation.
■
The model number label is located on the left side panel of your opener.
■
®
PD758KDS 3/4 HP
The Chamberlain Group, Inc.
Elmhurst, Illinois 60126-1196
®
is connected and properly aligned.
845 Larch Avenue
www.chamberlain.com
Advertisement
Table of Contents
Related Manuals for Power Drive PD758DS 3/4 HP
Summary of Contents for Power Drive PD758DS 3/4 HP

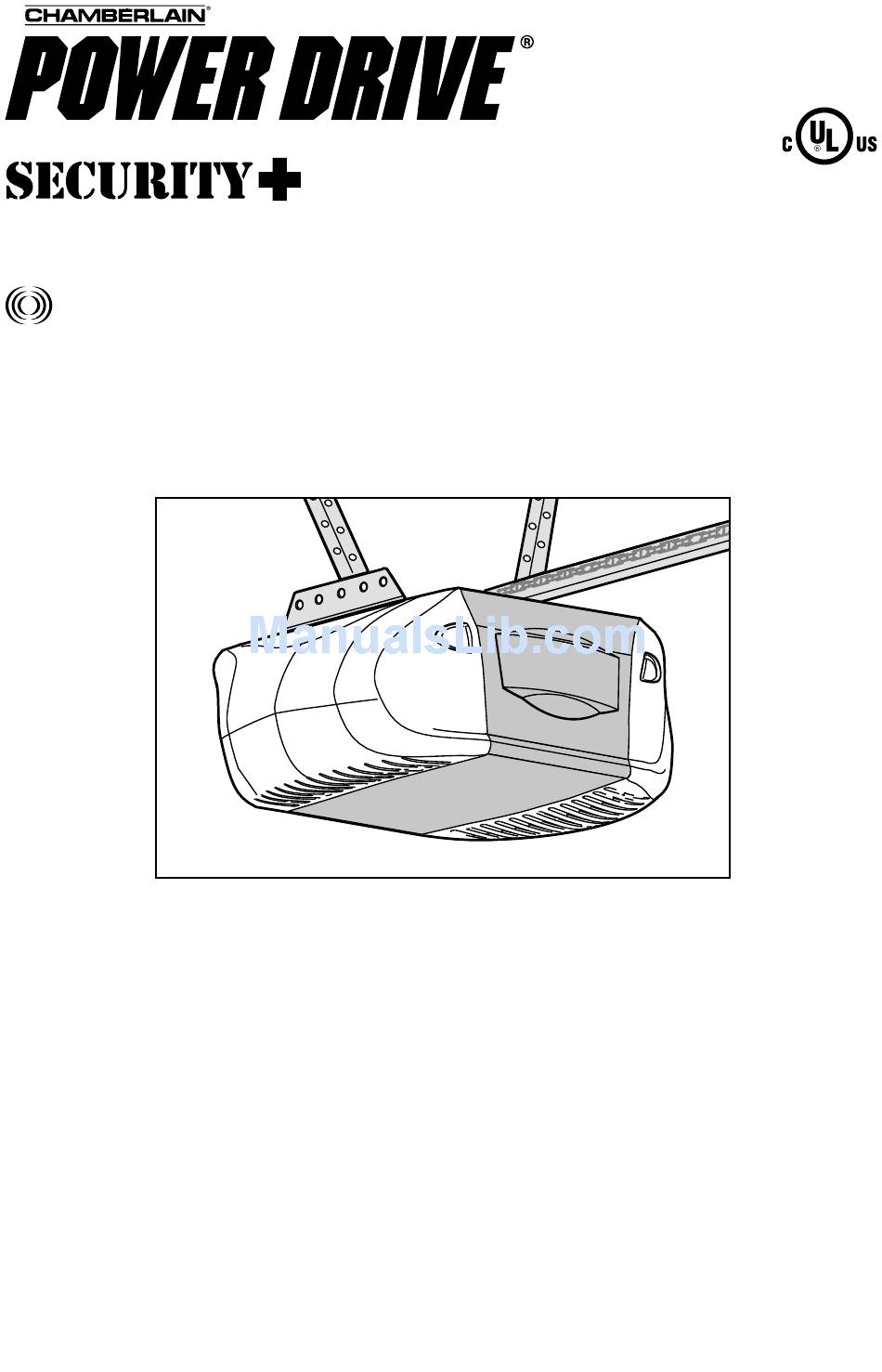

- Page 1 The Chamberlain Group, Inc. 845 Larch Avenue Elmhurst, Illinois 60126-1196 www.chamberlain.com ® GARAGE DOOR OPENER Models PD758DS 3/4 HP PD758KDS 3/4 HP For Residential Use Only Owner’s Manual Please read this manual and the enclosed safety materials carefully! ■ ■...
-
