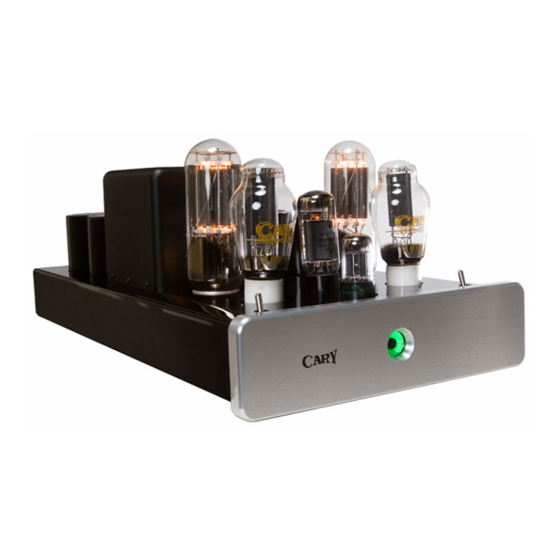

CAD-211M
OPERATING MANUAL
Note:
Before installing you new CAD-211M, please read this manual carefully. This manual will
inform you of the CAD-211M specifications, proper installation procedures and operation
procedures. Also included in this manual are guidelines on how to properly service and care
for your new CAD-211M.
Advertisement
Table of Contents
Related Manuals for Cary Audio Design CAD-211M
Summary of Contents for Cary Audio Design CAD-211M
- Page 1 CAD-211M OPERATING MANUAL Note: Before installing you new CAD-211M, please read this manual carefully. This manual will inform you of the CAD-211M specifications, proper installation procedures and operation procedures. Also included in this manual are guidelines on how to properly service and care for your new CAD-211M.
-
Page 2: Specifications
Therefore, if the unit is operated outside the parameters outlined in this owner’s manual, damage may result. Please read this manual carefully before putting your new Cary Audio Design CAD-211M mono block amplifier into operation. - Page 3 2 - 300B Driver 2 - 6SN7 Input OUTPUT IMPEDANCE: 4,8 and 16 ohm INPUT POWER REQUIREMENTS: 117V/220V 50 - 60 Hz POWER CONSUMPTION: 265 watts "OPERATE" 220 watts "STAND BY" DIMENSIONS: 10"H x 12 1/4"W x 24"D NET WEIGHT: 90 lbs SHIPPING WEIGHT: 125 lbs...
-
Page 4: Top Panel Features
Top Panel Features AC-ON SWITCH: Turns AC power on STAND-BY SWITCH: Turns high voltage on Rear Apron Features OUTPUT: Three 5-way copper binding posts provide outputs for 4 ohm, 8 ohm and 16 ohm 3 conductor shielded power cord to AC power mains INPUTS: One Single-Ended Input via gold plated RCA jack One Balanced Input via XLR connector (Note: When using Balanced... -
Page 5: Installation
Warranty Card Fill out the enclosed Warranty Registration Card and return to Cary Audio Design within 10 days of the original purchase. Keep your original sales slip and packing cartons for future reference. Failure to register warranty will limit the warranty to one year. -
Page 6: Power Requirements
Power Requirements The CAD-211M is designed to operate from house current mains. The design voltage is 117 VAC at 50/60Hz. (Foreign units 220 VAC at 50/60 Hz) Cables The speaker cables from the output posts to the speaker system can be any convenient length required. -
Page 7: Break-In Period
listen to music, simply flip the stand-by switch to the “REAR” position. Under these conditions the CAD-211M is always ready for peak performance. Break In Period The tubes, capacitors and output transformer take approximately 100 hours of music playing time to operate at peak performance. The CAD-211M may seem sterile or thin sounding right out of the box. - Page 8 Return Authorization Number from the Customer Service Department. Cary Audio Design will not assume responsibility for transit damage or loss if problems are due to improper packing or lack of insurance. WARNINGS Make no attempt to put the CAD-211M in service outside of the cabinet.
