Lenovo ThinkCentre M70z Hardware Maintenance Manual page 107

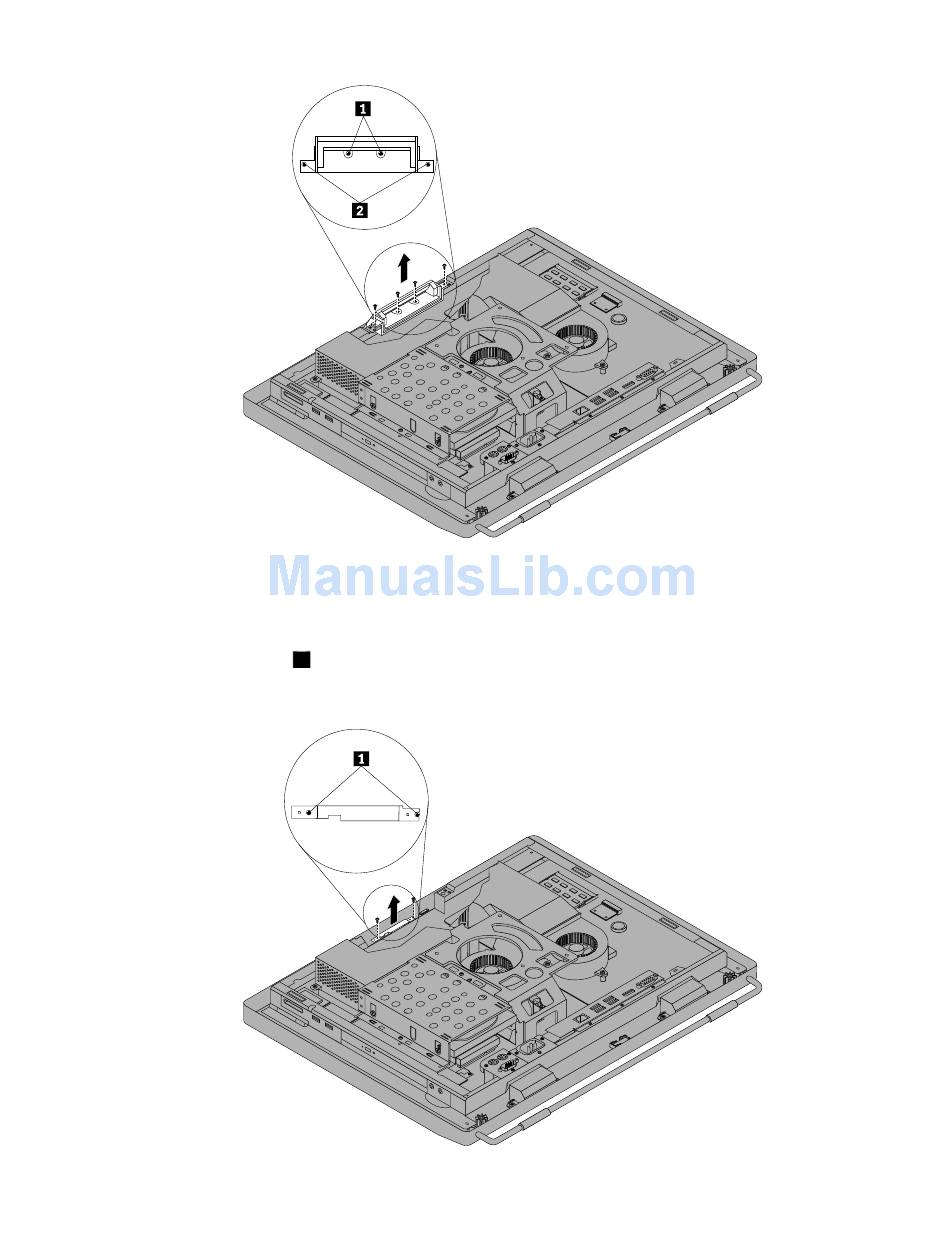

Figure 35. Removing the handle bar
6. Note the routing of the integrated camera with microphone cable, and then disconnect the cable from
the system board. See "System board parts and connectors" on page 69.
7. Remove the two screws
then remove the integrated camera with microphone from the computer.
Figure 36. Removing the integrated camera with microphone
1
that secure the integrated camera with microphone to the front bezel, and
.
Chapter 8 Replacing FRUs
101
