- Page 1 The LED-10 Series Remote Fire Annunciators for use with the Fire Lite • MS-5210UD Fire Alarm Control/Communicator Document # 50400 10/27/97 Revision: P/N 50400:B ECN 97-510 12 Clintonville Road, Northford, CT 06472...
- Page 2 Document 50400 Rev B 10/27/97 P/N 50400:B...
-
Page 3: Table Of Contents
Contents Section One: LED-10 Series Annunciators ........4 Features ....................4 Figure 1-1: Component Summary ............5 Figure 1-2: Wiring to Terminals ............. 6 SW1 DIP Switch Settings ..............7 Figure 1-3: SW1 DIP Switch Settings Example ........7 Figure 1-4: SW2 DIP Switch Settings Example ........8 Table 1-1: LED-10 Series Annunciator Addressing ...... -
Page 4: Section One: Led-10 Series Annunciators

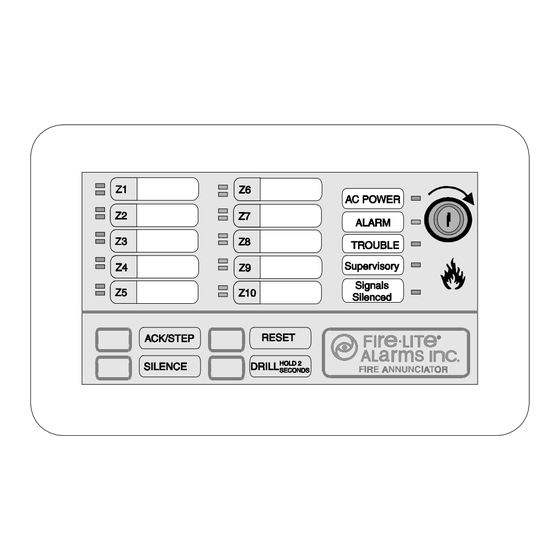

Section One: LED-10 Series Annunciators LED-10 LED-10L and LED-10LS2 The Fire•Lite LED-10 Series Annunciators consist of the LED-10, LED-10L and LED- 10LS2. They are compact, attractive LED-type fire annunciators designed for use with the MS-5210UD Fire Alarm Control Communicator. The LED-10L and LED-10LS2 are models which do not have function switches or a key-switch. -
Page 5: Figure 1-1: Component Summary
LED-10 only: • Function switches for: Acknowledge Signal Silence Drill System Reset • Enable/Disable key-switch for function switches. • DIP switches control local functions such as piezo enable/disable, function switches and key-switch enable/disable. Key-switch Enable/Disable for LED-10 Only (not used on the LED-10L or LED-10LS2) Receive-Transmit/Receive only not used Top view... -
Page 6: Figure 1-2: Wiring To Terminals
Side view (rotated 180 from above [Top] view) +EIA-485 Earth Ground Option -EIA-485 -24 VDC OUT Shield -24 VDC IN No connection +24 VDC OUT +24 VDC IN No connection Note: These connections must be power-limited and the +24 volt nominal power (18 VDC to 26 VDC) must be filtered. -
Page 7: Sw1 Dip Switch Settings
SW1 DIP Switch Settings The OPEN position on SW1 is the OFF state. Refer to Figure 1-3 for an explanation of DIP switch positions. SW1 switch settings are as follows: 1 through 6 - LED-10 Series annunciator address switches. The first six switches are used to set the address of the annunciator. The OFF (OPEN) up position equals a binary 1 and the ON down position equals a binary 0. -
Page 8: Figure 1-4: Sw2 Dip Switch Settings Example
SW2 DIP Switch Settings SW2 switch settings are as follows: 1 - LED-10 Only (not used on LED-10L and LED-10LS2) ON = Key-switch Enable, OFF = Key-switch Disable. Switch 1 set to the ON position enables the key-switch operation. The key- switch may now be used to enable LED-10 model membrane (control) switches, allowing remote switch functions, or lockout the switches, preventing remote switch functions. -
Page 9: Table 1-1: Led-10 Series Annunciator Addressing
ADDRESS SWITCH SETTINGS ADDRESS SWITCH SETTINGS INVALID Table 1-1: LED-10 Series Annunciator Addressing Typical Configuration The LED-10 Series annunciators indicate the status of the MS-5210UD, display zone status and require no programming. In addition, the LED-10 model offers multiple annunciator locations with the capability of remote Acknowledge, Signal Silence, Drill and Reset functions. -
Page 10: Led Indicators And Piezo Sounder
LED Indicators and Piezo Sounder The LED-10 Series annunciators provide LEDs which indicate the system and zone status of its associated MS-5210UD fire alarm control panel. Power This is a green LED which illuminates if AC power is applied to the host FACP. The green LED will turn off if AC power to the host FACP is lost. -
Page 11: Switch Functions For Led-10 Only
LED-10LS2 Only Zone Alarm - Zones 1 through 8 The red LED for Zones 1 through 8 on the LED-10LS2 operate the same as on the LED-10 and LED-10L. Refer to the previous section. Zone Alarm - Zones 9 and 10 This is a yellow LED on Zones 9 and 10 of the LED-10LS2 only. - Page 12 Acknowledge When the Acknowledge switch is pressed and released, the LED-10 sends an Acknowledge command to the control panel. Pressing the Ac- knowledge switch silences the local piezo sounder, the sounders located in all other system annuncia- tors and the sounder located on the Fire Alarm Control Panel's main circuit board. It will also change all flashing system LEDs to steady on.
-
Page 13: Section Two: Led-10 Series Annunciators Mounting
Section Two: Mounting LED-10 Series Annunciators Screw LED-10 Series Annunciator Preparation The LED-10 Series can be surface mounted in a three-gang electrical box, Fire•Lite P/N SBB-3 or semi-flush mounted in a three-gang electrical box, Fire•Lite P/N 10103 or equivalent, with a minimum depth of 2 3/16". - Page 14 Semi-flush Mount Backbox Remove the plug-in terminal blocks from the LED-10 Series circuit board. Connect the EIA-485 and power wiring into the terminal block positions illustrated in Figures 3-1 and 3-3. Plug the terminal blocks back into the TB1 and TB2 connectors on the back of the annunciator circuit board.
- Page 15 Surface Mount Backbox Remove the plug-in terminal blocks from the LED-10 Series circuit board. Connect the EIA-485 and power wiring into the terminal block positions illustrated in Figures 3-1 and 3-3. Plug the terminal blocks back into the TB1 and TB2 connectors on the back of the annunciator circuit board.
-
Page 16: Section Three: Led-10 Series Electrical Connections
Section Three: LED-10 Series Electrical Connections The LED-10 Series Annunciators can be powered by the MS-5210UD power output or from a remote, UL listed, filtered power supply such as the Fire•Lite FCPS-24F. The power run to the LED-10 Series must be power-limited but need not contain a power supervision relay since loss of power is inherently supervised through loss of communi- cation with the annunciator. -
Page 17: Figure 3-2: Led-10Im Installation
LED-10IM The LED-10IM Interface Module provides an EIA-485 port to support the LED-10 Series, AFM Series and LDM Series annunciators as well as the ACM-8RF Remote Relay Module and is therefore required when connecting these devices to the MS-5210UD. The MS-5210UD supervises EIA-485 wiring for open circuits via the LED-10IM Interface Module. -
Page 18: Figure 3-3: Eia-485 Connection
LED-10 Series Plug-in terminal blocks No connection + EIA-485 Shield - EIA-485 Refer to Note 6 Notes: 1) All connections are power-limited and supervised. 2) A maximum of 32 LED-10 Series Annunciators may be connected to this circuit. 3) 6,000 feet (1,800 m) maximum distance @ 18 AWG (0.75 mm ) between the panel and annunciators. -
Page 19: Figure 3-4: Wiring Facp To Led-10 Series
24 VDC TB2 EIA-485 Terms 1 (+) and 2 (-) LED-10IM MS-5210UD LED-10 Series in grounded box LED-10 Series in grounded box Refer to Note 4 CAUTION! Please be certain to secure the LED-10IM module to the MS-5210UD and to keep all wiring from mechanically interfering with the LED-10IM. -
Page 20: Section Four: Eia-485 Shield Terminations
Section Four: EIA-485 Shield Terminations The EIA-485 circuit must be wired using a twisted-shielded pair cable having a charac- teristic impedance of 120 ohms, +/- 20%. Do not run cable adjacent to, or in the same conduit as, 120-volt AC service, noisy electrical circuits that are powering mechanical bells or horns, audio circuits above 25 V , motor control circuits, or SCR power circuits Note: To ensure static (ESD - electrostatic discharge) protection, all enclosures,... -
Page 21: When The Eia-485 Shield Is In Full Conduit
When the EIA-485 shield is in full conduit: The EIA-485 loop allows the FACP to communicate with the annunciator(s). The shield for the EIA-485 loop must be connected to earth ground at the FACP, but must be left floating (no connection) at the annunciator if it is the first or only device on the EIA-485 loop. - Page 22 Notes Document 50400 Rev B 10/27/97 P/N 50400:B...
-
Page 23: Spare Slide-In Labels For Led-10 Series Annunciators
Slide-In Labels for the LED-10 Series Annunciators Slide-in labels for Zones 1-10 are included with the LED-10 Series Annunciators. In the event that these labels are damaged or lost, remove this page from the manual and type the appropriate information on the labels shown below. Type on the lines provided to ensure centering of information in label windows. - Page 24 Notes Document 50400 Rev B 10/27/97 P/N 50400:B...
- Page 25 Notes Document 50400 Rev B 10/27/97 P/N 50400:B...
- Page 26 Notes Document 50400 Rev B 10/27/97 P/N 50400:B...
- Page 27 Document 50400 Rev B 10/27/97 P/N 50400:B...
- Page 28 Document 50400 Rev B 10/27/97 P/N 50400:B...
