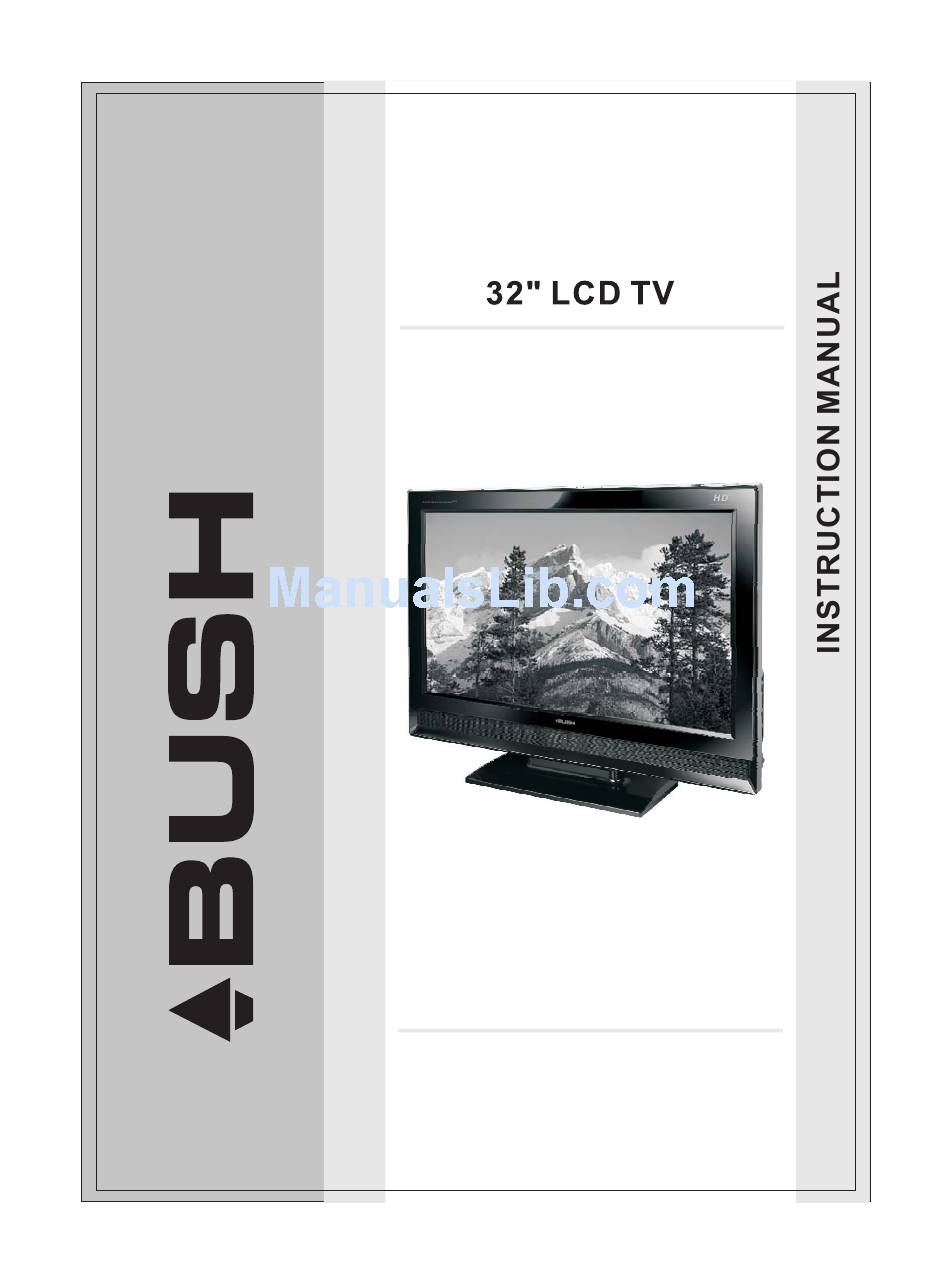

- Page 1 IDLCD3205HDV The Gold Technical Support Line: 1902 215 259 Personal Product Support (Charges will apply at $2.95 per minute)
-
Page 2: Introduction
INTRODUCTION Thank you for buying this Bush product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarise you with the unit s many features and to ensure you get the very best from your purchase. -
Page 3: Table Of Contents
CONTENTS 1. INTRODUCTION.................1 2. SAFETY INSTRUCTIONS............3 3. INSTALLATION................4 WALL MOUNTING INSTALLATION GUIDLINES.........4 ACCESSORIES................5 FRONT PANEL................5 KEY BOARD(RIGHT SIDE)...............6 REAR PANEL..................6 ANTENNA CONNECTION..............7 CONNECTING TO PC..............8 PC PRESET..................9 CONNECTING TO AV EQUIPMENTS..........10 4. REMOTE CONTROL..............11 BATTERY INSTALLATION...............11 KEYS FUNCTION................12 5. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS 1. Do not use this apparatus near water. 2. Clean only with dry cloth. 3. Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 5: Installation
INSTALLATION INSTALLATION NOTES This TV can be connected to AC 100-240 Volts. 50/60 Hz. Never connect to a DC supply or any other power supply. Locate the TV in the room where light does not strike the screen . Total darkness or a reflection on the picture screen can cause eyestrain. -
Page 6: Accessories
INSTALLATION ACCESSORIES AC Power Cord......1 Infrared Remote Control.... 1 User s Manual ......1 Battery(AAA)......2 FRONT PANEL Remote control sensor. Indicator LED: GREEN POWER ON. STANDBY. POWER MUTE NICAM RECALL Key board(see next page). TV MENU INPUT ENTER Power: Press this button to the status DVB MENU SOUND... -
Page 7: Key Board(Right Side)
INSTALLATION KEY BOARD(RIGHT SIDE) SOURCE MENU VOL+ VOL- 1 SOURCE To display the input source menu. 2 MENU To display main MENU. 3 CH+/CH- In TV mode to change the channel up and down. In MENU mode, to select the menu items . In standby mode, it can turn on the TV. -
Page 8: Antenna Connection
INSTALLATION ANTENNA CONNECTION Note: Aerial connections:IEC(female). Input impendance:75 unbalanced. -
Page 9: Connecting To Pc
INSTALLATION CONNECTING TO PC STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch the input source to VGA mode. 4.Power on the PC. This sequence is very important. -
Page 10: Pc Preset
INSTALLATION PC PRESET PRESET MODE(recommended resolution is 1024*768@60Hz) V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 720*400 31.47 640*480 31.47 800*600 35.156 800*600 37.88 800*600 46.88 800*600 48.08 1024*768 48.36 1024*768 56.48 1024*768 60.02... -
Page 11: Connecting To Av Equipments
INSTALLATION CONNECTING TO AV EQUIPMENTS This TV provides two groups of AV ,two S-Video,one group of YPbPr for convenient connection to VCR,DVD or other video equipment,three group of HDMI for HD signal input Please refer to the owner s manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows. -
Page 12: Remote Control
REMOTE CONTROL BATTERY INSTALLATION 1. Remove the battery cover. 2. Inserting the 2 AAA 1.5V batteries making sure the polarity (+ or -) of the batteries matches the polarity marks inside the unit. 3. Mount the battery cover. Replace with new batteries when the TV set begins to show the following symptoms: Operation is unsteady or erratic. -
Page 13: Keys Function
REMOTE CONTROL REMOTE CONTROL POWER :To set the TV to standby or power on. KEYS FUNCTION NUMERIC KEY :For direct access to channels. TV MENU :To display TV menu. CURSOR :To move within the menu. VOL+/- :To adjust sound level. :To switch picture mode. -
Page 14: Operation
OPERATION BASIC OPERATION TURN ON THE UNIT Press the POWER button on the remote control to switch on the power. The power indicator will light up in green colour, press the POWER button again to switch off the power, and the indicator will change to red. CHANNEL SEARCH Press the SOURCE button on the remote control to select the TV or DTV input mode, and press the OK button to confirm.If you are using the unit for the first time, an... -
Page 15: Eletext
OPERATION TELETEXT Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language (cable networks, satellite channels, etc.) Press: Y ou will obtain : This is used to enter or exit teletext mode. -
Page 16: Epg
OPERATION EPG (Electronic Programme Guide) The EPG (Electronic Programme Guide) menu is used to look at what is being broadcast on a DTV or Radio channel at a later point in time. Press the EPG button to access the EPG menu, t he detailed programme information of the channel currently being viewed will be displayed. -
Page 17: Menu Operation
OPERATION MENU OPERATION 1.CHANNEL MENU The first item of the menu is CHANNEL menu( for TV source only). CHANNEL Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit EXIT MENU You can search channels and edit programs here. 1).Auto Tuning:Search all the channels automatically(ATV, DTV & Radio) Please select country first then select Start to update info Country selection... - Page 18 OPERATION 3). ATV Manual Tuning :You can change the sound system to search the analog TV channels and fine tune the channels, then store the channels you selected. ATV Manual Tuning Storage To System Current CH Search Fine-Tune Skip Frequency 255.25MHz EXIT SAVE...
- Page 19 OPERATION 2. PICTURE MENU The second item of the menu is PICTURE menu. You can adjust picture effect here, including contrast, brightness and colour as well as other picture functions. Press the buttons to select items and press the buttons to adjust. PICTURE PICTURE Colour Temp...
- Page 20 OPERATION 4.TIME MENU The forth item of the menu is the TIME menu. You can adjust the clock, power on/off time, sleep timer and time zone as well as other time clock functions. Press the buttons to select and press the buttons to adjust.
- Page 21 OPERATION 6.LOCK MENU The sixth item of the menu is the LOCK menu. You can lock system, set password, block program, set parental guidance, restore factory default and set maximum volume control. LOCK Lock System Change Password Block Programme Parental Guidance Restore Factory Default Max Volume EXIT...
-
Page 22: Dvd Operation
DVD OPERATION DVD SIDE PANEL Dolby Digital Subtitle choices Disc data side Disc label side facing you KODAK picture CD Audio choices NEXT PREV STOP PLAY/PAUSE 16:9 OPEN/CLOSE MP3 files on TV Aspect CD-R/CD-RW Ratio modes In DVD mode, press DVD/USB button on the Remote control, insert a USB or a Mp3 player with USB interface to R RESTRICTED... -
Page 23: Dvd Operation
DVD OPERATION 1. General Steps of setup menu 2. Setup Items Introduction 2.1 SYSTEM SETUP 1) Press the setup button, the main The system setup options are setup menu appears. illustrated below: 2.1.1 TV SYSTEM According to the Color System of the TV, SYSTEM SETUP SYSTEM SETUP you can choose the TV System. - Page 24 DVD OPERATION SYSTEM SETUP SYSTEM SETUP LANGUAGE SETUP LANGUAGE SETUP OSD LANGUAGE TV SYSTEM AUDIO LANG VIDEO SUBTITLE LANG TV TYPE MENU LANG ---- PASSWORD RATING DEFAULT 2.2.2 AUDIO LANG 2.1.5 RATING Highlight the AUDIO LANG option, and The Rating feature is a rating limit press the Arrow buttons to choose the system, like movie ratings.
- Page 25 DVD OPERATION 2.4.4 SATURATION 2.3 AUDIO SETUP Use the Up and Down arrow buttons to move the scroll and adjust the saturation. AUDIO SETUP AUDIO SETUP SPDIF/OFF AUDIO OUT VIDEO SETUP VIDEO SETUP BRIGHTNESS CONTRAST SATURATION SHARPNESS 2.4 VIDEO SETUP The video setup options are illustrated 2.4.5 SHARPNESS below:...
- Page 26 DVD OPERATION 2.6.2 DUAL MONO (LEFT + RIGHT) 11:PLAY/PAUSE Choose to setup the L and R mono Press PLAY/PAUSE from stop mode to start play. output mode. There are four modes in this option: STEREO, MONO L, MONO Press PLAY/PAUSE during playback to pause playback.
- Page 27 DVD OPERATION 18:DISPLAY 32:PBC During playback, press DISPLAY to During VCD2.0 playback, press PBC show the current time counter position. to return to the disc menu. 33:NEXT Disc type Play time of the current title Current title Total Chapter Press NEXT to skip to the next Total title Current Chapter chapter or track.
-
Page 28: Dvd Operation
DVD OPERATION MP3 PLAYBACK When a MPEG and a MP3 disc is loaded, the screen will be displayed as follows: Current MP3/JPEG file name. If a JPEG file is being played, the name Current directory name should have a JPEG extension. File Switch Region: Displays the file type. - Page 29 DVD Troubleshooting If you have any questions, please consult the troubleshooting guide below: REMOTE NOT WORKING NO PICTURE OR SOUND Ensure the power button is on. Make sure the Main unit s POWER button is on Ensure the power outlet is operational. Ensure the remote batteries are working.
-
Page 30: Troubleshootings
TROUBLESHOOTINGS Problem Check Picture Audio antenna position, direction Snow Noise or connection antenna position, direction Ghost Normal audio or connection electronic equipment,car/ Interference Noise motorcycle,fluorescent light Volume(check if mute is activated or if the audio system Normal Picture Mute connections are not correct) Power cord is not inserted Power switch is not opened Contrast and brightness/volume... -
Page 31: Technical Specification
TECHNICAL SPECIFICATIONS LCD : ViewIng Picture Size(diagonal) Resolution 1366x768 Aspect Ratio 16:9 16.7M Display colours Brightness 500 CD/M Contrast ratio 1500:1 6.5 ms Response time 176(H)/176(V) View angle Digital TV: DVB-T TV system Analog TV: PAL/SECAM Audio: MPEG2 Audio Layer I&II DVB-T decode Video: MPEG2 Transport MP@HL Demodulator : COFDM... -
Page 32: Warranty
The manufacturer disclaims any liability for incidental or consequential damaged. This warranty is in addition to, and does not diminish, your statutory or legal rights. PO BOX 6287 Silverwater NSW 1811 www.bushaustralia.com.au Bush Warranty: 1800 509 394 Australia Bush Warranty: 0800 450 259 New Zealand -31-...
