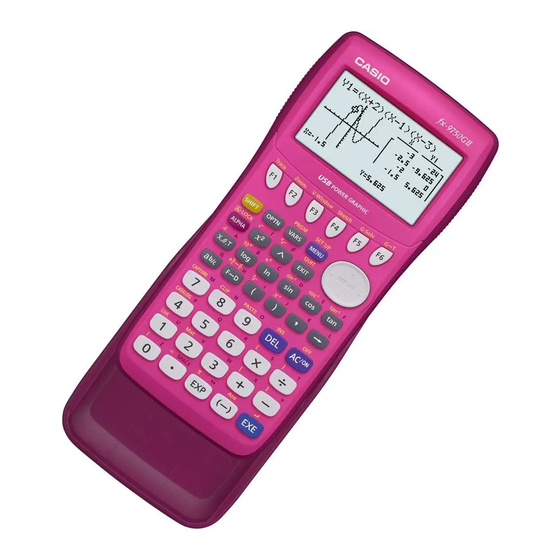

Casio fx-9750G Manual

8. graphing
Hide thumbs Also See for fx-9750G:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Manual

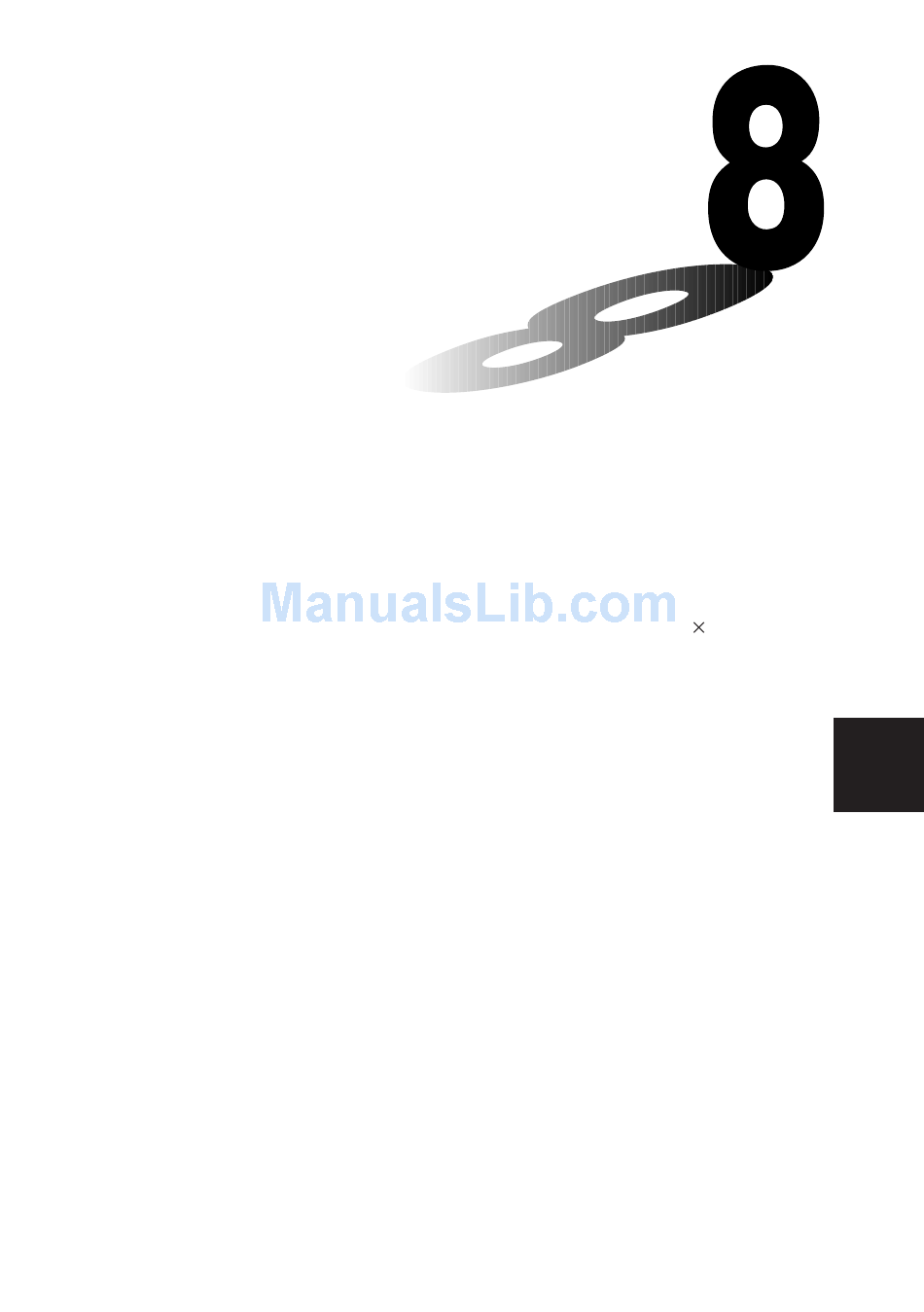

Graphing
A collection of versatile graphing tools plus a large 127
display makes it easy to draw a variety of function graphs quickly
and easily. This calculator is capable of drawing the following types
of graphs.
• Rectangular coordinate (Y =) graphs
• Polar coordinate (
• Parametric graphs
• X = constant graphs
• Inequality graphs
• Integration graphs (in the RUN mode only)
A selection of graph commands also makes it possible to incorpo-
rate graphing into programs.
8-1
Before Trying to Draw a Graph
8-2
View Window (V-Window) Settings
8-3
Graph Function Operations
8-4
Graph Memory
8-5
Drawing Graphs Manually
8-6
Other Graphing Functions
8-7
Picture Memory
8-8
Graph Background
Chapter
r
=) graphs
63-dot
8

Advertisement

Table of Contents
loading

Related Manuals for Casio fx-9750G

Summary of Contents for Casio fx-9750G

  • Page 1 Chapter Graphing A collection of versatile graphing tools plus a large 127 63-dot display makes it easy to draw a variety of function graphs quickly and easily. This calculator is capable of drawing the following types of graphs. • Rectangular coordinate (Y =) graphs •...

  • Page 2: Before Trying To Draw A Graph

    8-1 Before Trying to Draw a Graph k k k k k Entering the Graph Mode On the Main Menu, select the GRAPH icon and enter the GRAPH Mode. When you do, the Graph Function menu appears on the display. You can use this menu to store, edit, and recall functions and to draw their graphs.

  • Page 3: View Window (V-Window) Settings

    8-2 View Window (V-Window) Settings Use the View Window to specify the range of the -and -axes, and to set the spac- ing between the increments on each axis. You should always set the View Window parameters you want to use before drawing a graph. Press ! 3 to display the View Window.
  • Page 4 8 - 2 View Window (V-Window) Settings 2. Input a value for a parameter and press w. The calculator automatically selects the next parameter for input. • You can also select a parameter using the c and f keys. • There are actually nine View Window parameters. The remaining three param- eters appear on the display when you move the highlighting down past the Y scale parameter by inputting values and pressing c.
  • Page 5 8 - 2 View Window (V-Window) Settings • When View Window values are changed, the graph display is cleared and the newly set axes only are displayed. • View Window setting may cause irregular scale spacing. • Setting maximum and minimum values that create too wide of a View Window range can result in a graph made up of disconnected lines (because portions of the graph run off the screen), or in graphs that are inaccurate.
  • Page 6 8 - 2 View Window (V-Window) Settings u u u u u To standardize the View Window Press !3 (V-Window) 3 (STD) to standardize the View Window to the follow- ing settings. Xmin = –10 Ymin = –10 Xmax = 10 Ymax = 10 Xscale = Yscale =...
  • Page 7 8 - 2 View Window (V-Window) Settings 1(V·W1) • Recalling View Window settings causes the settings currently on the display to be deleted. • You can change View Window settings in a program using the following syntax. View Window [X min value], [X max value], [X scale value], [Y min value], [Y max value], [Y scale value], min value], [T, max value], [T,...

  • Page 8: Graph Function Operations

    8-3 Graph Function Operations You can store up to 20 functions in memory. Functions in memory can be edited, recalled, and graphed. The types of functions that can be stored in memory are: rectangular coordinate functions, polar coordinate functions, parametric functions, inequalities, and X = constant expressions.
  • Page 9 8 - 3 Graph Function Operations (Stores expression.) • You will not be able to store the expression in an area that already contains a parametric function. Select another area to store your expression or delete the existing parametric function first. This also applies when storing = expressions, X = constant expressions, and ineqalities.
  • Page 10 8 - 3 Graph Function Operations u u u u u To store an X = constant expression Example To store the following expression in memory area X4 : X = 3 3(TYPE)4(X = c) (Specifies X = constant expression.) (Inputs expression.) (Stores expression.) •...
  • Page 11 8 - 3 Graph Function Operations u u u u u To delete a function 1. While the Graph Function Menu is on the display, press f or c to display the cursor and move the highlighting to the area that contains the function you want to delete.
  • Page 12 8 - 3 Graph Function Operations cc1(SEL) c1(SEL) 1 2 3 4 5 6(DRAW) or w (Draws graphs.) • Pressing ! 6 (G T) or A returns to the Graph Function Menu. • You can use the set up screen settings to alter the appearance of the graph screen as shown below.
  • Page 13 8 - 3 Graph Function Operations • A polar coordinate ( =) or parametric graph will appear coarse if the settings you make in the View Window cause the T, pitch value to be too large, relative to the differential between the T, min and T, max settings. If the settings you make cause the T, pitch value to be too small relative to the differential be- tween the T, min and T, max settings, on the other hand, the graph will take...

  • Page 14: Graph Memory

    8-4 Graph Memory Graph memory lets you store up to six sets of graph function data and recall it later when you need it. A single save operation saves the following data stored in graph memory. • All graph functions in the currently displayed Graph Function Menu (up to 20) •...
  • Page 15 8 - 4 Graph Memory u u u u u To recall graph functions from graph memory Example To recall the data in graph memory GM1 1 2 3 4 5(GMEM) 3 4 5 6 2(RCL) 2 3 4 5 6 1(GM1) •...

  • Page 16: Drawing Graphs Manually

    8-5 Drawing Graphs Manually After you select the RUN icon in the Main Menu and enter the RUN Mode, you can draw graphs manually. First press ! 4 (Sketch) 5 (GRPH) to recall the Graph Command Menu, and then input the graph function. !4(Sketch) 5(GRPH) 1 2 3 4 5 6...
  • Page 17 8 - 5 Drawing Graphs Manually 3. Press w to draw the graph. • You can draw graphs of the following built-in scientific functions. • sin • cos • tan –1 –1 –1 • sin • cos • tan • sinh •...
  • Page 18 8 - 5 Drawing Graphs Manually 3. Input the polar coordinate expression ( !4(Sketch)1(Cls)w 5(GRPH)2( csdv 4. Press w to draw the graph. • You can draw graphs of the following built-in scientific functions. • sin • cos • tan –1 –1 –1...
  • Page 19 8 - 5 Drawing Graphs Manually 1. In the set-up screen, specify the appropriate graph type for Func Type. !Zc3(Parm) 2. Set the default angle unit to radians (Rad). ccc2(Rad)J 3. Input the parametric functions. !4(Sketch)1(Cls)w 5(GRPH)3(Parm) hcv-ccd.fv, hsv-csd.fv) 4. Press w to draw the graph. u u u u u To graph X = constant You can graph functions that can be expressed in the format X = constant.
  • Page 20 8 - 5 Drawing Graphs Manually 3. Press w to draw the graph. u u u u u To graph inequalities You can graph inequalities that can be expressed in the following four formats. • > • < • > •...
  • Page 21 8 - 5 Drawing Graphs Manually u u u u u To draw an integration graph You can graph an integration calculation performed using the function Example To graph the following: + 2) ( – 1) ( – 3) dx –2 Use the following View Window parameters.

  • Page 22: Other Graphing Functions

    8-6 Other Graphing Functions The functions described in this section tell you how to read the - and -coordinates at a given point, and how to zoom in and zoom out on a graph. • These functions can be used with rectangular coordinate, polar coordinate, para- metric, X = constant, and inequality graphs only.
  • Page 23 8 - 6 Other Graphing Functions 1. After drawing the graphs, press 1 (Trace) to make the pointer appear at the far left of the graph. 1(Trace) • The pointer may not be visible on the graph when you press 1 (Trace). 2.
  • Page 24 8 - 6 Other Graphing Functions • The following shows how the display of coordinates and the derivative changes according to the Graph Type setting. • Rectangular Coordinate Graph • Polar Coordinate Graph • Parametric Function Graph • X = Constant Graph •...
  • Page 25 8 - 6 Other Graphing Functions k k k k k Scroll -axis. Each time you press f, c, d, or You can scroll a graph along its - or e, the graph scrolls 12 dots in the corresponding direction. k k k k k Graphing in a Specific Range You can use the following syntax when inputting a graph to specify a start point and end point.
  • Page 26 8 - 6 Other Graphing Functions Example To graph – 3, substituting 3, 1, and –1 for the value of A Use the following View Window parameters. Xmin = –5 Ymin = –10 Xmax = 5 Ymax = 10 Xscale = 1 Yscale = 3(TYPE)1(Y =) (Specifies graph type.)
  • Page 27 8 - 6 Other Graphing Functions k k k k k Zoom The zoom feature lets you enlarge and reduce a graph on the display. u u u u u Before using zoom Immediately after drawing a graph, press 2 (Zoom) to display the Zoom Menu. 2(Zoom) 1 2 3 4 5 6 1 (BOX) ..
  • Page 28 8 - 6 Other Graphing Functions 1. After graphing the function, press 2 (Zoom). 2(Zoom) 2 3 4 5 6 2. Press 1 (BOX), and then use the cursor keys (d, e, f, c) to move the pointer to the location of one of the corners of the box you want to draw on the screen.
  • Page 29 8 - 6 Other Graphing Functions u u u u u To use factor zoom With factor zoom, you can zoom in or zoom out on the display, with the current pointer location being at the center of the new display. •...
  • Page 30 8 - 6 Other Graphing Functions 4. Press J to return to the graphs, and then press 3 (IN) to enlarge them. 3(IN) This enlarged screen makes it clear that the graphs of the two expressions are not tangential. Note that the above procedure can also be used to reduce the size of a graph (zoom out).
  • Page 31 8 - 6 Other Graphing Functions 2. Press 5 (AUTO). 5(AUTO) • You can use auto View Window with any type of graph. • You cannot use auto View Window inside a program. • You can use auto View Window with a graph produced by a multi-statement connected by “:”, even if the multi-statement includes non-graph operations.
  • Page 32 8 - 6 Other Graphing Functions • You can use SQR with any type of graph. • You cannot use SQR inside a program. • You can use SQR with a graph produced by a multi-statement connected by “:”, even if the multi-statement includes non-graph operations. •...
  • Page 33 8 - 6 Other Graphing Functions • You can use RND with any type of graph. • You cannot use RND inside a program. • You can use RND with a graph produced by a multi-statement connected by “:”, even if the multi-statement includes non-graph operations. •...
  • Page 34 8 - 6 Other Graphing Functions • You can use INTG with any type of graph. • You cannot use INTG inside a program. • You can use INTG with a graph produced by a multi-statement connected by “:”, even if the multi-statement includes non-graph operations. •...

  • Page 35: Picture Memory

    8-7 Picture Memory You can save up to six graphic image in picture memory for later recall. You can overdraw the graph on the screen with another graph stored in picture memory. u u u u u To store a graph in picture memory The following operation stores all points and lines currently on the screen.
  • Page 36 8 - 7 Picture Memory • Dual Graph screens or any other type of graph that uses a split screen cannot be saved in picture memory.

  • Page 37: Graph Background

    8-8 Graph Background You can use the set-up screen to specify the memory contents of any picture memory area (Pict 1 through Pict 6) as the Background item. When you do, the contents of the corresponding memory area is used as the background of the graph screen. •...
  • Page 38 8 - 8 Graph Background Example 2 With a statistical histogram as the background, graph a normal distribution Recall the backgound graph. (Histogram) Graph the normal distribution. P.283 • See “18. Statistical Graphs and Calculations” for details on drawing a statistical graphs.
