Sony VPCL211FX Replacement Instructions

These easy instructions will guide you through the Hard Drive replacement process.
 Before you begin, place your notebook computer on a clean or covered surface to avoid
damage to the computer's case.*
 Follow the ESD (Electrostatic Discharge) damage prevention instructions:
o Hold parts by the edges, away from exposed circuitry when possible.
o Do not walk around excessively as this promotes static build-up.
 Before you begin, remove any jewelry you may be wearing to prevent scratches to the surface
of your notebook computer.*
 The appearance of the electronic components shown in the illustrations may differ from the
components shipped. This slight difference does not affect the accuracy of these instructions.
* Sony is not responsible for damage caused by incorrect handling of the notebook computer.
Prepare the Computer
CAUTION: Make
computer is turned off and the AC
Adapter is disconnected. Failure to do
so can result in damage to the
computer.

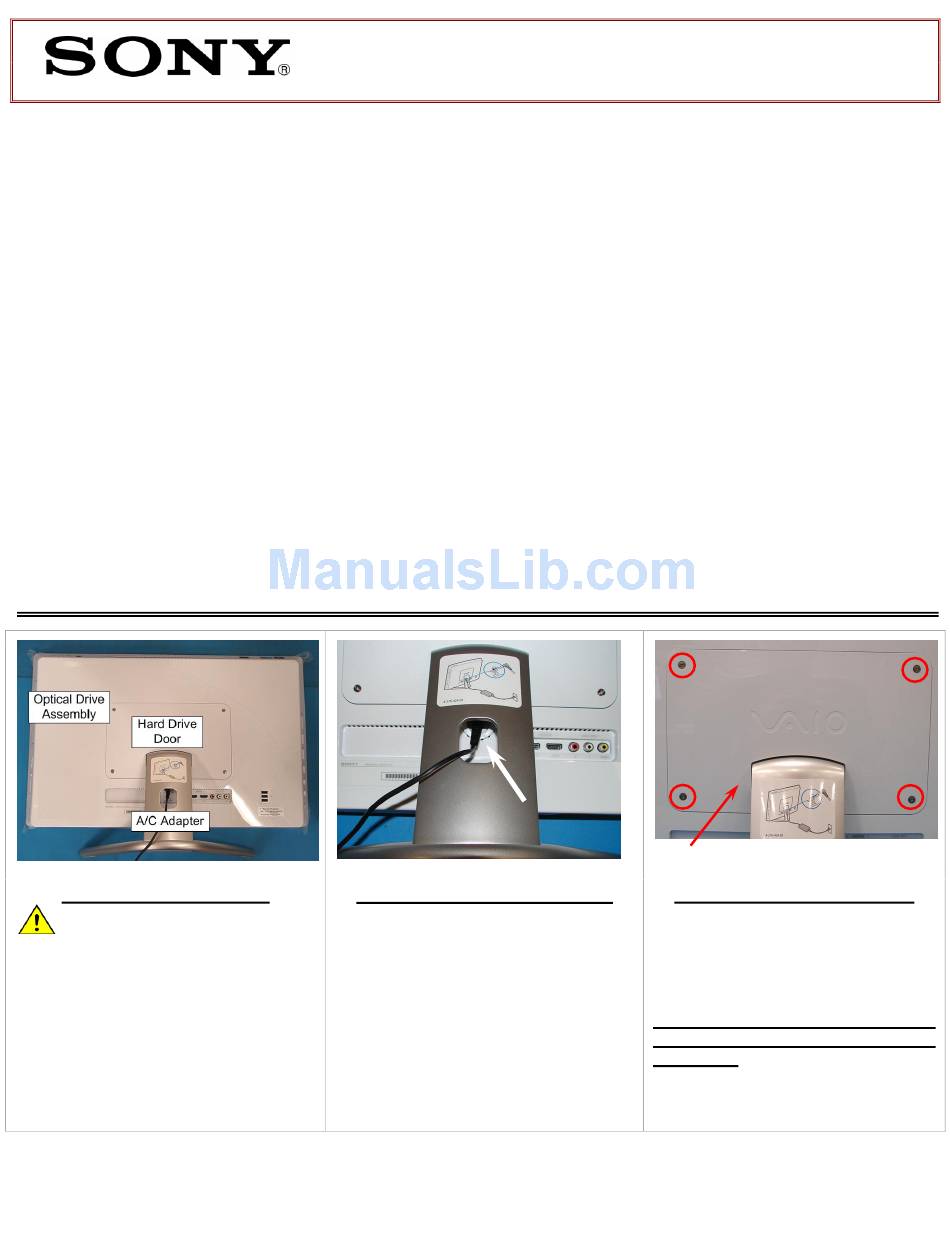

Step 1. Place the computer, with the
LCD Panel facing down, on a protected
surface with the Stand facing you.
FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST
P/N Rev. B
989202624
VPCL2 Series Optical Disk Drive
IMPORTANT!
PLEASE READ BEFORE YOU START
Disconnect the AC Adapter
sure the
Step 2. The A/C Adapter connects to the
unit under the Stand. Reach behind the
Stand to disconnect the A/C Adapter
from the unit and remove.
Replacement Instructions
1/4
Hard Drive Door
Hard Drive Door Removal
(Steps 3-4)
Step 3. Using the enclosed magnetic
screwdriver, remove the four (4)
screws securing the Hard Drive Door.
Put the Screws aside to re-secure
the Hard Drive Door later in the
procedure.
