Sony VGC-RC110G - Vaio Desktop Computer Replacement Instructions

These easy instructions are intended to guide you through the replacement process.
To avoid electric shock please make sure product is turned off and disconnected from the power
source. Remove jewelry before you begin work to avoid scratching the surface of your desktop
computer.*
Place your desktop computer on a clean, stable and covered surface to avoid damage to the
computer's case.
Follow the ESD (Electrostatic Discharge) damage prevention instructions:
o Hold parts by the edges, away from exposed circuitry when possible.
o Do not walk around excessively as this promotes static build-up.
The appearance of the electronic components shown in the illustrations may be different from the
components shipped. This slight difference does not affect the accuracy of these instructions.
* Sony is not responsible for any loss of data associated with your computer or any damage caused by
incorrect handling of the computer under these procedures. The terms of your Sony Limited Warranty
continue to apply.

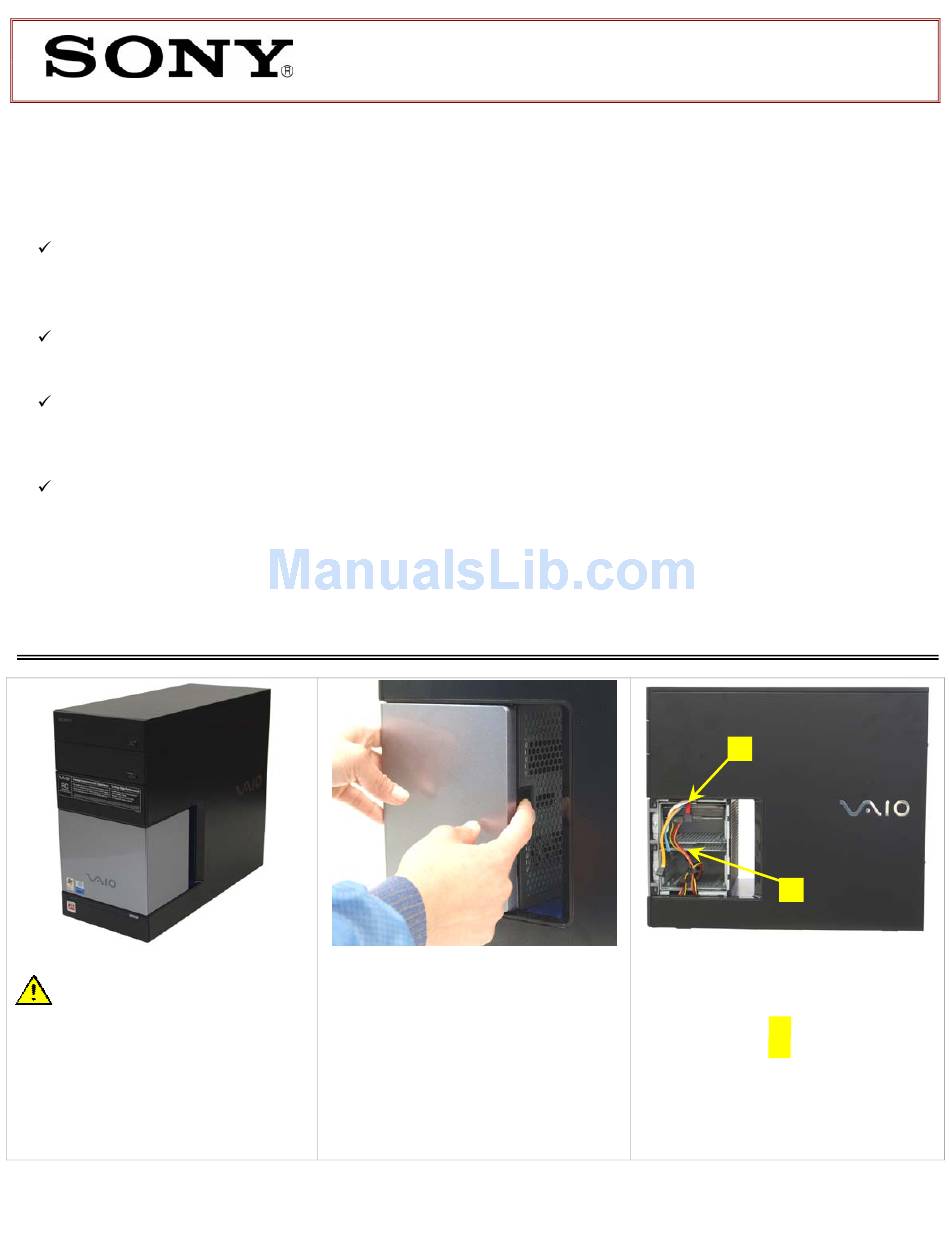

Step 1. Prepare the Computer.
CAUTION: Make
computer is turned off and the
power cord is disconnected. Failure
to do so can result in damage to the
computer.
Place the computer on a solid
surface with the front facing you.
P/N 994636300 Rev. B
VGC-RC Series Hard Disk Drive
IMPORTANT!
PLEASE READ BEFORE YOU START
*
Step 2. Remove Side Panel.
Locate the release tab on the right
sure the
side panel. Use your thumb or finger
and gently press the tab in and
release the pressure. The panel will
pop up out of the slot.
Replacement Instructions
1/2
[1]
[2]
Step 3. Identify the location of the
hard drive's connections as shown:
the Serial ATA cable (red) is
identified with [1] and the Power
Cable (P7) with [2].
