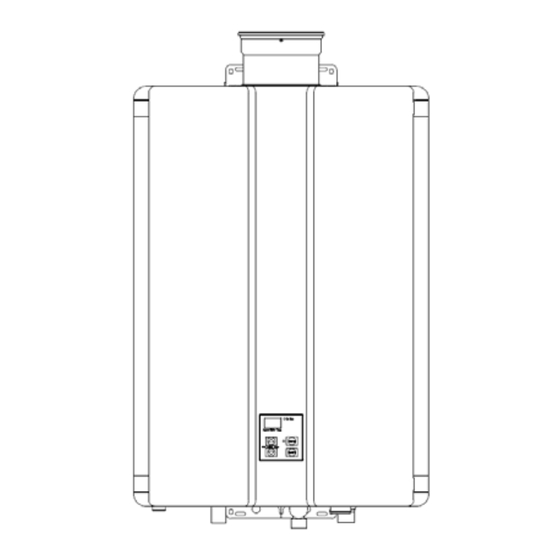

Bradford White EverHot TGHE-160I-NX Installation And Operation Instruction Manual

Condensing tankless gas water heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Bradford White EverHot
Ambler, PA 19002
Tech. Service (800) 334-3393
Service Part (800) 538-2020
Warranty Service (800) 531-2111
INSTALLATION AND OPERATION INSTRUCTION MANUAL
PLACE THESE INSTRUCTIONS ADJACENT TO WATER HEATER AND NOTIFY OWNER TO KEEP FOR FUTURE REFERENCE
A Spanish language version of these instructions is available by
contacting Bradford White.
La versión espãnola de estas instrucciones se puede obtener al
escribirle a la fábrica cuyo nombre aparece en la placa de.
Condensing Tankless Gas Water Heater
For Interior Installation
TGHE-160I-N(X) & TGHE-199I-N(X)
With Troubleshooting Guide
WARNING: If the information in these
instructions is not followed exactly, a fire or
explosion may result causing property
damage, personal injury or death
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this
or any other appliance
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use
any phone in your building.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency, or gas supplier.
238-48793-00C 07/11

Advertisement

Table of Contents
loading

Related Manuals for Bradford White EverHot TGHE-160I-NX

Summary of Contents for Bradford White EverHot TGHE-160I-NX

  • Page 1  Bradford White EverHot Condensing Tankless Gas Water Heater For Interior Installation TGHE-160I-N(X) & TGHE-199I-N(X) WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or death  Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance...

  • Page 2: Table Of Contents

    SECTION I: IMPORTANT INFORMATION READ CAREFULLY This gas-fired water heater is design certified by CSA International under the American National Standard, Z21.10.3 Latest Edition (as indicated on the rating plate) and CAN/CGA 4.3-M Latest Edition (as indicated on the rating plate) available from CSA Standards Association, 5060 Spectrum Way, Mississauga, Ontario, Canada L4W 5N6.
  • Page 3 DANGER DO NOT store or use gasoline or other flammable, combustible, or corrosive vapors and/or liquids in the vicinity of this or any other appliance. Failure to properly install the vent and air intake (if applicable) system could result in property damage, personal injury, or death.
  • Page 4 WARNING DO NOT tamper with or alter the water heater and/or controls. DO NOT operate water heater with jumpered or absent controls or safety devices. DO NOT operate water heater if any external part has been under water. Immediately call a qualified service technician to inspect the water heater and to replace any part of the control system including gas controls, which has been under water.
  • Page 5 WARNING Liquefied petroleum gases/propane gas is heavier than air and will remain at floor level if there is a leak. Basements, crawl spaces, closets and areas below ground level will serve as pockets for accumulation of leaking gas. Before lighting, smell all around the appliance area for gas.

  • Page 6: Specifications

    SECTION II: SPECIFICATIONS Table 1. Specifications Model TGHE-160I-N(X) TGHE-199I-N(X) Minimum Rate Btu/h 9,500 (Natural) / 10,300 (Propane) Maximum Rate Btu/h 157,000 199,000 Flow Rate (Min-Max) * 0.4-8.0 GPM (1.5-30 L/min) 0.4-9.8 GPM (1.5-37 L/min) Flow Rate (45°F rise) 6.6 GPM (25 L/min) 8.5 GPM (32 L/min) Default Temperature Setting 104°F (40°C)
  • Page 7 Dimensions TGHE-160I-N(X), TGHE-199I-N(X) Table 2. Water Heater Dimensions (Approx.). TGHE-160I-N(X) TGHE-199I-N(X) DESCRIPTION in. (mm) in. (mm) Width 18 ½ (470) 18 ½ (470) Depth * 10 ½ (266.9) 10 ½ (266.9) Height - Unit 26 3/8 (670) 26 3/8 (670) Height - with brackets 28 ½...
  • Page 8 TGHE-199I-N(X) TGHE-160I-N(X) Water Flow Rate (gpm) Figure 1. Graph Showing Pressure Drop v. Water Flow Rate. TGHE-199I-N(X) TGHE-160I-N(X) Temperature Rise (°F) Figure 2. Graph Showing Water Flow Rate v. Temperature Rise.

  • Page 9: Installation Instructions

    SECTION III: INSTALLATION INSTRUCTIONS WARNING INSTALLATION OF THIS WATER HEATER REQUIRES ABILITY EQUIVALENT TO THAT OF A LICENSED PLUMBER. Plumbing, air supply, venting, gas supply and electrical work are required. DO NOT ATTEMPT TO LIGHT ANY GAS APPLIANCE IF YOU ARE NOT CERTAIN OF THE FOLLOWING: ...
  • Page 10 DANGER Temperature setting should not exceed safe temperature at fixtures. See water temperature control warning in the “Temperature Adjustment” section of this Installation and Operation Manual. If higher preheat temperatures are necessary to obtain adequate booster output, add an ASSE approved mixing valve for hot water supplied to fixtures.
  • Page 11 MOUNT WATER HEATER ON THE WALL Determine the proper height and location for the water heater to be installed. Consider the venting system, as well as the water and gas connections. Allow enough room for servicing the water heater and maintain the clearances from combustible materials.
  • Page 12 State Regulations NOTICE BEFORE INSTALLATION Bradford White direct-vent appliance must be installed by a state qualified or licensed contractor. If you are not properly trained, you must not install this unit. IMPORTANT: In the State of Massachusetts (248CMR 4.00 & 5.00) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above...

  • Page 13: Water Connections

    SECTION IV: WATER CONNECTIONS WARNING Failure to install and maintain a new, listed pressure relief valve will release the manufacturer from any claim, which might result from excessive temperature and pressures. Keep clear of the pressure relief valve discharge line outlet. The discharge may be hot enough to cause scald injury.
  • Page 14 potable water. Unions should be installed on both the hot and cold water lines for future servicing and disconnection of the water heater. Install a shut-off valve in the cold water supply line. 2. In order to service the water heater in the event the heat exchanger needs to be flushed of mineral deposits, tee fittings with shut-off valves and service connections to hoses should be installed.
  • Page 15 Figure 3. Scald Warning. Table 5. Approximate scald time/temperatures. APPROXIMATE TIME/TEMPERATURE RELATIONSHIPS IN SCALDS 120°F (49C) More than 5 minutes 1½ to 2 minutes 125°F (52C) 130°F (54C) About 30 seconds About 10 seconds 135°F (57C) 140°F (60C) Less than 5 seconds Less than 3 seconds 145°F (63C) 150°F (66C)
  • Page 16 Figure 4. Recommended Piping for a Basic Installation.
  • Page 17 Pump to be of bronze or stainless construction Figure 5. Recommended Piping for a Circulation Systems.
  • Page 18 Recommended Piping for Power Failure Freeze Protection  As long as electrical power and gas are supplied to the EverHot water heater, freeze protection is provided to the heat exchanger and piping inside the water heater with ambient temperatures as cold as -22F (-30C), when protected from direct wind exposure.
  • Page 19 PRESSURE RELIEF VALVE WARNING Keep clear of the pressure relief valve discharge line outlet. The discharge may be hot enough to cause scald injury. The water is under pressure and may splash. For protection against excessive pressure, install pressure protective equipment required by local codes, but not less than a pressure relief valve certified by a nationally recognized testing laboratory that maintains periodic inspection of production of listed equipment or materials as meeting the requirements of the Standard for Relief Valves and Automatic Gas...
  • Page 20 Combination Water and Space Heating Applications – Commercial Use Water Heaters Only Commercial use water heaters may be used for space heating or combination space heating/potable water heating applications, provided the following requirements and recommended piping diagrams are carefully followed. WARNING The following instructions must be carefully followed to assure safe and reliable operation of the water heater.
  • Page 21 Note: in Massachusetts, the following must be done:  Tempered potable water must meet temperatures in 248 CMR.  All water piping must be insulated in accordance with 780 CMR (Massachusetts energy code).  50 feet maximum distance from water heater to space heating load (developed length). ...

  • Page 22: Venting

    SECTION V: VENTING WARNING The venting system must be properly installed. Failure to properly install the vent system could result in property damage, personal injury, or death. Do not install damaged venting system components. If damage is evident, please contact the supplier where the water heater was purchased or the venting manufacturer for replacement parts.
  • Page 23 VENTING The venting instructions must be followed to avoid restricted combustion or recirculation of flue gases. Such conditions cause sooting or risks of fire and asphyxiation. Models TGHE-160I-N(X) and TGHE-199I-N(X) are a direct vent design with a single coaxial vent tube in which the flue products are discharged to the outdoors through the center flue tube and combustion air from outdoors is taken through the outside intake air pipe surrounding the center flue exhaust pipe.
  • Page 24 Vent / Air Intake Terminal Locations Direct Vent Terminal Location Plan the vent system layout so that proper clearances are maintained from plumbing and wiring. Before the vent is installed, determine the vent pipe termination location as shown below in the Vent Terminal Location illustration.
  • Page 25 Vent pipes serving power vented appliances are classified by building codes as “vent connectors.” Required clearances from combustible materials must be provided in accordance with information in this manual under Location of Water Heater and Clearances, as well as the National Fuel Gas Code and local codes.
  • Page 26  Prior to the Installation of the EverHot Direct Vent System The EverHot TGHE series water heaters have two adjustable wall mounting support brackets fitted on the top and bottom of the water heater casing. When installing a “Standard Vent Discharge Kit” to vent directly out the wall to the back of the water heater, these brackets should be adjusted so that the water heater is moved out the maximum 2”...
  • Page 27 Figure 10. Illustration Showing a Horizontal Termination Installation.
  • Page 28 Vertical Direct Vent Installations  The EverHot TGHE series water heaters can also be installed to vent vertically through the roof using a vertical discharge adapter, optional vent extension tubes, a roof terminal, and a universal lead tile. Determine the distance in height required from the water heater and order the vent extension pipes required.
  • Page 29 Combustion Blower Dip Switch Settings To assure optimum efficiency and reduced noise levels, the combustion blower switch has two dip switch settings. Dip switch number 1, the top dip switch, is shipped from the factory set to the ON position to compensate for the maximum vent/air intake length.
  • Page 30 Installation of Venting System Components WARNING  When installing the EverHot TGHE model series direct vent water heaters, use only EverHot vent/air intake system kits and components approved for use with the water heater. Installation and service must be performed by a qualified installer, service agency, or the gas supplier. Installation must meet all state and local codes regarding installation and location of vent systems for direct vent appliances.
  • Page 31 Condensate The TGHE series water heaters are factory equipped with a condensate trap and drain line. condensate must drain and be disposed of per local codes. Use only vent that is approved venting; do not use PVC, CPVC, ABS, or galvanized material to vent this appliance. If the condensate drain gets blocked, an error code will display on the controller.

  • Page 32: General Installation Instructions

    Table 8. Required Clearances for Venting. * For clearances not specified in ANSI Z223.1 / NFPA 54 or CGA-B149 (latest editions), please use clearances in accordance with local installation codes and the requirements of the gas supplier . ** For other than Direct Vent Appliance, 4 ft (1.22 m) below or to side of opening; 1 ft (300 mm) above opening. General Installation Instructions Joint Connection Figure 14.
  • Page 33 Shortening of Vent Extensions Figure 16. Illustration Showing How to Shorten Vent Extensions. The polypropylene (PP) inside pipe should always extend 0.4 in. (10 mm) beyond the white plastic outside pipe on the male end of the vent extension. Always cut the male end of the vent pipe extension. Do not attempt to cut the female end.
  • Page 34 Venting Parts & Dimensions Components Needed for Direct Vent Applications Figure 18. Vent Extensions, (3) Different Lengths. 10 in., p/n 224087PP 19.5 in., p/n 224079PP 39 in., p/n 224080PP Figure 19. (2) 45º Vent Pipe Elbows, Sold in Pairs Only, p/n 224077PP. Figure 20.
  • Page 35 Figure 21. Vent Pipe Clamp, p/n 169044. Figure 22. Vertical Discharge Roof Terminal, p/n 184162PP. Figure 23. Pitch Roof Flashing. 1/12 Pitch, p/n 189950 8/12 Pitch, p/n 189952 6/12 Pitch, p/n 189951 Figure 24. Flat Roof Flashing, p/n 146141. Figure 25. Raised Horizontal (Snorkel) Vent Termination, p/n 224047PP.
  • Page 36 ® Installation Instructions - EverHot Horizontal Discharge Vent System Identify the Vent Location Figure 26. Illustration Showing How to Locate the Vent for a Horizontal Discharge. Steps: 1. Place horizontal discharge adapter on water heater. 2. Mark the position on wall. 3.
  • Page 37 Measure Dimension to Fit Figure 27. Illustration Showing How to Determine the Proper Length for the Wall Discharge Terminal. Figure 28. Illustration Showing How to Properly Cut a Vent Extension. NOTICE The minimum outer cap length is 3.5 in. (90 mm). If needed, the length outside the wall may exceed this dimension.
  • Page 38 Final Installation of the Vent System Figure 29. Illustration Showing the Installation of a Horizontal Vent System. From the outside of the building, slide the wall discharge terminal through the vent wall passage. A supplied rubber wall plate can be installed on the exterior of the building. Slide the inner wall plate onto the terminal.
  • Page 39 ® Installation Instructions - EverHot Vertical Discharge Vent System Figure 30. Illustration Showing the Installation of a Vertical Vent System. Identify the Vent Location Determine the location where the roof discharge terminal will be installed. Be sure to take into account the angle of the roof and cut the hole with a dimension that allows the vertical discharge roof terminal to be installed.
  • Page 40 Mounting the Vent System – Vertical Discharge Figure 32. Illustration Showing the Installation of Vertical Discharge Venting. Vent connections must be firmly pressed together, so that the gaskets form an airtight seal. Secure the system with a vent pipe clamp or perforated hanger iron. High Altitude Installations The default setting for the water is 0-2,000 ft (0-610 m) with dip switch numbers 2 and 3 in the OFF position.
  • Page 41 Figure 33. Template to be Used for Cutting a Hole for the Coaxial Vent Pipe Used on TGHE-160I and TGHE-199I Models.
  • Page 42 Venting Suppliers Table 10. Venting Suppliers for TGHE-160I and TGHE-199I Models. Manufacturer Product Rolux Condensing Vent Bradford White System Rolux Condensing Vent Rinnai/Ubbink System Selkirk / Heat-Fab Saf-T Vent SC system Corr/Guard Vent/Air Metal-Fab Intake System When ordering venting from other suppliers, use the following contact information: Rinnai/Ubbink Metal-Fab, Inc.

  • Page 43: Gas Connections

    SECTION VI: GAS CONNECTIONS WARNING Connect this water heater only to the type of gas as shown on the rating plate. Use clean black iron pipe or equivalent material approved by local codes and ordinances. Dirt and scale from the pipe can enter the gas valve and cause it to malfunction.
  • Page 44 ® Check the type of gas and the gas inlet pressure before connecting the EverHot water heater to the gas supply. If the gas supply type does not match the type shown on the water heater rating plate, then DO NOT connect the water heater.
  • Page 45 INITIAL OPERATION AND TESTING (INSTALLER ONLY) 1. Open the gas and water supply valves to the water heater. 2. Check for water and gas leaks. Use soap solution to check for gas leaks. 3. To check inlet supply pressure, remove the 1/8” NPT plug on the gas inlet supply fitting just below the bottom casing and install a barb fitting for attaching a hose to a manometer.

  • Page 46: Electrical Connections

    SECTION VII: ELECTRICAL CONNECTIONS WARNING Turn off or disconnect the electrical power supply to the water heater before servicing. Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing. All electrical wiring must be installed and grounded in accordance with local codes, or in the absence of local codes, the National Electrical Code, ANSI/NFPA 70 (latest edition) and/or CSA C22.2 Electrical Code (latest edition).
  • Page 47 TWIN THERMISTOR WATER LEVEL WATER LEVEL DETECTING ELECTRODE CIRCUIT Figure 34. Ladder Diagram. WARNING DO NOT adjust any dipswitch settings on PC board except dip switch number 1, if required, for vent length or unless instructed to do so.
  • Page 48 Figure 35. Wiring Diagram for TGHE Models.

  • Page 49: Temperature Controls

    TEMPERATURE CONTROLS The front panel temperature control allows the end user to set the hot water supply temperature and will display certain diagnostic codes of the water heater if there is a malfunction. All models have the option of up to four controllers that can be used to conveniently control water temperatures for bath and shower fixtures.
  • Page 50 WARNING Do not adjust this water heater in any residential application above 120ºF. If this water heater is used in a commercial application where temperatures in excess of 120ºF are required, use an ASSE approved mixing device. WARNING This water heater is equipped with an energy cut out device to prevent overheating. Should overheating occur or the gas supply fails to shut off, turn off the manual gas control valve to the water heater, and call a qualified service agency.
  • Page 51 In Use Indicator Temperature Display Priority Button Priority Indicator Figure 36. Remote Control and the Description of Functions on All Controls. Residential Control, p/n 239-48788-00 Commercial Control, p/n 239-48789-00 Installation of Remote Control(s) (Optional) 1. The optional remote controls are intended to be installed in a bathroom close to a shower or tub. The controls may be wired in parallel only.
  • Page 52 Note: If the cable cannot be run inside the wall cavity, then the plastic knockout should be removed from the top or bottom of the control to allow flush mounting with the wall. 7. Disconnect the power from the water heater and remove the front cover. 8.
  • Page 53 INITIAL OPERATION AND TESTING OF CONTROLS (INSTALLER ONLY) 1. Turn on power to the water heater and fully open a hot water tap. 2. Check the operation of the water heater. Check the operation of the remote temperature control(s). Check the operation of the power failure protection system (drain solenoids). ...
  • Page 54 Table 18. (IG) Ignition System. Connector Wire Color Voltage Resistance Nos. Grey-Grey 90-110 VAC Table 19. (FM) Combustion Fan Motor. Connector Wire Color Voltage Resistance Nos. Red-Black 6-45 VDC White-Black 5-10 VDC 9.2-9.4k ohms Yellow-Black 11-13 VDC 3.5-3.9k ohms Set your meter to the hertz scale. Reading across the white and black wires at terminals 2 and 4 you should read between 60 and 420 hertz.
  • Page 55 With the power off, you can check the continuity through the surge protector. Place a meter lead on the top pin #1 of the surge protector and pin #3 on the bottom of the surge protector. Check across the top pin #3 and the bottom pin #1.

  • Page 56: Operating Instructions

    SECTION VIII: OPERATING INSTRUCTIONS WARNING Water heaters are heat-producing appliances. To avoid damage or injury there must be no materials stored against the water heater or direct vent system, and proper care must be taken to avoid unnecessary contact (especially by children) with the water heater and direct vent system. UNDER NO CIRCUMSTANCES SHOULD FLAMMABLE MATERIALS, SUCH AS GASOLINE OR PAINT THINNER BE USED OR STORED IN THE VICINITY OF THIS WATER HEATER OR IN ANY LOCATION FROM WHICH FUMES COULD REACH THE WATER HEATER.
  • Page 57 LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE OPERATING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.  A. This water heater does not have a Immediately call your gas supplier from a pilot.

  • Page 58: Temperature Adjustment

    CAUTION In climates where below freezing temperatures may occur, the water heater must be drained when power is off to the water heater to prevent freeze damage to the heat exchanger. Drain solenoids are recommended to prevent freeze damage during power failures in cold climate regions. TURNING OFF THE WATER HEATER FOR AN EXTENDED PERIOD OF TIME ...
  • Page 59 2. To set the desired temperature on the control, all hot water faucets must be closed. If there are remote controls installed, press the “Priority” button on the control you want to change the setting on and the “Priority” indicator light will glow. 3.
  • Page 60 SCALDING Figure 41. Scalding Warning. This water heater can deliver scalding temperature water at any faucet in the system. Be careful whenever using hot water to avoid scalding injury. Certain appliances, such as dishwashers and automatic clothes washers may require increased water temperature. By setting the thermostat on this water heater to obtain the increased temperature water required by these appliances, you may create the potential for scald injury.
  • Page 61 FIRST AID FOR SCALDS 1. Apply cold water to burned area for 30 minutes to reduce the heat in the skin and prevent deeper burning. Never use butter, oils, or ointment to cover the burn. They may retain the heat. 2.
  • Page 62 Code Code Description Remedy Thermal Fuse Check gas type of unit and ensure it matches gas type being used. Check for restrictions in air flow around unit and vent terminal. Check for low water flow in a circulating system causing short-cycling. Ensure dip switches are set to the proper position.
  • Page 63 Code Code Description Remedy Nothing happens Clean inlet water supply filter. when water flow is On new installations ensure hot and cold water lines are not reversed. code activated. Check for bleed over. Isolate unit from building by turning off hot water line to building. Isolate the circulating system if present.

  • Page 64: Maintenance

    SECTION IX: MAINTENANCE WARNING Always turn off the electrical power supply, the manual gas valve, and the manual water control valve whenever servicing this appliance. KEEP THE WATER HEATER AREA CLEAR AND FREE FROM COMBUSTIBLE MATERIALS, GASOLINE, AND OTHER FLAMMABLE VAPORS AND LIQUIDS. ...
  • Page 65 CAUTION Before manually operating the valve, make sure that a drain line has been attached to the valve to direct the discharge to an open drain. Failure to take this precaution could mean contact with extremely hot water passing out the valve during this checking operation. FLUSHING PROCEDURE FOR MINERAL SCALE REMOVAL FROM HEAT EXCHANGER The amount of calcium carbonate (minerals) released from water is in direct proportion to water temperature and usage.
  • Page 66 Eve r Hot® Rinnai Water Heater n-line Filter Gas Supply Cold Water Line Hot Water Line 5 gallon pail of virgin, food grade, white vinegar (or virgin, Circulating Pump food grade, citric acid). Figure 43. Piping for Mineral Scale Flushing.
  • Page 67 ® Common Troubleshooting Comments on the Operation of the EverHot Tankless Water Heater Comment: I don’t have any hot water when I open the tap! Make sure the gas and electricity is turned on to the water heater. The temperature display should have the green light lit when a hot water tap is open and the water heater is operating.

  • Page 68: Parts List

    SECTION X: PARTS LIST TGHE-160I and TGHE-199I Models...
  • Page 69 Description Quantity 001 Main Body 002 Wall Bracket 003 Rubber Bushing 004 Connection Reinforcement Panel 005 Heat Protection Plate 006 Front Panel 007 Gasket - Top and Bottom 008 Gasket - Side 009 Temperature Controller 010 Temperature Controller Bracket 011 Screw Cover 012 Screw Cover Lid 014 Rubber Bushing 016 Packing...
  • Page 71 Description Quantity 101 Test Port Set Screw 108 Burner Case Back Cover 109 Damper LPG Damper NG 110 Manifold Assembly NG 114 Combustion Chamber Sight Glass Plate 116 Electrode 117 Flame Rod 118 Electrode Packing 119 Electrode Holder 125 Fan Motor All Assembly 131 40 Bell Mouth 139 Air Inlet Duct 143 Heat Exchanger Assembly...
  • Page 73 Description Quantity 447 Connection Harness 712 Frost Sensing Switch 720 Power Cord 721 Fuse Harness 722 Power Harness 724 Sensor Harness 725 Thermal Fuse Harness Assembly 726 Ignitor Harness 729 Temperature Controller Harness 731 Solenoid Connection Harness 732 AWG#18 Harness 733 Connection Harness 744 Heater and Harness...
  • Page 75 Description Quantity 102 Gas Connection 3/4" NPT 110 Manifold Assembly NG 110 Manifold Assembly LPG 400 Water Inlet 3/4" NPT 401 Water Flow Servo and Sensor Assembly 402 Rectifier 403 By-pass Flow Assembly 404 Stop Bracket 408 Hot Water Outlet 3/4" NPT 410 Plug Band (Small) 411 Drain Valve 413 Cover...

  • Page 76: Warranty

    SECTION XI: WARRANTY What does this Limited Warranty Cover? This limited warranty covers both the heat exchanger and component parts for leakage or other malfunction caused by defects in materials and/or workmanship. It applies to the original consumer purchaser and to any subsequent owner as long as the water heater remains installed at its original place of installation.
  • Page 77 demand recirculation is not incorporated. A system that incorporates a continuous recirculation due to timer settings, excessive heat loss of the loop or aquastat / thermostat setting will be treated as a continuous circulation system and have a reduced warranty of 3 years. On-demand recirculation is defined as a hot water re-circulating loop or system that utilizes existing hot and cold lines or a dedicated return line, and only activates when hot water is used.
  • Page 78 EverHot® Limited Warranty Registration In order to confirm Limited Warranty coverage at 12 years for Residential Applications complete the information below and click submit. *Consumers First Name: *Consumers Last Name: ____________________ ___________________ *Address: *City: ____________________ ____________________ *State: *Zip: ____________________ ____________________ *Phone Number: *Installation Date: ____________________...
  • Page 79 NOTES:...
  • Page 80 Ambler, PA For U.S. and Canada field service, Contact your professional installer or local Bradford White representative. Sales/800-523-2931 Fax/215-641-1670 Parts Fax/215-641-2180 Technical Support/800-334-3393 Fax/269-795-1089 Warranty/800-531-2111 Fax/269-795-1089 International: Telephone/215-641-9400 Telefax/215-641-9750 Mississauga, ON Sales/866-690-0961 905-238-0100 Fax/905-238-0105 Technical Support/800-334-3393 Email parts@bradfordwhite.com techserv@bradfordwhite.com www.bradfordwhite.com...
