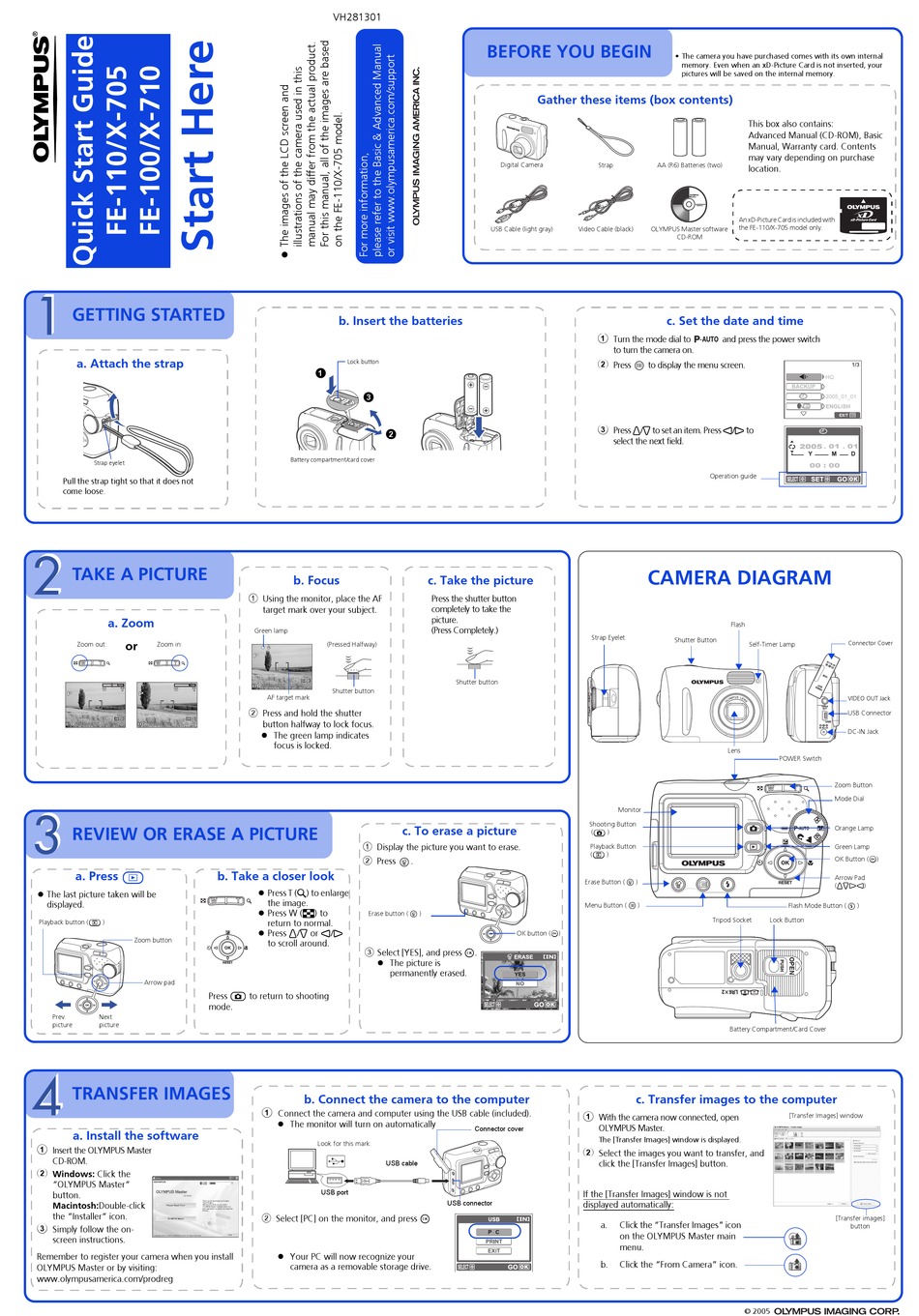

Olympus FE110 - 5 Megapixel Digital Camera Quick Start Manual

GETTING STARTED

a. Attach the strap
Strap eyelet
Pull the strap tight so that it does not
come loose.

TAKE A PICTURE

a. Zoom
Zoom out: Zoom in:
or
REVIEW OR ERASE A PICTURE
a. Press k
The last picture taken will be
displayed.
Playback button ( k )
Zoom button
Arrow pad
Prev. Next
picture picture

TRANSFER IMAGES

a. Install the software
1
Insert the OLYMPUS Master
CD-ROM.
2
Windows: Click the
"OLYMPUS Master"
button.
Macintosh:Double-click
the "Installer" icon.
3
Simply follow the on-
screen instructions.
Remember to register your camera when you install
OLYMPUS Master or by visiting:
www.olympusamerica.com/prodreg
Printed in China
VH281301
b. Insert the batteries
Lock button
1
3
Battery compartment/card cover
b. Focus
1 Using the monitor, place the AF
target mark over your subject.
Green lamp
(Pressed Halfway)
Shutter button
AF target mark
2 Press and hold the shutter
button halfway to lock focus.
The green lamp indicates
focus is locked.
1 Display the picture you want to erase.
2 Press
b. Take a closer look
Press T (U) to enlarge
the image.
Press W (G) to
Erase button (
return to normal.
Press [/\ or ^/]
to scroll around.
3 Select [YES], and press i.
Press l to return to shooting
mode.
b. Connect the camera to the computer
1
Connect the camera and computer using the USB cable (included).
The monitor will turn on automatically
Look for this mark.
USB port
2 Select [PC] on the monitor, and press i
Your PC will now recognize your
camera as a removable storage drive.

BEFORE YOU BEGIN

Gather these items (box contents)
Digital Camera
USB Cable (light gray)
2
c. Take the picture
Press the shutter button
completely to take the
picture.
(Press Completely.)
Shutter button
c. To erase a picture
.
)
OK button (i)
The picture is
permanently erased.
Connector cover
USB cable
USB connector
• The camera you have purchased comes with its own internal
memory. Even when an xD-Picture Card is not inserted, your
pictures will be saved on the internal memory.
This box also contains:
Advanced Manual (CD-ROM), Basic
Manual, Warranty card. Contents
may vary depending on purchase
Strap AA (R6) Batteries (two)
location.
An xD-Picture Card is included with
the FE-110/X-705 model only.
Video Cable (black) OLYMPUS Master software
CD-ROM
c. Set the date and time
1
Turn the mode dial to and press the power switch
to turn the camera on.
2
Press to display the menu screen.
3 Press [/\ to set an item. Press ^/] to
select the next field.
Operation guide

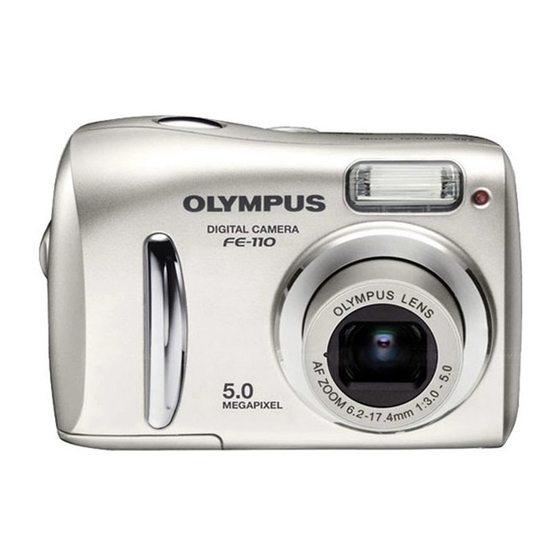

CAMERA DIAGRAM

Flash
Strap Eyelet
Shutter Button
Self-Timer Lamp
Lens
Monitor
Shooting Button
( l )
Playback Button
( k )
Erase Button ( )
Menu Button ( )
Tripod Socket
Battery Compartment/Card Cover
c. Transfer images to the computer
1
With the camera now connected, open
OLYMPUS Master.
The [Transfer Images] window is displayed.
2
Select the images you want to transfer, and
click the [Transfer Images] button.
If the [Transfer Images] window is not
displayed automatically:
a. Click the "Transfer Images" icon
on the OLYMPUS Master main
menu.
b. Click the "From Camera" icon.
© 2005
Connector Cover
VIDEO OUT Jack
USB Connector
DC-IN Jack
POWER Switch
Zoom Button
Mode Dial
Orange Lamp
Green Lamp
OK Button (i)
Arrow Pad
([\]^)
Flash Mode Button ( )
Lock Button
[Transfer Images] window
[Transfer images]
button
