Fast Track Ultra
5

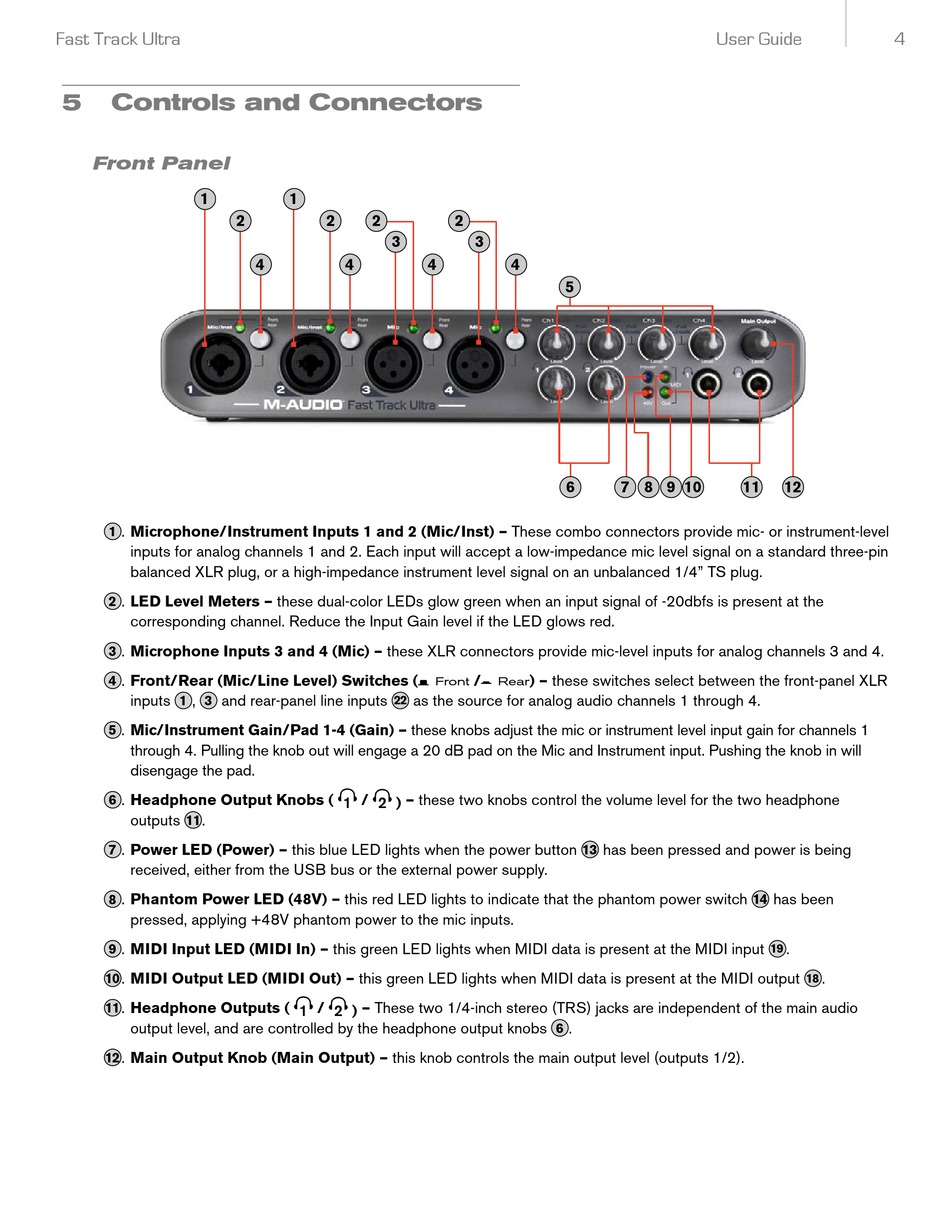

Controls and Connectors

Front Panel

�
. Microphone/Instrument Inputs 1 and 2 (Mic/Inst) – These combo connectors provide mic- or instrument-level
1
inputs for analog channels 1 and 2. Each input will accept a low-impedance mic level signal on a standard three-pin
balanced XLR plug, or a high-impedance instrument level signal on an unbalanced 1/4" TS plug.
. LED Level Meters – these dual-color LEDs glow green when an input signal of -20dbfs is present at the
2
corresponding channel. Reduce the Input Gain level if the LED glows red.
. Microphone Inputs 3 and 4 (Mic) – these XLR connectors provide mic-level inputs for analog channels 3 and 4.
3
. Front/Rear (Mic/Line Level) Switches (
4
inputs , and rear-panel line inputs
1 3
. Mic/Instrument Gain/Pad 1-4 (Gain) – these knobs adjust the mic or instrument level input gain for channels 1
5
through 4. Pulling the knob out will engage a 20 dB pad on the Mic and Instrument input. Pushing the knob in will
disengage the pad.
. Headphone Output Knobs ( 1 / 2 ) – these two knobs control the volume level for the two headphone
6
outputs .
11
. Power LED (Power) – this blue LED lights when the power button
7
received, either from the USB bus or the external power supply.
. Phantom Power LED (48V) – this red LED lights to indicate that the phantom power switch
8
pressed, applying +48V phantom power to the mic inputs.
. MIDI Input LED (MIDI In) – this green LED lights when MIDI data is present at the MIDI input
9
. MIDI Output LED (MIDI Out) – this green LED lights when MIDI data is present at the MIDI output
10
. Headphone Outputs ( 1 / 2 ) – These two 1/4-inch stereo (TRS) jacks are independent of the main audio
11
output level, and are controlled by the headphone output knobs
. Main Output Knob (Main Output) – this knob controls the main output level (outputs 1/2).
12
�
� � �
�
� �
as the source for analog audio channels 1 through 4.
22
�
�
� �
�
�
/ ) – these switches select between the front-panel XLR
Front Rear
has been pressed and power is being
13
.
6
User Guide
� � � �� �� ��
has been
14
.
19
4 4
.
18
