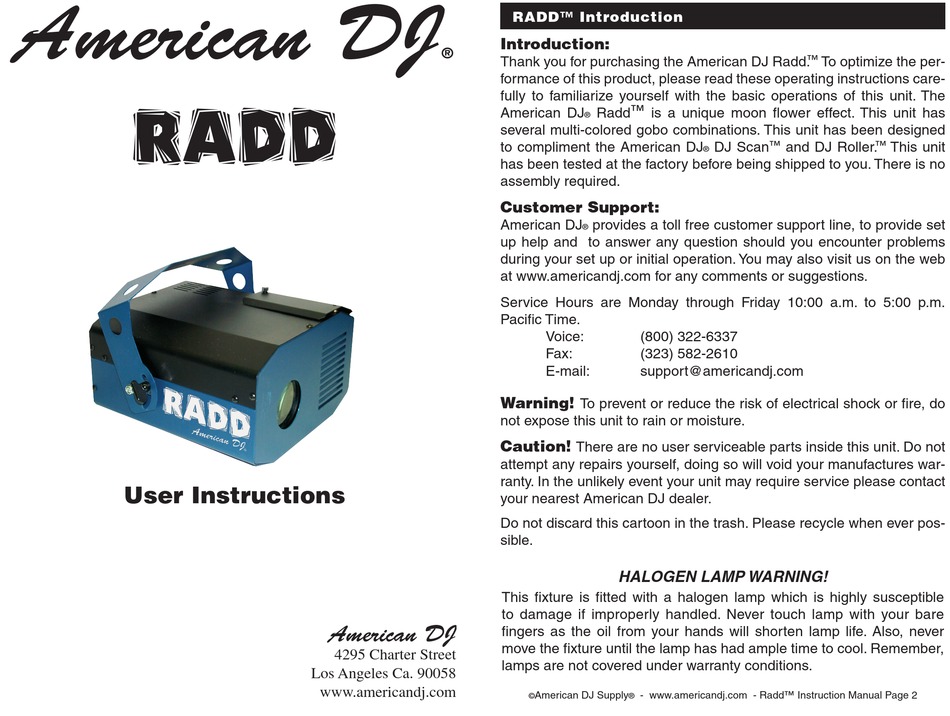

American DJ
RADD
User Instructions
®
American DJ
4295 Charter Street
Los Angeles Ca. 90058
www.americandj.com
RADD™ Introduction
Introduction:
Thank you for purchasing the American DJ Radd.
formance of this product, please read these operating instructions care-
fully to familiarize yourself with the basic operations of this unit. The
Radd ™ is a unique moon flower effect. This unit has
American DJ
®
several multi-colored gobo combinations. This unit has been designed
to compliment the American DJ
has been tested at the factory before being shipped to you. There is no
assembly required.
Customer Support:
American DJ
provides a toll free customer support line, to provide set
®
up help and to answer any question should you encounter problems
during your set up or initial operation. You may also visit us on the web
at www.americandj.com for any comments or suggestions.
Service Hours are Monday through Friday 10:00 a.m. to 5:00 p.m.
Pacific Time.
Voice:
(800) 322-6337
Fax:
(323) 582-2610
E-mail:
support@americandj.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
your nearest American DJ dealer.
Do not discard this cartoon in the trash. Please recycle when ever pos-
sible.
HALOGEN LAMP WARNING!
This fixture is fitted with a halogen lamp which is highly susceptible
to damage if improperly handled. Never touch lamp with your bare
fingers as the oil from your hands will shorten lamp life. Also, never
move the fixture until the lamp has had ample time to cool. Remember,
lamps are not covered under warranty conditions.
American DJ Supply
- www.americandj.com - Radd™ Instruction Manual Page 2
©
®
™
To optimize the per-
DJ Scan
™
and DJ Roller.
™
®
This unit
Advertisement
Table of Contents
Related Manuals for American DJ RADD
Summary of Contents for American DJ RADD
-
Page 1: Customer Support
American DJ RADD™ Introduction Introduction: ® Thank you for purchasing the American DJ Radd. ™ To optimize the per- formance of this product, please read these operating instructions care- fully to familiarize yourself with the basic operations of this unit. The RADD Radd ™... - Page 2 RADD™ Features • Do not spill water or other liquids in to or on to your unit. Congratulations and thank you for purchasing the American DJ “RADD,” • Be sure that the local power outlet matches the required voltage one of the finest pieces of its kind on the market today! The RADD is a great inexpensive, light weight, mini intelligent fixture.
-
Page 3: Power Supply
3 HO T Pin 3 = Data Tr ue (positiv e) Before plugging your unit in be sure the source voltage in your area matches the required voltage for your American DJ Radd.™ The American DJ Radd is Figure 2 ®... - Page 4 2. This operation will allow you to control each individual fixtures traits 1. This function will allow you to link up to 16 units to run on the with a standard DMX 512 controller such as the American DJ Show master units internal programs.
- Page 5 5. Always be sure to dry all parts completely before plugging the unit in. Radd™ Warranty The American DJ “Radd” ™ comes with a 1 year limited warranty. We recommend filling out the warranty registration card that came with your fixture to validate your warranty.
-
Page 6: Dmx Channel
16 64 256 Some fixtures will omit dip switch 10 all together, for hose fixture the maximum DMX value that can be assigned to fixture will be 511. American DJ Supply - www.americandj.com - Radd™ Instruction Manual Page 11 American DJ Supply - www.americandj.com - Radd™... -
Page 7: Year Limited Warranty
® parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of American DJ under ® this warranty shall be limited to the repair of the product, or replacement thereof, including... -
Page 8: Specifications
11” x 11.5” x 7” Duty Cycle: 10 min. on 10 min. off ©American DJ Supply American DJ World Headquarters: 4295 Charter Street Los Angeles, CA 90058 USA Tel: 323-582-2650 / Fax: 323-582-2610 Web: www.americandj.com / E-mail: info@americandj.com American DJ Supply - www.americandj.com - Radd™...
